502945 - 502945 Amp Mod Plug, 8 Pos.

    8 Pos.
Click image to enlarge
Base Price:
$8.00
Catalog No: 502945
Model No: 502945 Amp Mod Plug, 8 Pos.
Price/Pkg of 10:8.00
Type:RJ-45K
Application:8 Position Keyed, Round, Solid Wire

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

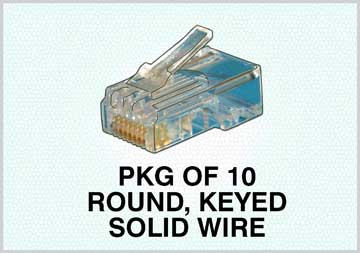

Amp Modular Plugs,
8 Position Keyed, Round, Solid Wire
(Pkg. of 10)

Amp Modular Plugs, 8 Position Keyed, Round, Solid Wire

Features:

  • These high quality Amp modular plugs offer a true mass displacement termination of jacketed cable for solid wire.
  • These modular plugs are a one piece construction with preloaded contacts and can be terminated with round cable, solid wire.
  • Construction:
    • Housing: Polycarbonate, UL 94V-0
    • Terminal: Phosphor Bronze: underplated with 100 µin Nickel and plated with 50µin Gold in contact region and gold flash on remainder of terminal.
    • Listing/Ratings: UL and CSA. Meets FCC and EIA/TIA Industry Standard size and performance.
  • Application: 8 Position Keyed, Round, Solid Wire.
  • Type: RJ-45K.

For RJ45K Flat Oval, Keyed, Stranded Wire, See Cat No 502951.

Electro Standards Laboratories also manufactures all types of Copper and Fiber Optic Cable Assemblies, including MTP/MPO Fiber Solutions and Mil Spec.

We have the capability to custom design and over 30 years experience in the business!For a Custom Copper Data Network Cable Design Form:
/Products-Custom/Data-Cable/

We would be happy to quote any requirement or answer any questions you may have at 401-943-1164.  We are here to assist!

*Prices online are subject to change and verification.
All ESL products are availabe for export.
