Catalog #538838, Model 4215C-LVDT Smart Indicator, 2-Channels of Measurement & Control of LVDT Measurement Fixtures

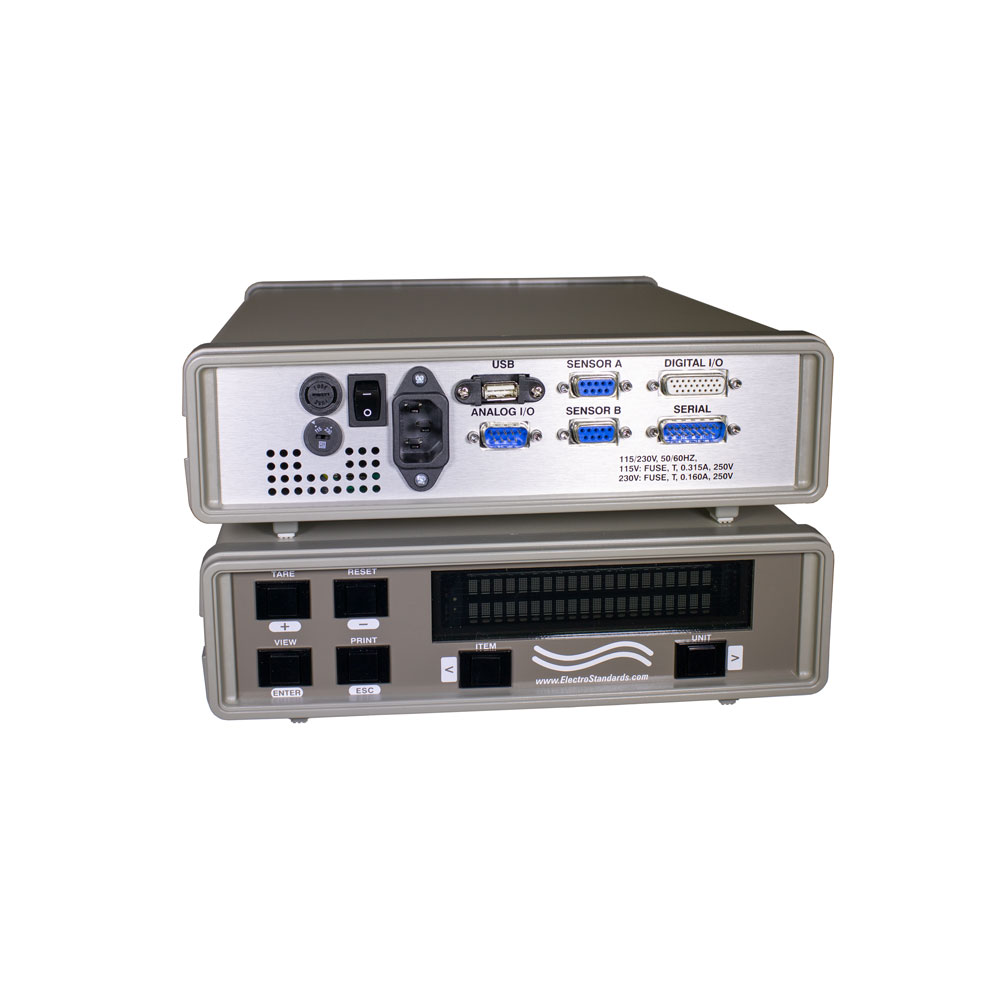

    Model 4215C-LVDTModel 4215C-LVDTSmart Indicator lVDT
Click image to enlarge
    • Model 4215C-LVDT
    • Model 4215C-LVDT
    • Smart Indicator lVDT
Base Price:
$4,505.00
Catalog No: 538838
Model No: 4215C-LVDT
D/A Output-Analog:Scalable +/-10V - 4/20mA Optional
Display Range:+/-999,999 Cts.
Excitation:AC 1.5 kHz. 3 VRMS @ 1.5 kHz
Quad Limits Output:Independent, Isolated Solid State Relays control AC or DC signals.
Resolution:24-bit
Serial Port:RS232/485 - USB Optional

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

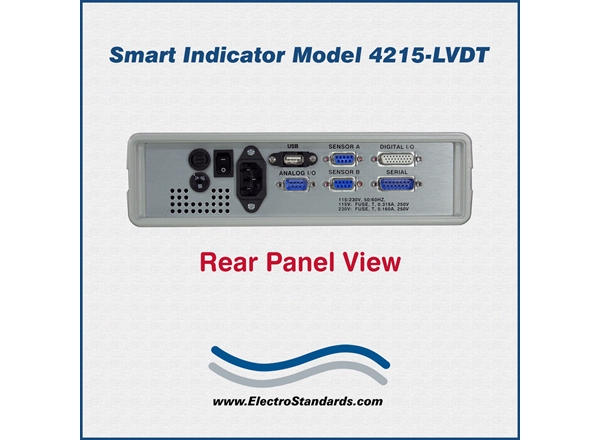

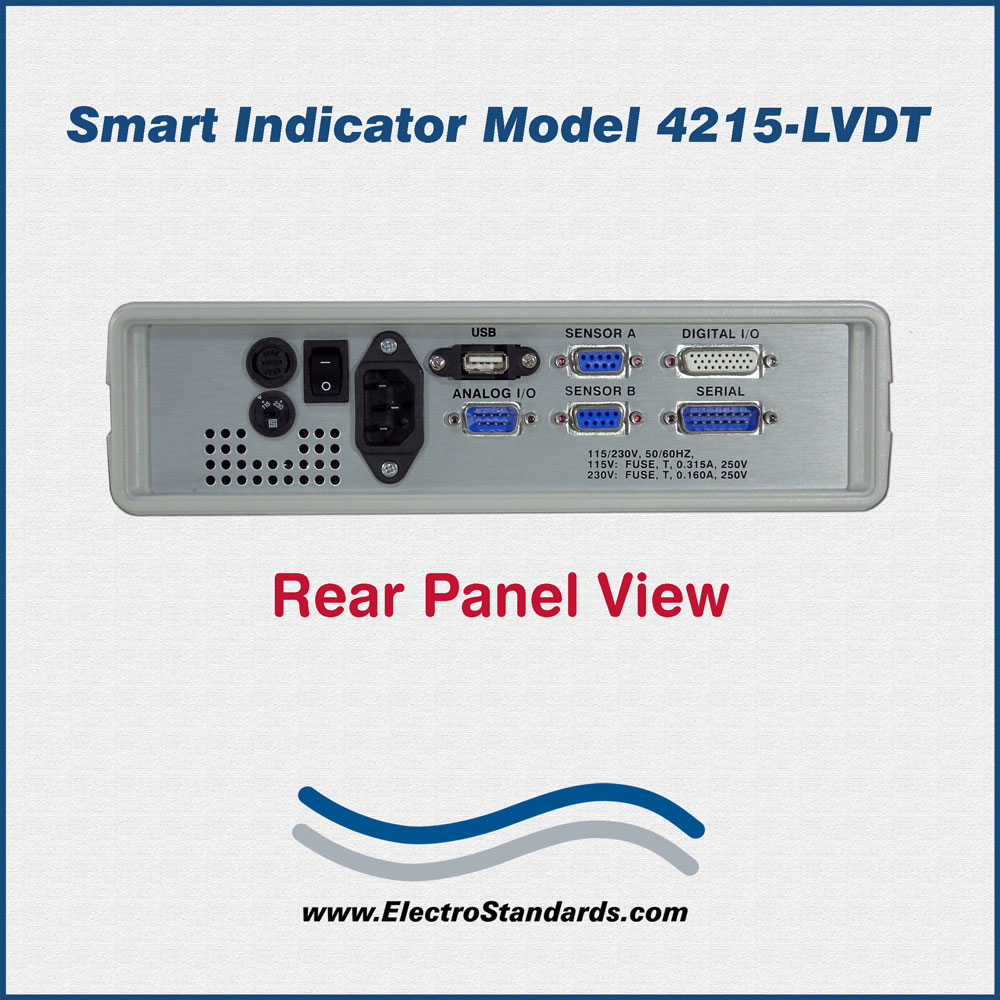

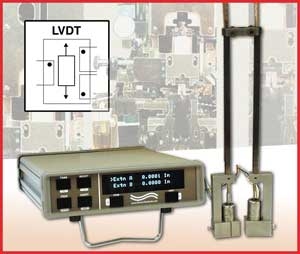

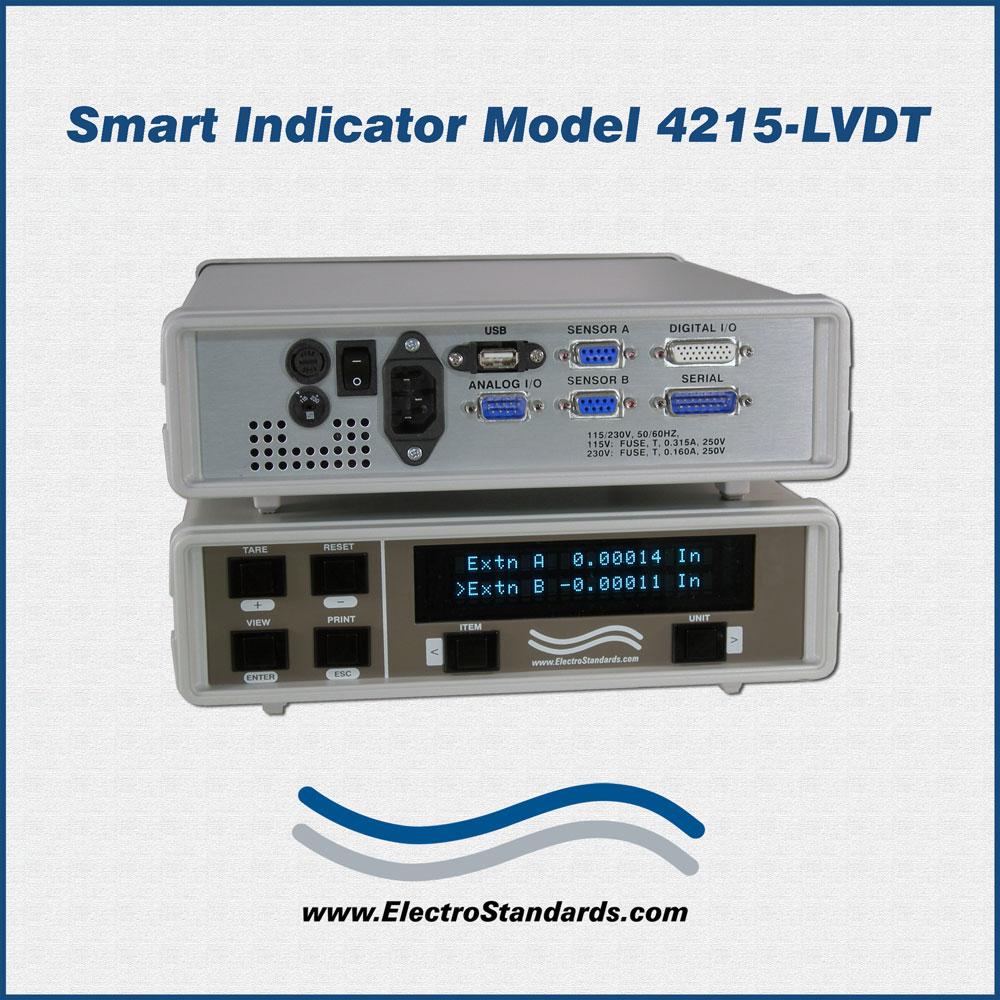

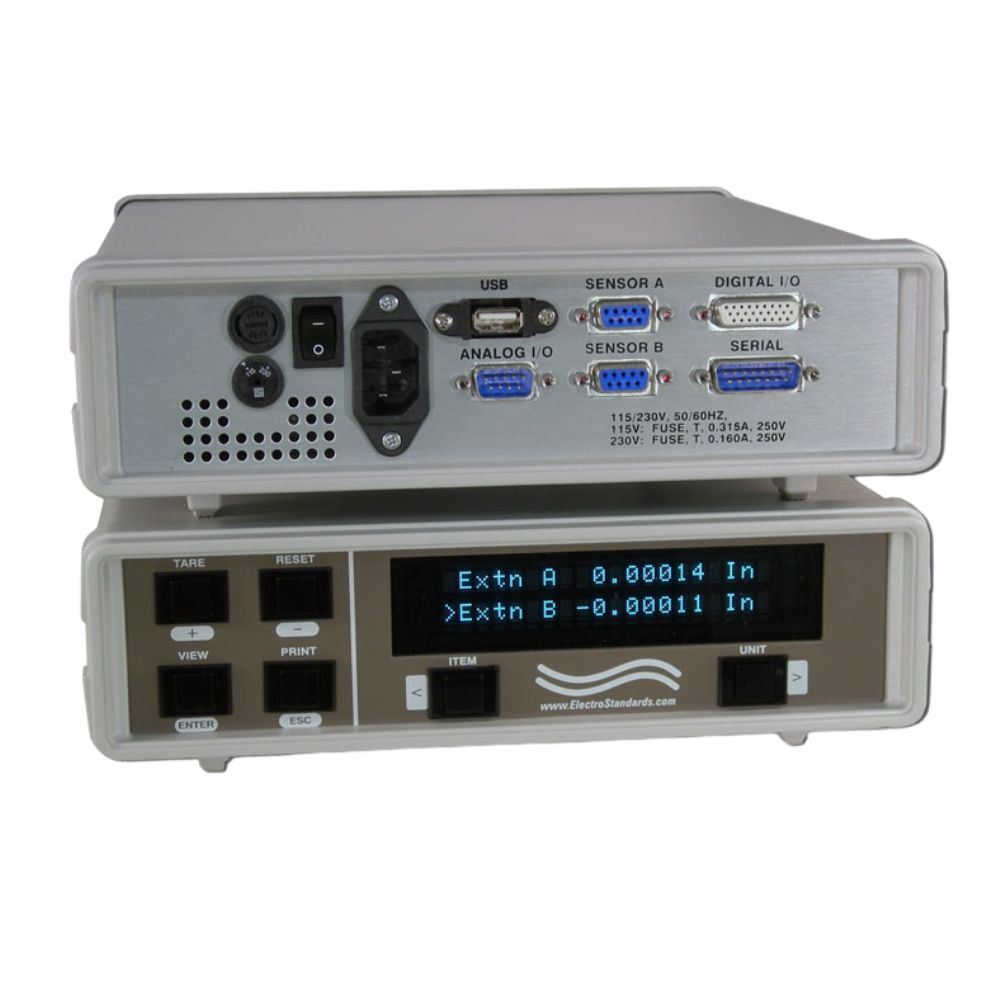

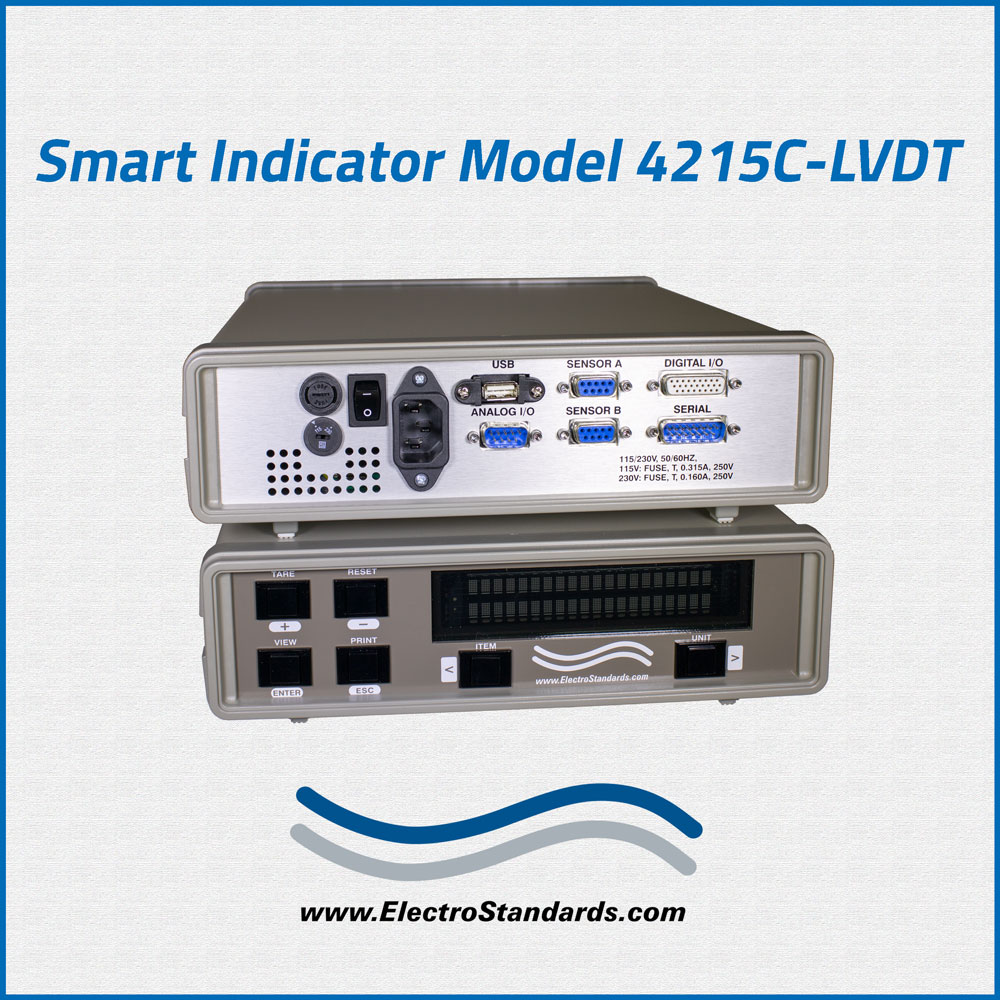

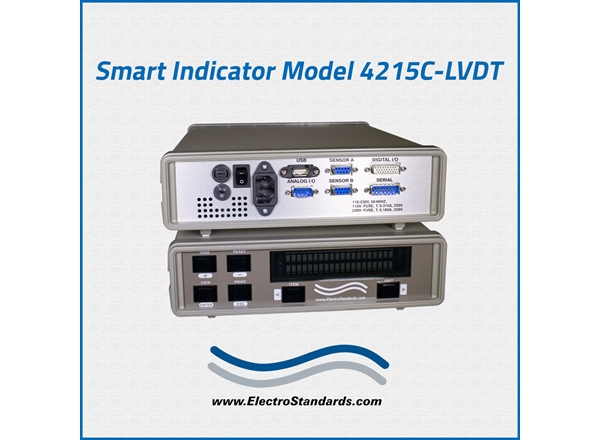

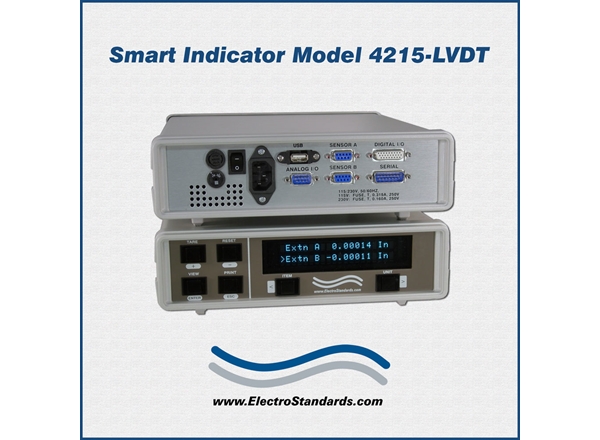

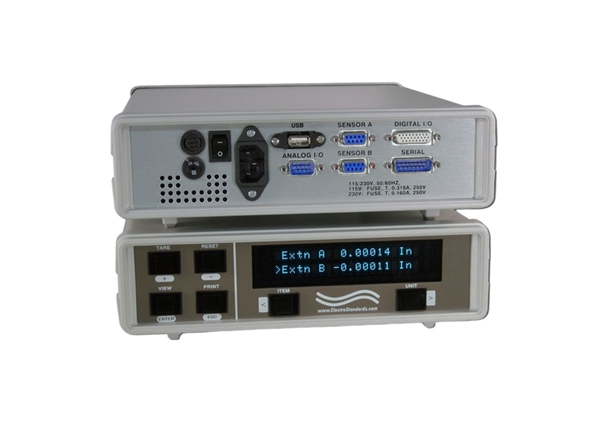

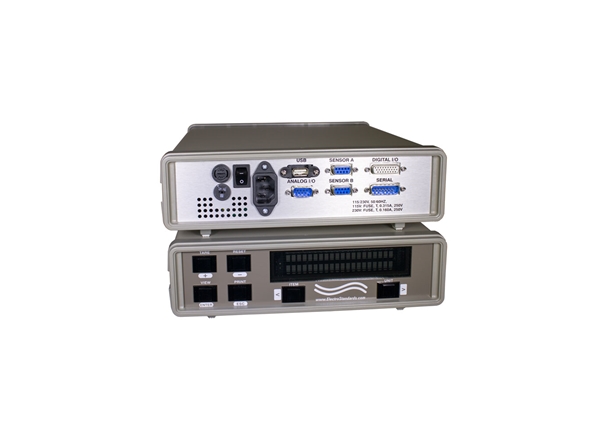

M4215-LVDT Smart Indicator is designed for the measurement and control of dual channel LVDT, Linear Variable Differential Transformer, measurement fixtures
Model 4215C-LVDT Smart Indicator (REPLACES Catalog #512115 Model 4215-L)

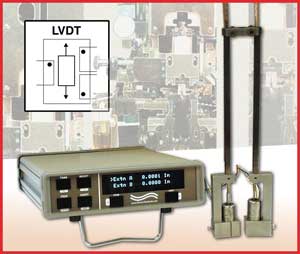

Model 4215C-LVDT Indicator is an intelligent microprocessor-based instrument designed for the measurement and control of dual channel LVDT (Linear Variable Differential Transformer) measurement fixtures. It combines two simultaneous sample LVDT channels, print capabilities and RS232/485 serial communication into a versatile platform that can be customized to deliver the most powerful and affordable instrumentation in its class.

The ESL Model 4215C-LVDT Advanced Digital LVDT Meter provides all excitation and signal conditioning necessary to operate dual LVDT expansion measurement fixtures. The average extension is computed automatically and displayed. The ESL Advanced Digital LVDT Meter also features analog outputs, limit switching, individual unit conversion and a two-line display. Factory options support mixing and matching of strain gauge and LVDT sensor inputs.

Whether you are upgrading an existing system or implementing a new one, the Model 4215C-LVDT brings you the accuracy, reliability and repeatability needed to meet the most demanding applications.

Need something similar?  Call us at 401-943-1164 or email eslab@electrostandards.com.
We have design engineers onsite to custom design to your exact requirements!

Features:

  • Fully Bipolar Range /-999,999 Display
  • 24-Bit Resolution
  • Linearity 0.05%
  • Two channel Simultaneous read
  • 2-line X 20-character vacuum fluorescent display
  • Plug and Play TEDS-Tag® Auto LVDT Identification
  • User input text label on second line of display
  • Auto Setup for 25 Model 4215C-LVDT units
  • Functions Included: peak / valley / hold / tracking / peak reset.
  • Quad Limits Output: independent, isolated solid state relays control AC or DC signals
  • Six user-selectable filters
  • Tri-state limit display: on, off, disabled.
  • Automatic display unit conversion: in, cm, %
  • D/A Output: /-10V std; /-5V, 0-5V, 0-10V std. Per Request
  • Direct analog amplifier output
  • RS485 std. upon request
  • Full operation and calibration via RS232
  • 5-point linearization
  • Includes sum, difference, average of two channels.
  • Analog output RS232 ASII Commands
  • USB Communications Port

Optional Features (Not Included):

  • 4 - 20 mA output
  • Rugged carry handle
  • dataView-LVDT Software
  • Custom-programmed math functions & algorithms
  • Communicate with up to 254 Model 4215C-LVDT units on a single serial communication bus!
  • DC strain gage channel (s)
  • Quadrature encoder channel (s)
  • Ethernet Modbus Connectivity (See Cat. No. 538959)

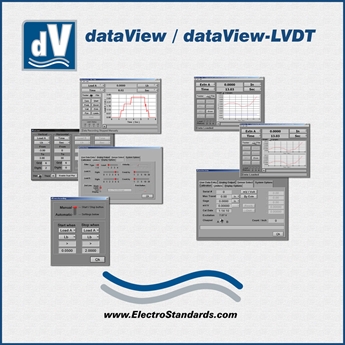

dataView-LVDT Software Ready! (Optional - Not Included)

  • Standard unit is dataView-LVDT Ready for graphical user interface and connection to PC.
  • dataView-LVDT software operates at full speed for single and dual-channel real time data acquisition.

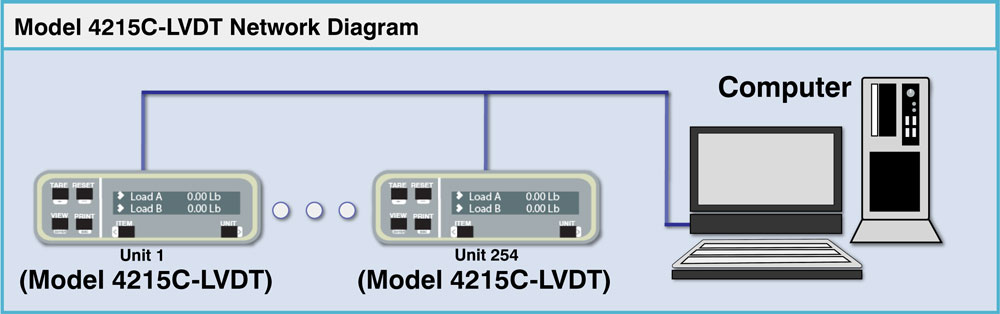

Diagram of Model 4215C-LVDT Indicator Network Application

APPLICATION NOTE: How to make your own Plug and Play Load Cell System!
Order Cat No 501574, TEDS-Tag® ID Component to make your Plug and Play Load Cell System!
