Catalog # 517277R - Model 7507R Power Supply, 100-240 VAC/12 VDC, RoHS Compliant

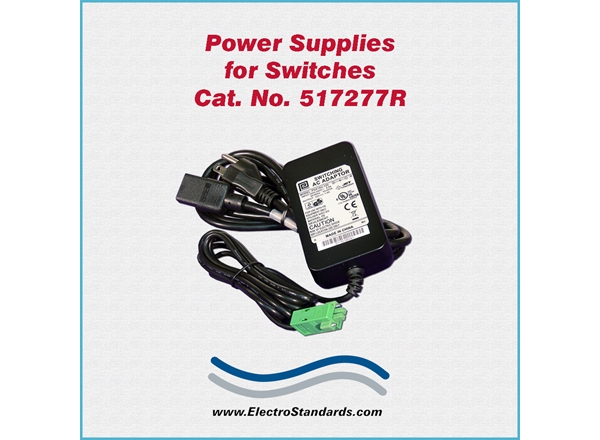

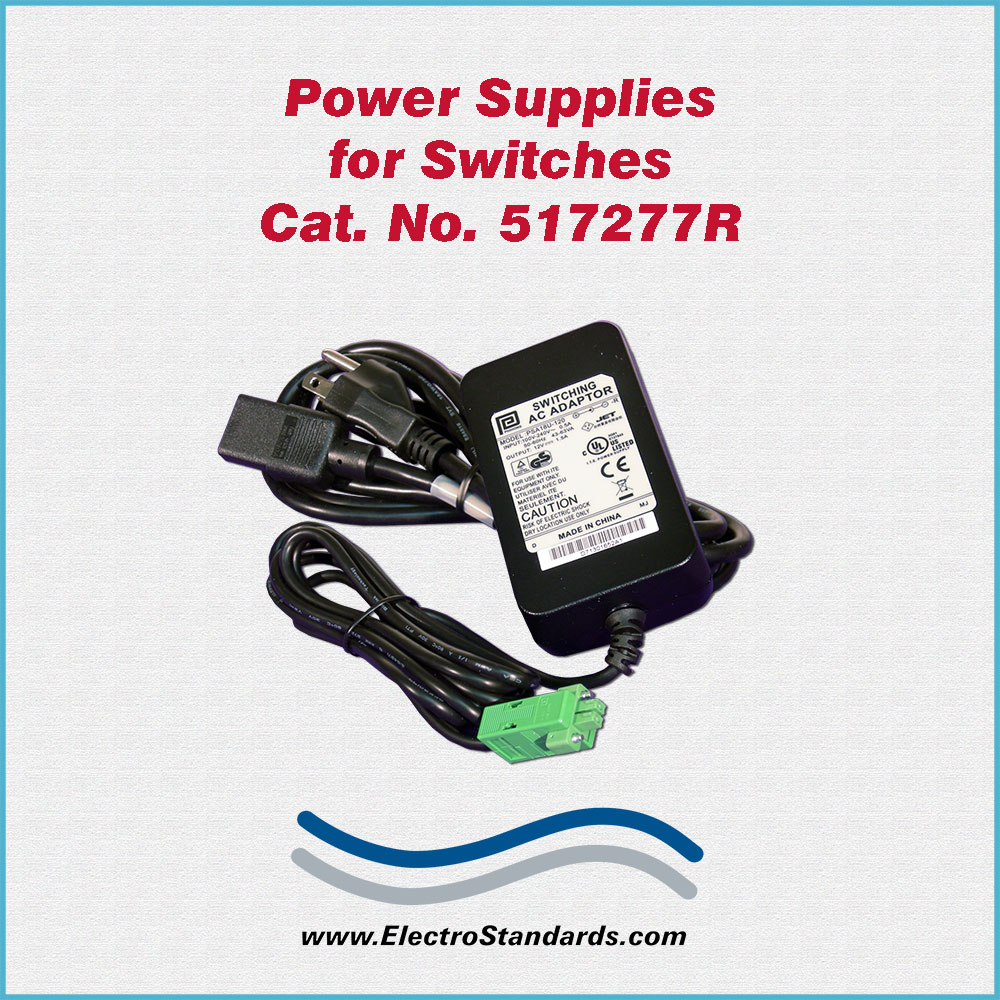

    517277R Power Supply, 100-240 VAC/12 VDC, RoHS Compliant
Click image to enlarge
Base Price:
$98.00
Catalog No: 517277R
Model No: 7507R
Output:12 VDC, 1.5 A
Output Connector:2-Pin Phoenix
Configuration:Table Mount
Power Supply Certifications:UL, CE, RoHS
Input:100-240 VAC, 50/60 Hz, 0.6A
Application:Ideal for International installations

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Catalog No. 517277R, Model No. 7507, Power Supply, Wide Range, with 2-Pin Phoenix Connector

This power supply (Cat. No. 517277R) is used to power a variety of Electro Standards switches, including those from the QuickSwitch® and PathWay® product lines. The 7.5 feet of AC cord (2.27M) provides flexible installation range from the main power source, and a light weight of 0.5 lbs. (0.23kg) ensures an easily moveable and repositionable power cord for a variety of installation areas.

The Cat. No. 517277R wide range power supply makes it ideal for international applications, with the flexibility of the 100-240 voltage range allowing for applications across the United States, Europe, and across the world. This power supply is suitable for a wide array of C13 international power cords, allowing easy interchangeability with the Power Supply's C14 connector (see diagram below). A 110 VDC power cable is included standard with the unit. Additionally, this power supply will fit any of our 12VDC ESL products, allowing a great degree of cross compatibility of our power supplies between products.

Features and Specifications:

  • Overall dimensions of the supply block: 3.94 in. x 1.97 in. x 1.3 in. (100mm x 50mm x 33mm)
  • Length of captive DC output cord: 4.0 ft. (1500mm)
  • AC inlet on supply block, C14 (shown below)
  • Length of AC cord, 7.5 ft. (2.27m)
  • AC Connector (on power cord): C13
  • AC Plug (on power cord): 5-15p
  • Approximate weight: 0.5 lbs. (.23kg)
  • Wide Range Power Supply - Ideal for International Applications
  • 2-pin Phoenix Connector fits any of our standard 12V units
  • Configuration: Table Mount
  • Input:  100 - 240 VAC, 50/60 Hz, 0.6A
  • Output:  12 VDC, 1.5A
  • Output Connector: 2-pin Phoenix Connector (fits any of our standard 12V units)
  • Certifications: UL, CE, RoHS

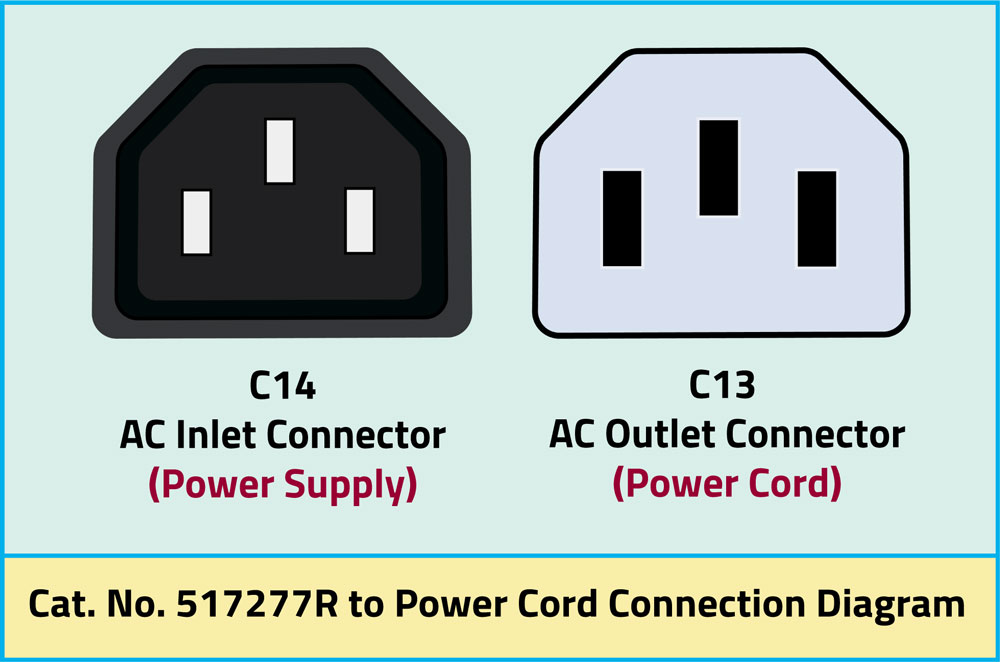

Cat. No. 517277R to Power Cord Connection Network Diagram

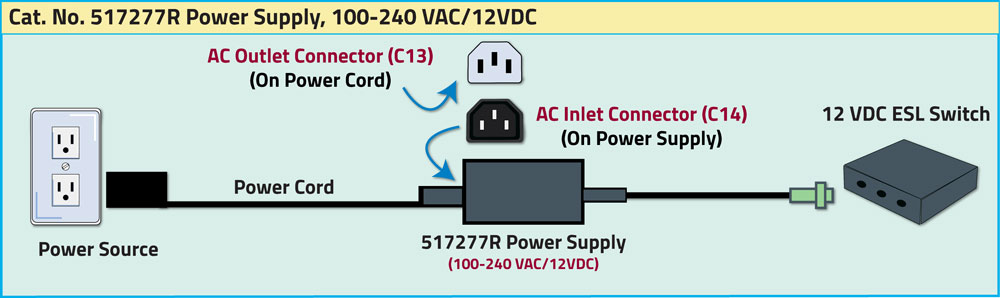

Application Diagram:

Catalog No. 517277R, Model No. 7507, Power Supply, Wide Range, with 2-Pin Phoenix Connector Network Diagram

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
