Overview
Mounting Ear Brackets Option, Catalog No. 517739 for Model 9263 RJ45 Side Mount Switch
Mounting Ear Brackets Option, 1 Pair (Cat No 517739)

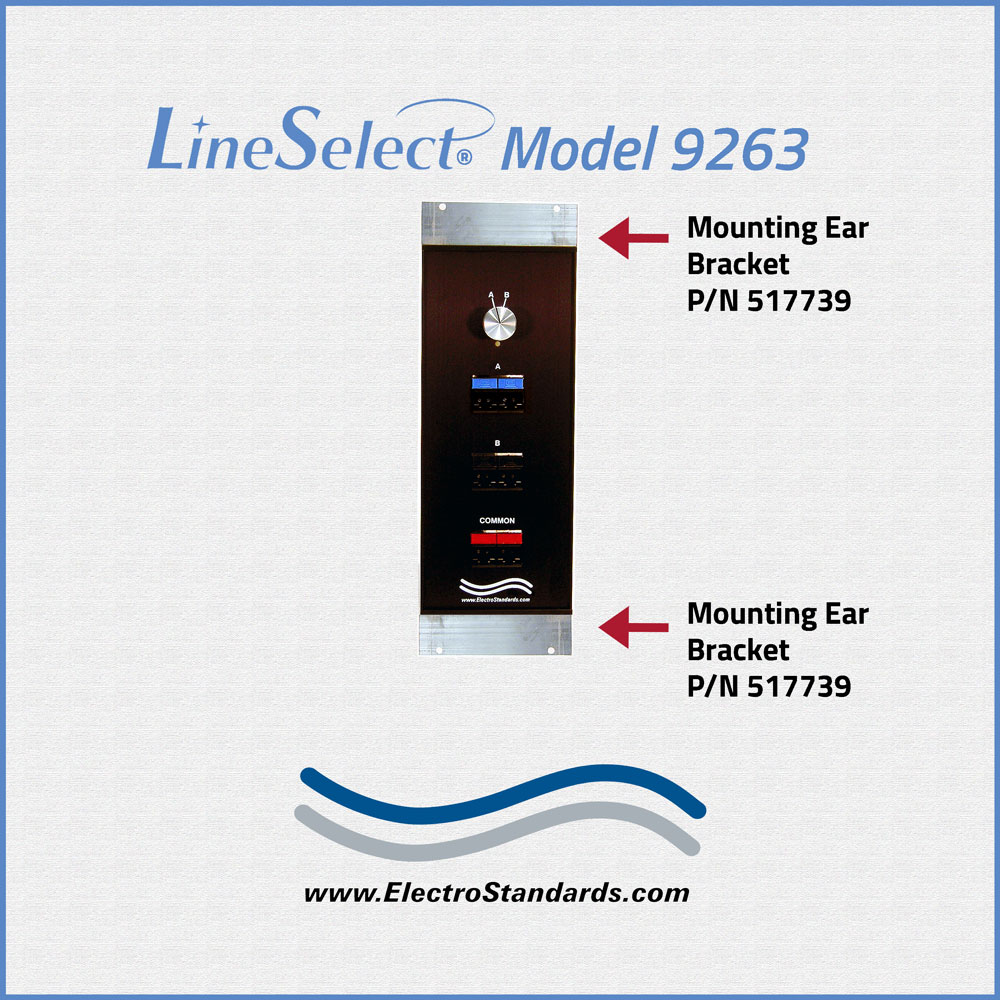

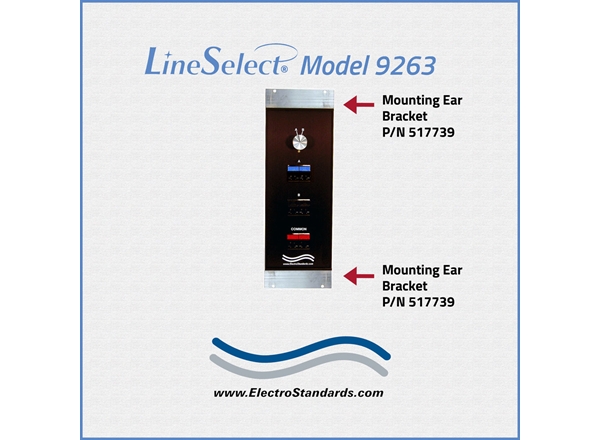

The brackets attach to top and bottom of the LineSelect Model 9263 Switch. Each bracket has two mounting holes on front face, for 6/32” screws. They are designed to mate with customer chassis that has mounting holes 0.2” on center. Total height of switch with ears is 10 5/16”. Vertical spacing of 6/32” mounting hole centers is 10 1/16”.
- The brackets attach to the top and bottom of Model 9263 Switch.
- Each bracket has two mounting holes on front face, for 6/32" screws.
- Designed for chassis with mounting holes 0.2" on center.
- Total height of switch with ears is 10 5/16".
- Vertical spacing of 6/32" mounting hole centers is 10 1/16.
- *Prices online are subject to change and verification.
- All ESL products are available for export.
