Catalog # 309263 - Model 9263 2-Channel RJ45 Cat5e A/B Switch, Side Mount

    2-Channel RJ45 Cat5e Switch2-Channel RJ45 Cat5e Switch front panel view2-Channel RJ45 Cat5e Switch
Click image to enlarge

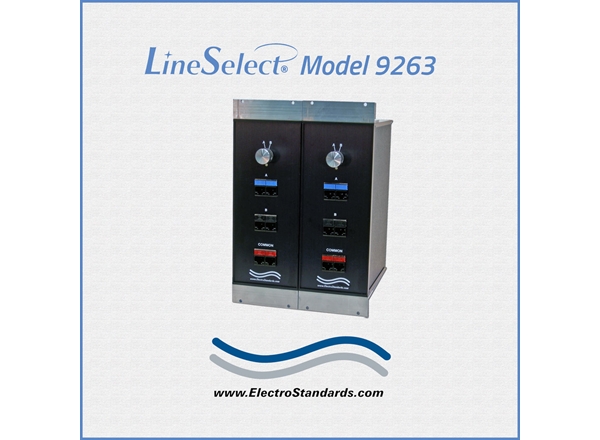

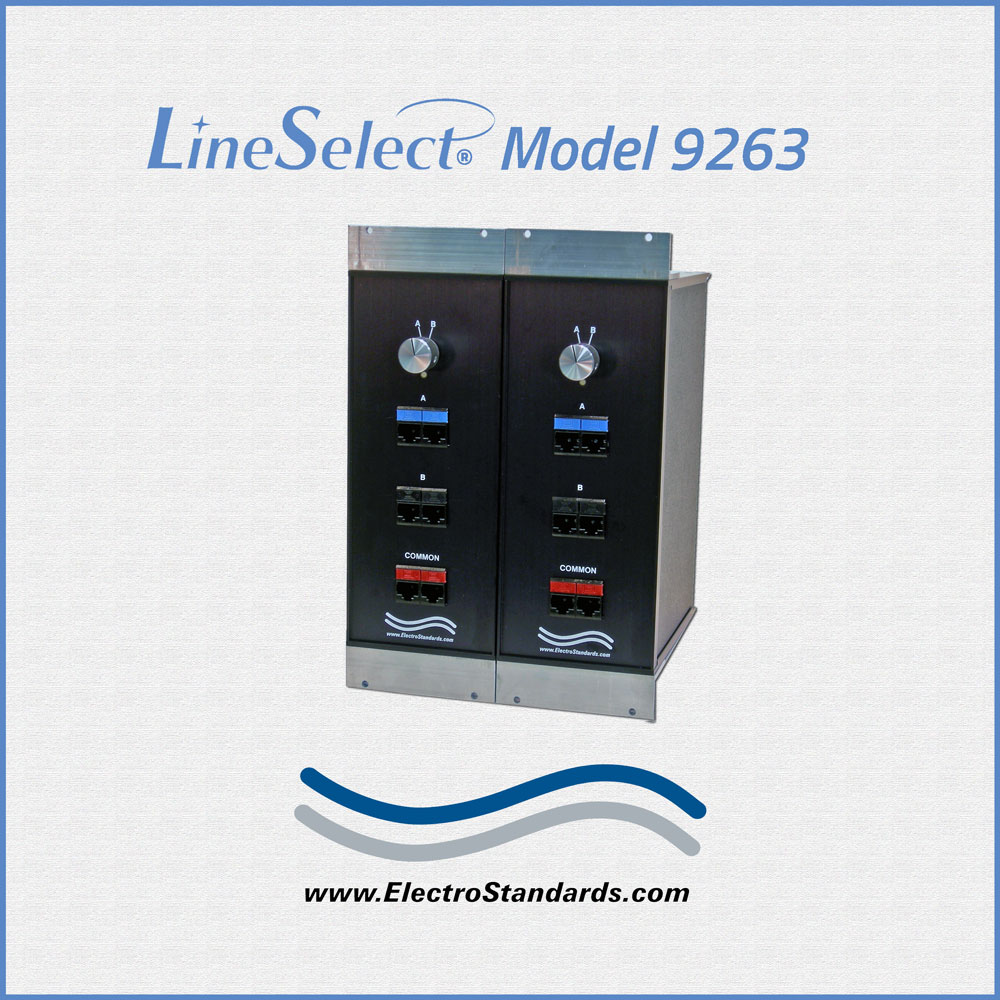

    • 2-Channel RJ45 Cat5e Switch

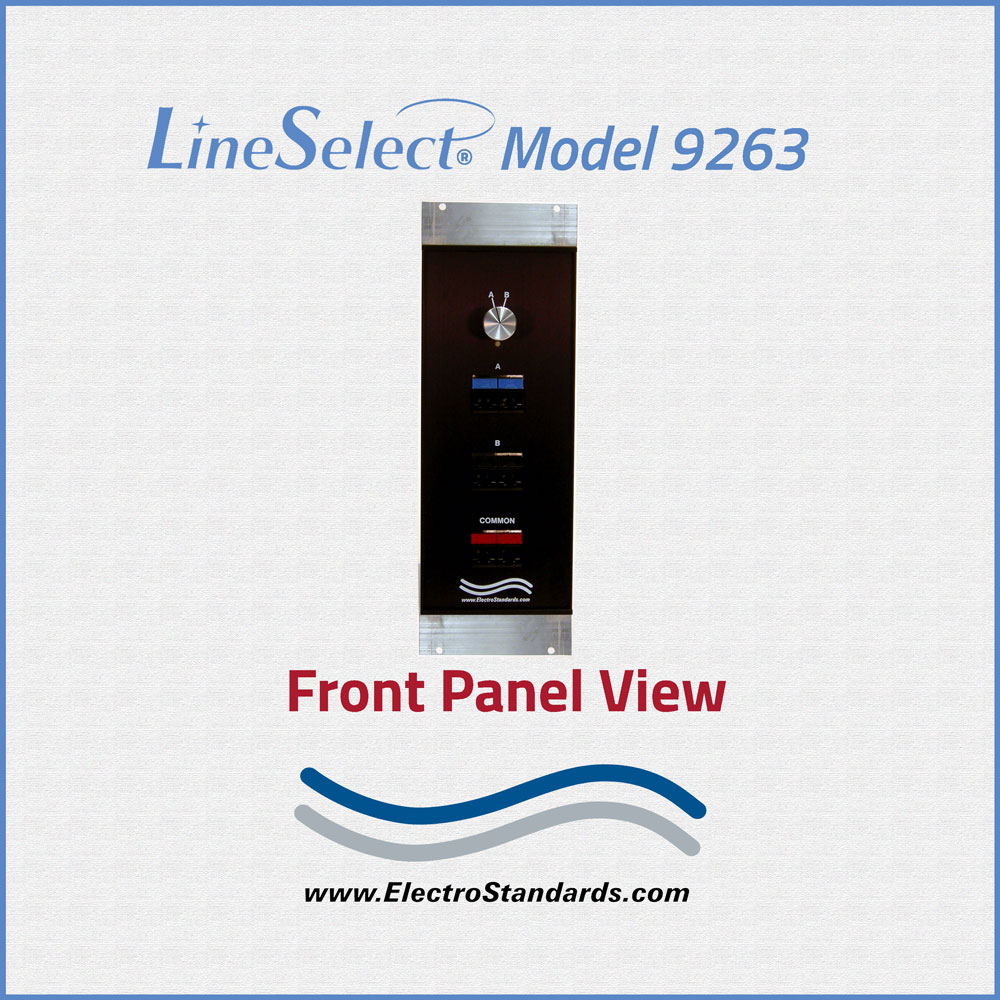

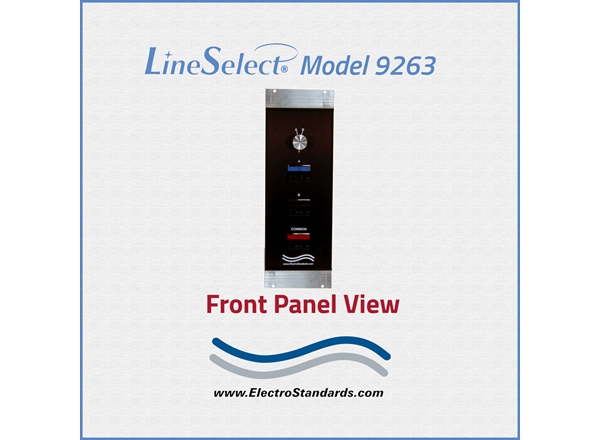

    • 2-Channel RJ45 Cat5e Switch front panel view

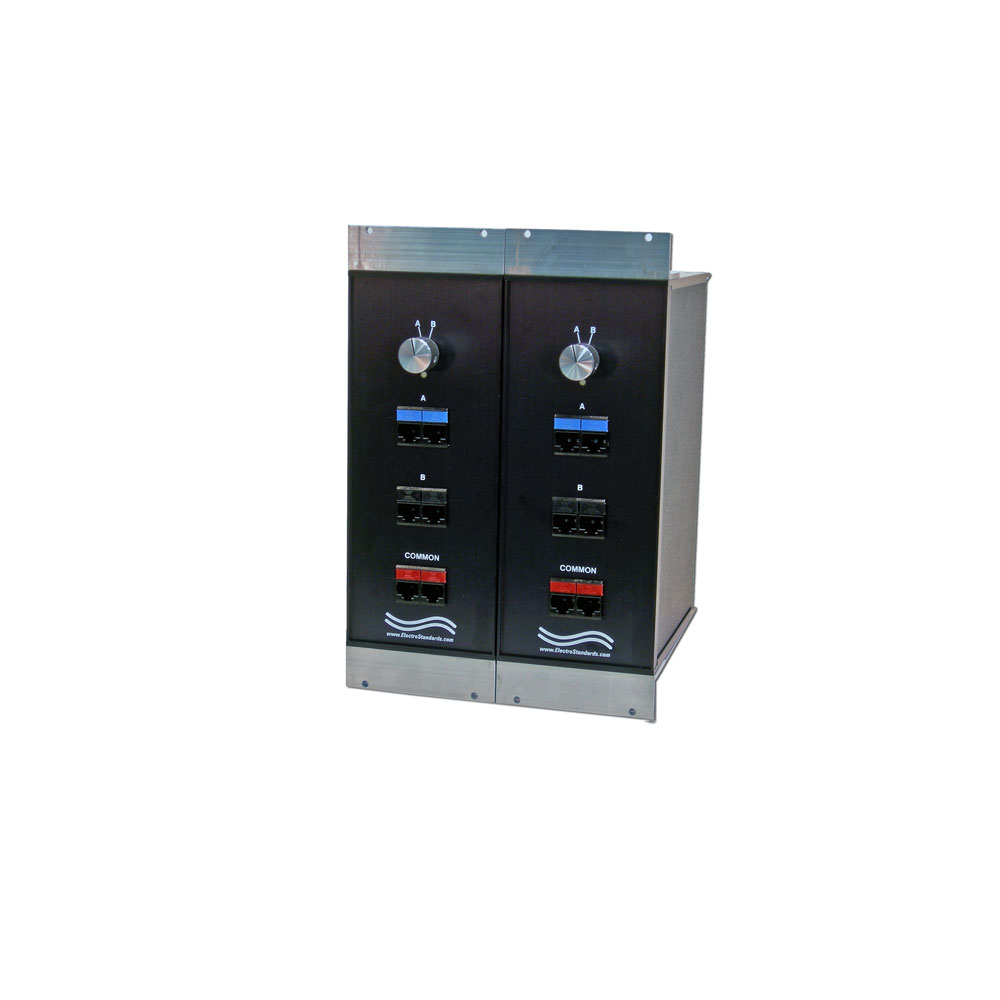

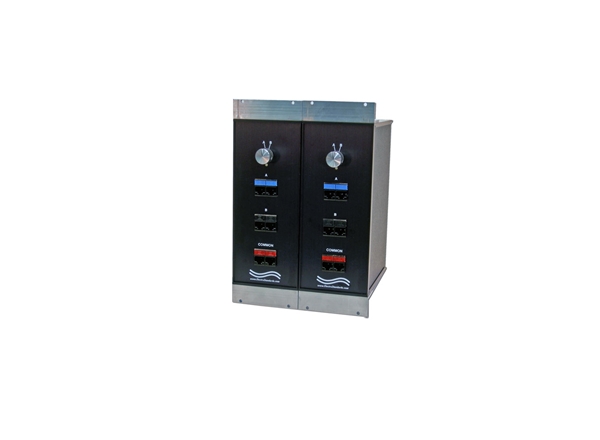

    • 2-Channel RJ45 Cat5e Switch
Base Price:
$926.00
Catalog No: 309263
Model No: 9263
Product Type:Switches: Copper
Interface:RJ45, 10/100/1000 Base-T, Cat 5e
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:2
Manual Control/No Power Required:LineSelect® Manual Operation
Channel Control:Simultaneous Channel Control
Compliance/Standards:Cat5e
Configuration:Rackmount
Local Control:Rotary Knob
Feature:Rated for 10/100/1000 networks (up to Cat5e)

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

RJ45 Manual Network Switch, Cat5e, Rotary Switch
Model 9263 Dual Channel RJ45 Cat5e A/B Switch, Manual, Simultaneous Switching, Side Mount

  • Certified for Cat 5e Compliance.

SPECIFICATIONS:

  • PORT CONNECTORS: (6) RJ45 female, an A, B, and Common for each of the two channels.
  • FRONT PANEL CONTROL: (1) Rotary selector switch on front panel selects A or B for both channels, simultaneously.
  • POWER: No power required. Manually operated.
  • MOUNTING: Designed to mount vertical by adding mounting ear brackets (not included)
  • DIMENSIONS: 8.37"H x 3.5" (2U) W x 6" D. (less ears)

LineSelect® Model 9263 Dual-Channel RJ45 Cat5e A/B Switch Application, Manually Controlled.

The LineSelect® Model 9263 is a two channel RJ45 Cat5e A/B Switch application. Channel 1 and Channel 2 each have two devices connected to the A and B ports for each of two channels.
Simultaneously Control Channel 1 and Channel 2 via a Rotary Switch Knob. Manually Controlled.

LineSelect Model 9263

Model 9263 2-Channel Switch Features:

  • Manually switch both channels simultaneously via one knob located on the front panel.
  • Rated for 10/100/1000 networks (Up to Cat 5e).
  • Transparent to data format
  • Switches all (8) leads
  • All (6) RJ45 female ports located on the front panel: (2) A ports, (2) B ports and (2) Common ports.
  • High quality sealed switch with self wiping contacts
  • Eliminates need to plug and unplug cables.
  • No external power required.
  • Rugged all aluminum case provides EMI/RFI shielding.

The Model 9263 is a dual-channel RJ45 A/B Network Switch.  Both channels switch to A or B simultaneously.  Each of the two channels reroutes data from its Common port to its A or B port, depending on switch position.   The rotary selector switch and all six of the dual channel ports are located on the front panel. Mounting ears are available (Cat No 517739, set of two).

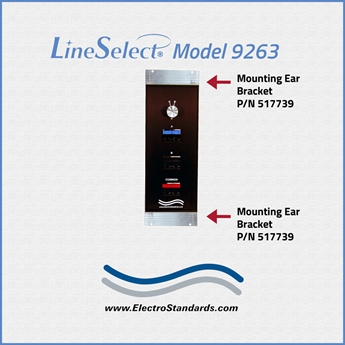

Mounting Ear Brackets Option, 1 Pair (Cat No 517739)

The brackets attach to top and bottom of the Model 9263 Switch.  Each bracket has two mounting holes on front face, for 6/32” screws. They are designed to mate with customer chassis that has mounting holes 0.2” on center.  Total height of switch with ears is 10 5/16”.  Vertical spacing of 6/32” mounting hole centers is 10 1/16”.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.
