Overview

Network Media Converters

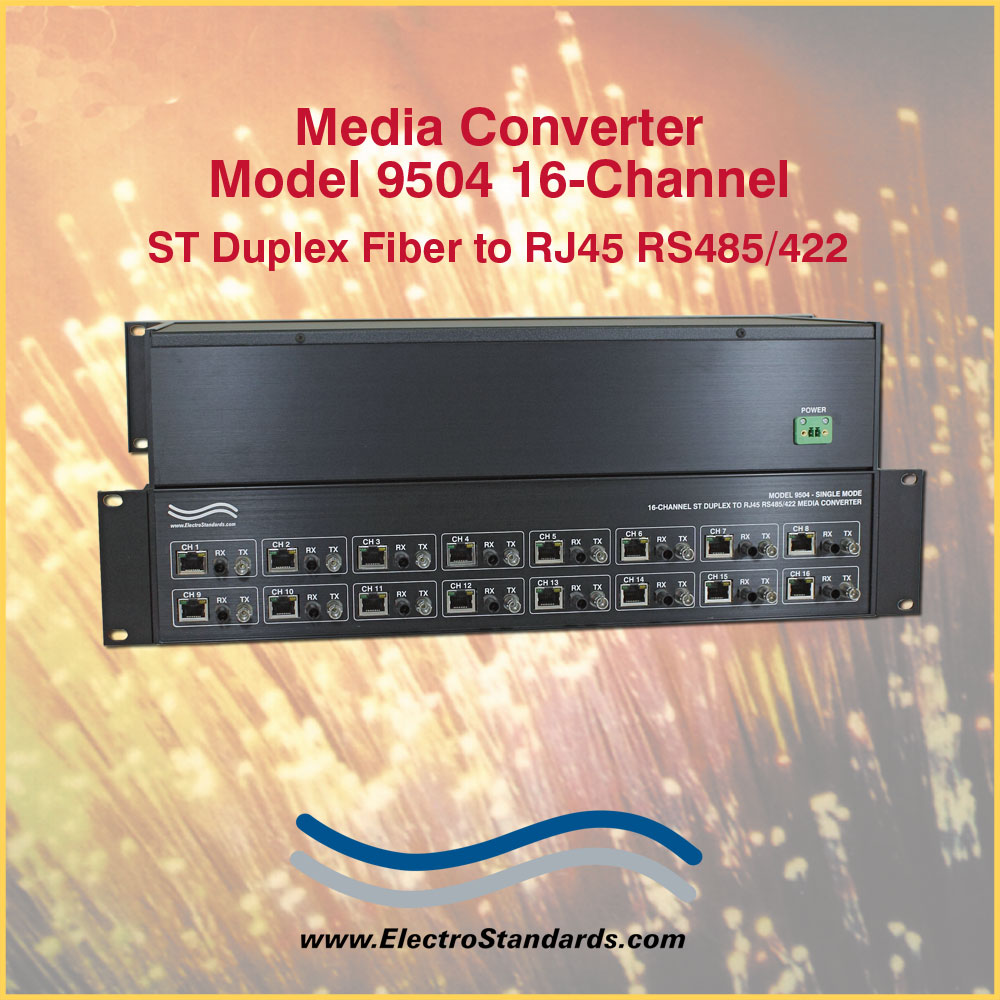

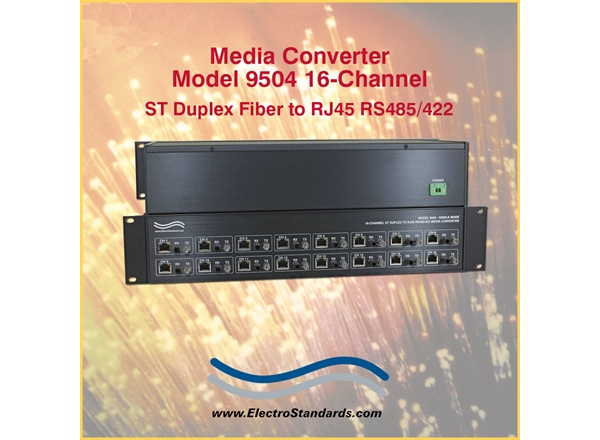

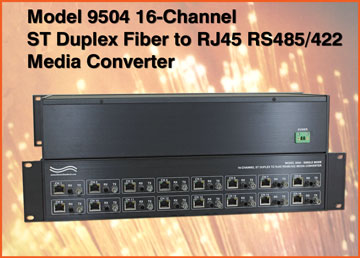

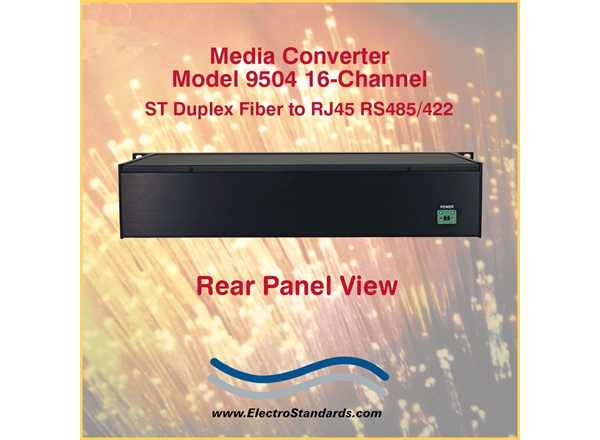

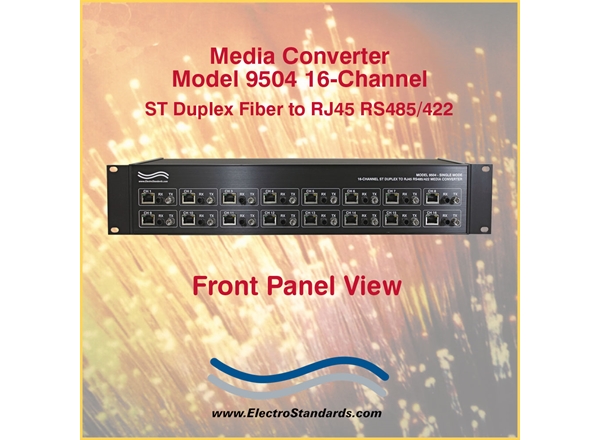

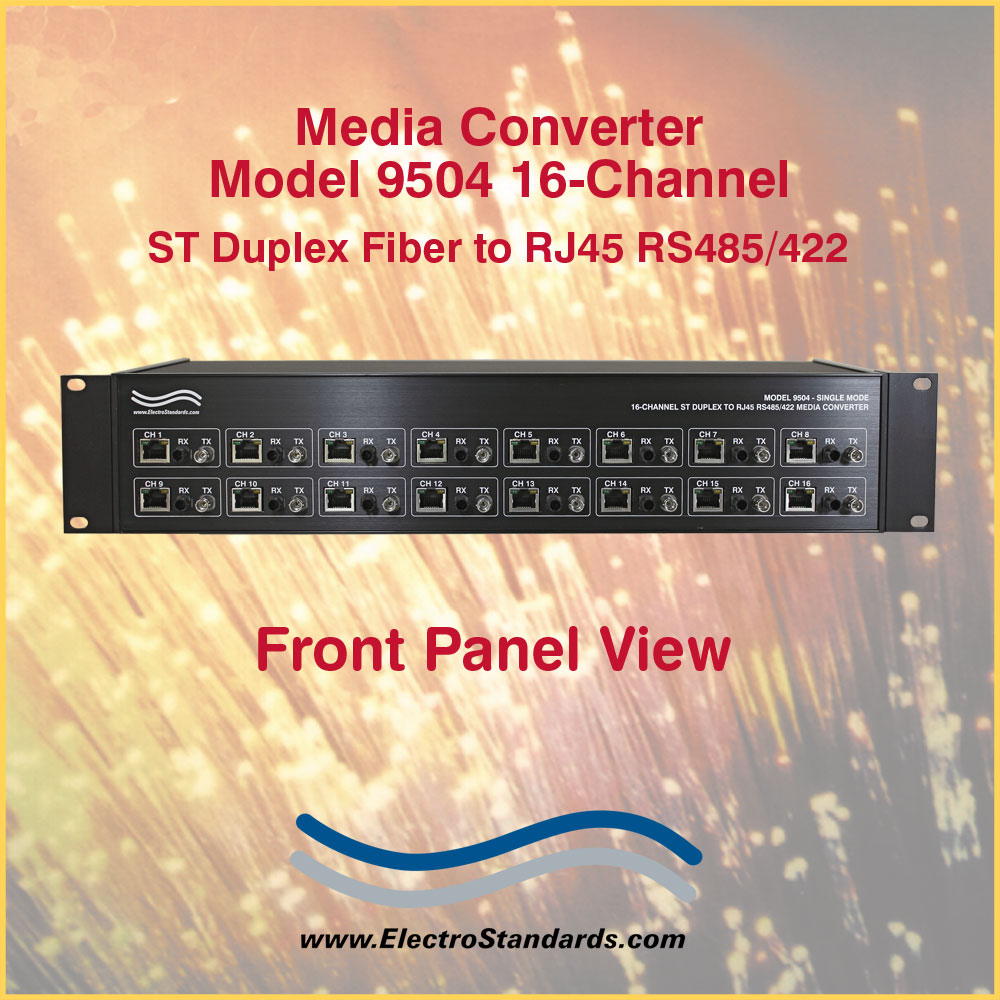

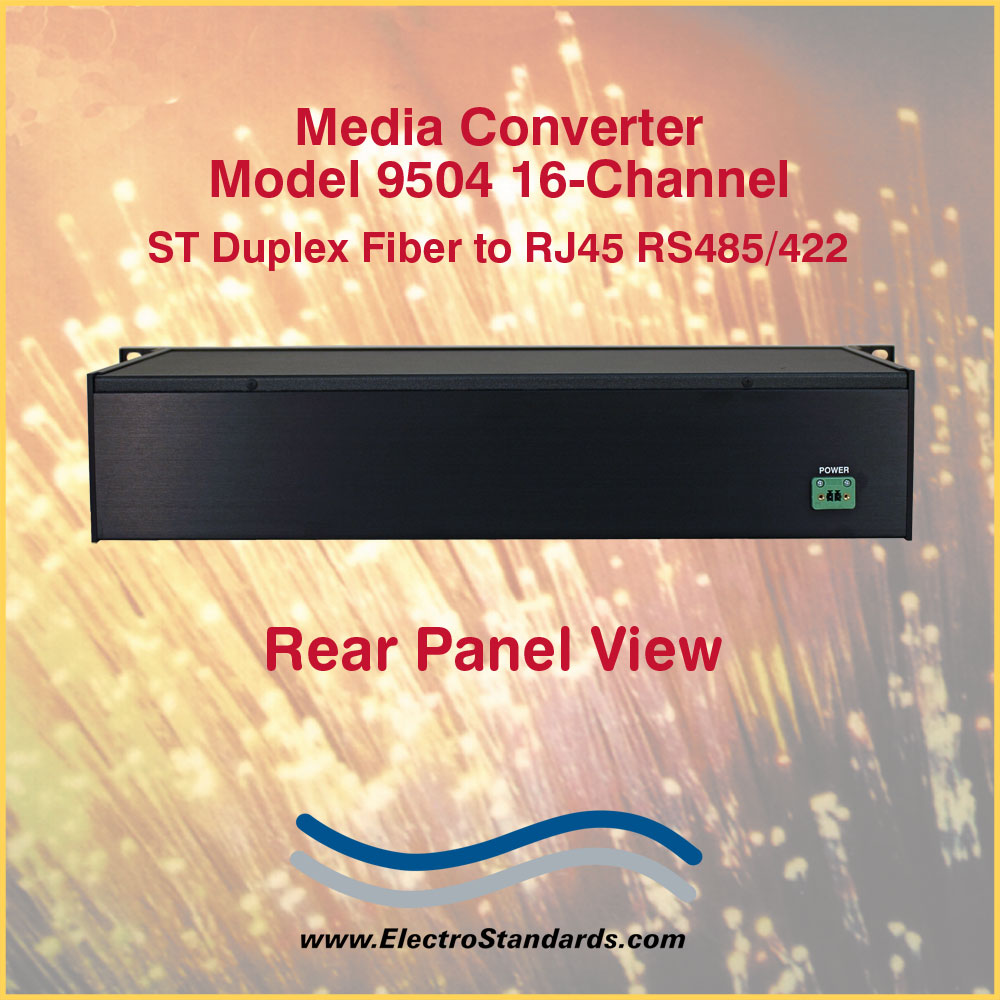

Model 9504 16-Channel ST Duplex Single Mode Fiber to RJ45 RS485/422 Media Converter

  • Ideal for Casino Networks linking Video Lottery Terminals & Video Gaming Machines.

The Model 9504 is a high speed ruggedized 16-Channel ST Single Mode Fiber to RJ45 RS485/422 media converter.  Typical operating speeds are up to 5 Mbps for RS485/422 to fiber conversion.  When operating in RS485/422 mode, each converter can be configured for 2-wire half duplex or 4-wire full duplex operation.  Each converter can be configured as a DCE or DTE interface.

Default: Each converter is configured as a DCE interface with 4-wire full duplex operation.

Applications: The converters provide an industrial solution for applications requiring a single point-to-point over short and long distances.  Applications include: Casino Networks linking Video Lottery Terminals, PC to PC long distance communications, factory automation, barcode readers, time clocks, scales, data entry terminals, ATM's and serial communications in harsh environments.

FEATURES

  • The power input has reverse polarity protection; is is also protected from transients, over current and over voltage.
  • All copper RS485/422 ports are 8-pin RJ45 connectors.
  • ESD and high-power transient protection on copper interfaces.
  • All fiber optic ports are ST Single Mode connectors.  The single mode fiber size is 9/125 µm and the fiber optic wavelength is 1310 nm.
  • All fiber ports are standard fiber optic transceivers that receive and drive the fiber optic signal, where the RX is on the left and the TX is on the right.
  • Other features include user selectable fiber polarity, Fiber TX (Green) and Fiber RX (Yellow) LED Indicators.
  • Each RJ45 Interface Connector has 1 (Green) LED for a fiber TX indicator and 1 (Yellow) LED for a fiber RX indicator.

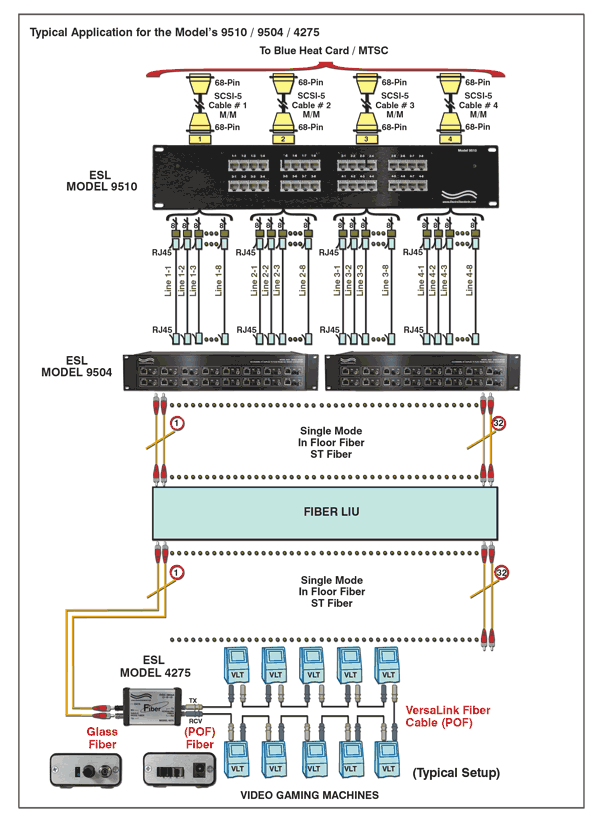

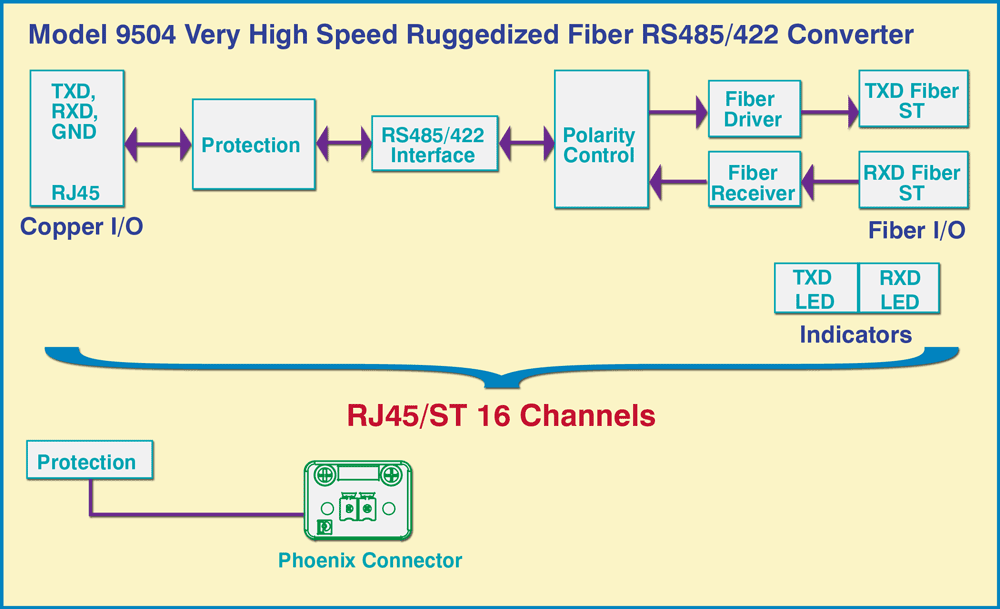

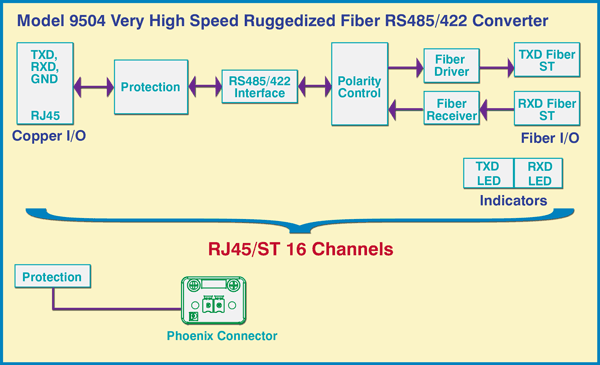

Application Diagram of Model 9504 16-Channel ST Duplex Single Mode Fiber to RJ45 RS485/422 Media Converter Network

 SPECIFICATIONS:

  •  Fiber Interface:
    • (32) Connectors: Fiber Optic Single Mode ST Duplex
    • (16) TX and (16) RX
    • TX Power: - 0 dBm
    • RX Sensitivity: -17 dBm
    • Optical Budget: 17 dB
    • Max. Link Distance with 9/125µm fiber:
      • ~40 km (25 miles) at up to 5 Mbps
    • Wavelength: 1310 nm, Single Mode
    • Fiber Size: 9/125 µm.
  • Fiber Polarity:
    • Logical 1 = Light ON/OFF: Jumper Selectable
  • Copper Interface:
    • (16) Connectors: RJ45, Female
    • Type: RS485/422 (2-wire/4-wire)
    • Terminations: RS485/422 120 Ohm jumper selectable
  • Bit Rate (nom.)
    • RS485/422 0 to 5 Mbps
  •  Indicators:
    • LEDs: (16) TXD and (16) RXD.
  • Power:
    • Input Power: 5VDC@2A
  • Operating Environment
    • -40°C to 85°C2A
  • Network Configurations:
    •  RS485/422  Point-to-Point
  •  Power Supply: Model 9504 is supplied with an external 5VDC, 4A power supply operating from 90-240VAC@50/60Hz.  The power supply is UL listed and LPS approved.  The unit also comes with a 2-prong US non-polarized NEMA 1-15P plug.  The power supply is P/N 527474.
  • Model 9504 Mechanical (Desktop Unit):
    • Size: 19.0" x 3.50" x 8.11" [48.3 x 8.9 x 20.6 cm]
    • Weight: 6.0 lbs [2.7 kg]

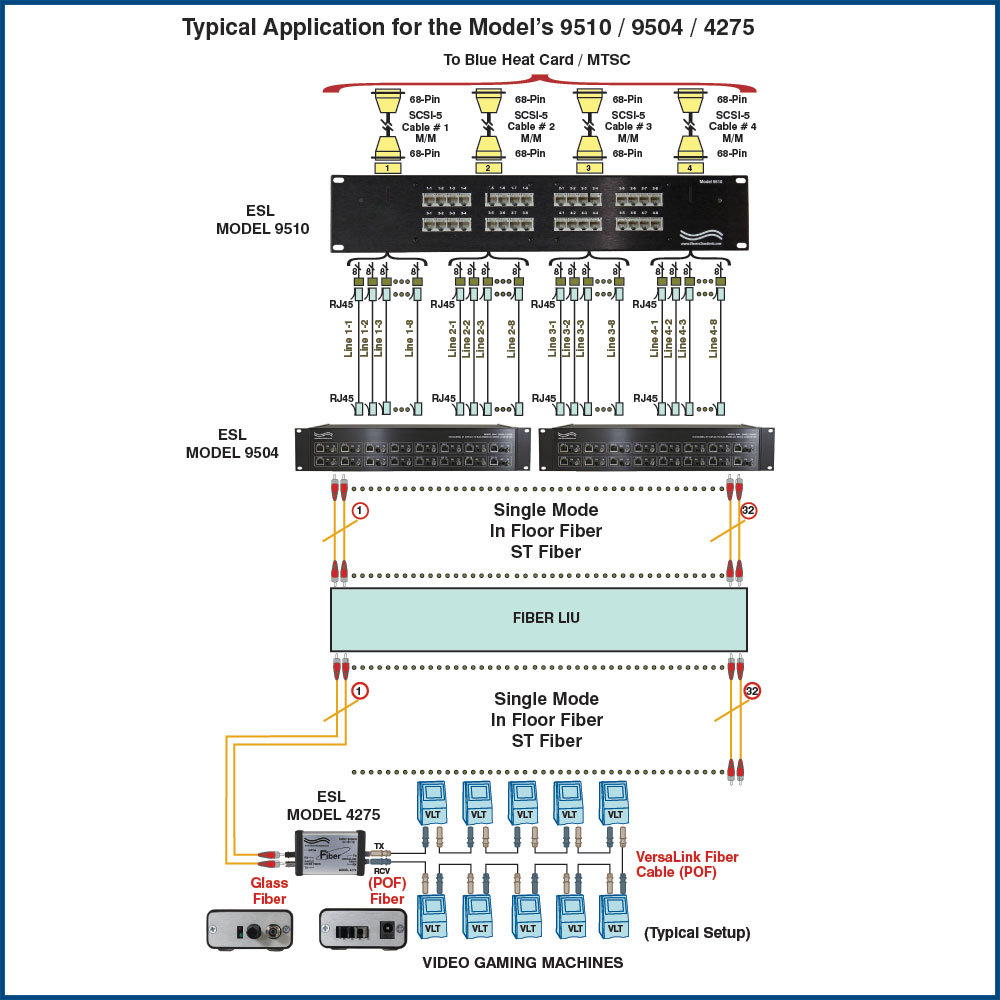

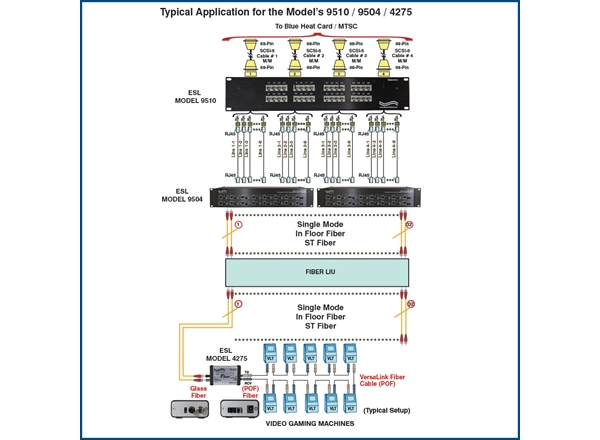

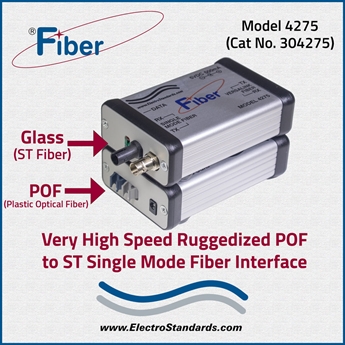

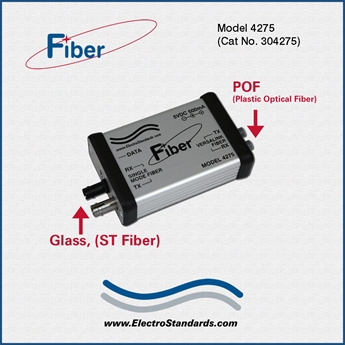

Typical Application for the Model 9510 / 9504 and 4275
