Telephone/Telecom Test Kit, Bantam Plug, WE310 Plug

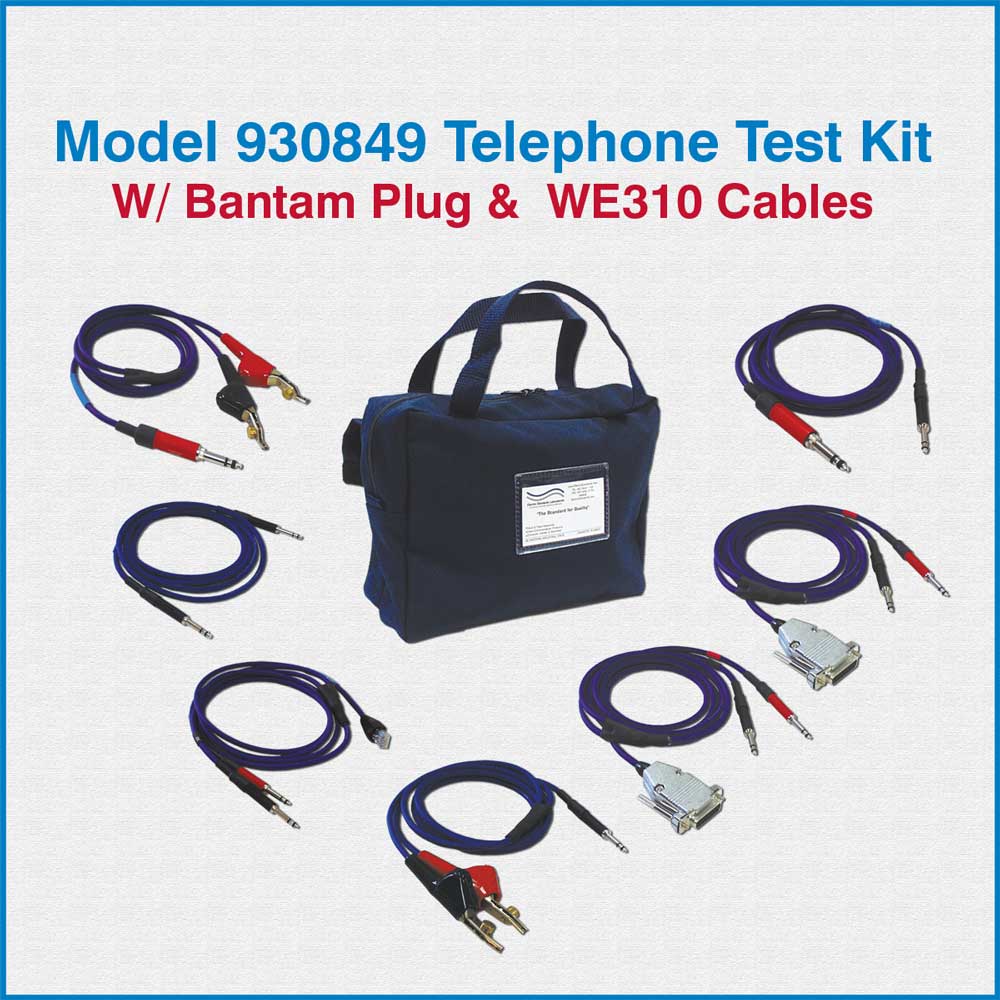

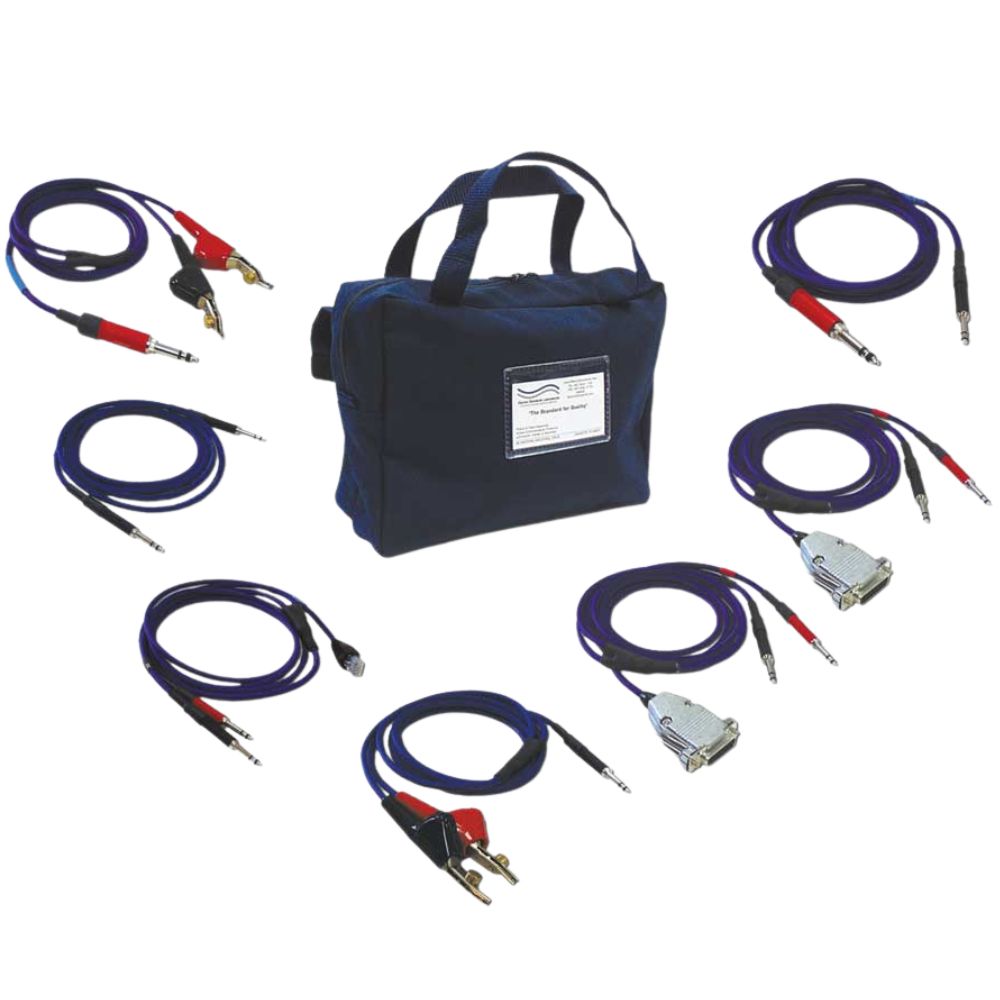

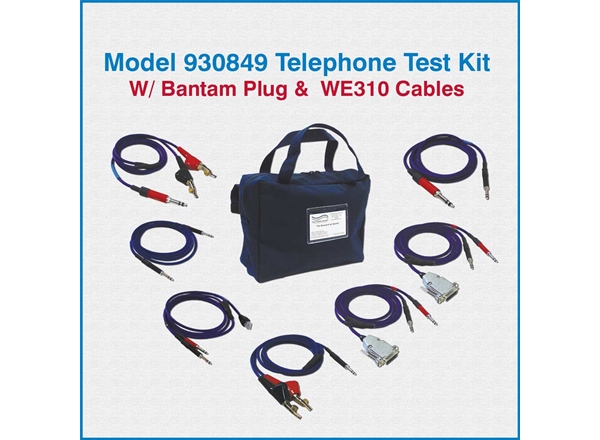

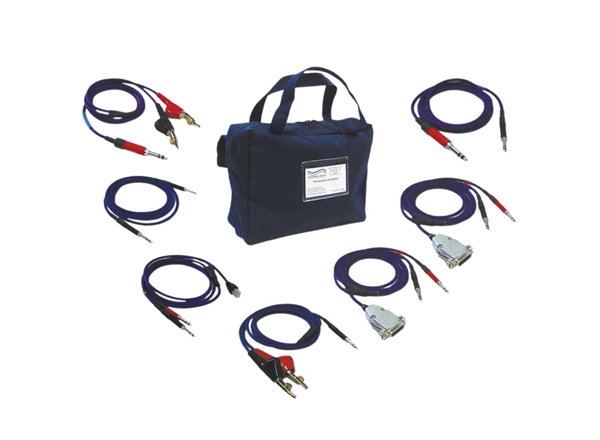

Bantam Plug and WE310 Telephone/Telecom Field Technician Test Kit, Catalog No. 930849
- Kit contains thirteen high quality cables designed to facilitate test and access of high speed data interfaces.
- Designed with input from telco telecom installers, telco linesman and field technicians.
- Supplied to field technicians worldwide.
- Compatible with all standard phone system and telephone test equipment.
Catalog # 930849 Telephone and Telecom Test Kit was designed for field service technicians. This high-quality test kit includes a complete selection of thirteen telephone and telecom patch cables that are compatible with all standard telephone systems, Sprint/Nextel systems, data and voice test equipment and patch and interconnect devices. These cables feature nickel phone plugs and high-flex PVC jackets. All of the cables are of the highest quality, manufactured in U.S.A. Custom designed cables utilizing these standard cables are also available.
- An excellent companion to your present Telecom Took Kit
- Test Kit contains thirteen telco test cables designed to facilitate test and access of high speed data interfaces
- All telco cables are packaged in a handy Test Kit Carry Case for maximum protection
- Includes an information manual delineating each cable configuration.
- IMPORTANT!!! Custom-design cables and Custom-content kits available to suit your specific needs. Specify the test cable you would like in a kit and request a quote.
- Municipalities, schools, government: This product is on GSA Schedule!
| 930849 Telephone Telecom Test Components |
| Qty. |
Catalog No. |
Length |
Description. |
| 2 |
930840-006 |
6 Ft. |
Cables: Bantam Plug/Bantam Plug |
| 2 |
930841-006 |
6 Ft. |
Cables: Bantam Plug/Two Telco Piercing Alligator Clips |
| 3 |
930842-006 |
6 Ft. |
Cables: WE310 Plug/Bantam Plug |
| 3 |
930843-005 |
5 Ft. |
Cables: WE310 Plug/Two Telco Piercing Alligator Clips |
| 1 |
930844-006 |
6 Ft. |
Cables: DB15 Female/Two Bantam Plugs, T1 |
| 1 |
930845-006 |
6 Ft. |
Cables: DB15 Male/Two Bantam Plugs, T1 |
| 1 |
930847-006 |
6 Ft. |
Cables: RJ48 Plug/Two Bantam Plugs |
| 1 |
930848 |
-- -- |
Test Kit Carry Case |

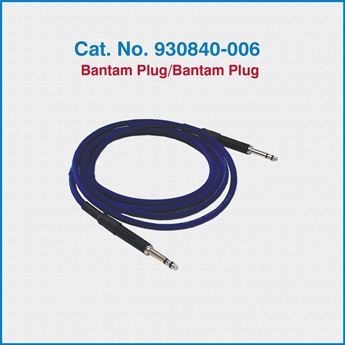

Catalog # 930840-006 (2 each) Bantam Plug/Bantam Plug:
Two miniature 3-conductor nickel phone plugs, connected by shielded paired cable having a high-flex PVC jacket. The standard length is 6 feet. Custom lengths are available upon request.

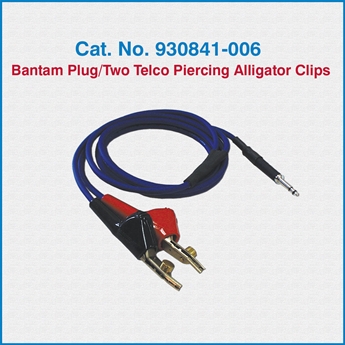

Catalog # 930841-006 (2 each) Bantam Plug/Two Telco Piercing Alligator Clips:
A miniature 3-conductor nickel phone plug connected to two piercing alligator clips having one red and one black vinyl boot. The cable is 26 AWG, shielded, twisted pair with high-flex PVC jacket. The standard length is 6 feet.

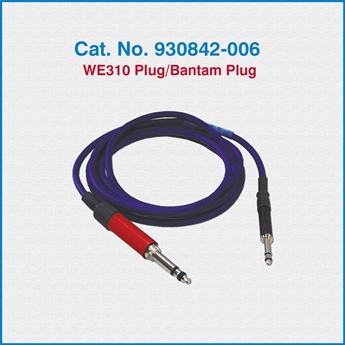

Catalog # 930842-006(3 each) WE310 Plug/Bantam Plug:
A PJ-051 nickel phone plug and a miniature 3-conductor nickel phone plug connected by shielded paired cable having a high-flex PVC jacket. Standard length is 6 feet.

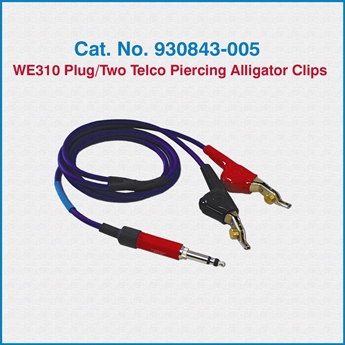

930843-005 (3 each) WE310 Plug/Two Telco Piercing Alligator Clips:
A PJ-051 nickel phone plug connected to two piercing alligator clips having one red and one black vinyl boot. The cable is 26 AWG, shielded twisted pair with high-flex PVC jacket. Standard length is 5 feet.
Catalog # 930844-006 (1 each) DB15 Female/Two Bantam Plugs, T-1:
A DB15 female connector, metal hood with thumbscrews, connected to two miniature 3-conductor nickel phone plugs. The cable is 26 AWG, shielded, twisted pair with high-flex PVC jacket. Paired: Pins 1 & 9 to TX Tip & ring, pins 3 & 11 to RX Tip and Ring. Standard length is 6 feet. The TX plug is RED, the RX plug is BLACK.

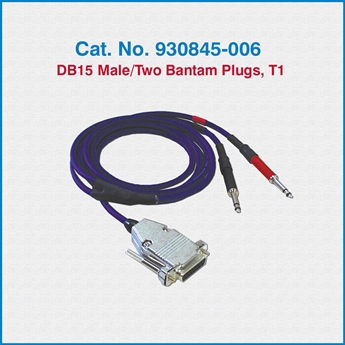

Catalog # 930845-006 (1 each) DB15 Male/Two Bantam Plugs, T-1:
A DB-15 male connector, metal hood with thumbscrews, connected to two miniature 3-conductor nickel phone plugs. The cable is 26 AWG, shielded, twisted pair with high-flex PVC jacket. Paired: Pins 1 & 9 to TX Tip & Ring, pins 3 & 11 to RX Tip & Ring. The TX phone plug is Red, the RX phone plug is Black. Standard length is 6 feet.

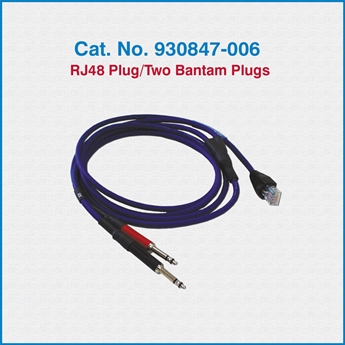

Catalog # 930847-006 (1 each) RJ48 Plug/Two Bantam Plugs:
An RJ48 plug with molded grip connected to two miniature 3-conductor nickel phone plugs. The cable is 26 AWG, shielded twisted pair with high-flex PVC jacket. Paired: Pins 5 & 4 to TX Tip & Ring, pins 2 & 1 to RX Tip & Ring. Standard length is 6 feet. The TX plug is RED, the RX plug is black.

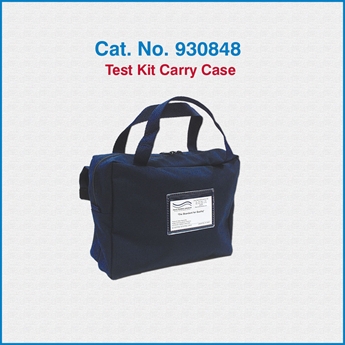

Catalog # 930848 (1 each) Test Kit Carry Case:
A convenient carry case for the test leads. Size is 8" x 11" x 3". Provides protection for the cables and connectors. This zippered case provides a separator and an outside pocket provides compartments for manuals.
OPTIONALLY AVAILABLE CABLE

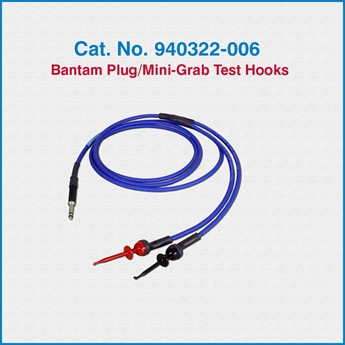

BANTAM PLUG/TWO MINI-GRAB TEST HOOKS
A miniature 3-conductor nickel phone plug connected to two mini-grab test hooks having one red and one black body. The cable is 26 AWG, shielded, twisted pair with high-flex PVC jacket.
Custom cable lengths are available. The cable lengths indicated are the Test Kit standards. However, any of the cables may be ordered individually and at custom lengths. To order a custom length cable, use the same 6-digit portion of the catalog number and change the three-digit portion to indicate the length in feet. Example: The 930840-006 cable is 6 feet long as a standard. It may be ordered as a 20-foot cable by specifying the cable as follows: 930840-020.
Catalog Number 930849 is available to government purchasers on our GSA Schedule GS-35F-0286V. GSA purchasers receive a 10% discount from list prices, 2% 20 days prompt payment terms, and free UPS Ground shipping in the continental USA.
*Prices online are subject to change and verification.
All ESL products are available for export.
