Catalog # 306310 - QuickSwitch® 6310 SC Duplex A/B Switch, Single Mode with RS-232, Contact Closure Remote

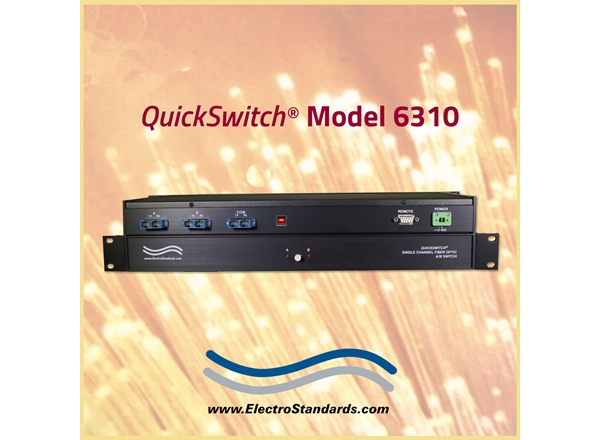

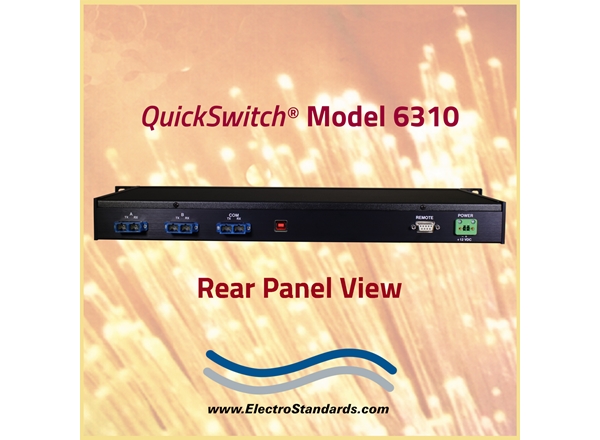

    Model 6310 Fiber Optic SC Duplex Single Mode with RS-232, Contact Closure RemoteModel 6310 Fiber Optic SC Duplex Single Mode with RS-232, Contact Closure RemoteModel 6310 Fiber Optic SC Duplex Single Mode with RS-232, Contact Closure RemoteModel 6310 Fiber Optic SC Duplex Single Mode with RS-232, Contact Closure Remote
Click image to enlarge
    • Model 6310 Fiber Optic SC Duplex Single Mode with RS-232, Contact Closure Remote
    • Model 6310 Fiber Optic SC Duplex Single Mode with RS-232, Contact Closure Remote
    • Model 6310 Fiber Optic SC Duplex Single Mode with RS-232, Contact Closure Remote
    • Model 6310 Fiber Optic SC Duplex Single Mode with RS-232, Contact Closure Remote
Base Price:
$4,455.00
Catalog No: 306310
Model No: 6310
Product Type:Switches: Fiber Optic
Positions:2
Cable Type/Port Connector:SC
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Remote Control:Contact Closure, RS232 Serial
Configuration:Rackmount
Fiber Mode:Single Mode
Fiber Size:9/125
Fiber Type:Duplex
Remote Port:DB9
Local Control:Pushbutton
Mirror Technology:OO

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

QuickSwitch® Fiber Optic Network Switch, SC Duplex
QuickSwitch® 6310 Fiber Optic SC Duplex Single Mode A/B Switch with RS-232, Contact Closure Remote

SPECIFICATIONS:

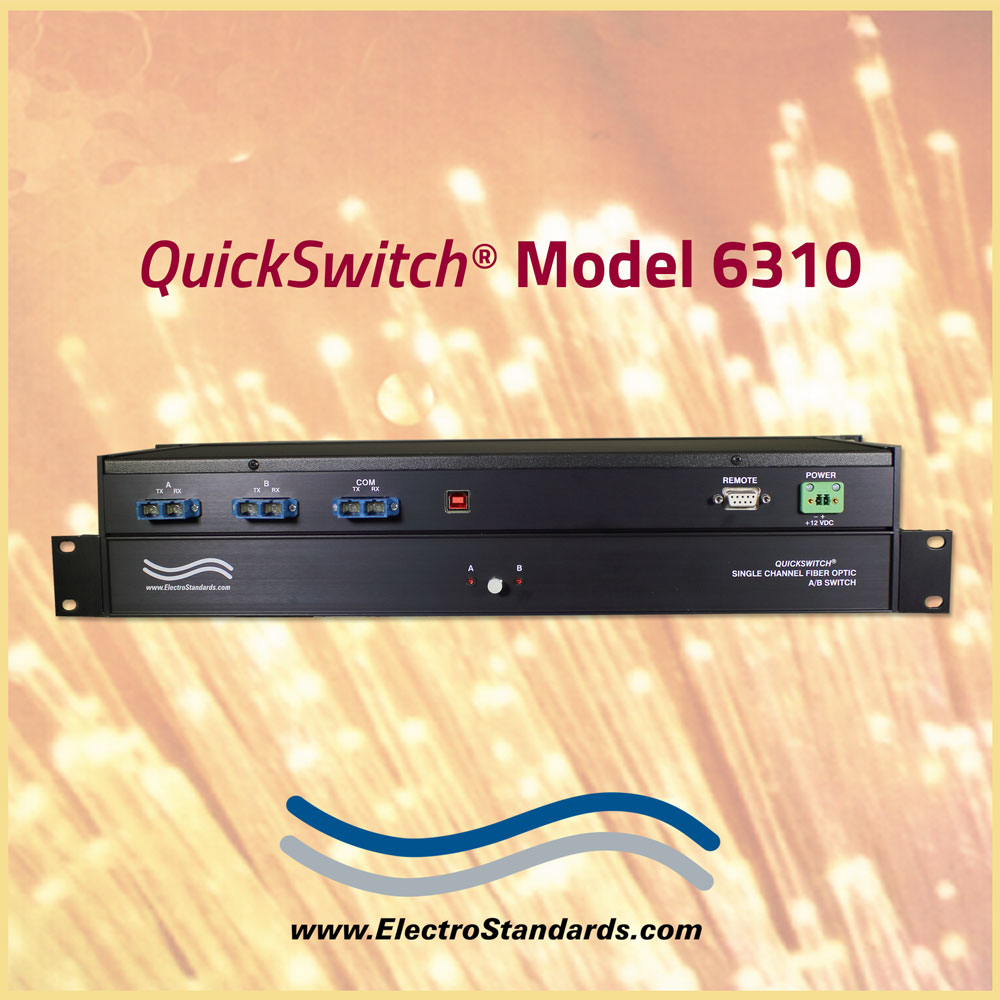

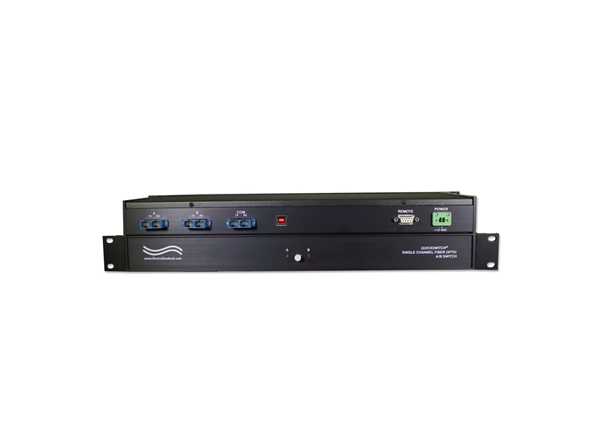

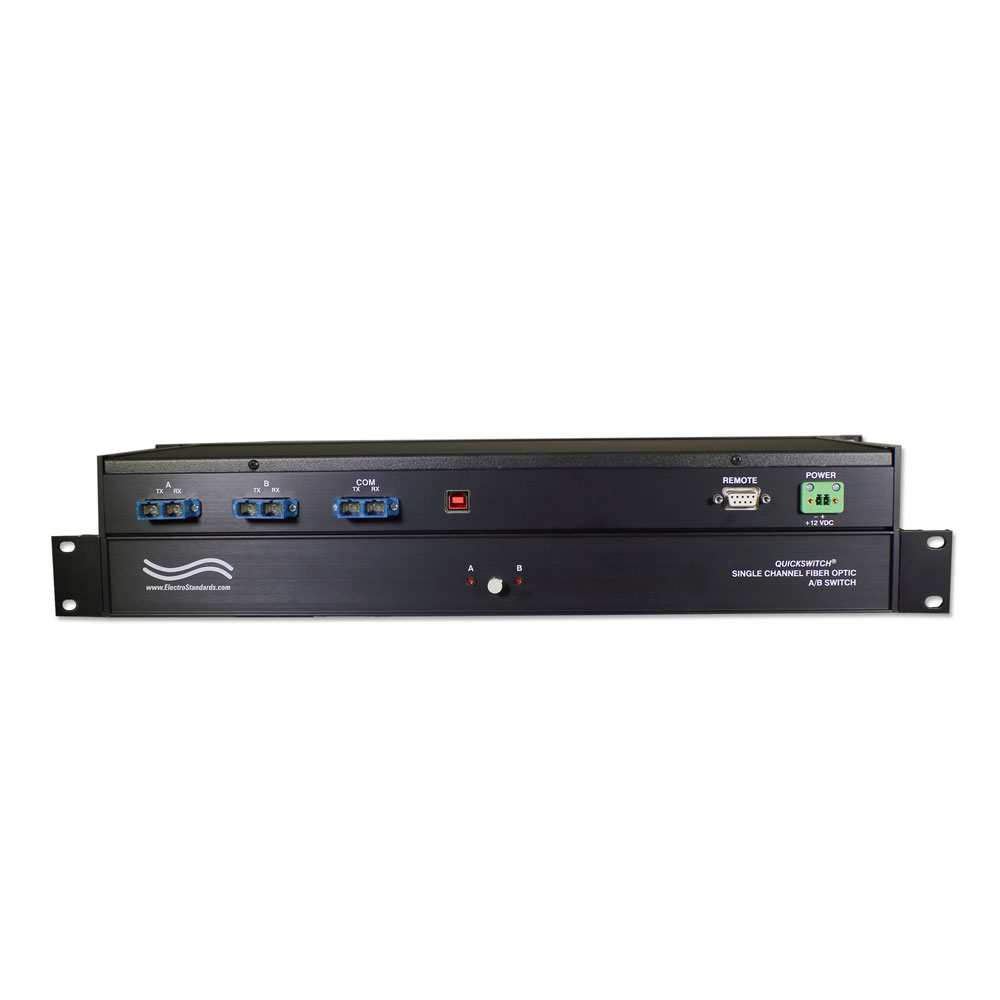

  • PORT CONNECTORS: (3) SC Duplex fiber optic connectors labeled A, B, and COM

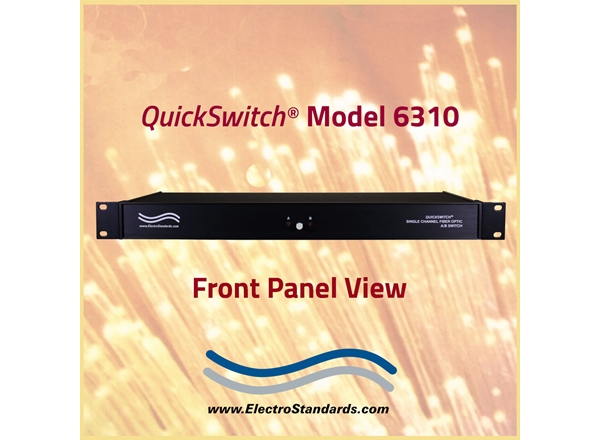

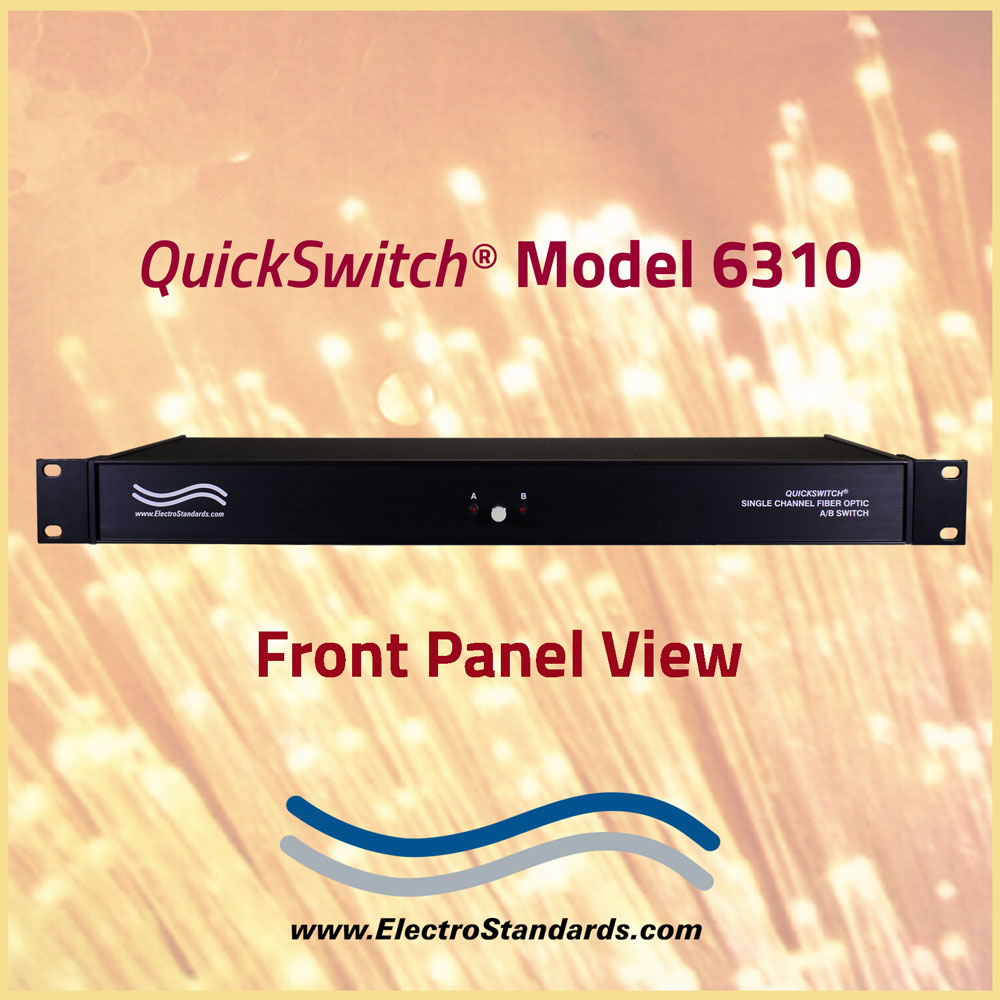

  • FRONT PANEL CONTROL: (1) Front-panel pushbutton allows local switching.
  • DISPLAY: (2) Front panel red LED's indicate switch position and power status.
  • REMOTE PORT: (1) DB9 female connector on rear panel accepts RS232 ASCII Serial Data for Remote Control operation.
  • POWER: UL approved 100VAC-240VAC, 50-60 Hz wall mount power module supplies 12 VDC, 500mA to the unit.  Has 2-prong, US, non-polarized plug.
  • WAVELENGTH: 1300nm.
  • FIBER SIZE: 9/125 Micron.
  • DIMENSIONS: Rackmount Configuration: 19.0"W x 1.75"H x 8.8" D. (48.3 x 4.5 x 22.4 cm)
  • WEIGHT: Approx. 4.1 lbs. (1.9 kg)

SC DUPLEX, SINGLE MODE A/B APPLICATION w/RS232 Serial Commands & CONTACT CLOSURE REMOTE:

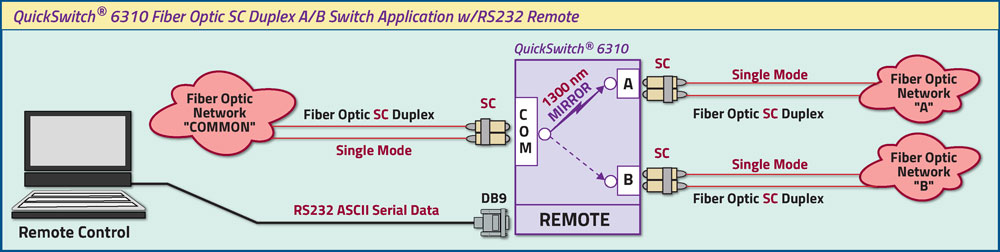

The drawing illustrates a Fiber Optic Network connected to the SC Duplex, Single Mode COMMON port with access to two other Fiber Optic Networks connected to the SC Duplex, Single Mode A and B ports, respectively.  The unit switch position can be controlled using RS232 ASCII or Contact Closure signals via the DB9 REMOTE port. The ASCII RS232 commands can be used to lockout front panel operations and obtain switch status.
