LineSelect® Model 8403R Dual-Channel, 3-Position, Keyboard/Video Switch One Channel PS/2 Keyboard and
One Channel VGA Monitor, Manual, Simultaneous Channel Control, Rackmount
SPECIFICATIONS:
- PORT CONNECTORS:
- (4) HD15 VGA Monitor female connectors labeled D, C, B, and A.
- C = COMMON port.
- (4) Mini Din female PS/2 Keyboard connectors labeled D, C, B and A.
- C = COMMON port.
- FRONT PANEL CONTROL:

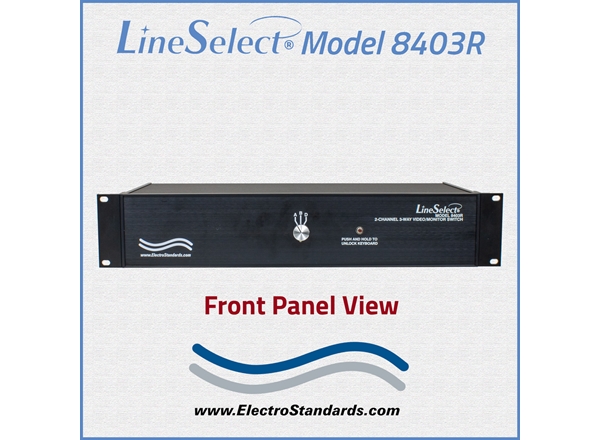

- (1) Rotary switch on front panel selects A, B, or D position.
- (1) Keyboard Reset Button labeled "PUSH AND HOLD TO UNLOCK KEYBOARD".
- POWER: No power required. Manually operated.
- DIMENSIONS: Rackmount 19.0" W. x 3.5" H. x 6.0" D. (48.3 x 8.9 x 15.3 cm)
- WEIGHT: Approximately 5.2 lbs (2.4 kg)
FEATURES:
- Manually control both channels simultaneously via one knob located on the front panel.
- Manual reset button located on front panel.
- All pins of the HD15 and Mini Din interface are switched via break-before-make rotary switch.
- All ports located on the rear panel:
- (4) HD15 female VGA Monitor ports.
- (1) A, (1) B, (1) C and (1) D.
- (4) 6-Pin Mini Din female PS/2 Keyboard ports:
- (1) A, (1) B, (1) C and (1) D.

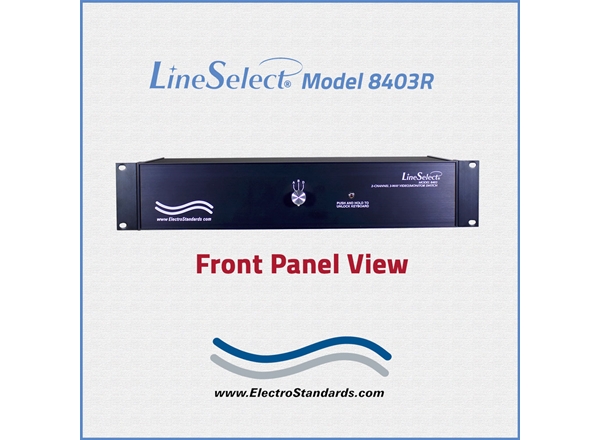

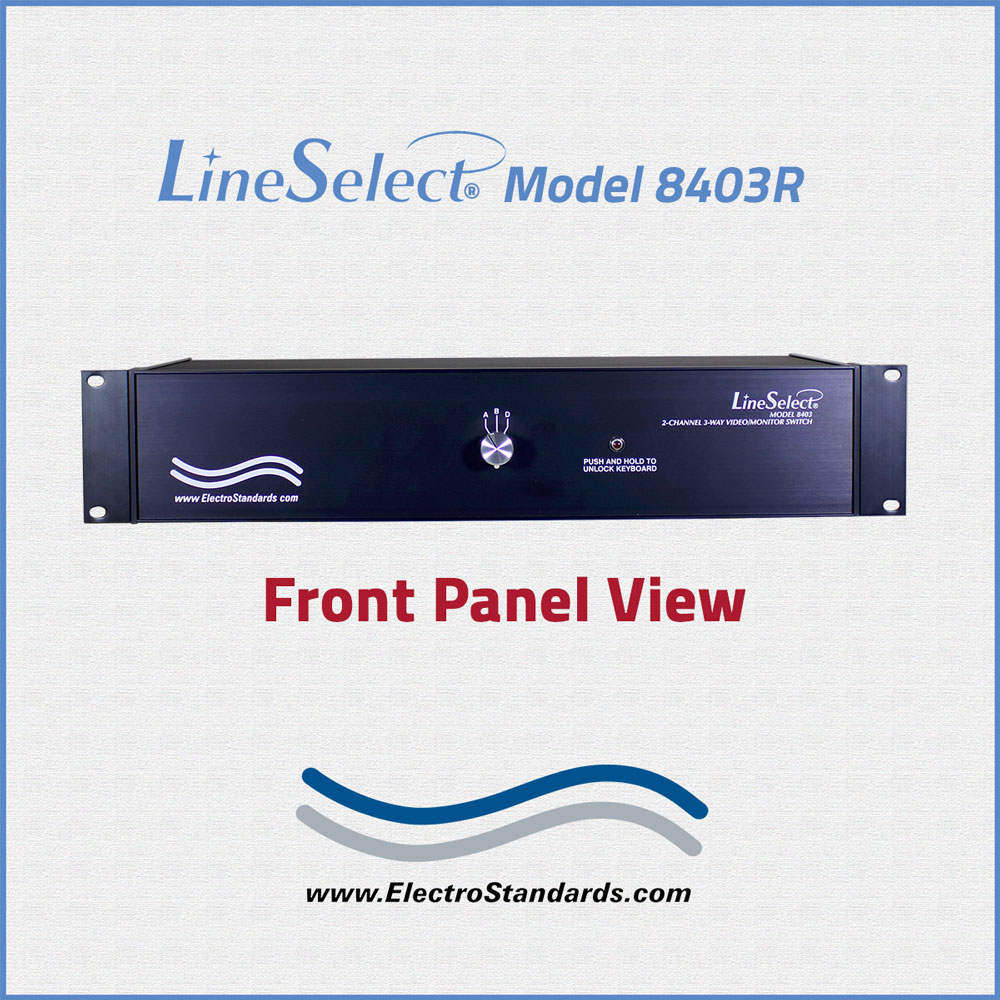

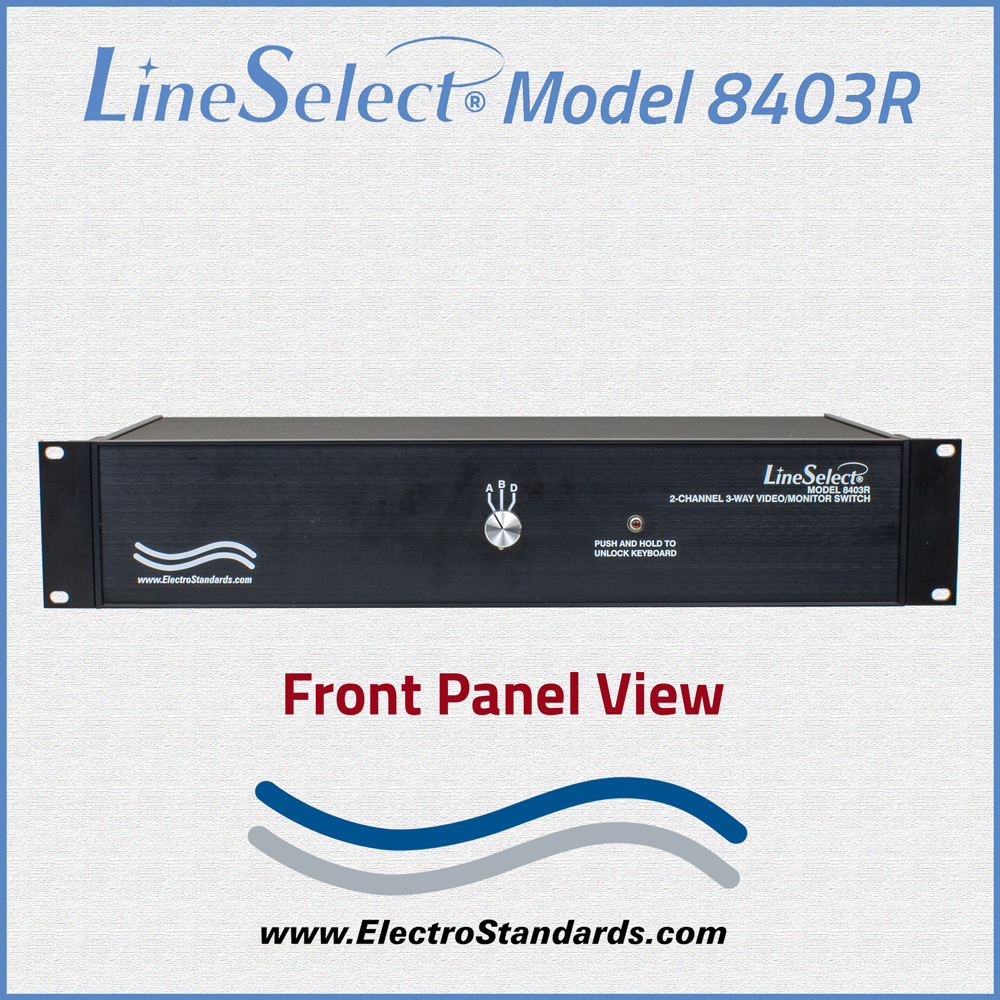

- Front panel knob labeled left to right: A, B, and D.
- Front panel reset button labeled "PUSH AND HOLD TO UNLOCK KEYBOARD".

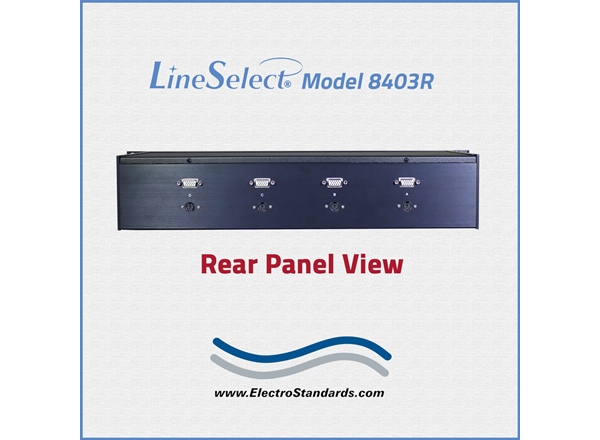

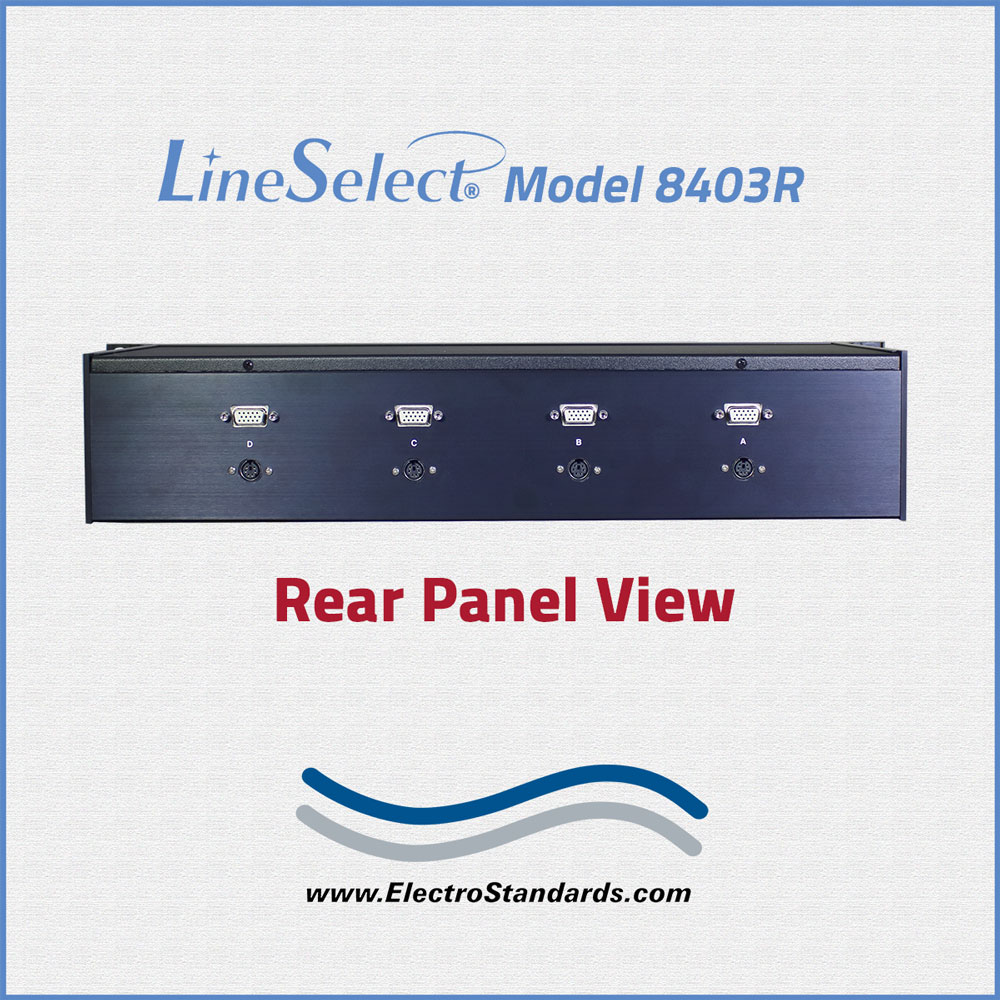

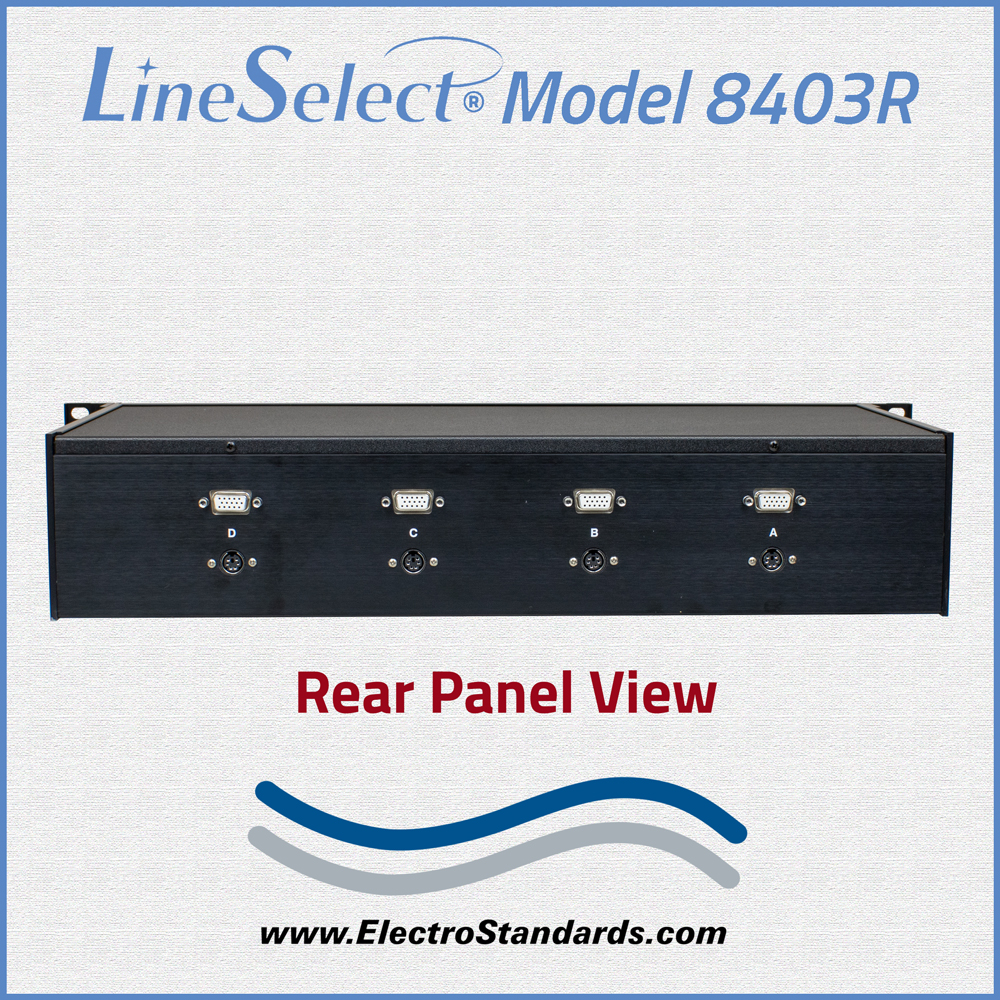

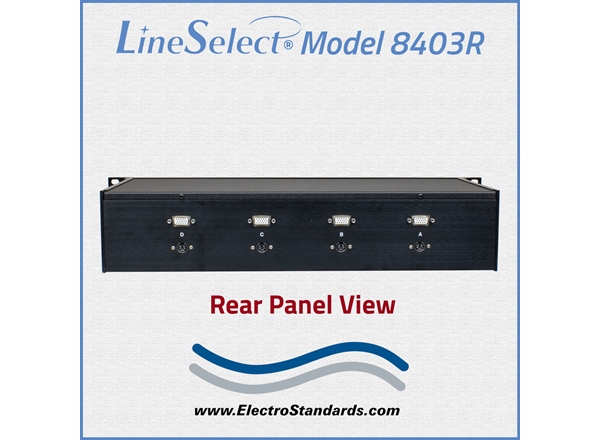

- Back panel ports labeled left to right: D, C, B, and A.
- Port C is the COMMON port.
- Lifetime warranty against manufacturing defects.
- RoHS Compliant.

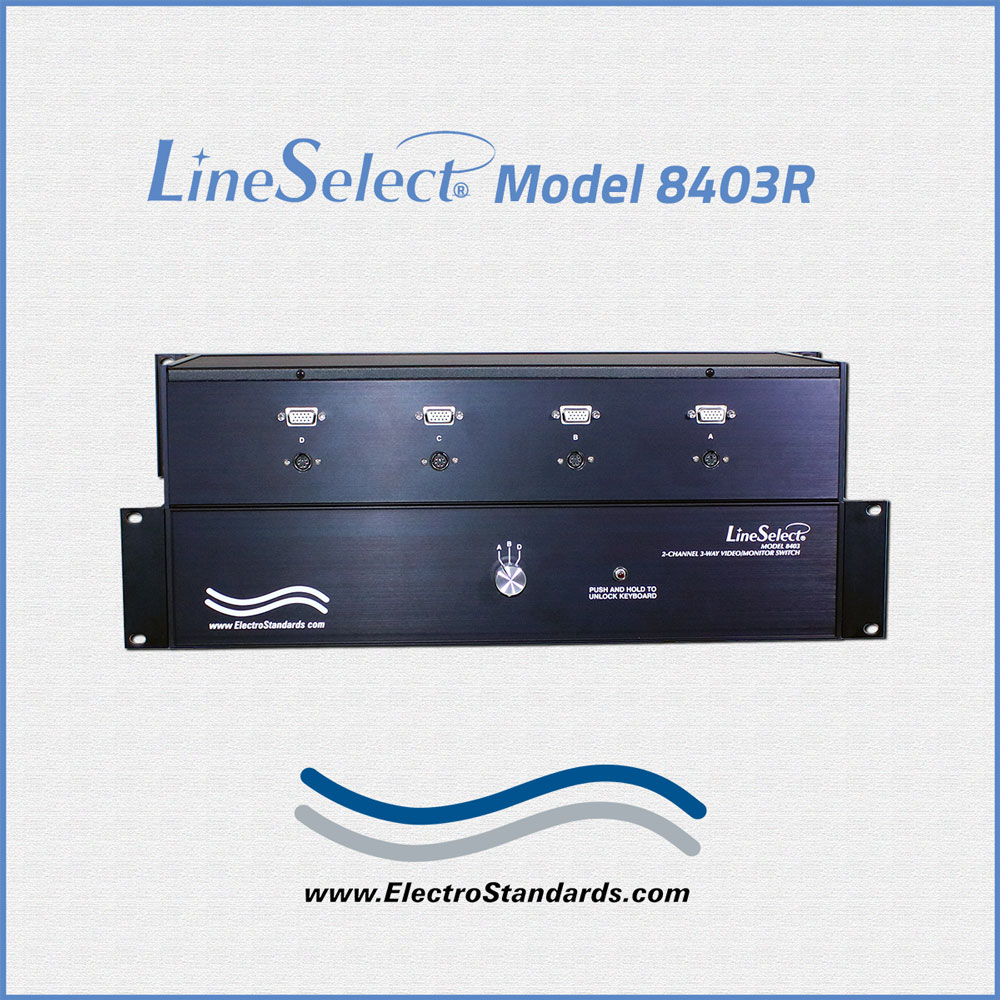

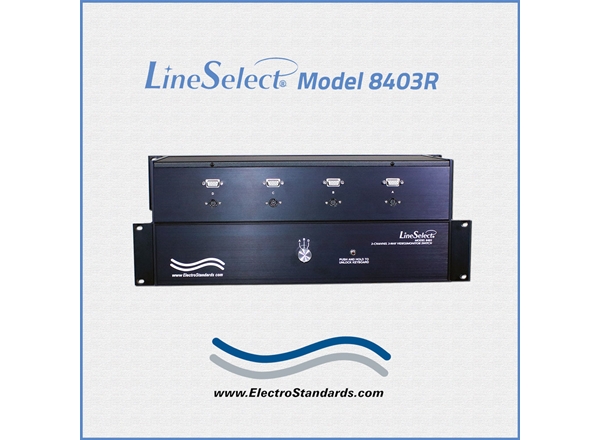

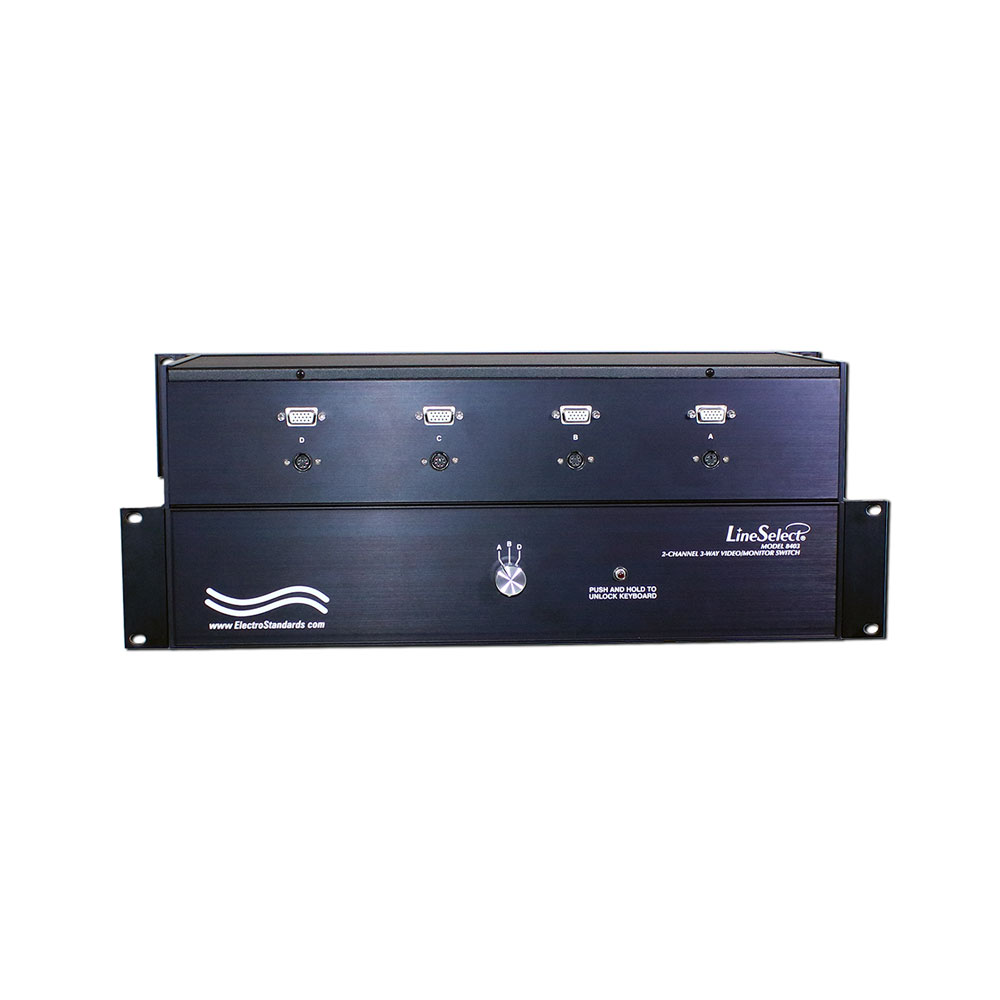

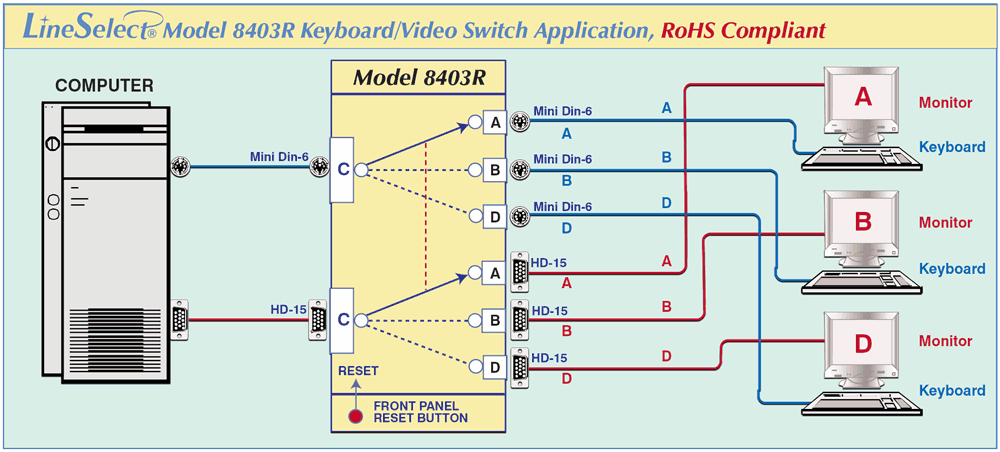

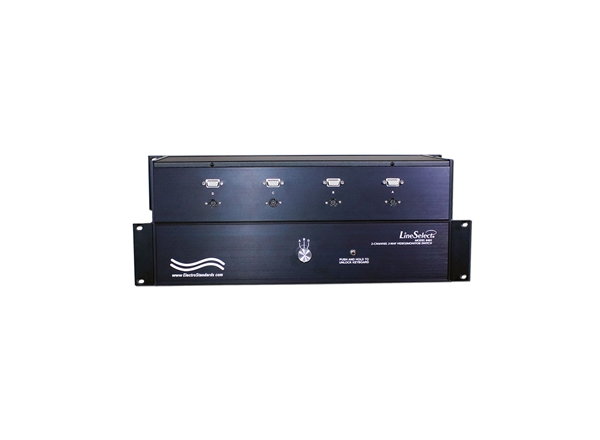

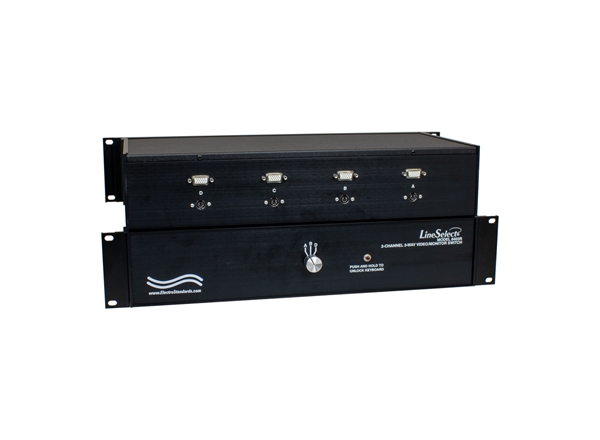

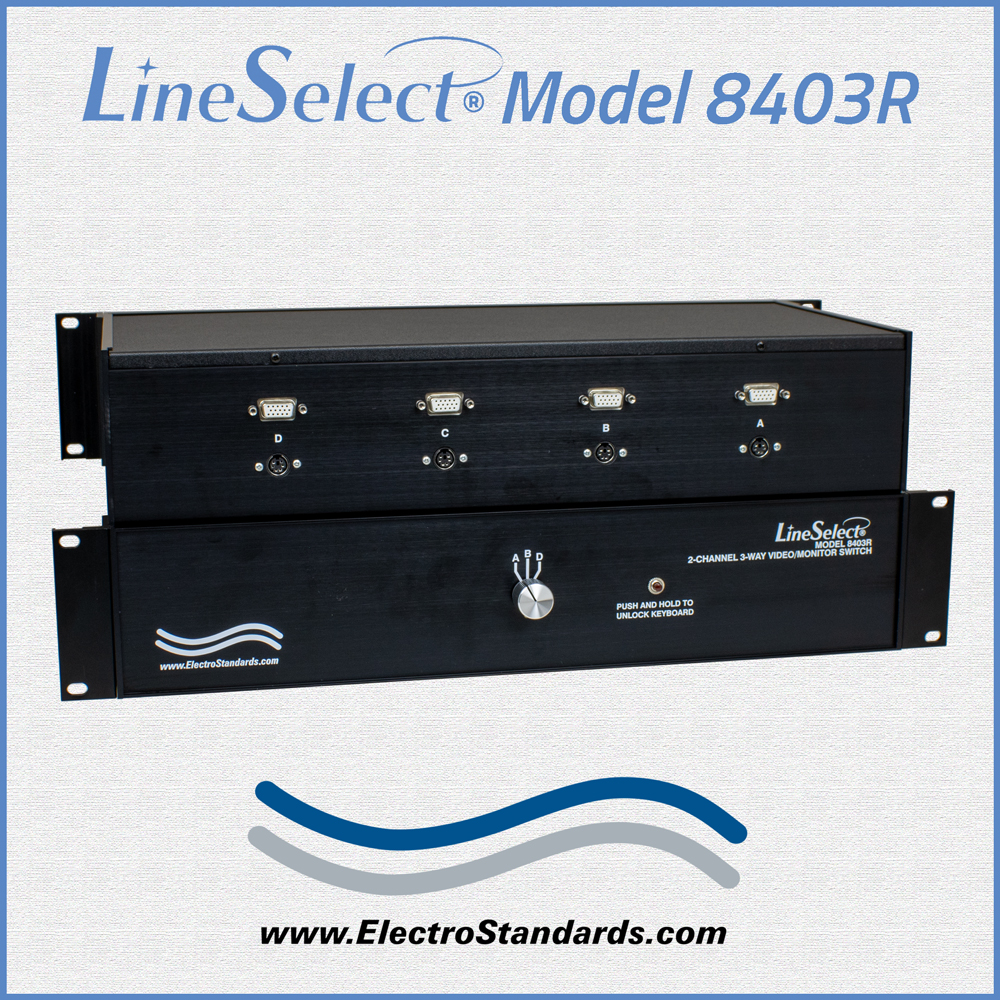

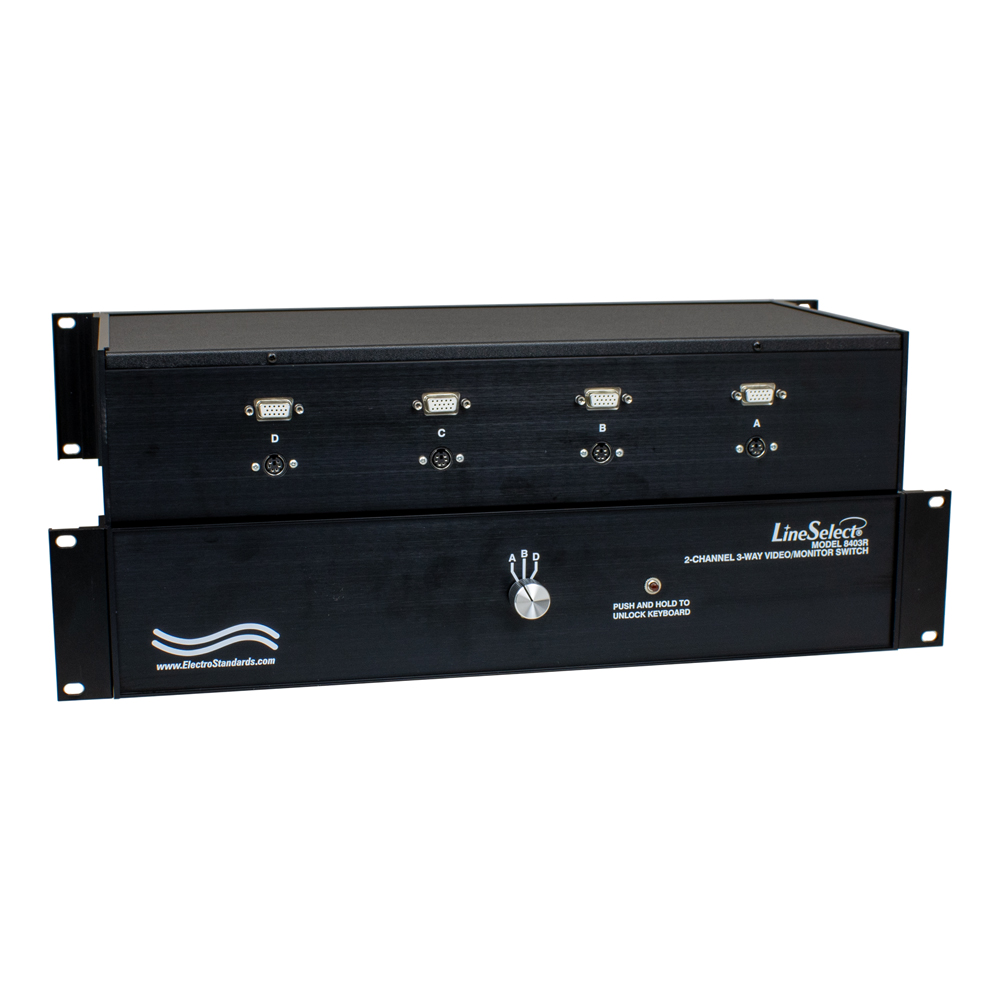

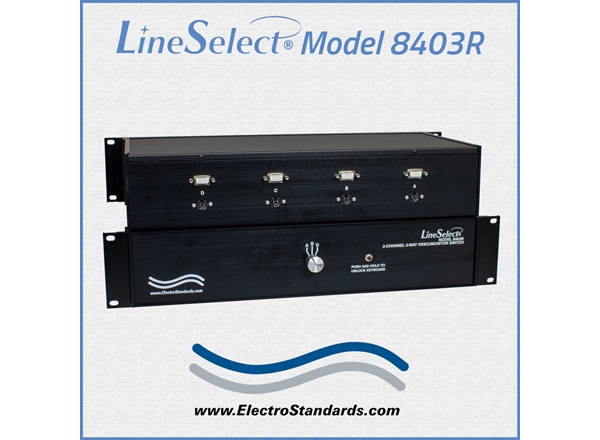

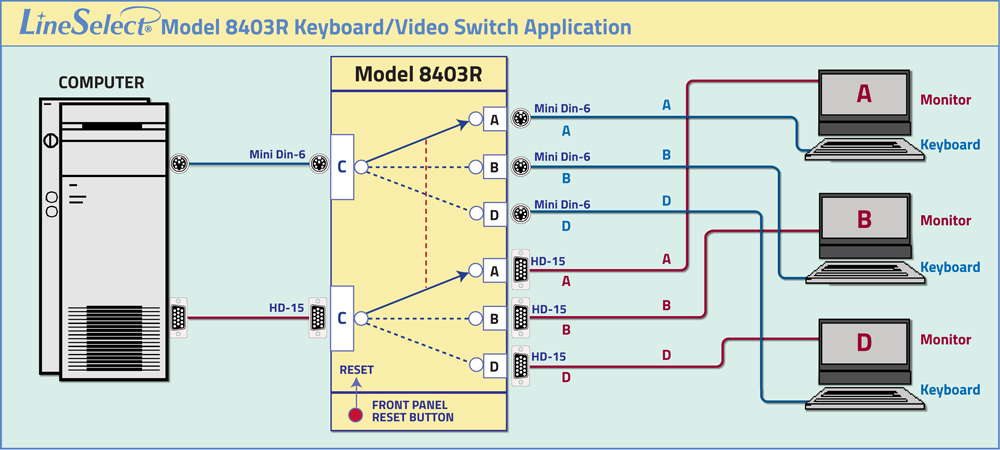

LineSelect® Model 8403 3-Position PS/2 Keyboard/Video Switch is designed to allow access from one computer to 3 locations having a keyboard and monitor. A front panel selector allows quick and easy switching of the shared device. The LineSelect® Model 8403 is enclosed in a 2U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.
State cable length (in Feet) when ordering.
Part Number Description
880841 VGA Monitor Cable, HD15 (M/M)
891022 VGA Extension Cable HD15 (M/F)
880835 PS/2 Keyboard/Mouse/Extension Cable, Mini DIN-6 (M/M)
891021 PS/2 Keyboard/Mouse/Extension Cable, Mini DIN-6 (M/F)
