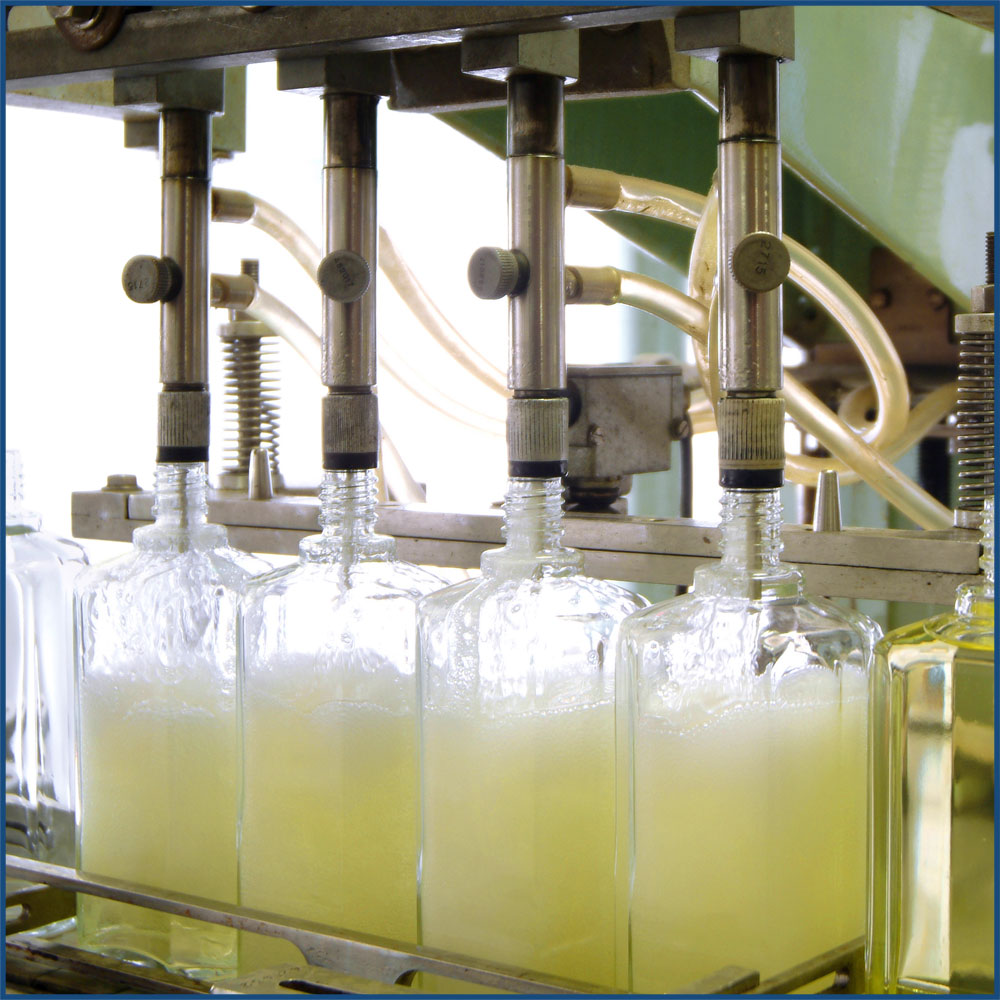

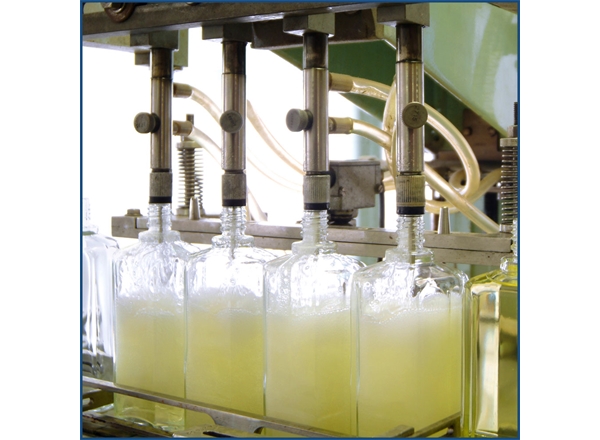

    • Bottle Filling / Rotary Machine
    • Model 4347 FILLMight Digital Signal Conditioner/Controller Block Diagram

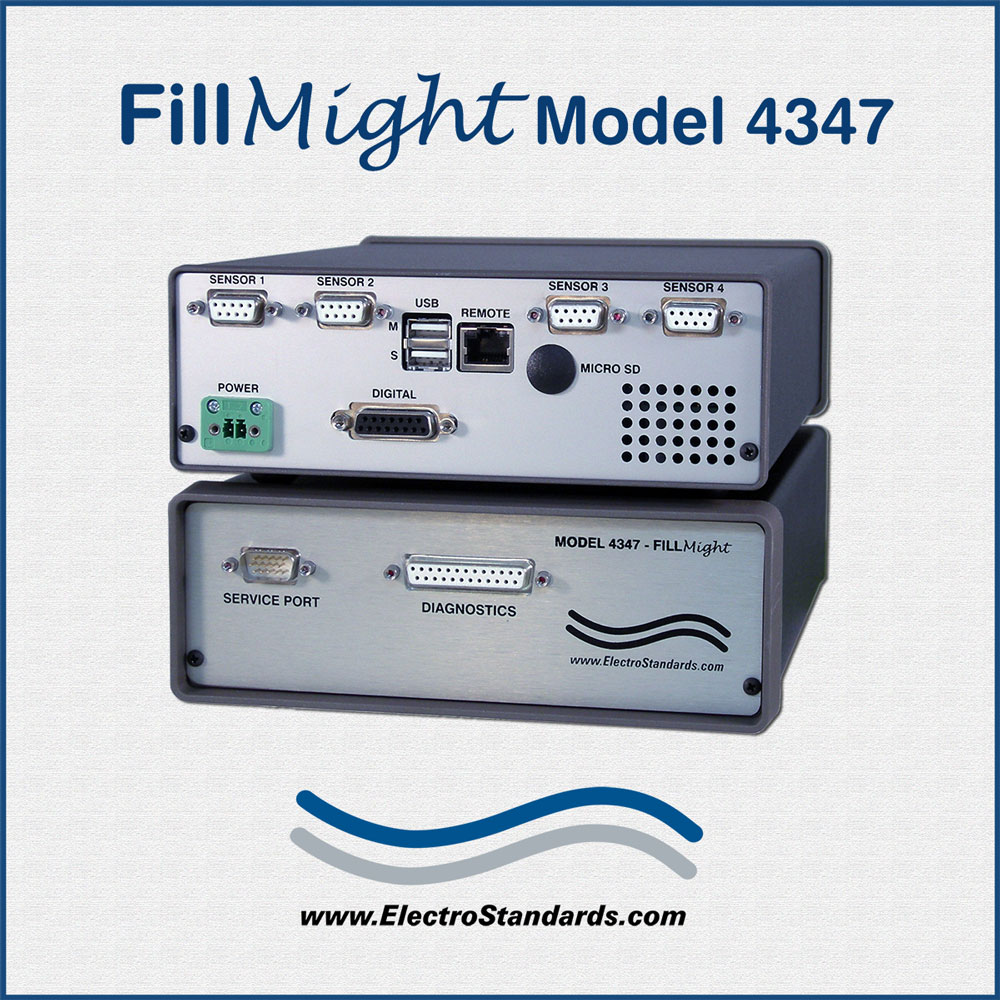

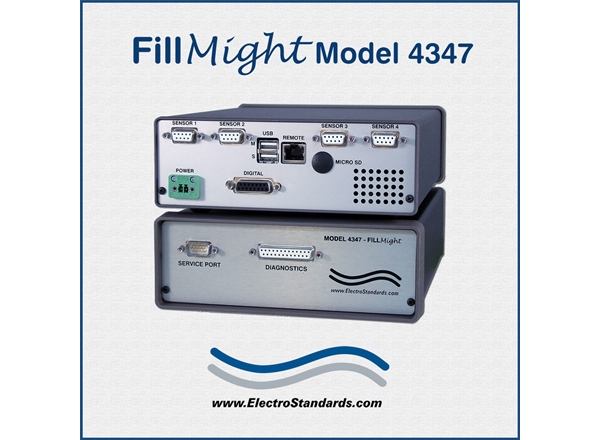

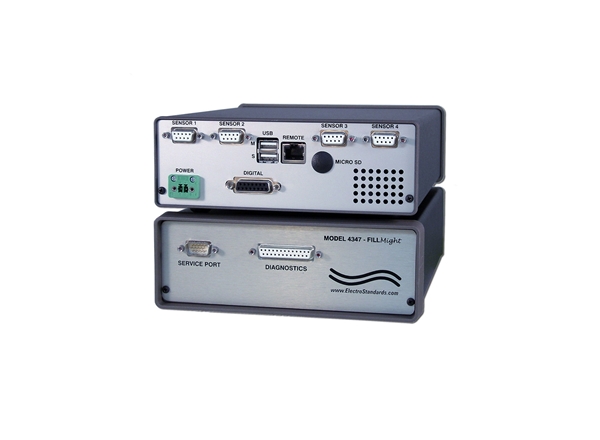

    • Model 4347 FILLMight Digital Signal Conditioner/Controller
Base Price:
Call for Price
Catalog No: 305347
Model No: 4347
Excitation:5 VDC
Product Type:FillMight

See Product Specifications Below
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

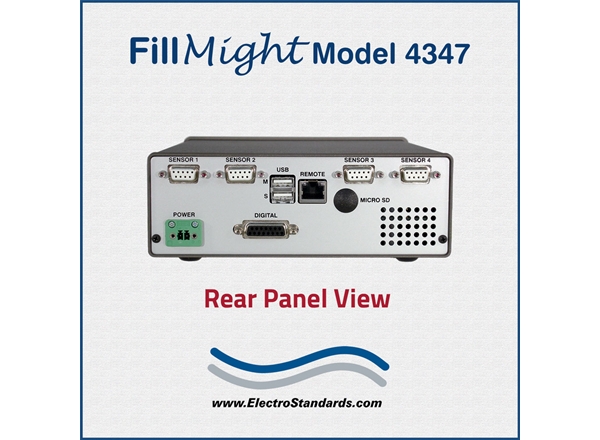

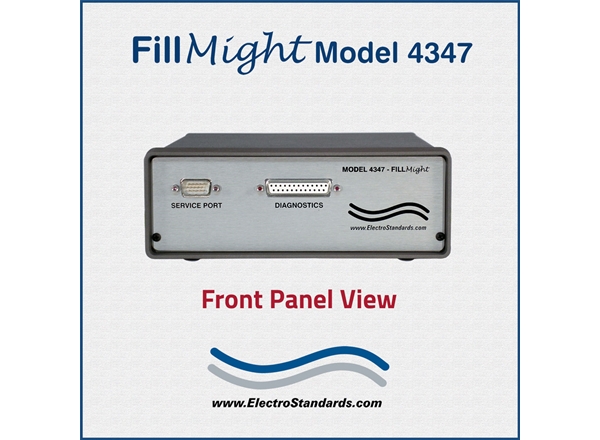

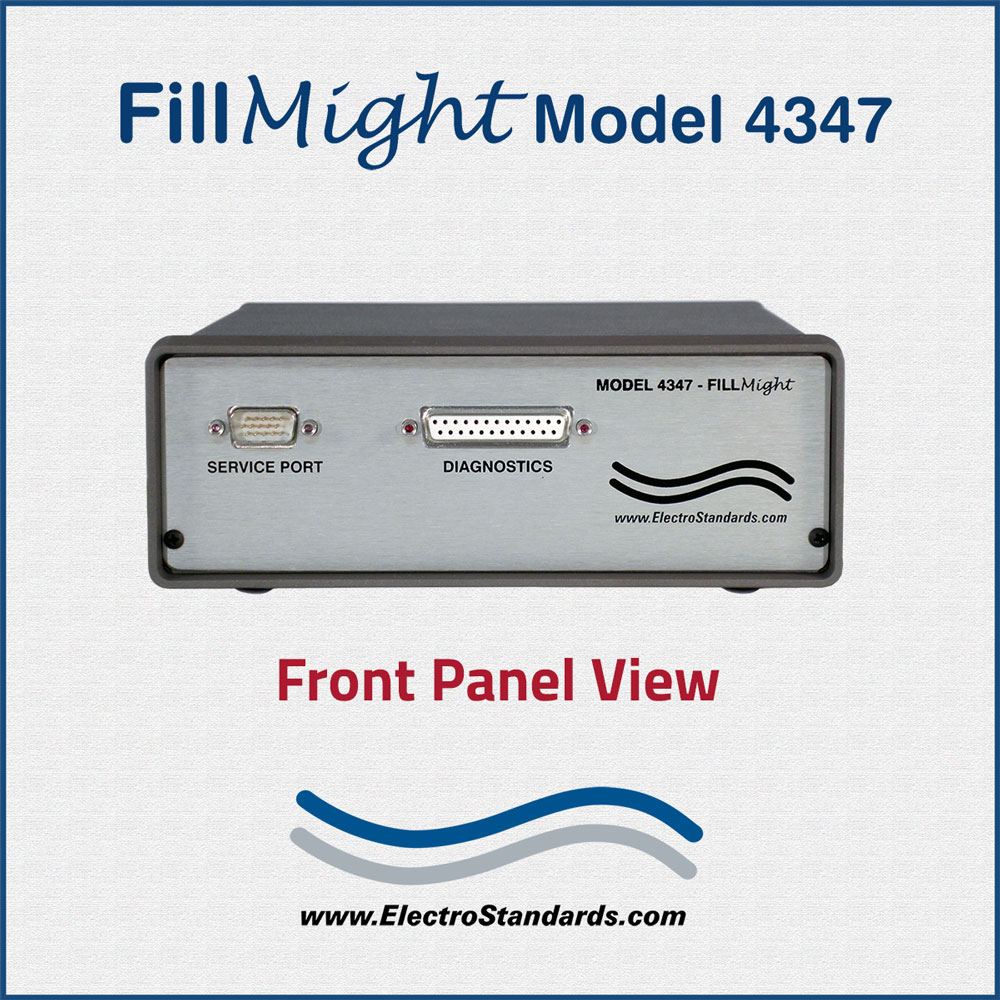

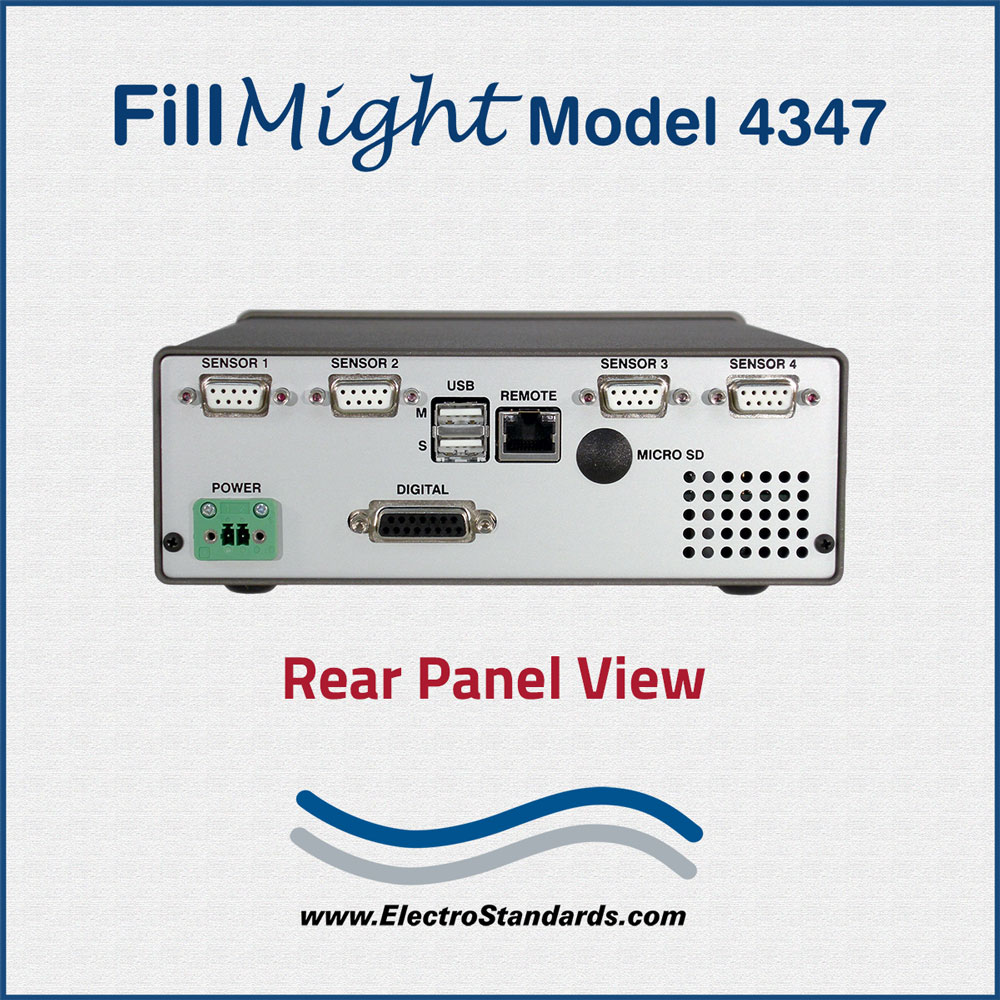

Overview

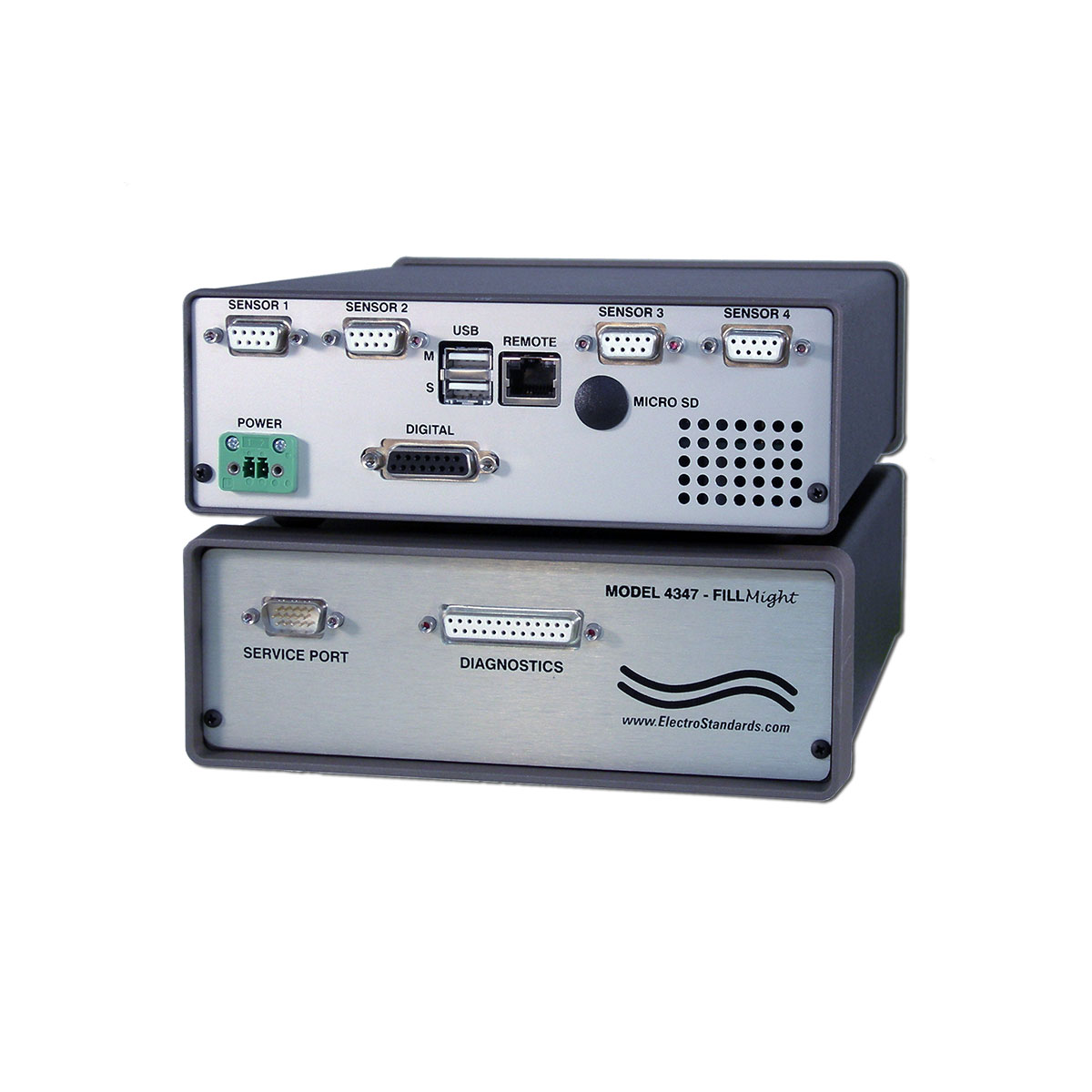

FillMight High Performance Embedded Data Acquisition and Controller

  • Intelligent Digital Signal Conditioner / Controller for Rotary Filling Machines.

  • Applicable to Rotary Net Weight Liquid Filling Machines.

The FillMight Model 4347 is a high performance DAQ Controller interface module from Electro Standards Laboratories that is suitable for applications which require high speed and high accuracy analog acquisition and control.  The factory default communications mode is over Ethernet/Modbus/TCP.  The Ethernet is configured as a dynamic address assigned by the host.  If required a static IP address can be assigned to the Model 4347.

FEATURES:

  • Communications through Ethernet Modbus/TCP
  • Unit Configurable through USB interface
  • Firmware updates via RS232
  • Four 24-bit analog strain gauge input channels
  • 8-Bits of isolated MOSFET outputs for control of solenoids
  • Supports the calibration of 4 Load Cells.
  • Calibration data is stored in the unit.
  • Load Cell can be sampled from 5ksps.
  • Other functions available upon request

Ideal for controlling rotary filling automation!

rotary filling automation 4347

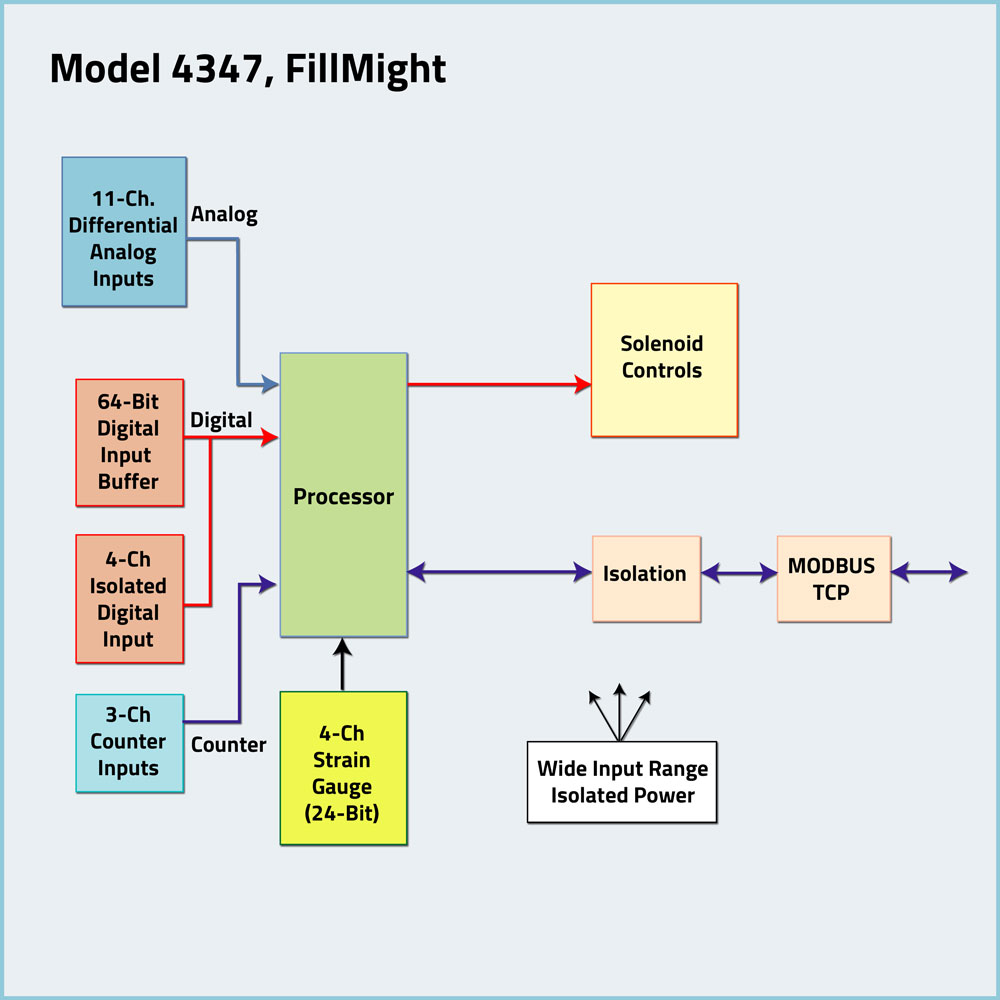

Model 4347, FillMight High Performance Embedded Data Acquisition board diagram!

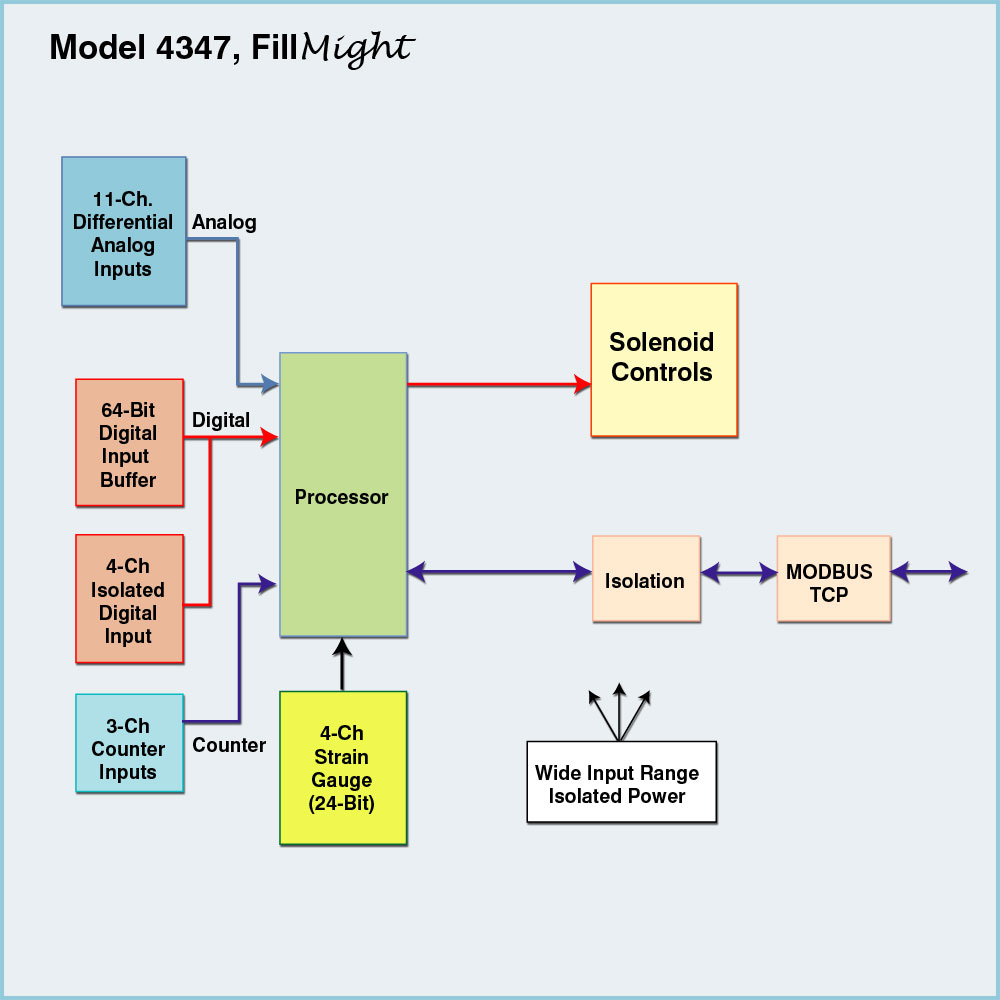

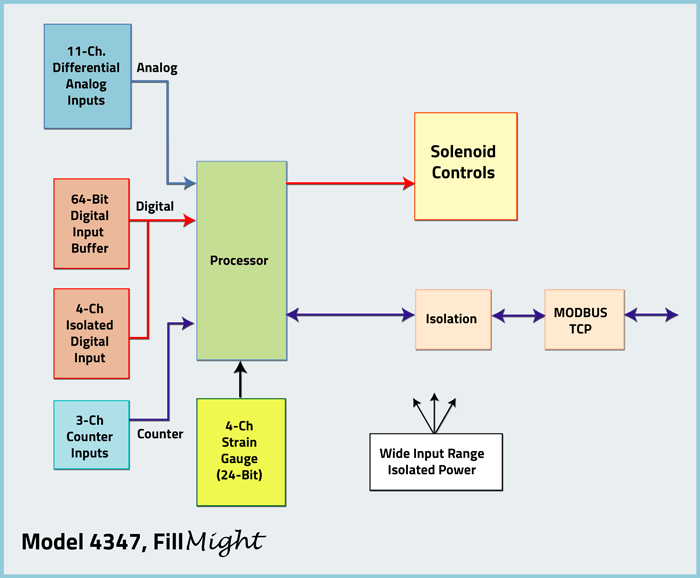

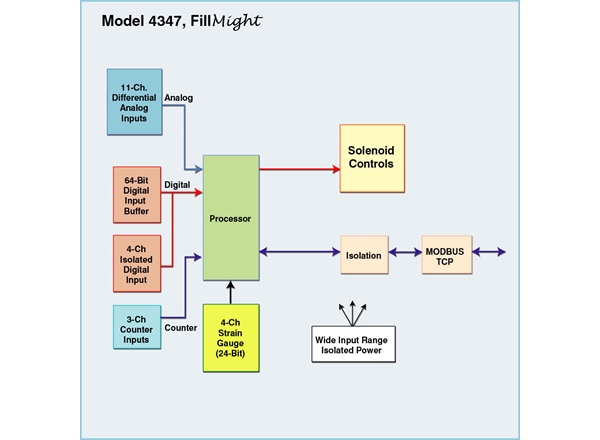

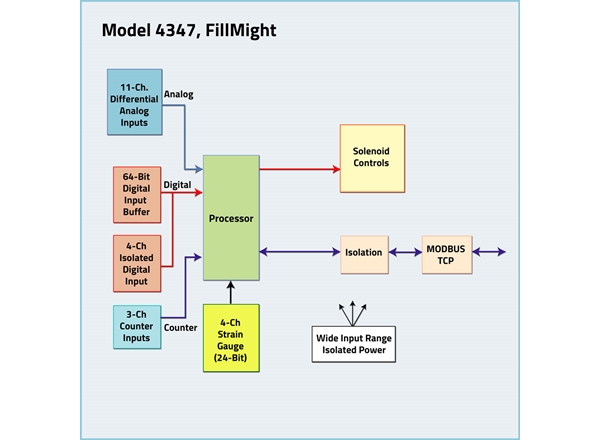

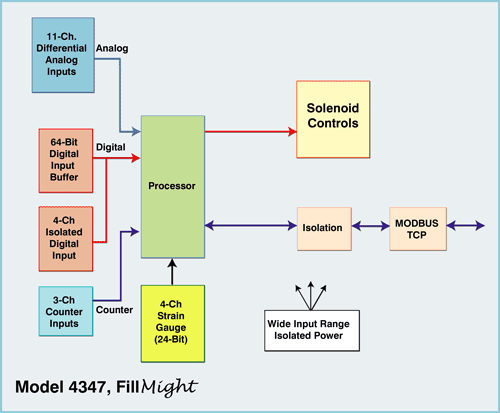

FillMight Model 4347 Block Diagram

SPECIFICATIONS:

Operation:

  • Internal Resolution: 24-bit
  • Conversion Rate:  5ksps

Input Power:

  • 24VDC, 3.5A

Indicator:

  • Ethernet Traffic LED, optional display

Communications Interface:

  • Ethernet Modbus / TCP

Analog Input:

  • (4) 24-bit analog strain gauge input channels

Channel Excitation:

  • 5VDC

Mechanical:

  • Dimensions: 7.29” W x 2.53” H x 9.0” D.
  • [18.6 cm W x 6.5 cm H x 22.9 cm D]
  • Weight:  3.2 lbs. [1.5 kg]

AVAILABLE FEATURES:

Analog Signal Inputs:

  • Analog Input: Very high impedance differential
  • Input Range: /- 10V
  • Resolution: 12-bits
  • Number of Channels: 1
  • Max. Sampling Rate: 10,000 samples/second, all channels

Digital Signal Inputs:

  • Input type: Logic, TTL, and HC compatible with hysteresis.
  • Number of Channels: 64 bits, simultaneously sampled.
  • Max Sampling Rate: 10,000 samples/second

Digital Counter Inputs:

  • Excitation: 5 VDC
  • Interface: Single ended TTL, compatible
  • Type: Pulse
  • Channels: 3
  • Resolution: 8-bits

Digital Isolated Inputs:

  • Type: Optically Isolated
  • Channels: 4

Digital Trigger Input:

  • Type: Digital trigger
  • Source:  Any digital input

Input Power:

  • Range: 19VDC-36VDC, std, 4.5VDC-9VDC, Others
  • Power: 8.5W (Ex. 300 mA at 28 VDC)

Communications Interface:

  • Interface Types: 10/100Base-T Ethernet with flow control
  • Isolation: Optical

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.
