Catalog # 306306 - Model 6306 LC Duplex Fiber Optic ONLINE/OFFLINE Switch, with Contact Closure Remote

    LC Duplex Fiber Optic SwitchCatalog # 306306 - Model 6306 LC Duplex Fiber Optic ONLINE/OFFLINE Switch, with Contact Closure RemoteCatalog # 306306 - Model 6306 LC Duplex Fiber Optic ONLINE/OFFLINE Switch, with Contact Closure Remote
Click image to enlarge
    • LC Duplex Fiber Optic Switch
    • Catalog # 306306 - Model 6306 LC Duplex Fiber Optic ONLINE/OFFLINE Switch, with Contact Closure Remote
    • Catalog # 306306 - Model 6306 LC Duplex Fiber Optic ONLINE/OFFLINE Switch, with Contact Closure Remote
Base Price:
$14,050.00
Catalog No: 306306
Model No: 6306
Cable Type/Port Connector:LC
Channels per Switch Chassis:8
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Channel Control:Simultaneous Channel Control
Configuration:Rackmount
Fiber Mode:Multimode
Fiber Type:Duplex
Mirror Technology:OO
Wavelength Nano:850

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

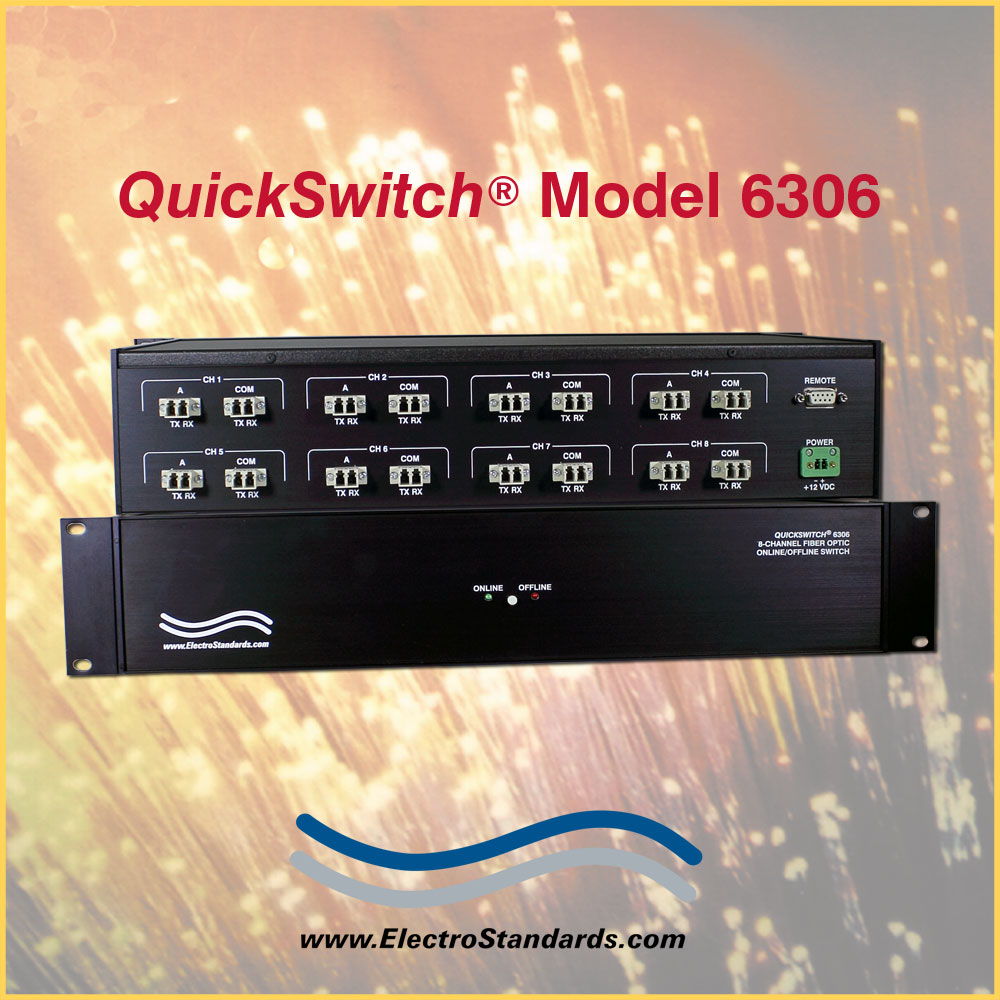

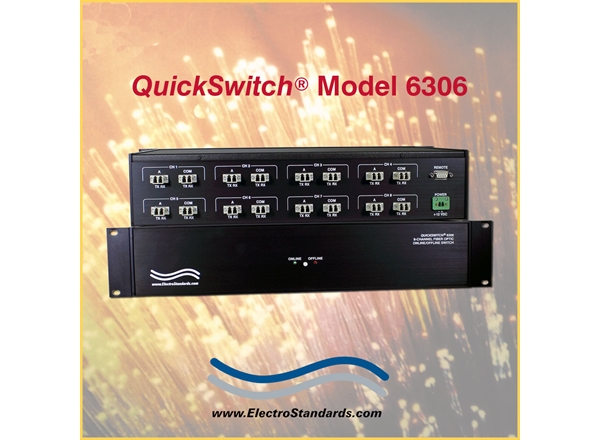

QuickSwitch® 6306 8-Channel LC Duplex Fiber Optic ONLINE/OFFLINE Switch with Contact Closure Remote

  • Quick Connect/Disconnect to/from network.  The ultimate FIREWALL!

  • Absolutely NO data passes through the switch when in the OFFLINE position.

SPECIFICATIONS:

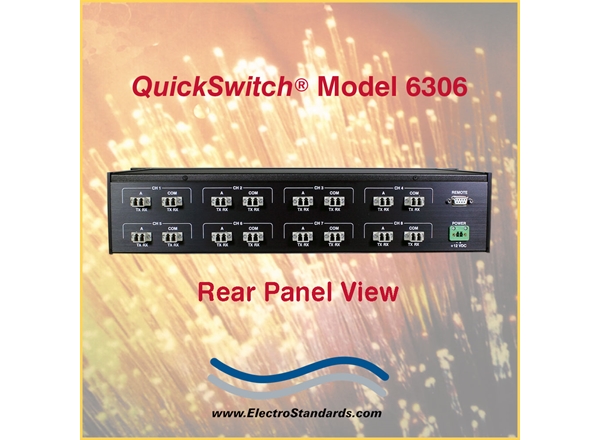

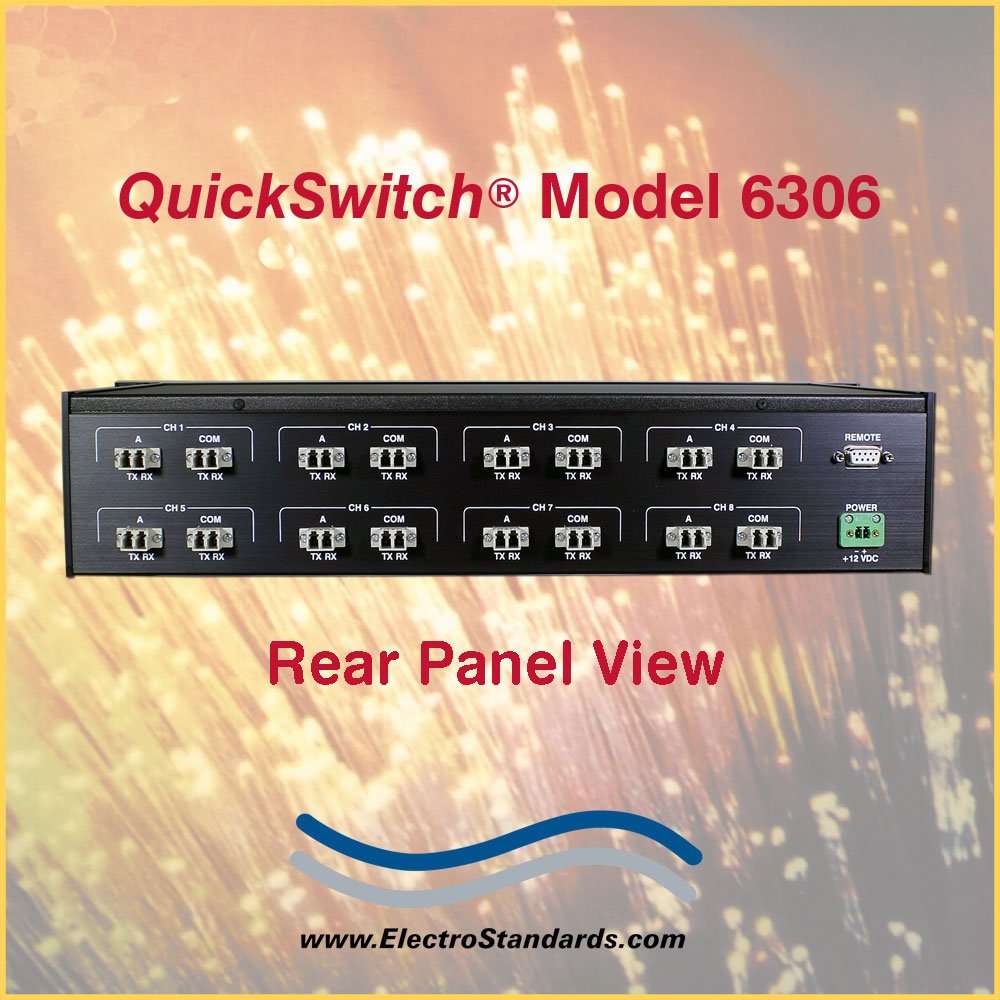

  • PORT CONNECTORS: (2) LC duplex female, connectors, labeled A and COM for each of eight channels.
  • FIBER: 50/125 micron, 850 nm.

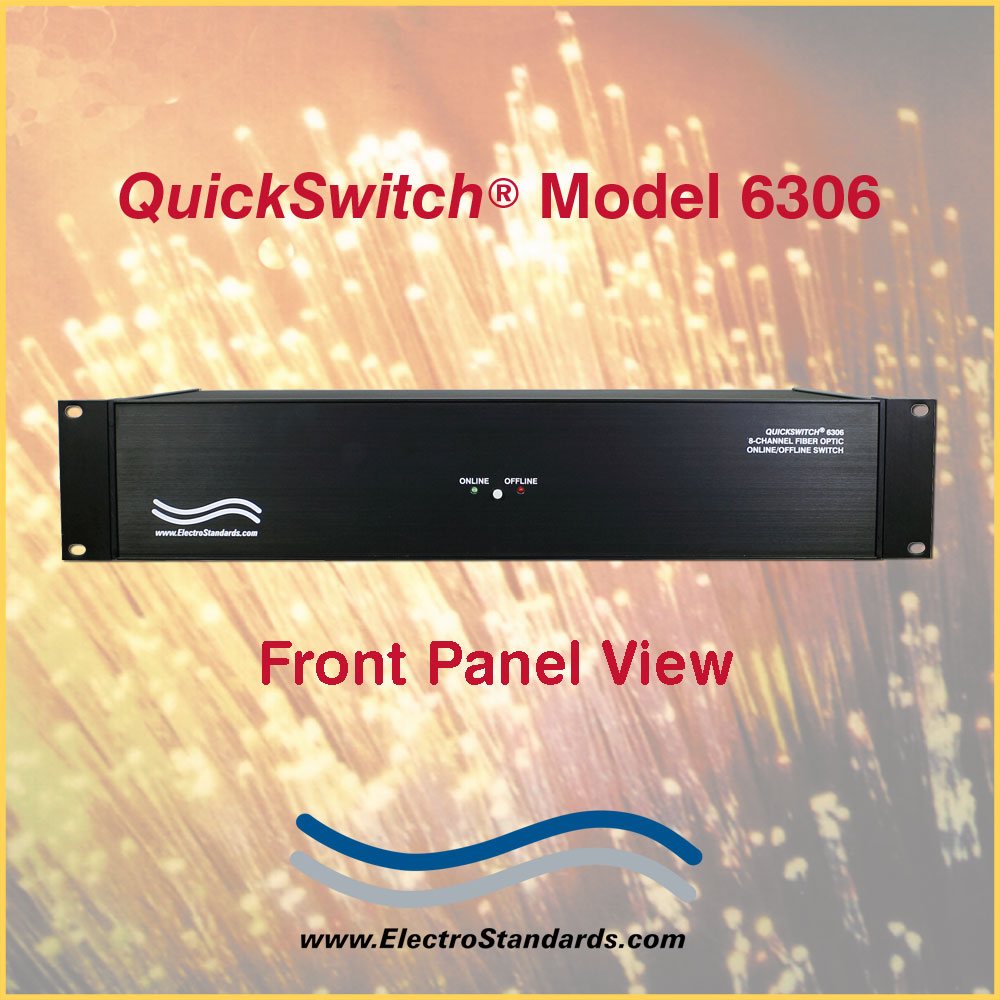

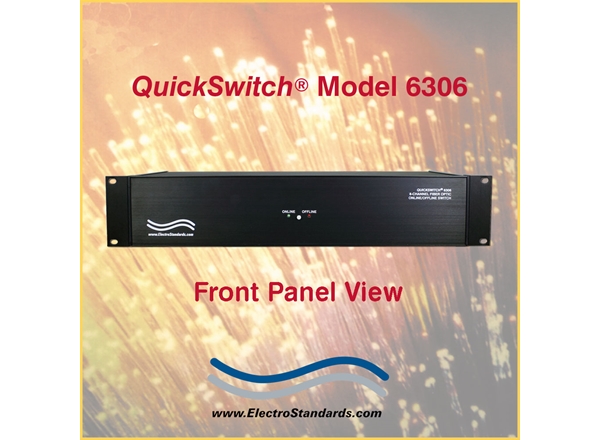

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching of all channels simultaneously.
  • DISPLAY: On the front-panel, (1) Green LED (ONLINE) and (1) Red LED (OFFLINE) display switch position and power.
  • POWER: UL approved 120VAC/240VAC 50Hz/60Hz wall mount power module supplies 12VDC 500 mA to the unit.  Has 2-prong, US, non-polarized plug.
  • REMOTE: (1) DB9 female connector accepts contact closure signals for remote control operation.
  • DIMENSIONS: 19.0" W x 3.5" H x 10.8" D. (48.3 X 8.9 X 27.5 cm)
  • WEIGHT: Approximately 6.5 lbs (3.0 kg)

QuickSwitch® 6306 8-Channel LC Duplex Online/Offline Switch w/Contact Closure Application

The drawing illustrates eight channels of ONLINE/OFFLINE Switching. For each Channel a COMMON Device is CONNECTED TO or DISCONNECTED FROM a Device connected to the "A" port.  There is a DB9 Remote Control that uses Contact Closure Signalling.

Network Diagram for Model 6306 LC Duplex Fiber Optic Switch Application with Contact Closure Remote Control

FEATURES:

  • Eight LC Duplex Channels allow simultaneous quick connection between two fiber optic networks or devices.
  • The switch ports are transparent to all data.
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology.
  • When power is lost, all channels revert to the Offline position.
  • Upon power up, unit switches based on state of Contact Closure.
  • Simultaneous channel control via front panel pushbutton control or Contact Closure Remote.
  • Front panel pushbutton control.
  • Front panel LED's display present position and power status.
  • Remote Contact Closure control provides dry contact logic to allow the control of the switch position and lockout state.
  • COM and A ports for the LC duplex are, Multi-mode, 50/125 micron, and support a wavelength of 850nm.
  • The fiber ports are configured per TIA/EIA-568-B.3, where the TX of the COM port is routed to the RX of the A ports and vice versa.

The QuickSwitch® Model 6306 8-Channel, LC Duplex Online/Offline Switch with Contact Closure Remote allows the user the capability of connecting or disconnecting two separate devices, ports COM and A, via an Online or Offline connection for 8 channels simultaneously.  The QuickSwitch® 6306 fits in a standard 19" rack, taking 2U of rack space.  The switch may be controlled manually via the front panel pushbutton or remotely from a DB9 port located on the rear of the unit.  Switch position state may be attained via the front panel LED.

Wide Range Power Option Available: (Cat No 517277) CE, RoHS and UL listed table mount power module, 100 VAC/240 VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

QuickSwitch® is a registered trademark of Electro Standards Laboratories.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Check out our complete line of QuickSwitch® fiber optic switches.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our online Custom Product Request form.

Electro Standards can supply all your Fiber Optic Cable requirements.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateurs à fibres optiques, interruptores de fibra óptica, switch in fibra ottica, switches de fibra óptica, fiberoptiska switcher.
