KEYBOARD VIDEO SWITCH 308403, Model 8403 3-Position, 2-Channel PS/2 & VGA Monitor Switch

Click image to enlarge

Base Price:

Call for Price

Catalog No:

308403

Model No:

8403

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

HD15 Switch Ports, Mini-DIN

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Channel Control:

Simultaneous Channel Control

Configuration:

Rackmount

Local Control:

Keyboard Reset Button, Rotary Knob

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

Keyboard/Video Manual Network Switch, Rotary Switches

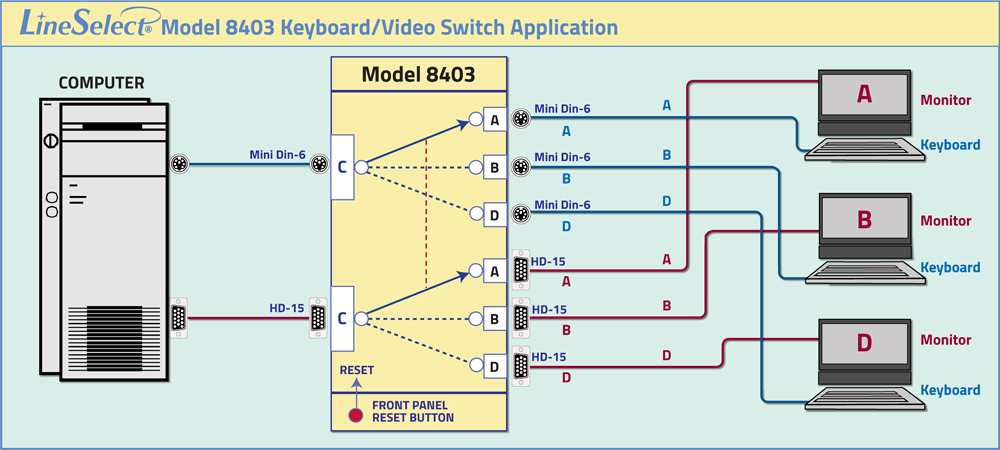

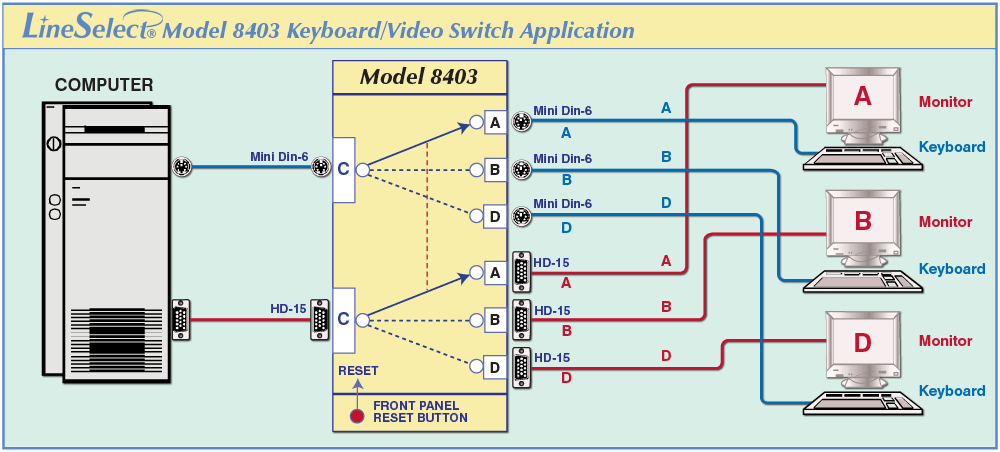

LineSelect® Model 8403 Dual-Channel, 3-Position, Keyboard/Video Switch One Channel PS/2 Keyboard and
One Channel VGA Monitor, Manual, Simultaneous Channel Control, Rackmount

SPECIFICATIONS:

PORT CONNECTORS:
- (4) HD15 VGA Monitor female connectors labeled D, C, B, and A.
- C = COMMON port.
- (4) Mini Din female PS/2 Keyboard connectors labeled D, C, B and A. C = COMMON port.
FRONT PANEL CONTROL:

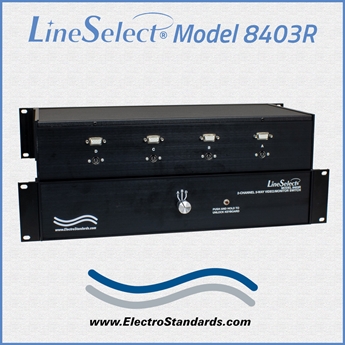

- (1) Rotary switch on front panel selects A, B, or D position.
- (1) Keyboard Reset Button labeled "PUSH AND HOLD TO UNLOCK KEYBOARD".
POWER: No power required. Manually operated.
DIMENSIONS: Rackmount 19.0" W x 3.5" H x 6.0" D. (48.3 x 8.9 x 15.3 cm)
WEIGHT: Approximately 5.2 lbs. (2.4 kg)

LineSelect® Model 8403 Keyboard/Video Manual Network Switch, Rotary Switches LineSelect® Model 8403 Dual-Channel, 3-Position, Keyboard/Video Switch One Channel PS/2 Keyboard and One Channel VGA Monitor, Manual, Simultaneous Channel Control, Rackmount

FEATURES:

Manually control both channels simultaneously via one knob located on the front panel.
Manual reset button located on front panel.
All pins of the HD15 and Mini Din interface are switched via break-before-make rotary switch.

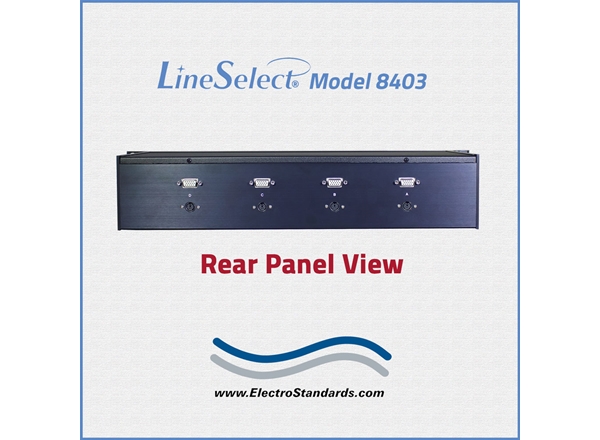

All ports located on the rear panel:
- (4) HD15 female VGA Monitor ports.
  - (1) A, (1) B, (1) C and (1) D.
  - C = COMMON port.
- (4) 6-Pin Mini Din female PS/2 Keyboard ports:
  - (1) A, (1) B, (1) C and (1) D.
  - (C) = COMMON port.

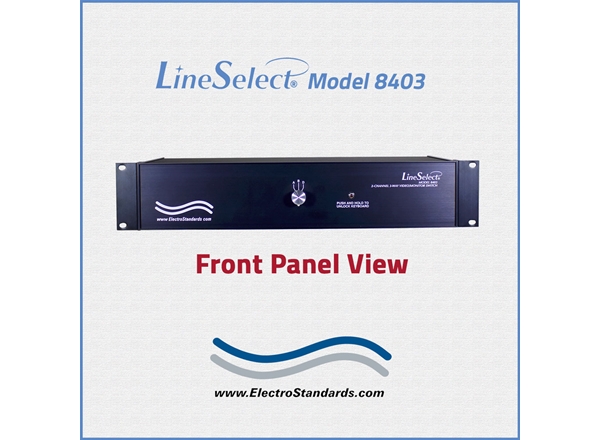

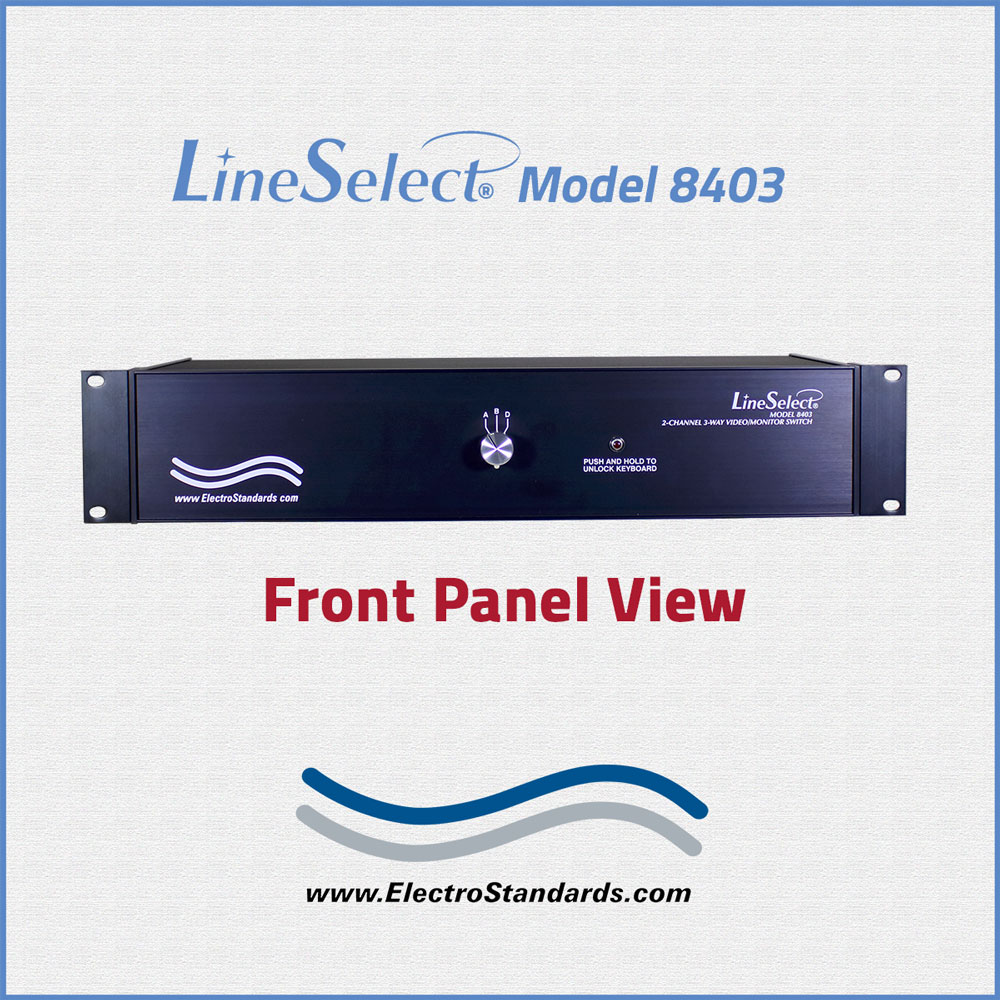

Front panel knob labeled left to right: A, B, and D.
Front panel reset button labeled PUSH AND HOLD TO UNLOCK KEYBOARD".

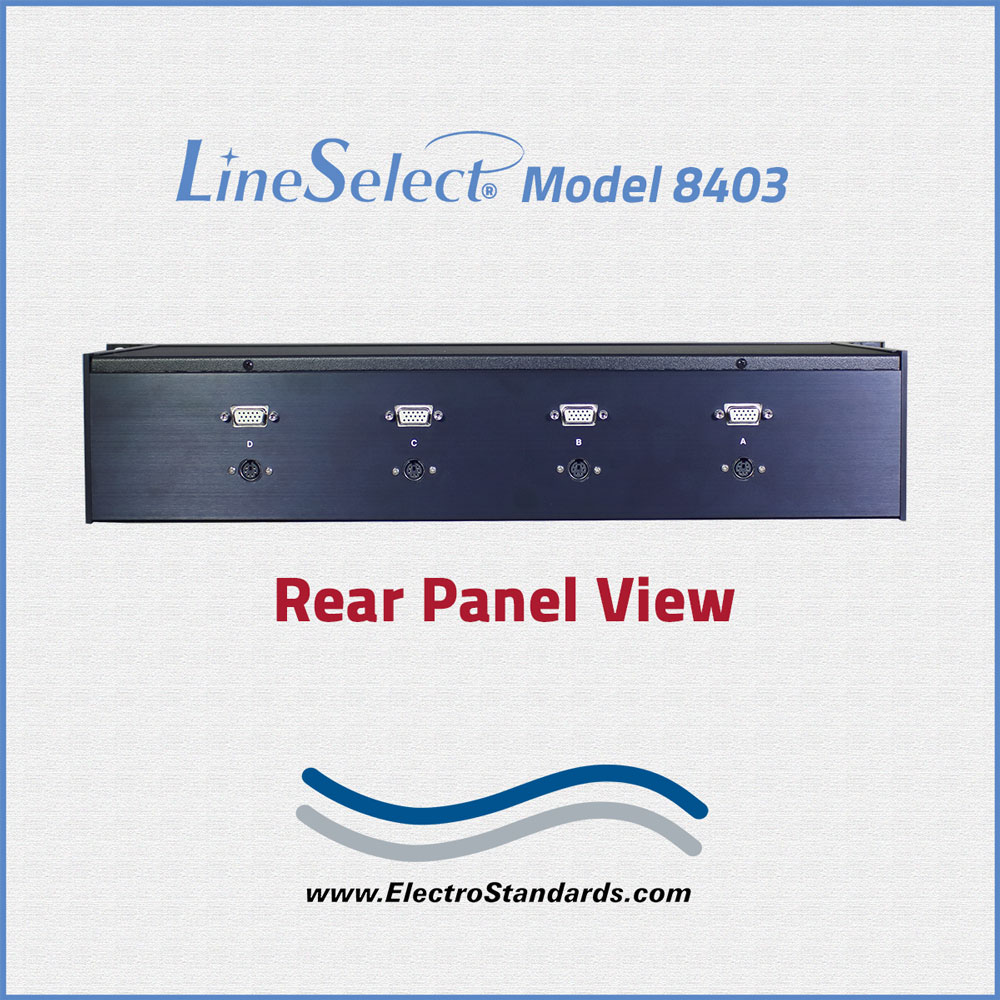

Back panel ports labeled left to right: D, C, B, and A.
Port C is the COMMON port.
Lifetime warranty against manufacturing defects.
For a RoHS version, see Model 8403R, Cat. No. 308403R

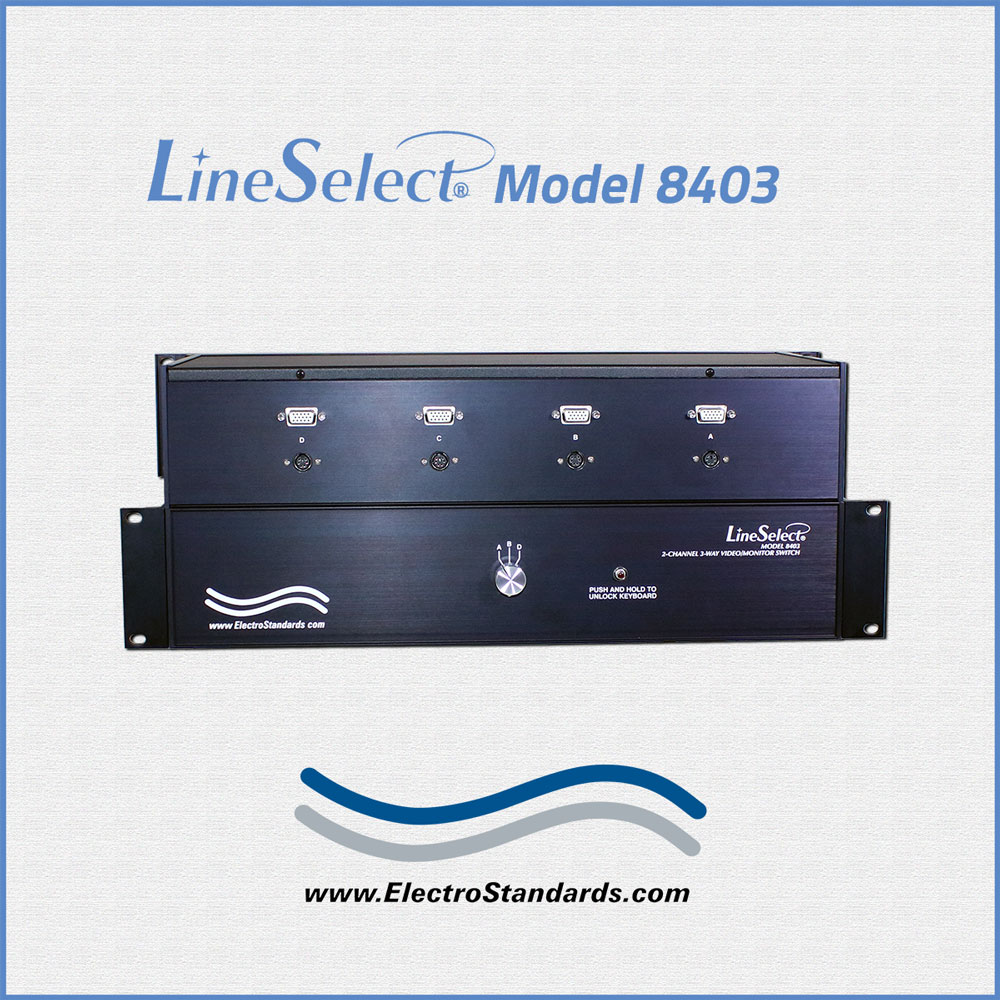

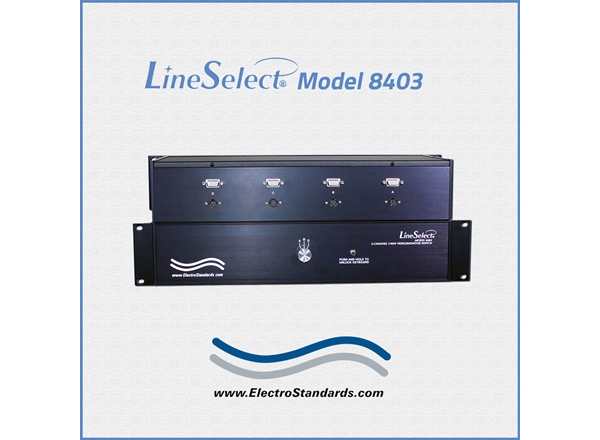

LineSelect® Model 8403 3-Position PS/2 Keyboard/Video Switch is designed to allow access from one computer to 3 locations having a keyboard and monitor. A front panel selector allows quick and easy switching of the shared device. The LineSelect® Model 8403 is enclosed in a 2U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

State cable length (in Feet) when ordering.

Part Number Description

880841 VGA Monitor Cable, HD15 (M/M)

891022 VGA Extension Cable HD15 (M/F)

880835 PS/2 Keyboard/Mouse/Extension Cable, Mini DIN-6 (M/M)

891021 PS/2 Keyboard/Mouse/Extension Cable, Mini DIN-6 (M/F)

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur, equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
