Catalog # 307450 - Model 7450 Single Channel DB25 A/B Switch

    Model 7450 Single Channel DB25 A/B SwitchModel 7450 Single Channel DB25 A/B SwitchModel 7450 Single Channel DB25 A/B SwitchModel 7450 Single Channel DB25 A/B Switch
Click image to enlarge
    • Model 7450 Single Channel DB25 A/B Switch
    • Model 7450 Single Channel DB25 A/B Switch
    • Model 7450 Single Channel DB25 A/B Switch
    • Model 7450 Single Channel DB25 A/B Switch
Base Price:
Call for Price
Catalog No: 307450
Model No:
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Independent Channel Control
Configuration:Table Mount
Remote Port:DB25
Local Control:Pushbutton

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Path Way® DB25 A/B Network Switch

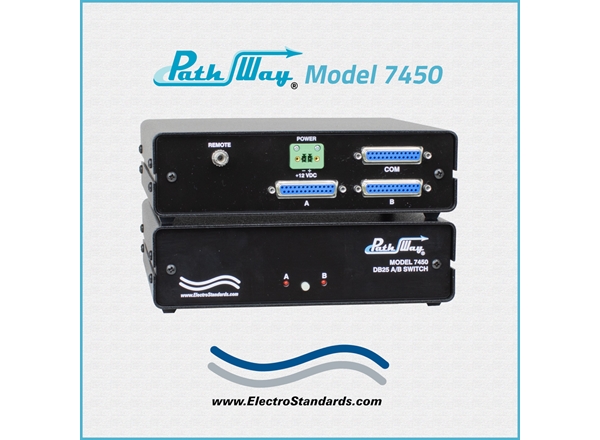

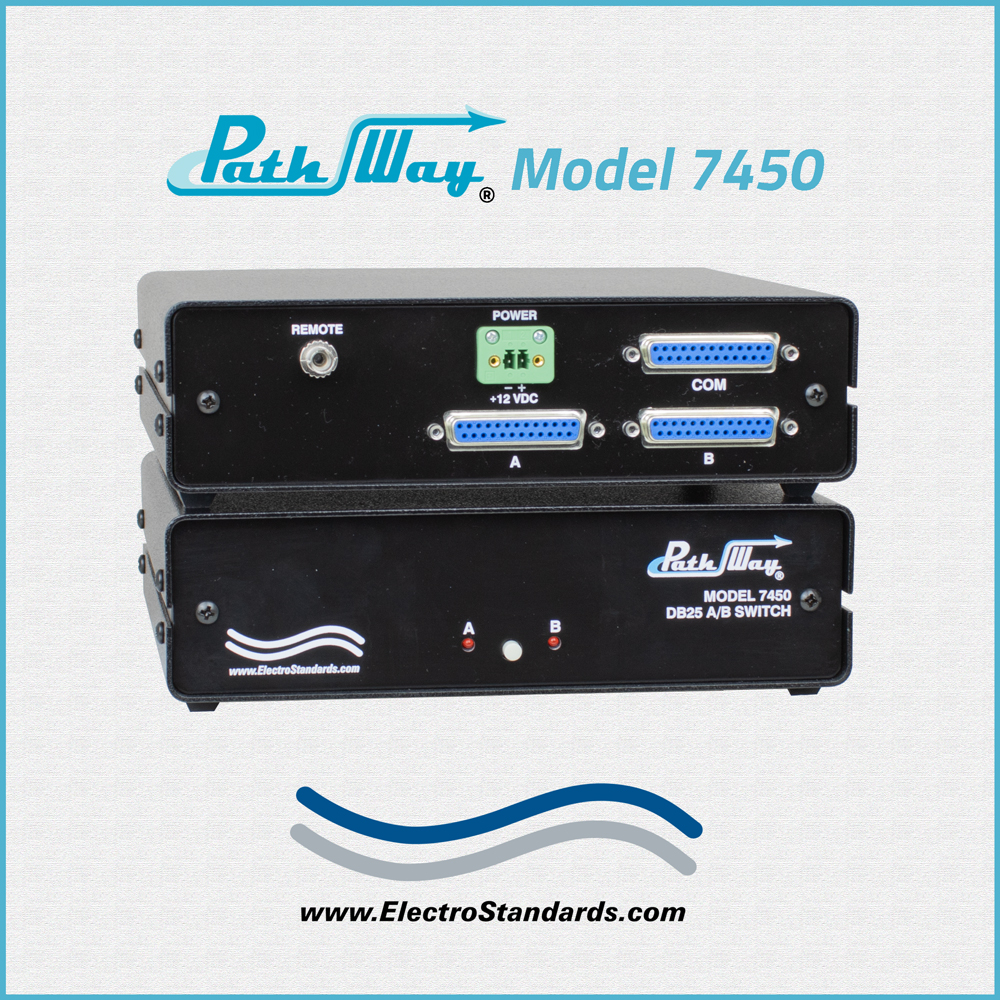

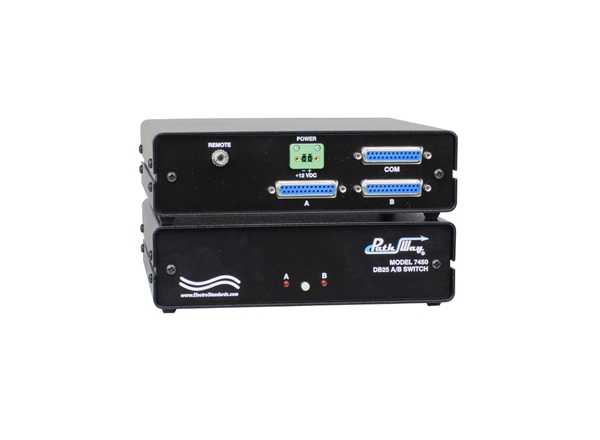

Model 7450 Single Channel DB25 A/B Switch with ST Single Mode Remote Control Port, Desktop

  • Ideal for Traffic Flow Management Application

  • Remotely Controllable A/B Switch provides redundancy and backup protection for critical communication networks.

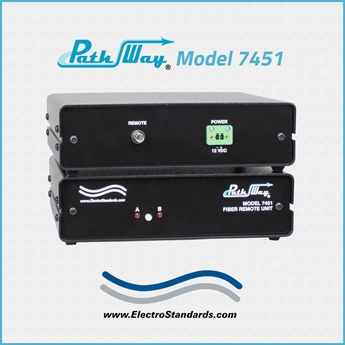

  •  Partners with the Model 7451 Remote Control Unit! (Click Here)

SPECIFICATIONS:

  • PORT CONNECTORS: (3) DB25 female connectors, labeled A, B, and COMMON.

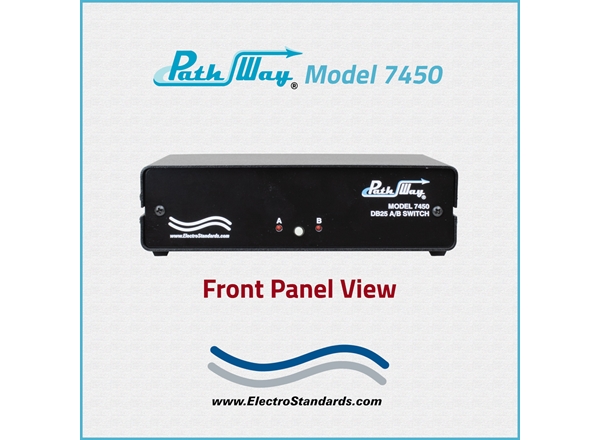

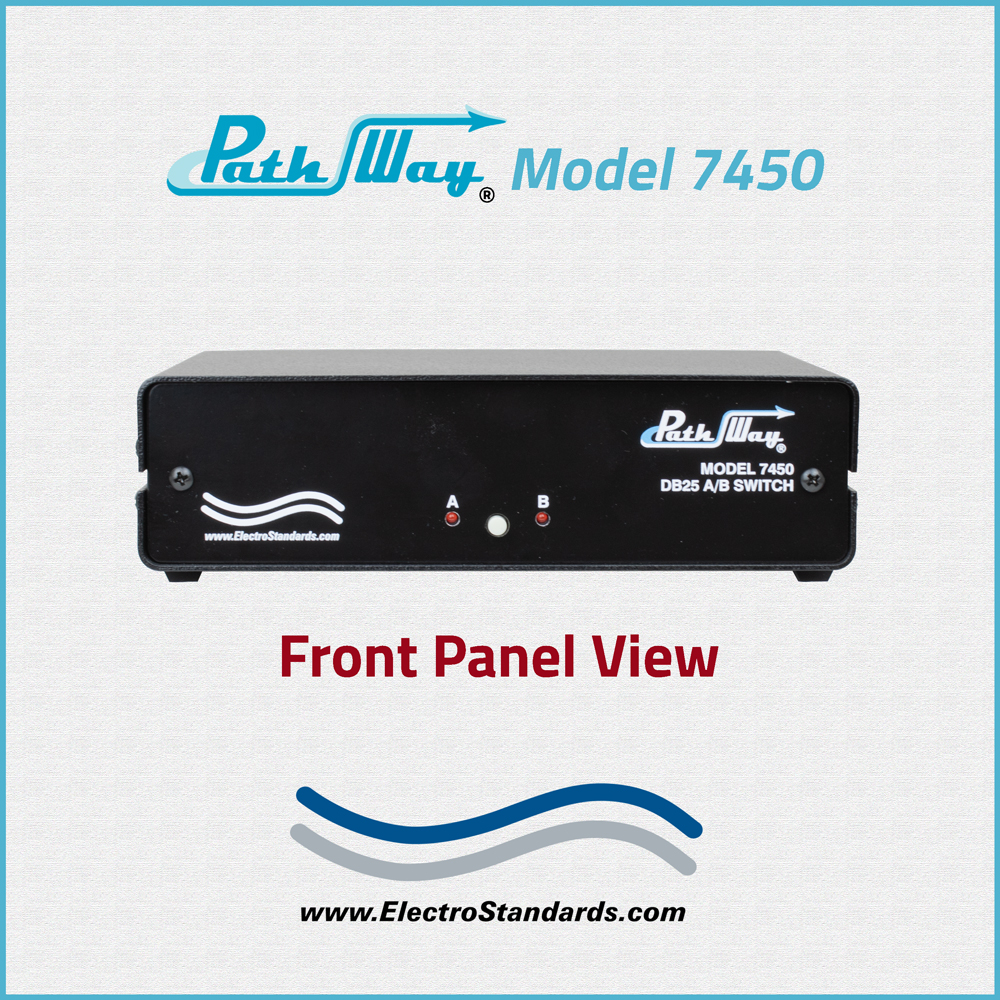

  • FRONT PANEL CONTROLS: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display channel switch position.

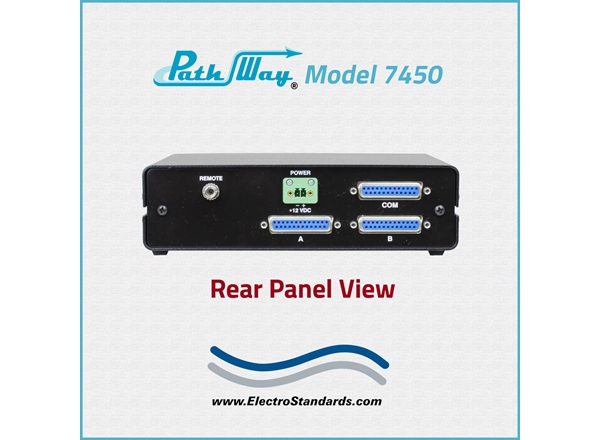

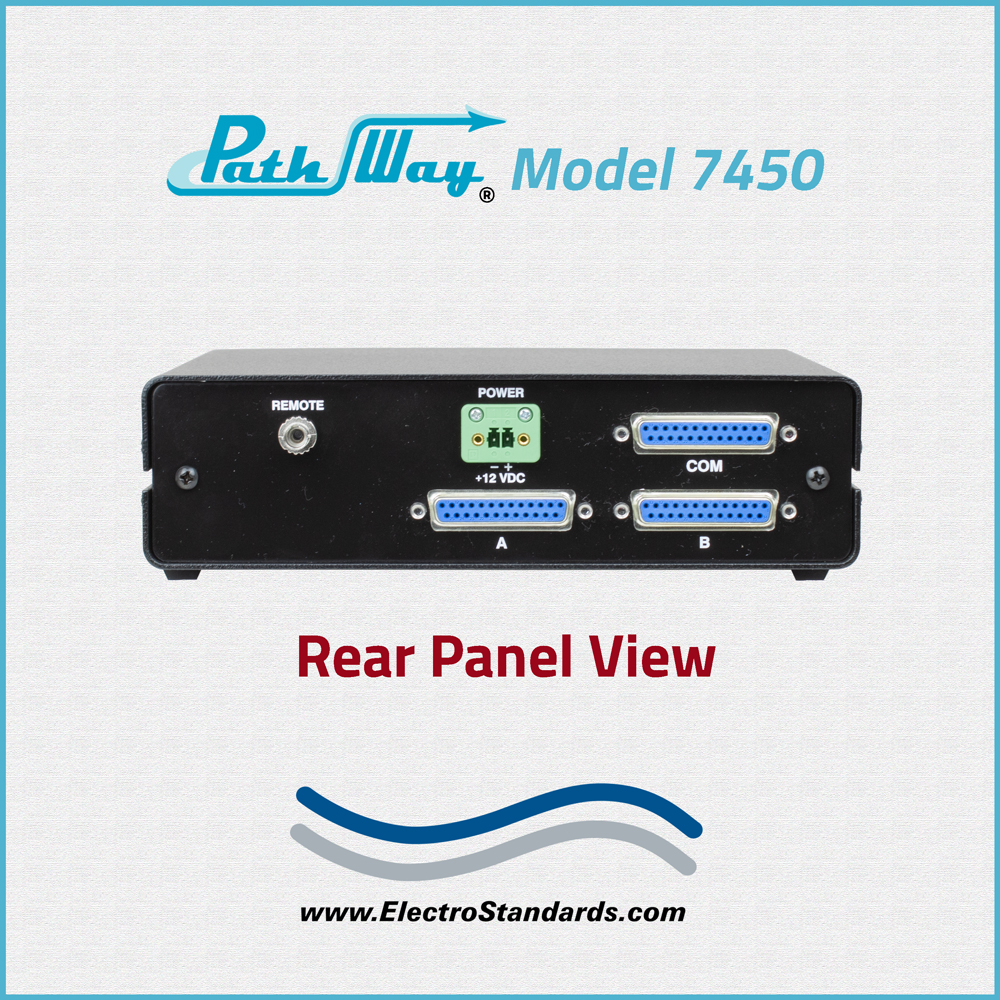

  • REMOTE: (1) ST female fiber optic connector on rear panel.
  • POWER:UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 8.0" W x 2.5" H x 7.5" D (20.4 x 6.4 x 19.1cm).
  • WEIGHT: Approximately 1.6 lbs. (0.8 kg).

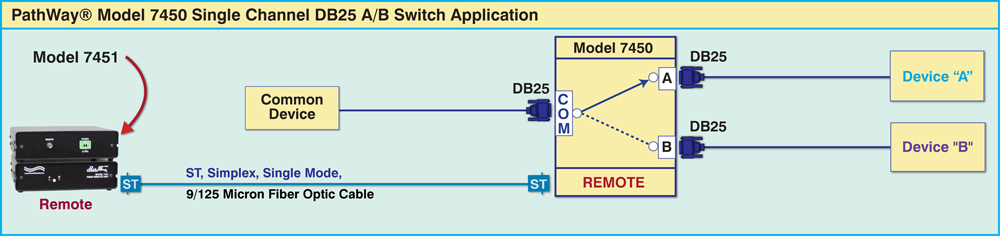

PathWay Model 7450 Single Channel RS-530 DB25 A/B Switch Application:

  • The Model 7450 Application drawing shows the Model 7450 interacting with it's partner unit, the Model 7451.

PathWay Model 7954 Dual Channel RS520 Mode-S Solid State Switch, DB25 Interface

FEATURES:

  • Allows quick connection to any one of two devices from one COMMON device.
  • The Switch ports are transparent to all data.
  • Switch locally via a front panel pushbutton or remotely via Model 7451 Remote Control Unit.
  • All 25 pins of the DB25 interface are switched.
  • Front Panel LED indicators display switch position and power status.
  • The unit maintains last set position on power loss and continues to pass data.
  • Switch powers up in last known position.
  • Switch connects to companion Model 7451 Remote Control unit via a ST, Simplex, Single Mode, 9/125 Microns fiber optic cable.
  • One year warranty against defects on manufacturer parts and labor.

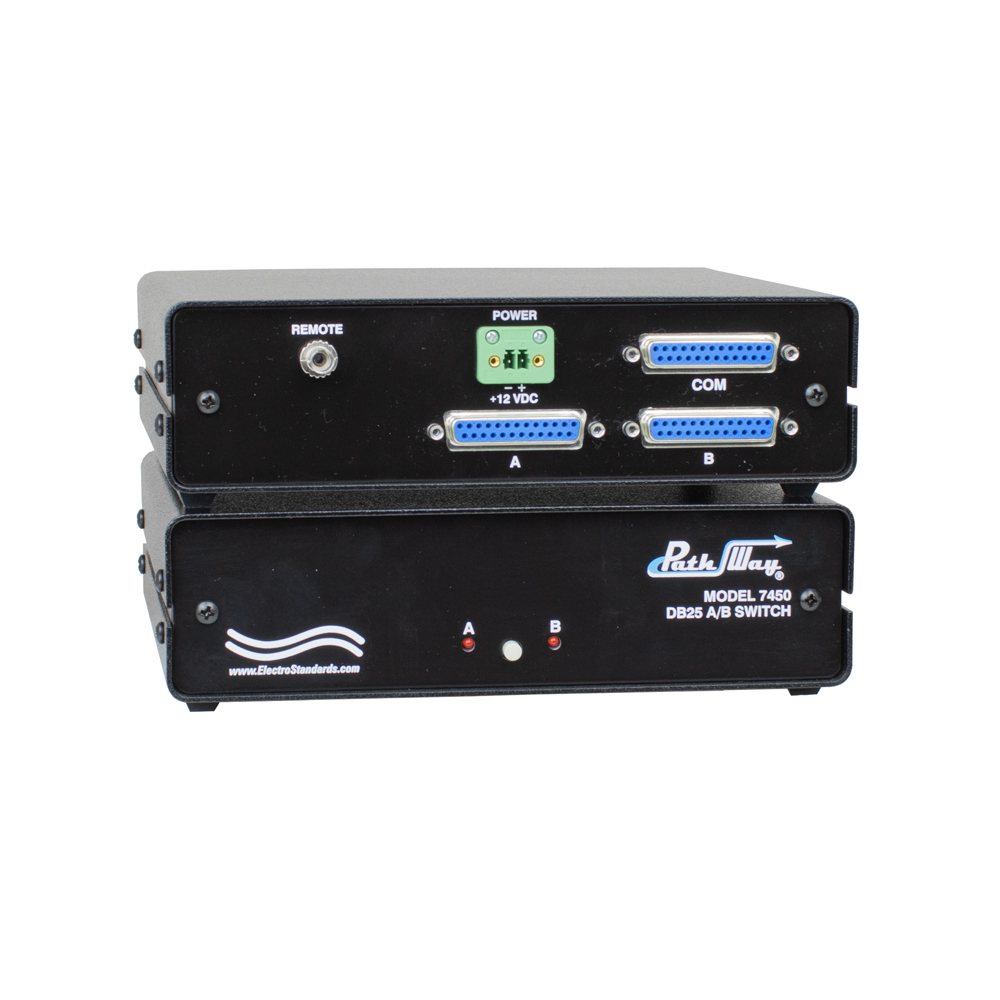

The PathWay® Model 7450 Single Channel DB25 A/B Switch allows the user the capability of sharing a Single DB25 interface device connected to the Common port among two other devices connected to the "A" and "B" ports. All 25 pins of the DB25 interface are switched. The Model 7450 is enclosed in a slim desktop, all metal black chassis designed to provide EMI/RFI shielding.

The switch may be controlled locally by manually operating the front panel pushbutton or remotely via a companion Model 7451 Remote Control Unit connected to the Remote Control Port located on the rear of the unit. The front panel LED display indicates the switch position and power status.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
