Catalog # 307451 - Model 7451 Remote Control Unit Switch

    Model 7451 Remote Control UnitModel 7451 Remote Control UnitModel 7451 Remote Control UnitModel 7451 Remote Control Unit
Click image to enlarge
    • Model 7451 Remote Control Unit
    • Model 7451 Remote Control Unit
    • Model 7451 Remote Control Unit
    • Model 7451 Remote Control Unit
Base Price:
Call for Price
Catalog No: 307451
Model No: 7451
Product Type:Switches: Copper
Positions:2
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Independent Channel Control
Configuration:Table Mount
Local Control:None

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Path Way® Remote Control Switch

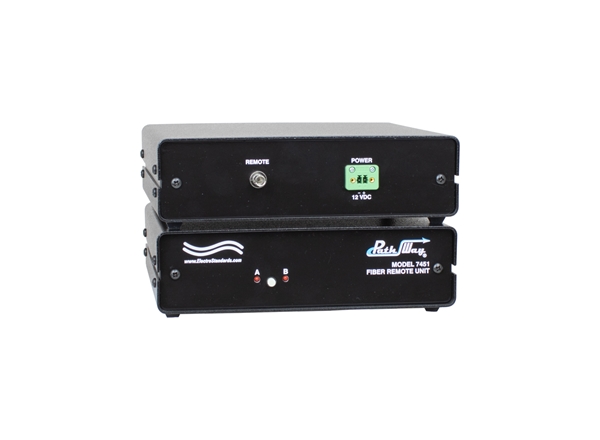

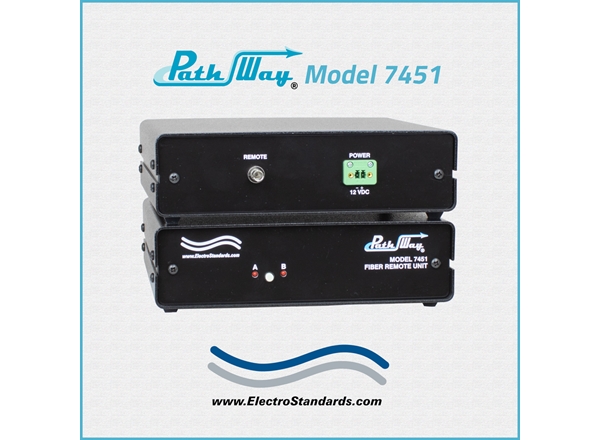

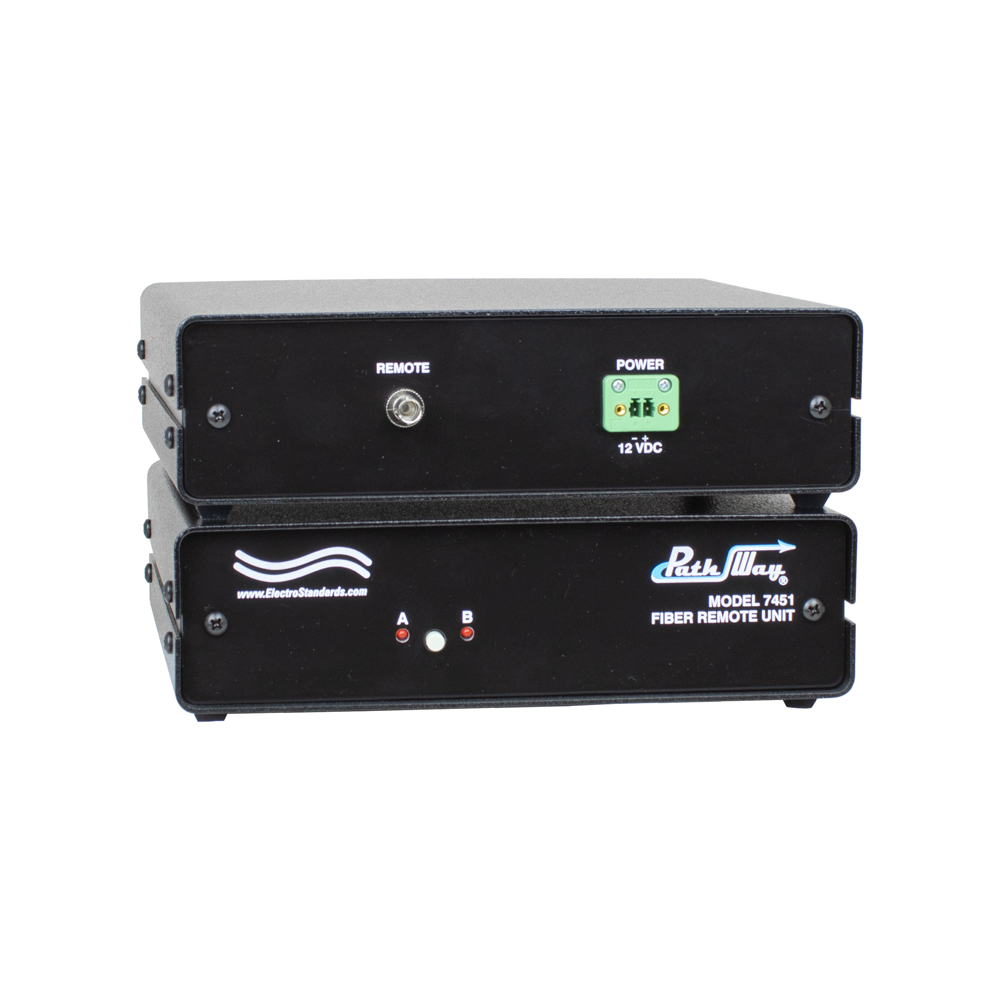

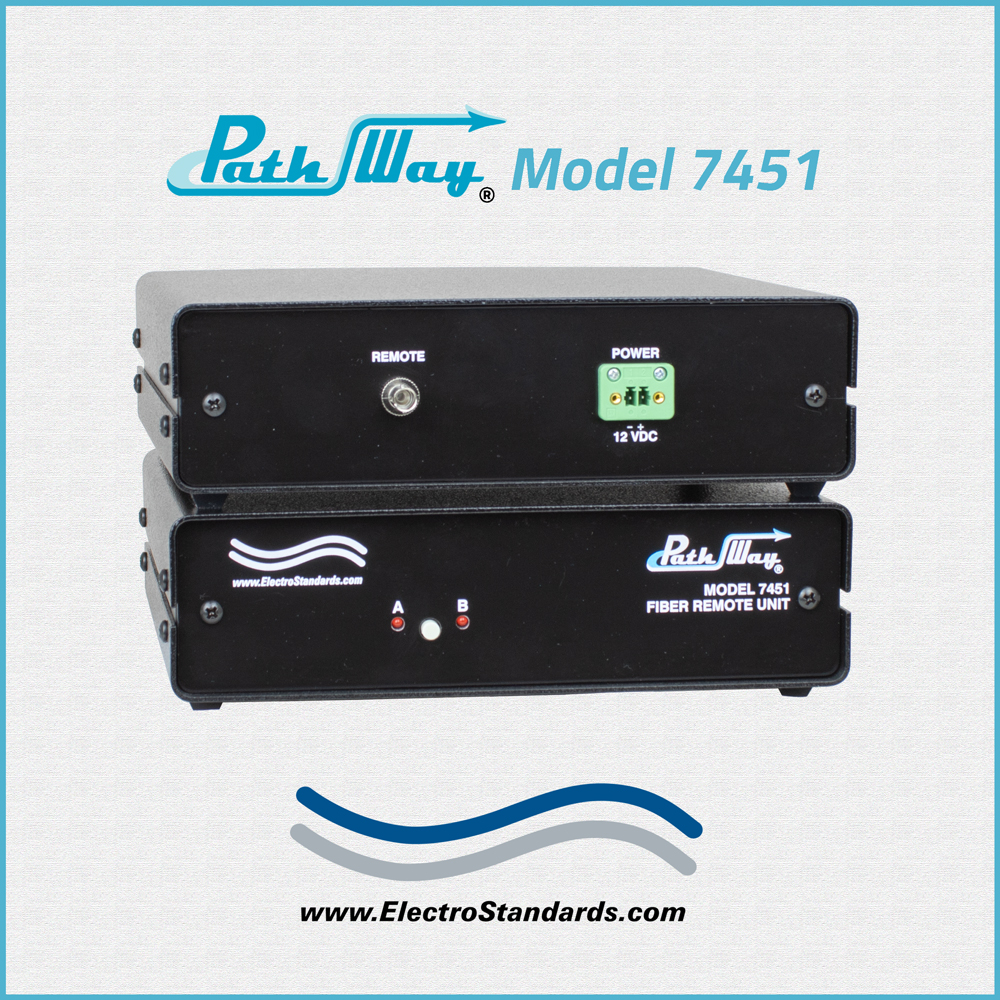

Model 7451 Remote Control Unit, Desktop

  • Ideal for Traffic Flow Management Application.

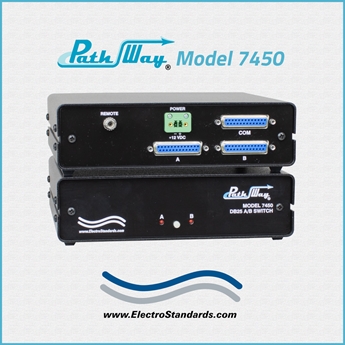

  • Partners with the Model 7450 Single Channel DB25 A/B Switch (Click Here)

SPECIFICATIONS:

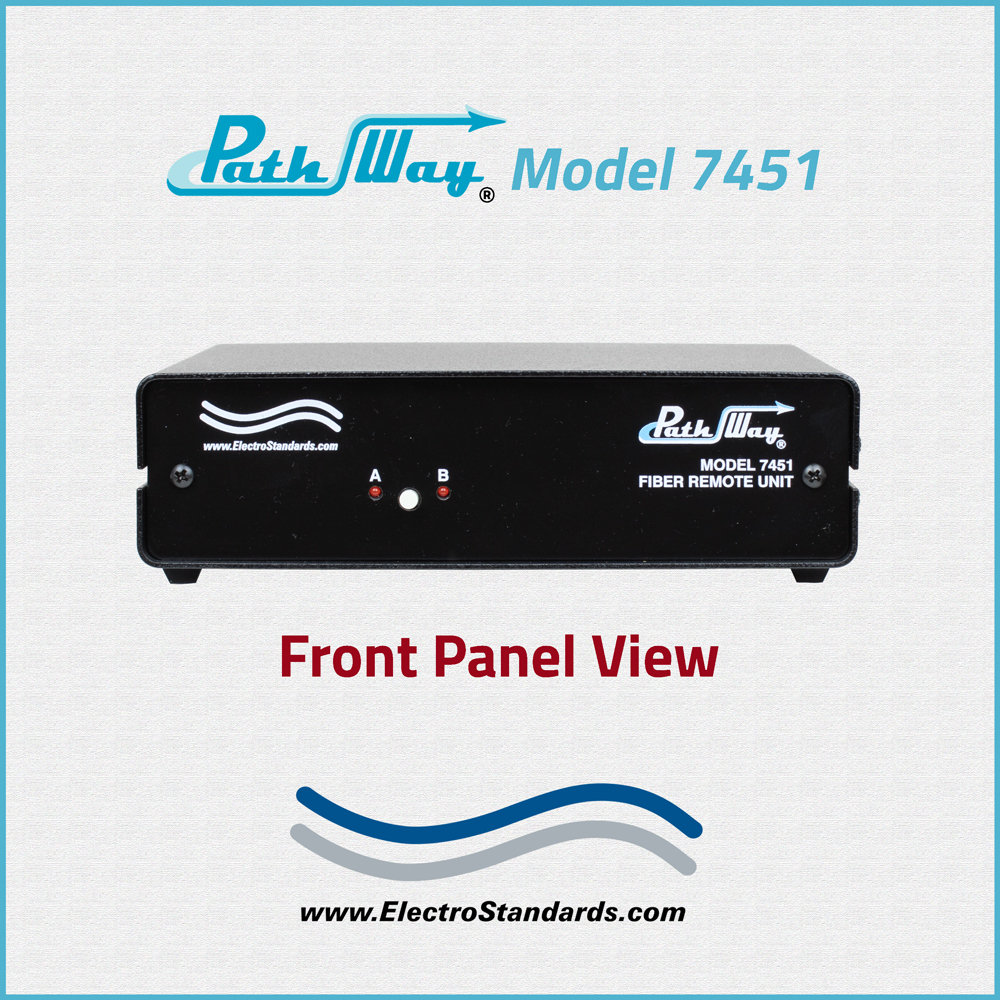

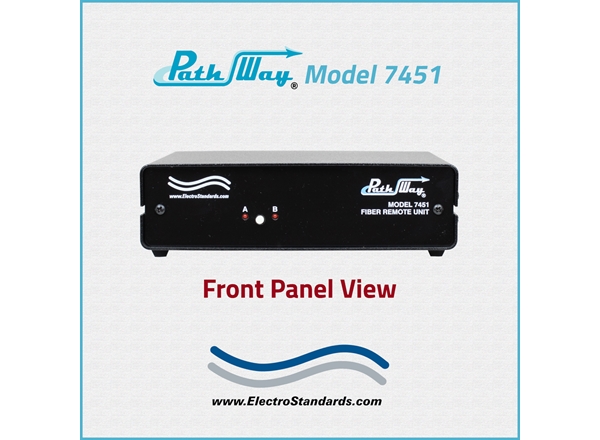

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows remote switching of the distant Model 7450 Single Channel DB25 A/B Switch.

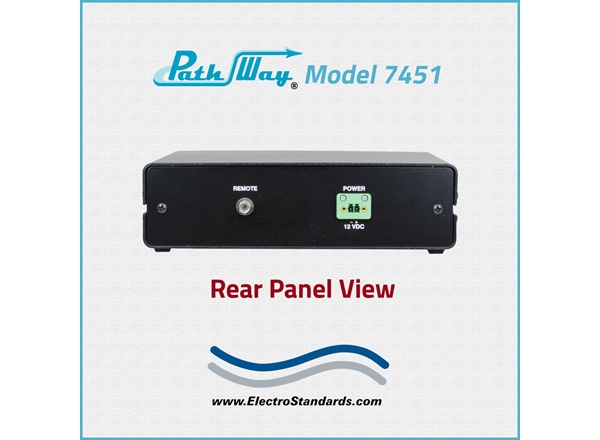

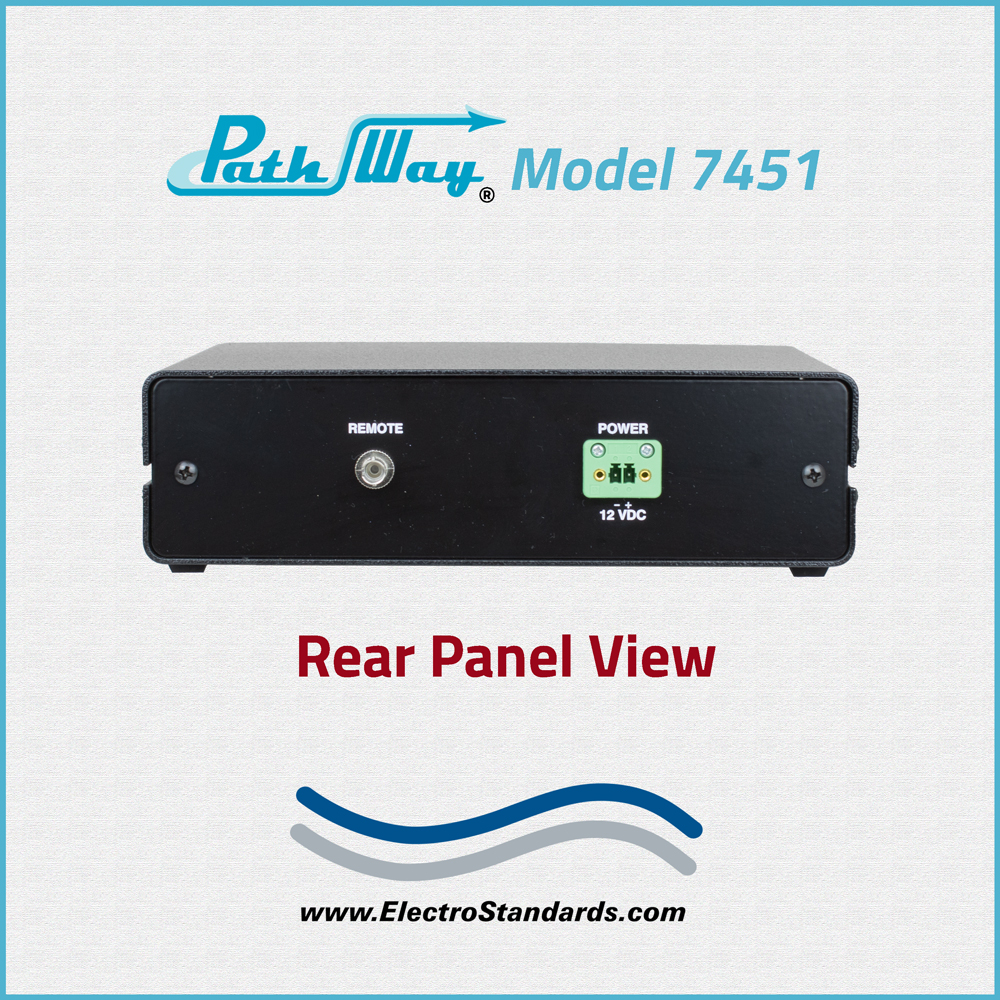

  • REMOTE: (1) ST female fiber optic connector on rear panel.
  • POWER: (1) 2-position Phoenix port for POWER. UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Slim rackmount 8.0" W x 2.5" H x 7.5" D (20.4 x 6.4 x 19.1cm).
  • WEIGHT: Approximately 2.0 lbs. (0.9 kg).

PathWay Model 7451 Remote Control Unit Application:

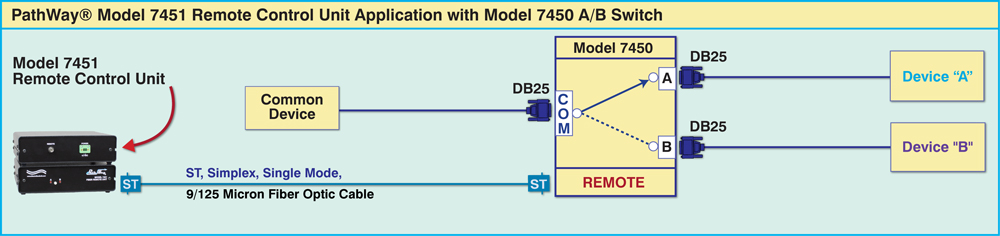

  • The Model 7451 Application drawing shows how the Model 7451 partners with the Model 7450 DB25 A/B Switch.

PathWay Model 7954 Dual Channel RS520 Mode-S Solid State Switch, DB25 Interface

FEATURES:

  • Switch locally via a front panel pushbutton.
  • Switch connects to companion Model 7450 Unit via an ST, Simplex, Single Mode, 9/125 Microns fiber optic cable.
  • One year warranty against defects on manufacturer parts and labor.

The PathWay® Model 7451 Remote Control Unit allows the user the capability of remotely switching its companion unit, the Model 7450 Single Channel DB25 A/B Switch via a fiber optic cable connecting the two units. The Model 7451 remote port is located on its rear panel.  A custom length ST fiber optic cable is utilized to connect the two units.

Switching is accomplished by operating the pushbutton on the front panel of the Model 7451. The unit is enclosed in a desktop, all metal black chassis designed to provide EMI/RFI shielding. Custom length ST fiber optic cables are available to facilitate system installation.

The switch position status is displayed on the front panel LEDs.  There are no local control buttons on the unit.  All position control is managed via the Remote port.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
