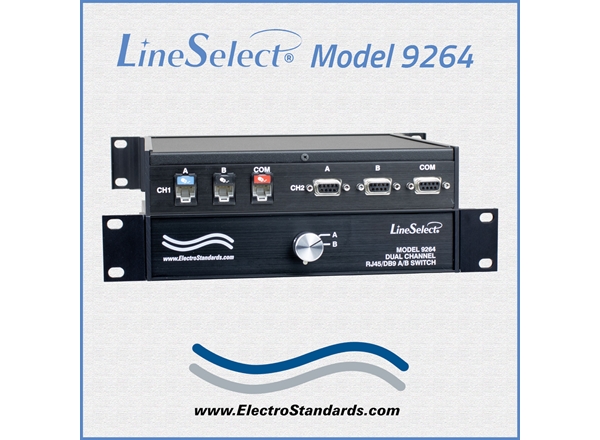

Catalog # 309264 - Model 9264 DUAL Channel DB9/RJ45 A/B Switch

Click image to enlarge

Base Price:

$735.00

Catalog No:

309264

Model No:

9264

Positions:

Cable Type/Port Connector:

RJ45, DB9 Switch Ports

Channel Control:

Independent Channel Control

Configuration:

Rackmount

Local Control:

Rotary Knob

Qty

Add to Cart

DUAL Channel, A/B
DB9/RJ45 Interface

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

Model 9264 DUAL Channel RJ45 CAT6 and DB9 A/B Switch, Manual Operation

Channel 1 is CAT6 compliant
Simultaneously switches DB9 and RJ45 Cat 6 interfaces

SPECIFICATIONS:

PORT CONNECTORS:
(3) DB9 female connectors labeled A, B, and COMMON for channel 2.
(3) RJ45 female connectors labeled A, B, and COMMON for channel 1.

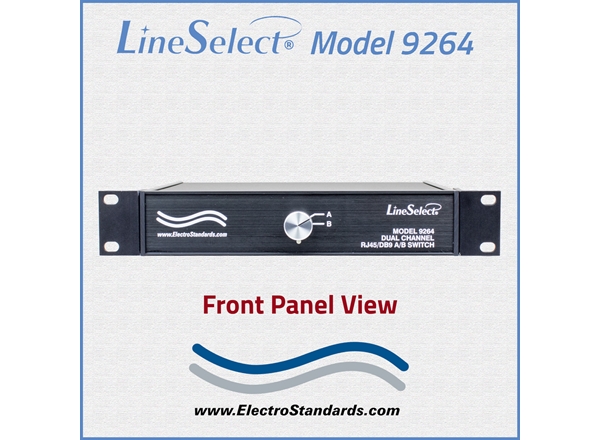

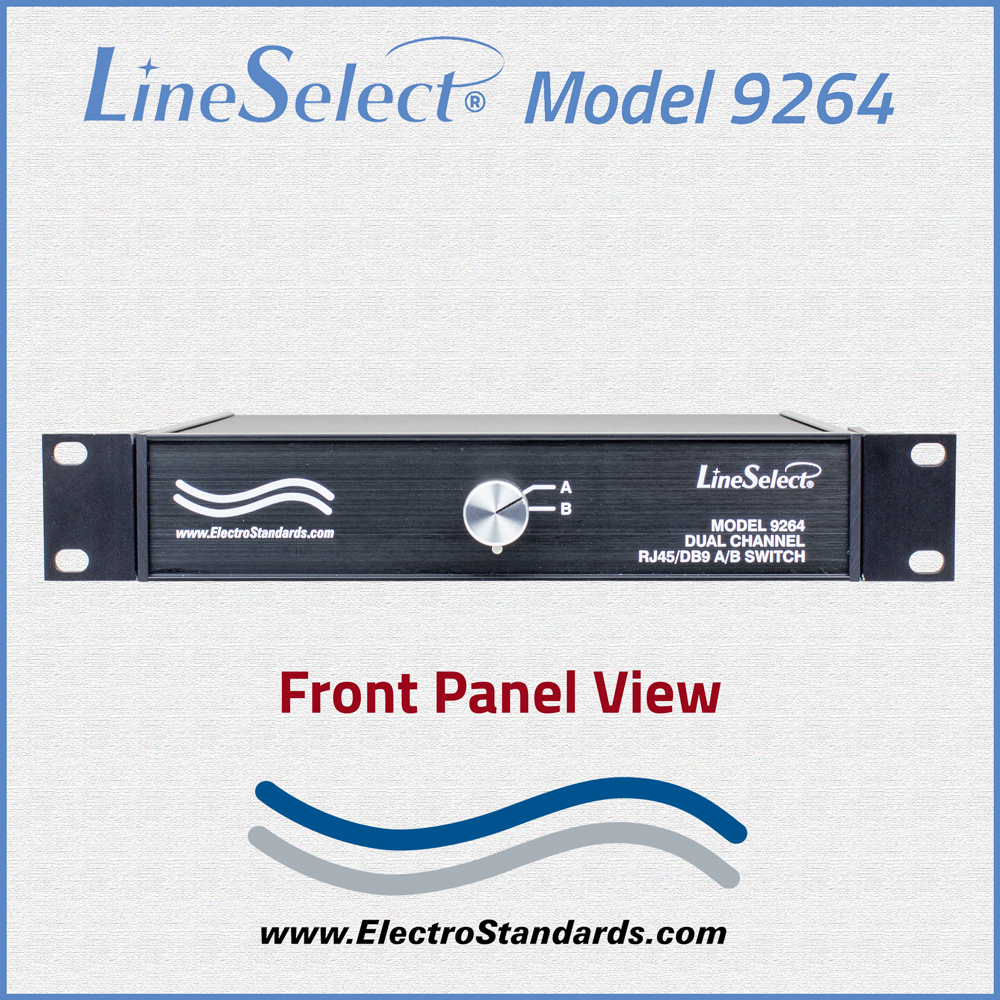

CONTROL: (1) Front-panel control knob allows for local switching both channels simultaneously
DIMENSIONS: 19.0" W x 1.75" H x 8.24" D. (48.3 X 4.5 X 21.0 cm)
WEIGHT: Approximately 2.4 lbs. (1.1 kg)

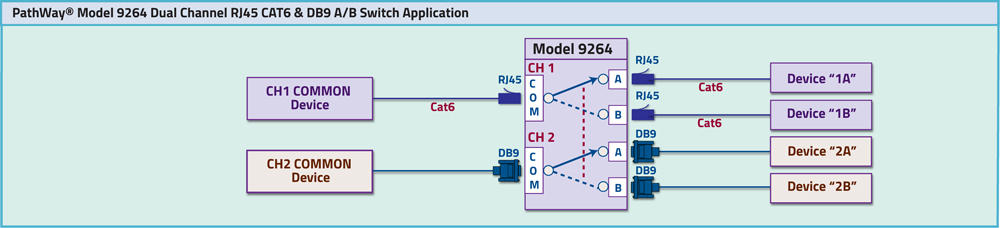

LineSelect® Model 9264 Dual Channel DB9/RJ45 A/B Switch Application.

The PathWay® Model 9264 diagram illustrates two channels, one of DB9 and one of RJ45, both with A/B ports. Channel 1 and Channel 2 each have a COMMON Port with access to one of two devices.
Each channel is controlled simultaneously via one front panel rotary knob.

PathWay Model 9264 Dual Channel DB9/RJ45 A/B Switch Application

FEATURES:

Simultaneously switch one RJ45 Channel and one DB9 channel via one rotary knob located on the front panel.
RJ45 channel is CAT6 complaint.
All 9 pins of the DB9 interface are switched.
Transparent to data speed and format.

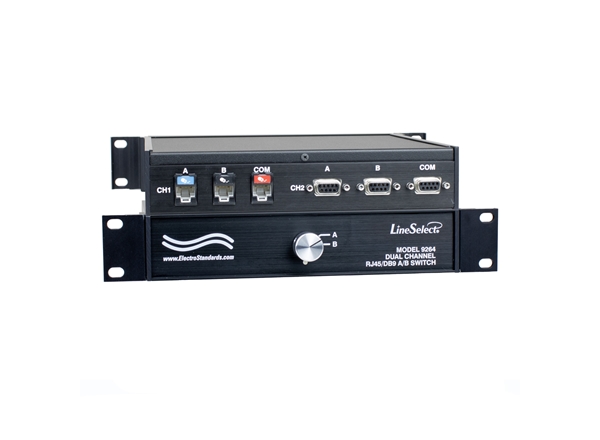

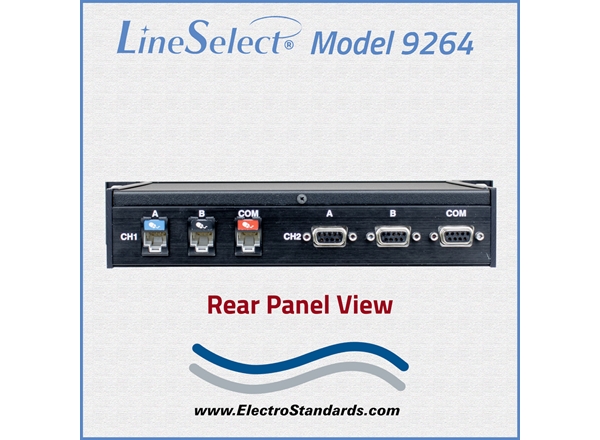

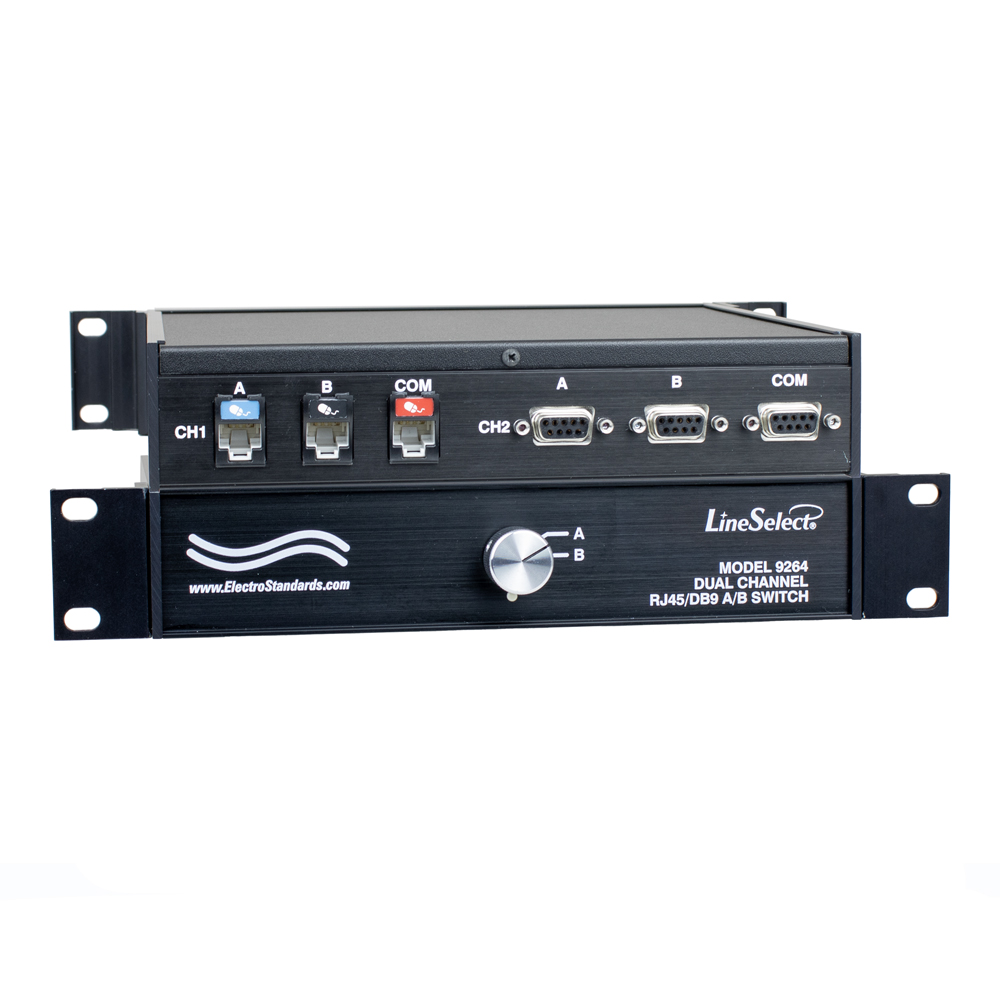

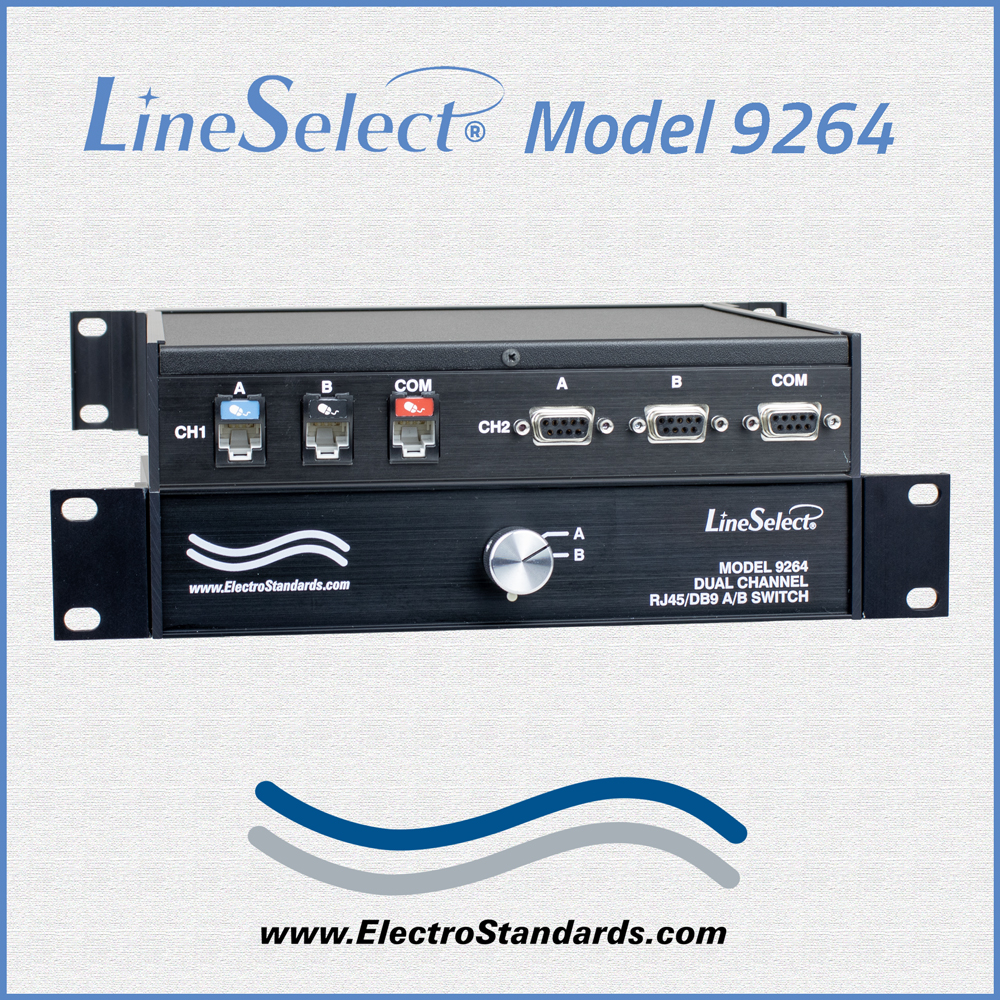

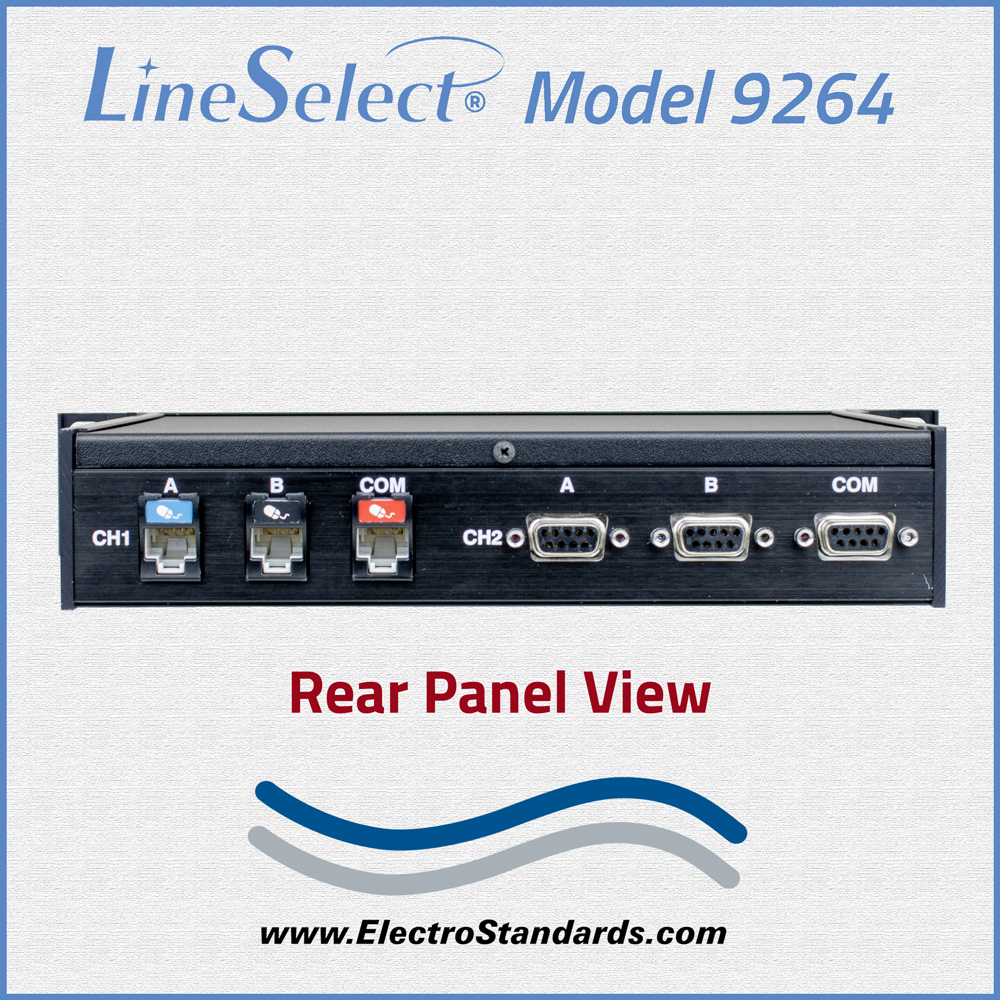

All ports are located on the rear panel: (3) RJ45 female ports: (1) A, (1) B, and (1) COMMON, (3) DB9 female ports: (1) A, (1) B, and (1) COMMON.
Chassis Dimensions: 8" (1/2 rack) W x 1.75" (1U) H" x 8: D.
Includes mounting bracket set Model 2959 (Part Number 512959)

The LineSelect® Model 9264 Dual Channel DB9/RJ45 A/B Switch allows the user the capability of sharing a single port interface device connected to the "COMMON" port among two other devices connected to the "A" and "B" ports for each channel.

This switch may be controlled manually via the front panel control knob.

The LineSelect® Model 9264 is enclosed in a half rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 8' 1/2 rack.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
