Custom Power Management Units Designed by Electro Standards Laboratories

Choose the design, form and features that will work best with your application!

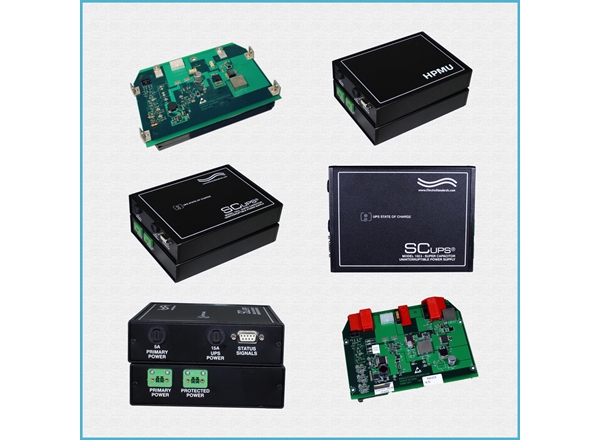

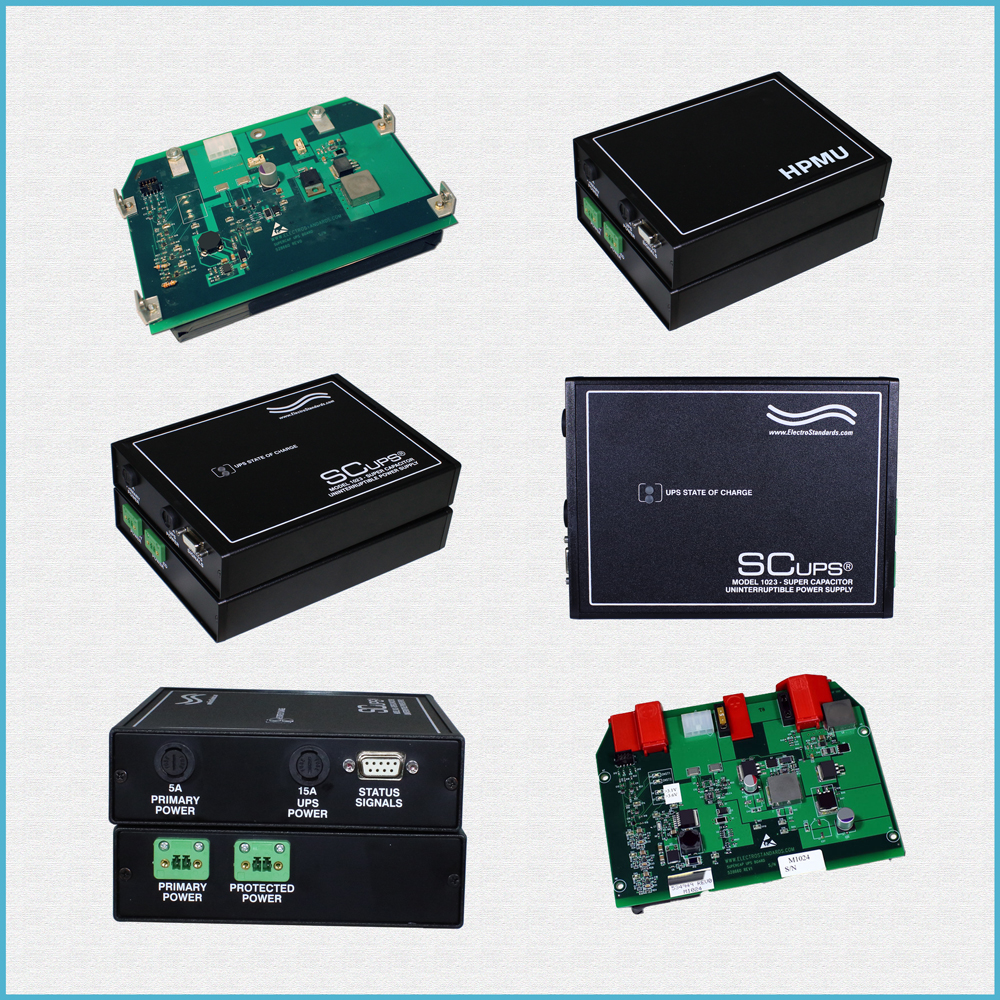

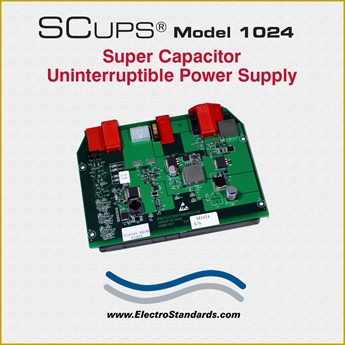

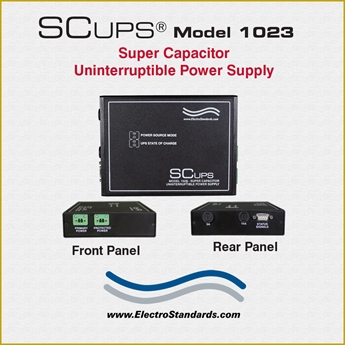

Super Capacitor Uninterruptible Power Supplies

Recognized for Significant Advantages over Battery UPS.
Ideal for Renewable Energy Systems/Solar Power Systems.
Low Maintenance, Long Life Service, Wide Temperature Range
Available in 12VDC or 24VDC

The SCUPS® Supercapacitor based Uninterruptible Power Supply is designed to provide nominal power when a unit's line power is interrupted. In addition, several digital signals are available to alert the host system that supplemental power is in use, and to provide a state of charge (SOC) indication. User applications can use digital signals to commence an orderly shutdown operation and can use the SOC signals to gauge of the level of energy in the super capacitor. Once Primary power is restored, the unit's super capacitor is recharged and becomes ready for the next power interruption event.

The use of the SuperCapacitor for energy storage provides a very low maintenance solution with extremely high cycle life without the shelf life concerns of typical battery power backup systems.

The SCUPS® is perfect for low power remote systems where primary power can be interrupted. Typical applications include remote locations with intermittent grid power or renewable energy systems such as solar power installations. The SCUPS® Model line is also available as in a board unit configuration and can easily be integrated into user equipment.

ESL's experienced R&D engineers can custom design a SCUPS® Uninterruptible Power Supply to work with any power application!

Hybrid Power Management Units

Hybrid Units allow battery life to be extended
Applicable to Portable Communication Devices
Military Communications and other applications

The Hybrid Power Management Unit combines the strength of a high-power capacitor and a high energy battery. A power management board integrates the two energy storage devices and provides the user with a light-weight, high performance, safe power source. This hybrid technology greatly benefits pulsed power load systems that are typically supported by "battery-only" systems. Battery technologies are inherently energy dense systems with limited power capability. Where energy transfer to the load is equal, primary and secondary chemistries have shown reduced performance when subjected to pulsed loading as compared to operation at low constant rates. Primary chemistries exhibit reduced discharge time or usable capacity while secondary chemistries suffer from both reduced usable capacity as well as reduced cycle life. The hybrid technology pairs the energy dense battery system with the power dense ESL Hybrid Power Management Unit (HPMU) to improve overall system performance. The HPMU contains ESL's hybrid power management circuitry and a high power Super Capacitor (SCap) element. The HPMU enables the battery system to operate at a reduced rate supporting the baseline load and the recharge of the SCap while the SCap is utilized to support peak pulse requirements of the load. The result is improved lifetime, reduced battery heating, and extending cycle life of the battery system.

Application to Portable Systems and Devices

The HPMU system is particularly applicable to portable communication devices. when battery power alone cannot meet power requirements, the batteries are stressed beyond their limits. The hybrid power unit allows batteries to operate at lower current levels so that the operation can be achieved and the battery life is extended. Once the batteries are exhausted, they can be replaced, while the hybrid unit can be used again repeatedly. The hybrid unit contains a 1500F LiC. The battery is sold separately allowing the use of a customer supplied battery. Time extensions will vary with power requirements. Custom systems are available to meet specific power extension requirements.

Military Communications and Other Applications

Currently, extensive work has been done supporting military communications load profiles such as SATCOM (1min @ 100W, 9min @ 12W) and SINCGARS (1min @ 20W, 9min @ 6W). Additionally, the HPMU has been integrated into unmanned underwater vehicles hybridizing the thruster load used for station keeping or depth control which experiences pulsed loading on the order of 100W to 150W. Further applications with larger systems upwards of 250kW which use the lithium-ion capacitors in a different hybrid architecture to provide load leveling support have been successfully completed.

Additional Capabilities and Uses

Existing system design supports nominal 12V battery systems as input with 12V or 24V output support. 60s @ 100W possible over full LiC voltage range. Higher power is possible over shorter pulse widths (shorter LiC operating voltage range). Supports bidirectional operation in which the system is able to regulate the battery during pulsed loads and also when absorbing pulsed power from external sources. Note the hybrid technology is scalable to accommodate different sized systems in terms of energy and power required. The nominal 100W system provides the opportunity for hybridizing the intended battery chemistry/technology in a subscale setting for performance evaluation before moving to the full-sized system.

Custom Designed and Labeled Power Management Systems Available:
