Model 4172-DIN Very High Speed Fiber to Multi-Point RS485/422 Interface Converter, Catalog #304172-DIN

    Model 4172-DIN RS485/422 Interface ConverterModel 4172-DIN front and rear panel ViewModel 4172-DIN RS485/422 Top PanelModel 4172-DIN RS485/422 Interface Converter
Click image to enlarge

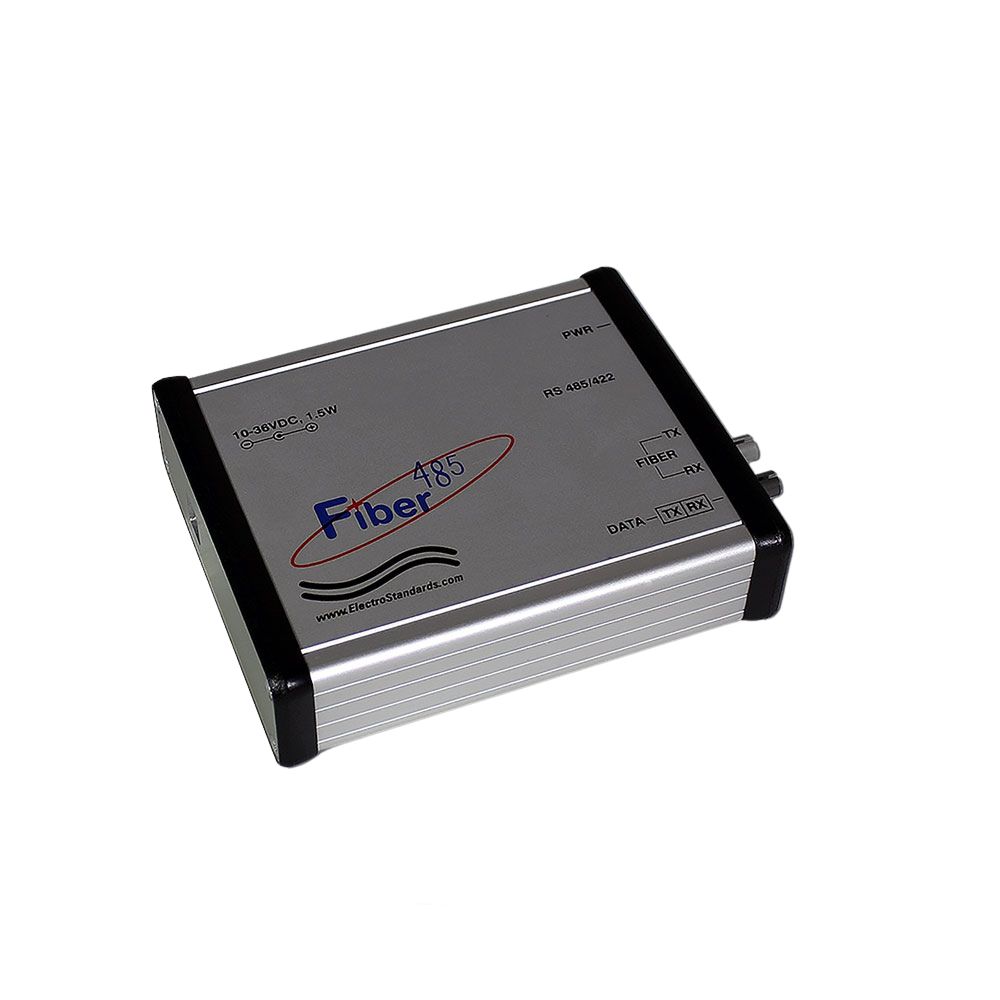

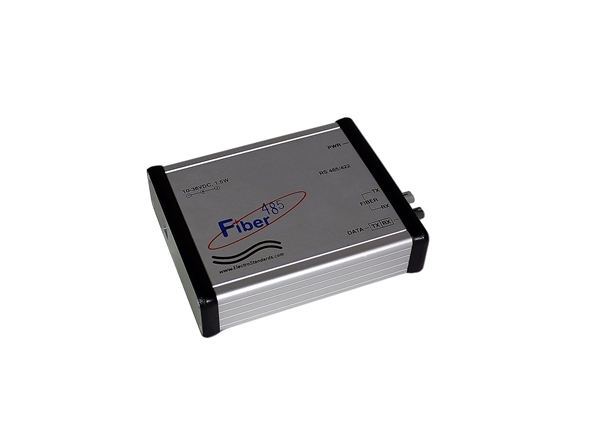

    • Model 4172-DIN RS485/422 Interface Converter

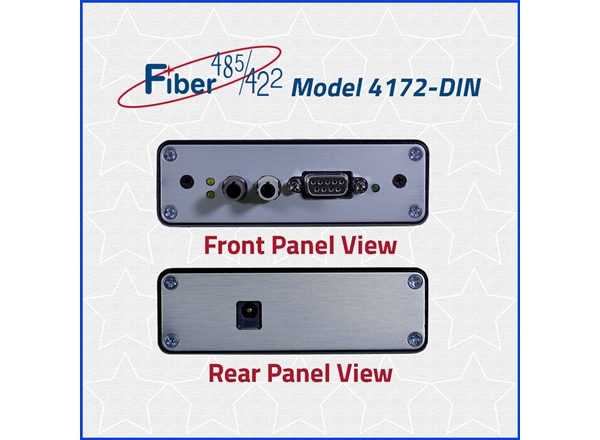

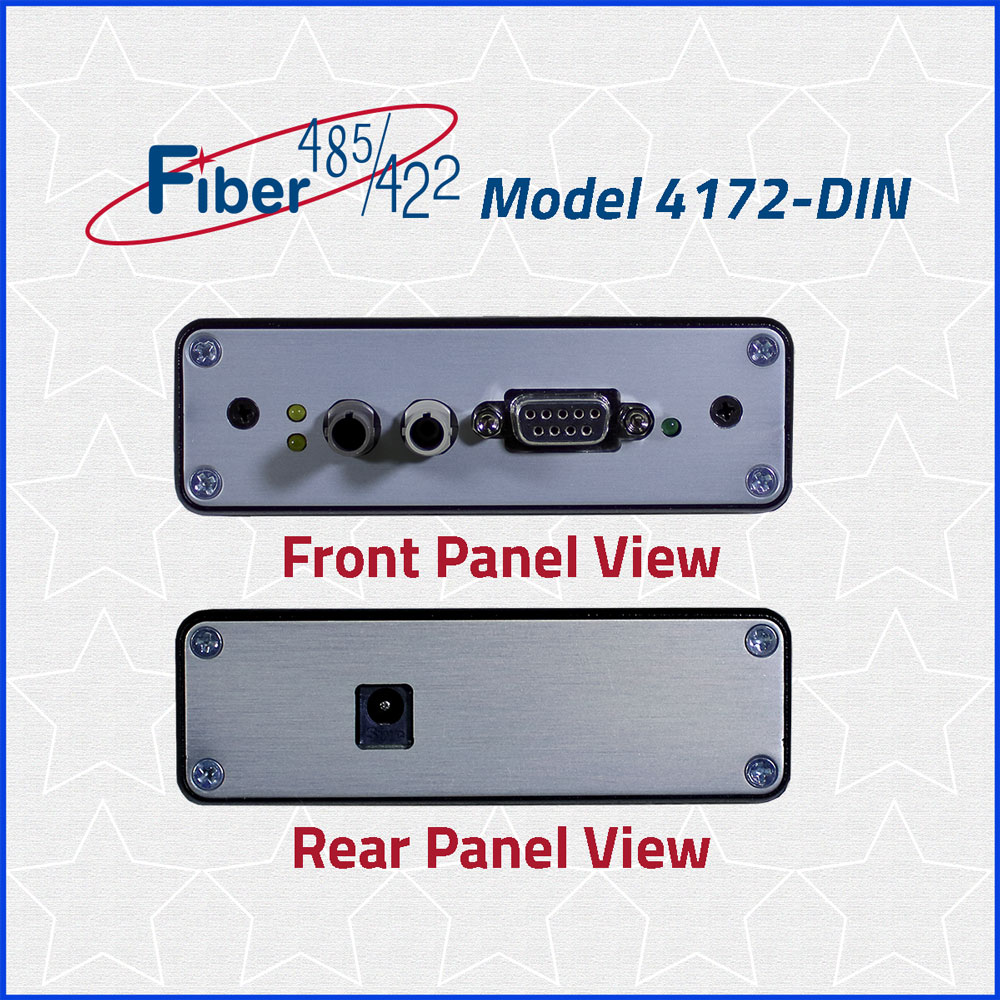

    • Model 4172-DIN front and rear panel View

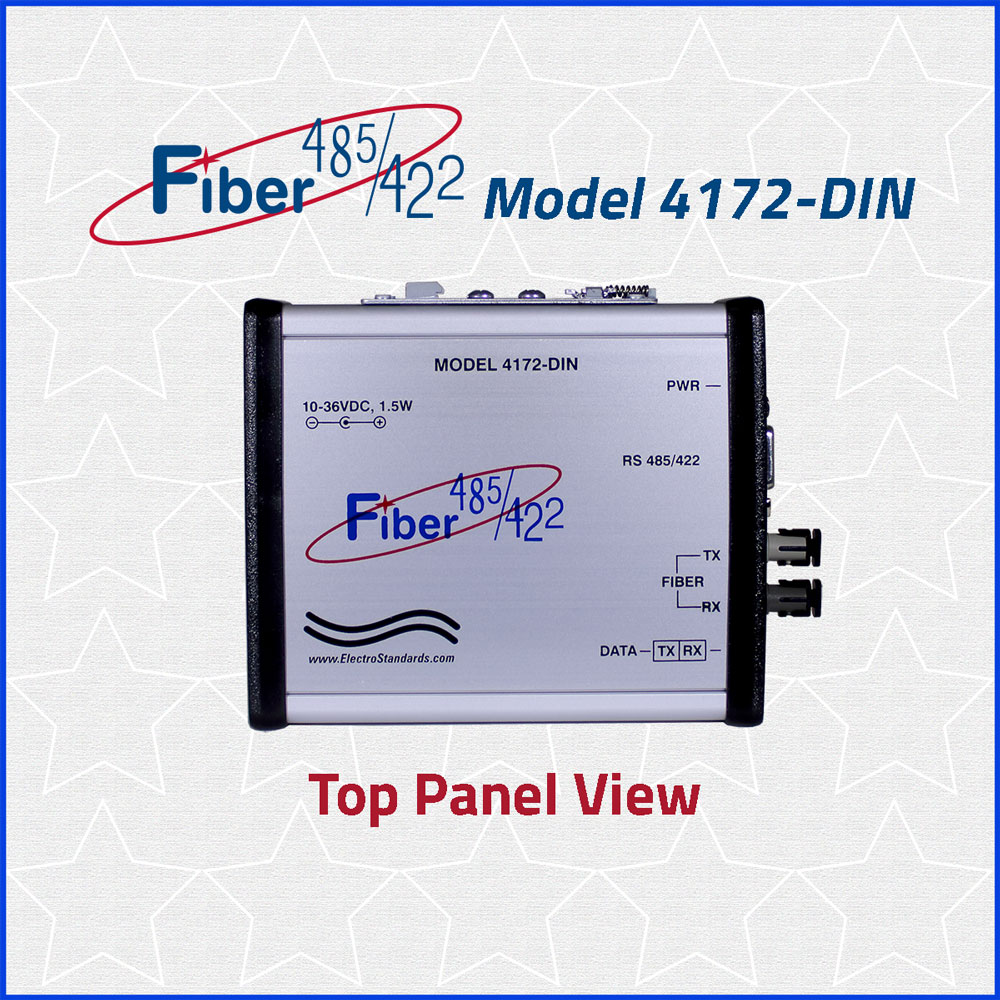

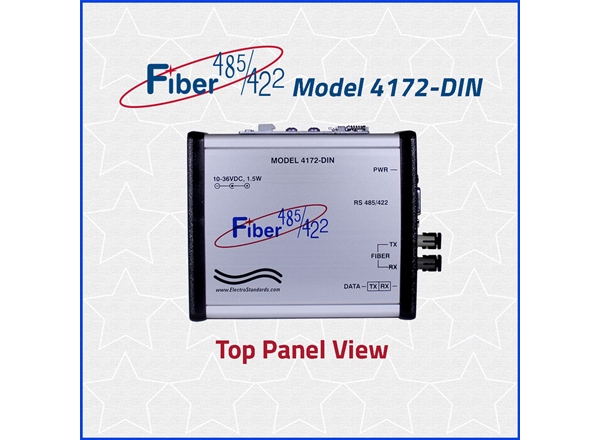

    • Model 4172-DIN RS485/422 Top Panel

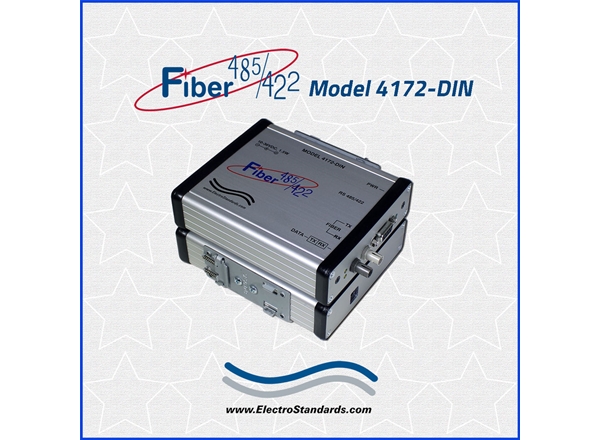

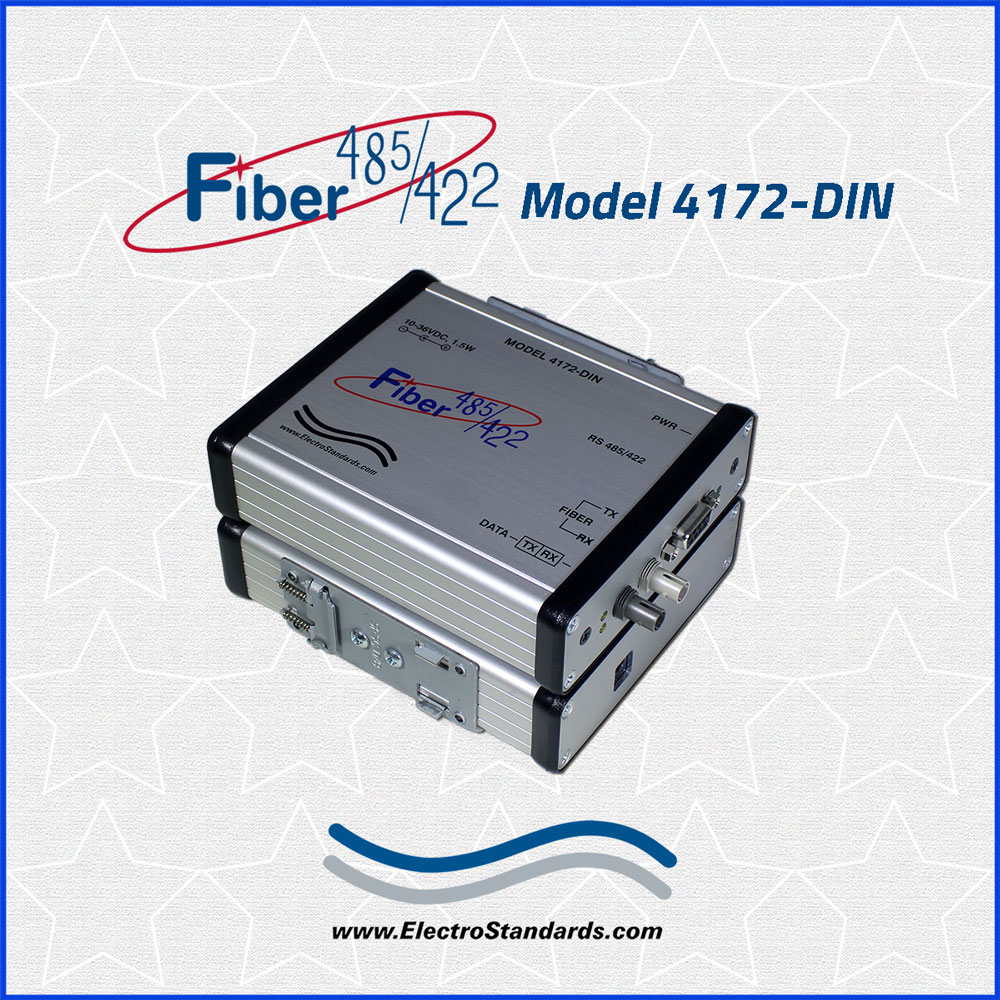

    • Model 4172-DIN RS485/422 Interface Converter
Base Price:
Call for Price
Catalog No: 304172-DIN
Model No: 4172-DIN
Product Type:Interface Converter
Converter Port Connector:DB9, ST
Conversion Type:Glass Fiber, RS422, RS485
Configuration:DIN Rail Mount
Speed:RS485/422: 0 to 5 Mbps
Wavelength Nano:820 nm/850 nm, multimode

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Interface Converters, ST Duplex Fiber, Multi-Point RS485/422

  • Fiber485/422 Model 4172-DIN Very High-Speed Ruggedized ST Duplex Fiber-to-Multi-Point RS485/422 Interface Converter

  • Ideal for RS485 Multi-Point Applications and Communications to Remote Sites

The Model 4172-DIN is a high-Speed ruggedized ST Duplex Fiber to RS485 / RS422 interface converter from Electro Standards Laboratories.  Typical operating speeds are up to 5 Mbps for RS485/422 to fiber conversion.  When operating in RS485/422 mode, the converter can be configured for 2-wire half duplex or 4-wire full duplex operation.

This Fiber to RS converter provides an industrial solution for applications requiring a single point-to-point or a multi-point communications link over short and long distances.  Typical applications include PC to PC long distance communications, factory automation, multi-drop data collection devices, barcode readers, time clocks, scales, data entry terminals, ATMs, toll booths and serial communications in harsh environments.

The Model 4172-DIN Fiber to Multi-Point Converter is designed to operate from -40°C to 85°C and is a member of Electro Standards Laboratories rugged community of media converter family.  This Fiber to RS converter features ESD protection circuitry on all receivers and transmitters for RS485/422 interface.  The unit's power input is protected from transients and features 3kVDC isolation to prevent system ground loops.  The Model 4172 media converter can be powered from a wide input range of 10VDC-36VDC, with models also available for other voltage ranges such as 4.5VDC-9VDC and 19VDC-72VDC.

Other features include user selectable fiber polarity and, also TX, RX and Power indicator LEDs.  Accessories include DIN rail mounting hardware and various AC input voltage power supplies.

SPECIFICATIONS:

Fiber Interface:

  • Connectors: Fiber Optic ST Duplex
  • TX Power: -12.5 dBm
  • RX Sensitivity: -27.5 dBm
  • Optical Budget: 15 dB
  • Max. Link Distance with 62.5/125µm fiber:
  • 5.35 kM at up to 5 Mbps, 25°C
  • 3.75 kM at up to 5 Mbps, -40°C to 85°C
  • Wavelength: 820 nm/850 nm, multimode
  • Fiber Size: 50/125 µm, 62.5/125 µm, 100/140 µm.

Fiber Polarity:

  • Logical 1 = Light ON/OFF: Jumper Selectable

Copper Interface:

  • Connectors: DB9, Female
  • RS485 (2-wire/4-wire)
  • Terminations: RS485 120 Ohm jumper selectable

Bit Rate (nom.):

  • RS485/422: 0 to 5 Mbps

Network Configurations:

  • RS485/422Point-to-Point
  • Multi-Point (Default ~280 uSec TX disable time) (user configurable TX disable time via a single thru-hole resistor)

Indicators:

LEDs: TXD, RXD, PWR

Power:

  • Input Power: 10VDC-36VDC std, 4.5VDC-9VDC, 19VDC-72VDC, Others at 1.5W.
  • Isolation: 3 kVDC

Operating Environment:

  • -40°C to 85°C

Model 4172-DIN Mechanical (Din-Rail Mounted Unit):

  • Model 4172-DIN, Cat No: 304172-DIN
  • Size: 5" x 4.25" x 1.4"
  • Weight: 9.8 oz (278g)
  • Mounting: 2 Threaded Holes Standard, DIN rail
  • DIN Rail Bracket Size: 2.84" x 1.24" x 0.16"
  • DIN Rail Bracket Weight: 0.9 oz (25.5g)

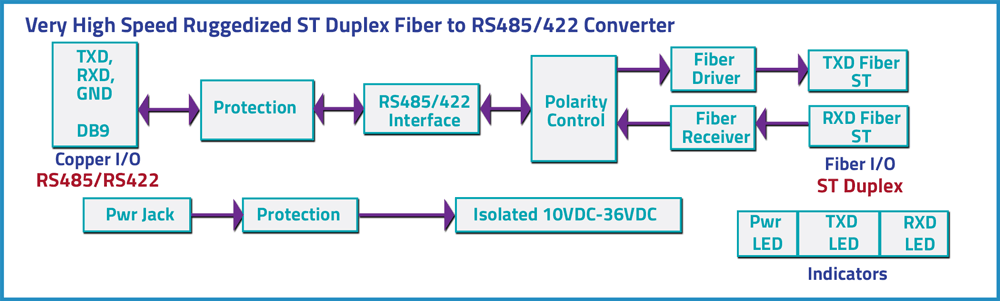

Very High Speed Ruggedized ST Duplex Fiber to Multi-Point RS485/RS422 Converter Block Diagram.

Model 4172-DIN High Speed Ruggedized ST Duplex Fiber to RS485/422 Interface Converter

APPLICATION: Fiber485®, multi-point

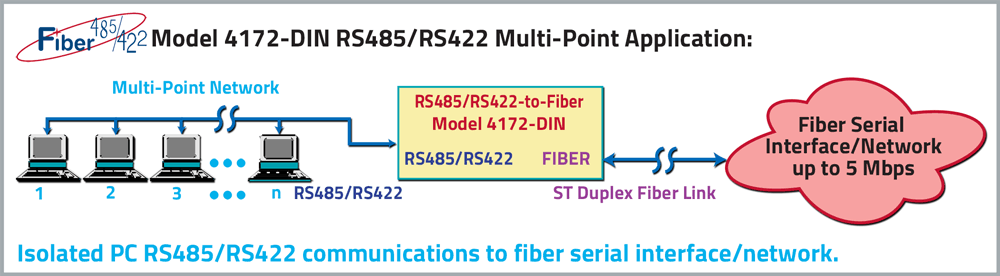

Model 4172-DIN RS485/RS422 Multi-Point Application.

Isolated PC RS485/RS422 communications to fiber serial interface network.

Model 4172-DIN High Speed Ruggedized ST Duplex Fiber to RS485/422 Interface Converter

APPLICATION: Fiber485® to Fiber485®

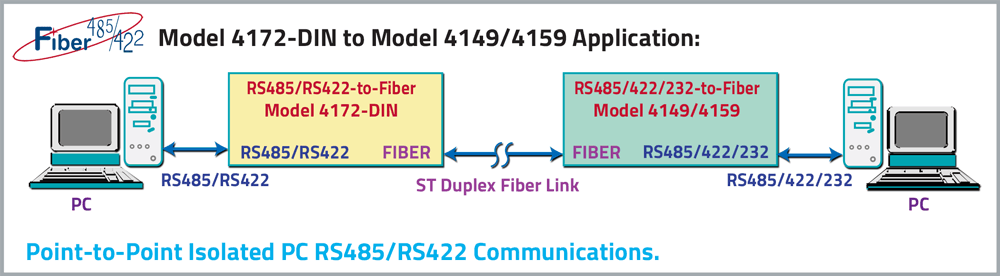

Model 4172 to Model 4149/4159 Application.

Point-to-Point Isolated PC RS485/RS422 Communications.

Fiber 485/422 Model 4172 RS485/RS422 Application

APPLICATION: FiberUSB to Fiber485®

Model 4165/4166 to Model 4172 Application.

Isolated PC USB to RS485/RS422 Communications serial interface network.

Fiber USB Model 4165/4166 to Fiber 485/422 Model 4172-DIN Application
