Interface Converters, ST Duplex Fiber, Multi-Point RS485/422

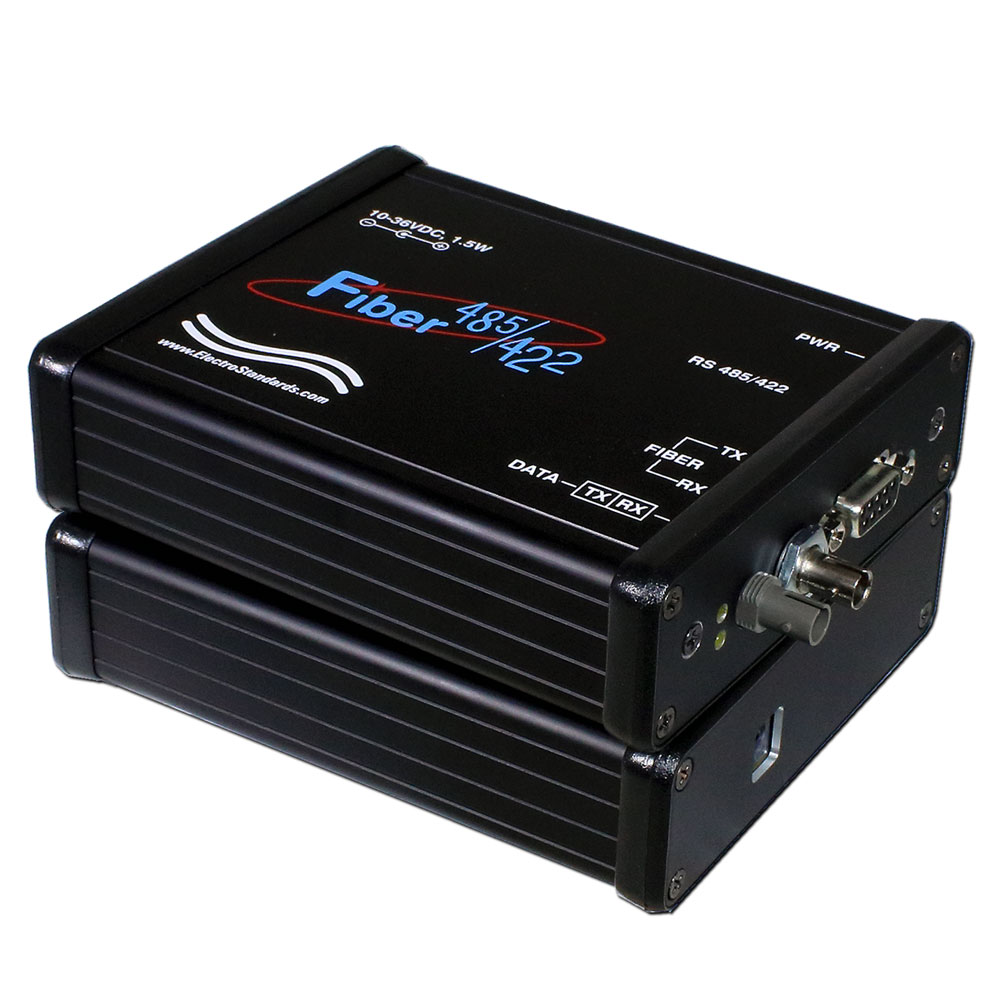

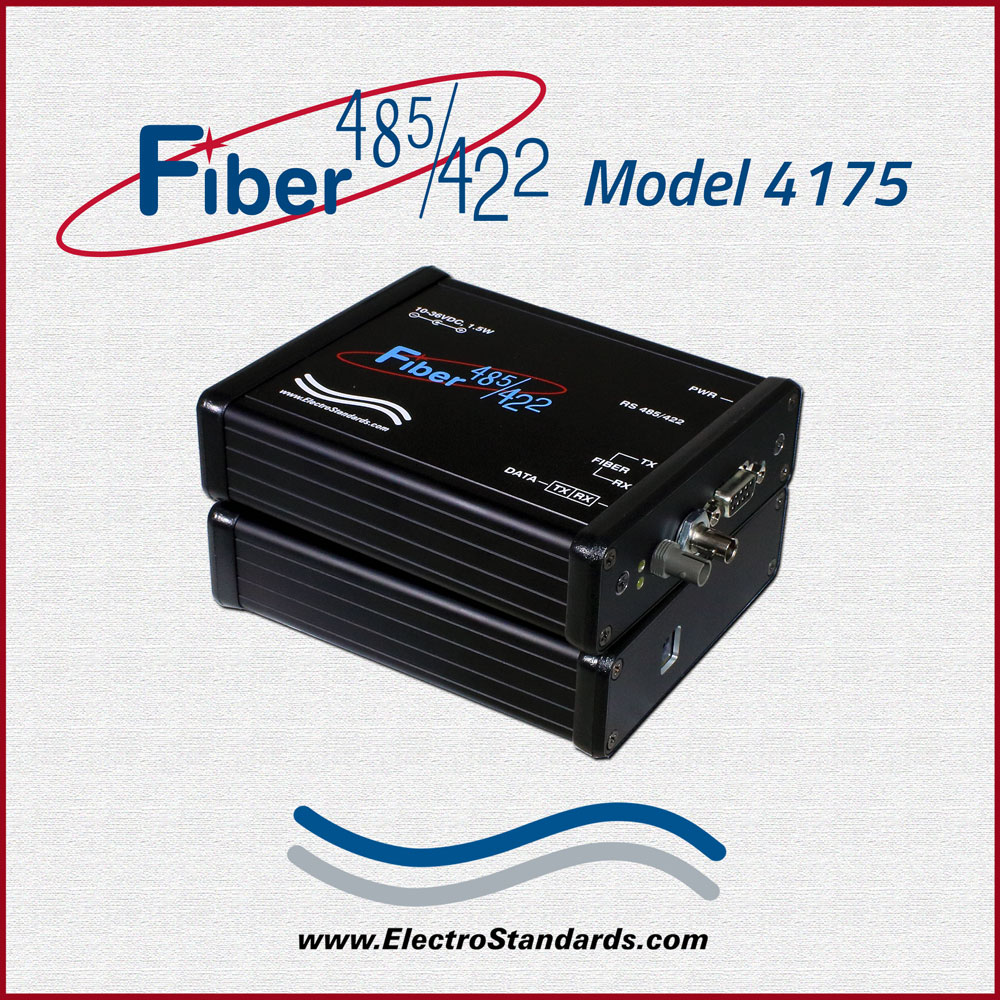

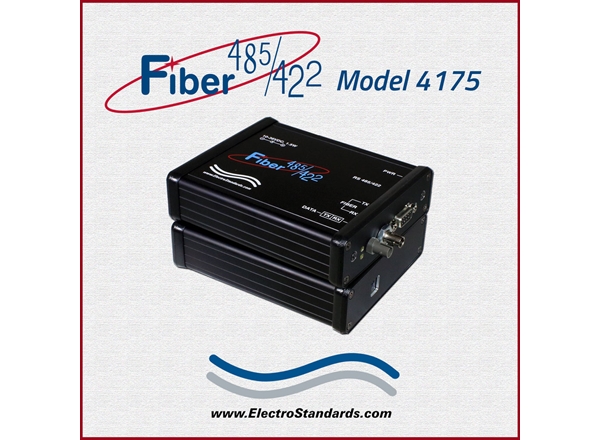

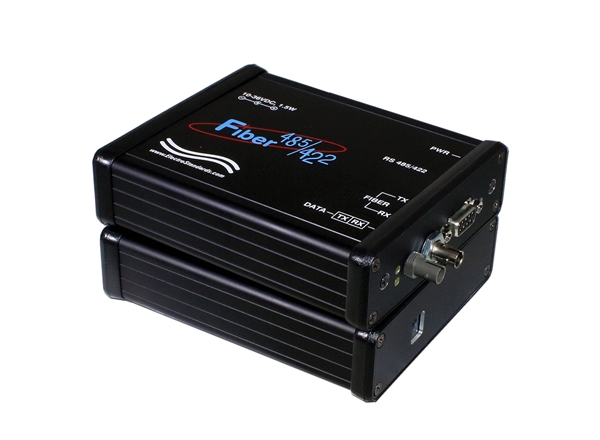

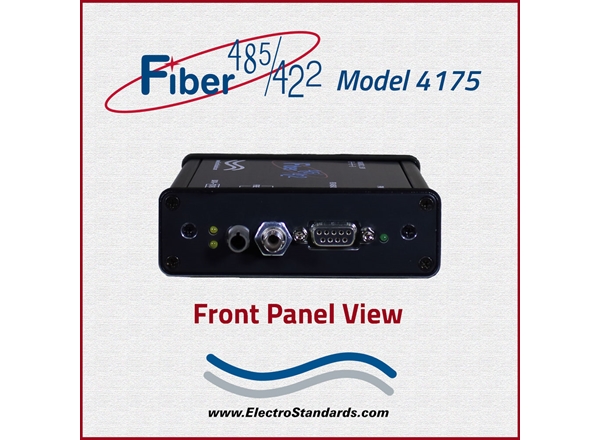

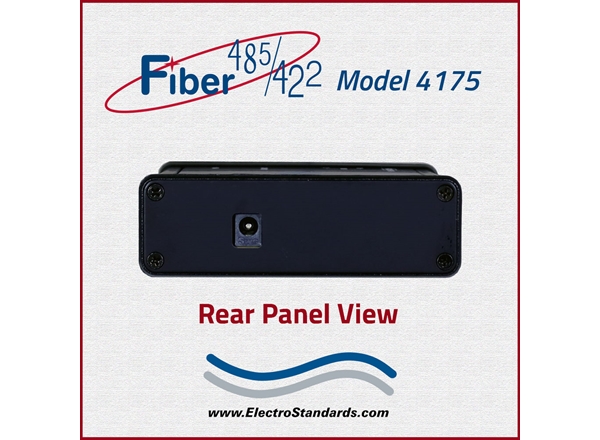

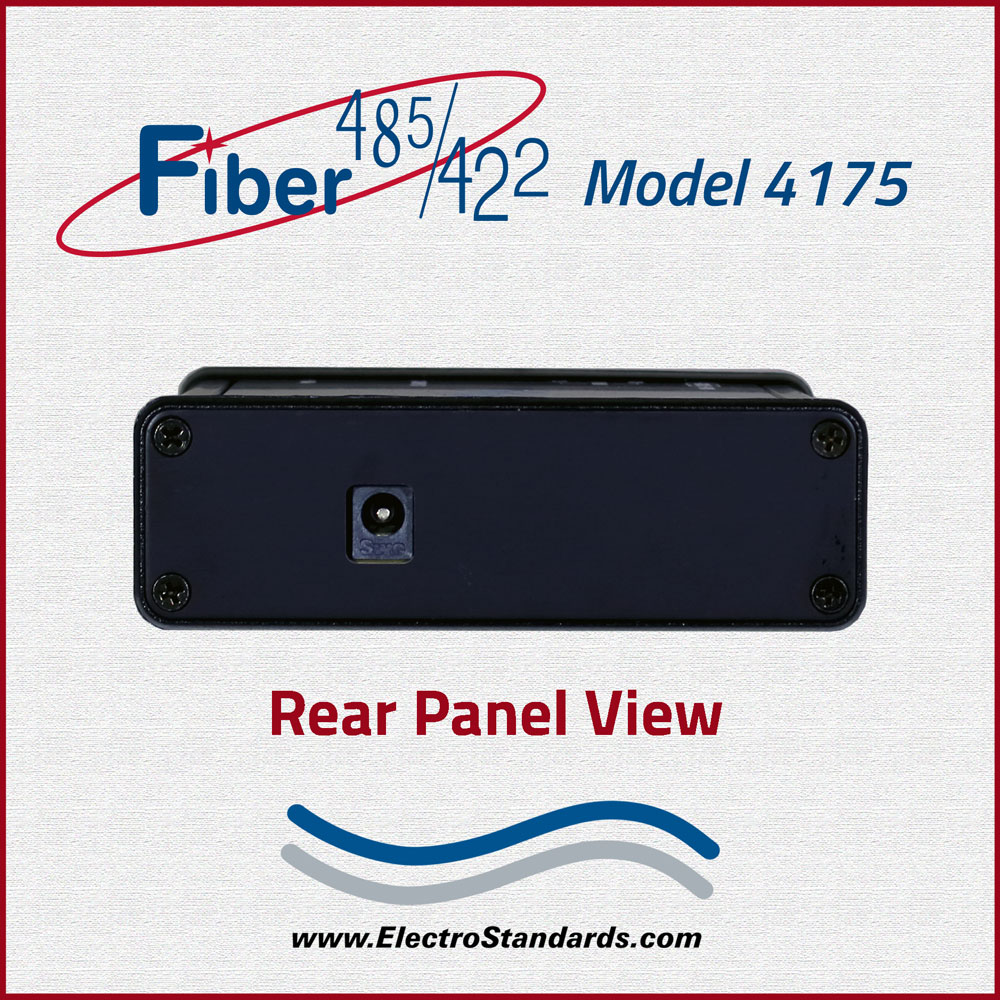

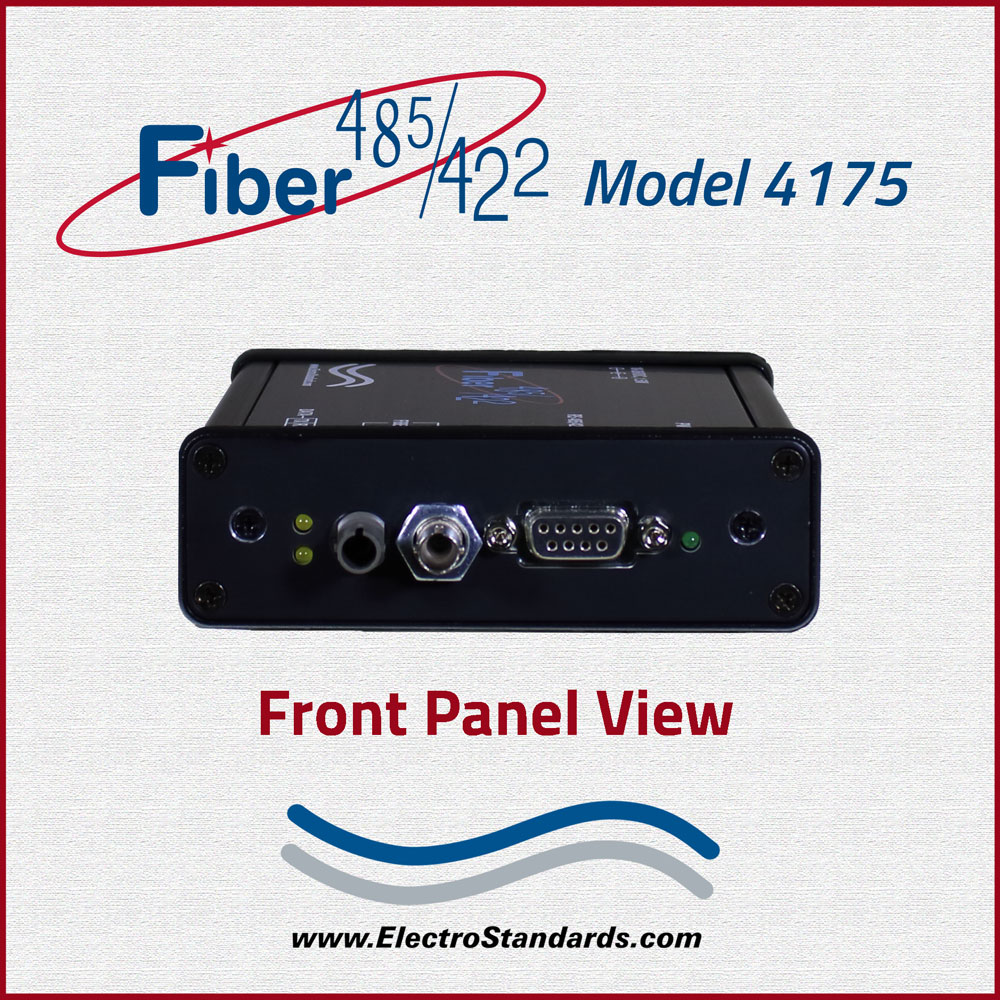

Fiber485® Model 4175 Very High Speed Ruggedized ST Duplex Fiber-to-Multi-Point RS485/422 Interface Converter

Ideal for RS485 Multi-Point Applications and Communications to Remote Sites

The Model 4175 is a high speed ruggedized ST Duplex Fiber to RS485 / RS422 interface converter from Electro Standards Laboratories. Typical operating speeds are up to 5 Mbps for RS485/422 to fiber conversion. When operating in RS485/422 mode, the converter can be configured for 2-wire half duplex or 4-wire full duplex operation.

This Fiber to RS converter provides an industrial solution for applications requiring a single point-to-point or a multi-point communications link over short and long distances. Typical applications include PC to PC long distance communications, factory automation, multi-drop data collection devices, barcode readers, time clocks, scales, data entry terminals, ATMs, toll booths and serial communications in harsh environments.

The Model 4175 Fiber to Multi-Point Converter is designed to operate from -40°C to 85°C and is a member of Electro Standards Laboratories rugged community of media converters. This Fiber to RS converter features ESD protection circuitry on all receivers and transmitters for RS485/422 interfaces. The unit's power input is protected from transients and features 3kVDC isolation to prevent system ground loops. The Model 4175 media converter can be powered from a wide input range of 10VDC-36VDC, with models also available for other voltage ranges such as 4.5VDC-9VDC and 19VDC-72VDC.

Other features include user selectable fiber polarity and, also TX, RX and Power indicator LEDs.

SPECIFICATIONS:

Fiber Interface:

Connectors: Fiber Optic ST Duplex
TX Power: 0.5 dBm
RX Sensitivity: -27.5 dBm
Optical Budget: 15 dB
Max. Link Distance with 62.5/125µm fiber:
5.35 kM at up to 5 Mbps, 25°C
3.75 kM at up to 5 Mbps, -40°C to 85°C
Wavelength: 820 nm/850 nm, multimode
Fiber Size: 50/125 µm, 62.5/125 µm, 100/140 µm.

Fiber Polarity:

Logical 1 = Light ON/OFF: Jumper Selectable

Copper Interface:

Connectors: DB9, Female
RS485 (2-wire/4-wire)
Terminations: RS485 120 Ohm jumper selectable

Bit Rate (nom.):

RS485/422: 0 to 5 Mbps

Network Configurations:

RS485/422Point-to-Point
Multi-Point (Default ~280 uSec TX disable time) (user configurable TX disable time via a single thru-hole resistor)

Indicators:

LEDs: TXD, RXD, PWR

Power:

Input Power: 10VDC-36VDC std, 4.5VDC-9VDC, 19VDC-72VDC, Others at 1.5W.
Isolation: 3 kVDC

Operating Environment:

-40°C to 85°C

Model 4175 Mechanical (Desktop Unit):

Model / Cat No: 4175 / 538705
Size: 5" x 4.25" x 1.4"
Weight: 10.1 oz (286g)

Very High Speed Ruggedized ST Duplex Fiber to RS485/RS422 Converter Block Diagram.

Very High Speed Ruggedized Fiber to RS485/422 Converter Block Diagram

APPLICATION: Fiber485/422, multi-point

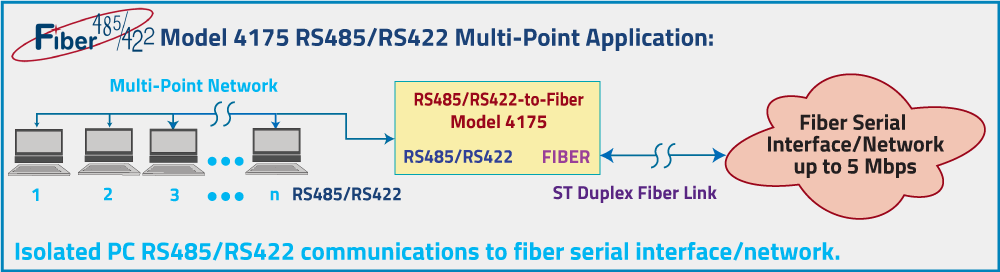

Model 4172 RS485/RS422 Multi-Point Application.

Isolated PC RS485/RS422 communications to fiber serial interface network.

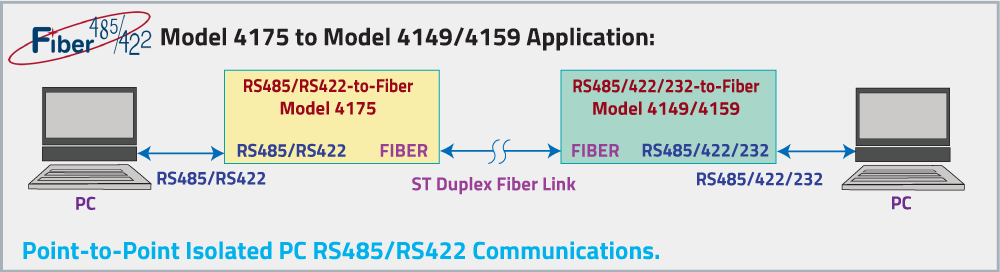

APPLICATION: Fiber485/422 to Fiber485/422/232

Model 4175 to Model 4149/4159 Application.

Point-to-Point Isolated PC RS485/RS422 Communications.

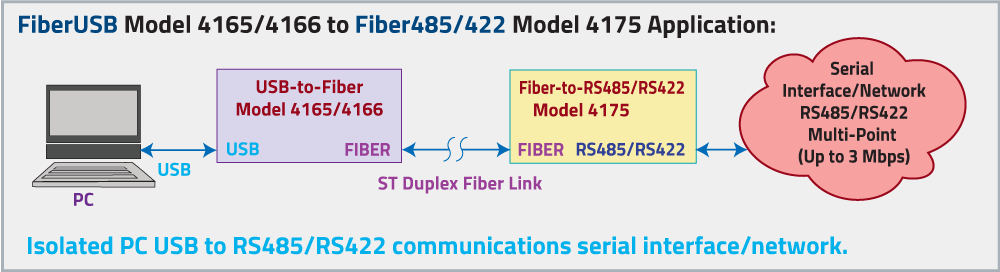

APPLICATION: FiberUSB to Fiber485/422

Model 4165/4166 to Model 4175 Application.

Isolated PC USB to RS485/RS422 Communications Serial Interface Network.
