* POF Fiber to TTL Logic * Catalog #306763 - Model 6763 Interface Converter (Desktop)

    Model 6763 32 Channel POF-to-TTL Logic Interface ConverterModel 6763 32 Channel POF-to-TTL Logic Interface ConverterModel 6763 32 Channel POF-to-TTL Logic Interface ConverterModel 6763 32 Channel POF-to-TTL Logic Interface Converter
Click image to enlarge
    • Model 6763 32 Channel POF-to-TTL Logic Interface Converter
    • Model 6763 32 Channel POF-to-TTL Logic Interface Converter
    • Model 6763 32 Channel POF-to-TTL Logic Interface Converter
    • Model 6763 32 Channel POF-to-TTL Logic Interface Converter
Base Price:
$4,750.00
Catalog No: 306763
Model No: 6763
Product Type:Interface Converter
Converter Port Connector:POF, Plastic/Versatile Link
Conversion Type:Glass Fiber, TTL Logic
Configuration:Desktop

Add to Cart

Vih range: (1.4 - 2.1)V

Vil range: (0.6 - 1.4)V

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

Interface Converters, POF Fiber to TTL Logic, Glass Fiber to Copper

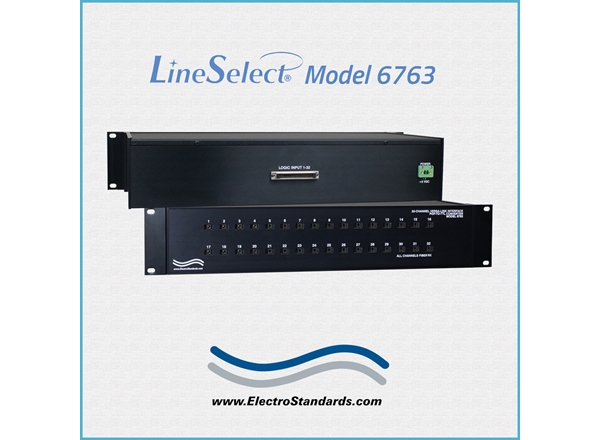

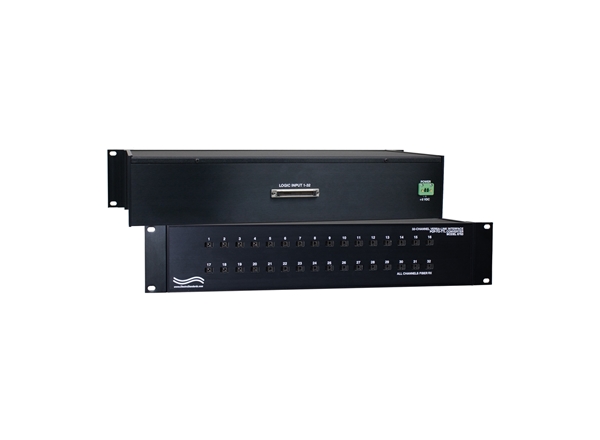

Model 6763 32 Channel POF Fiber to TTL Logic Converter, Desktop

  • Converts POF Fiber Optic signals to TTL Logic signals.

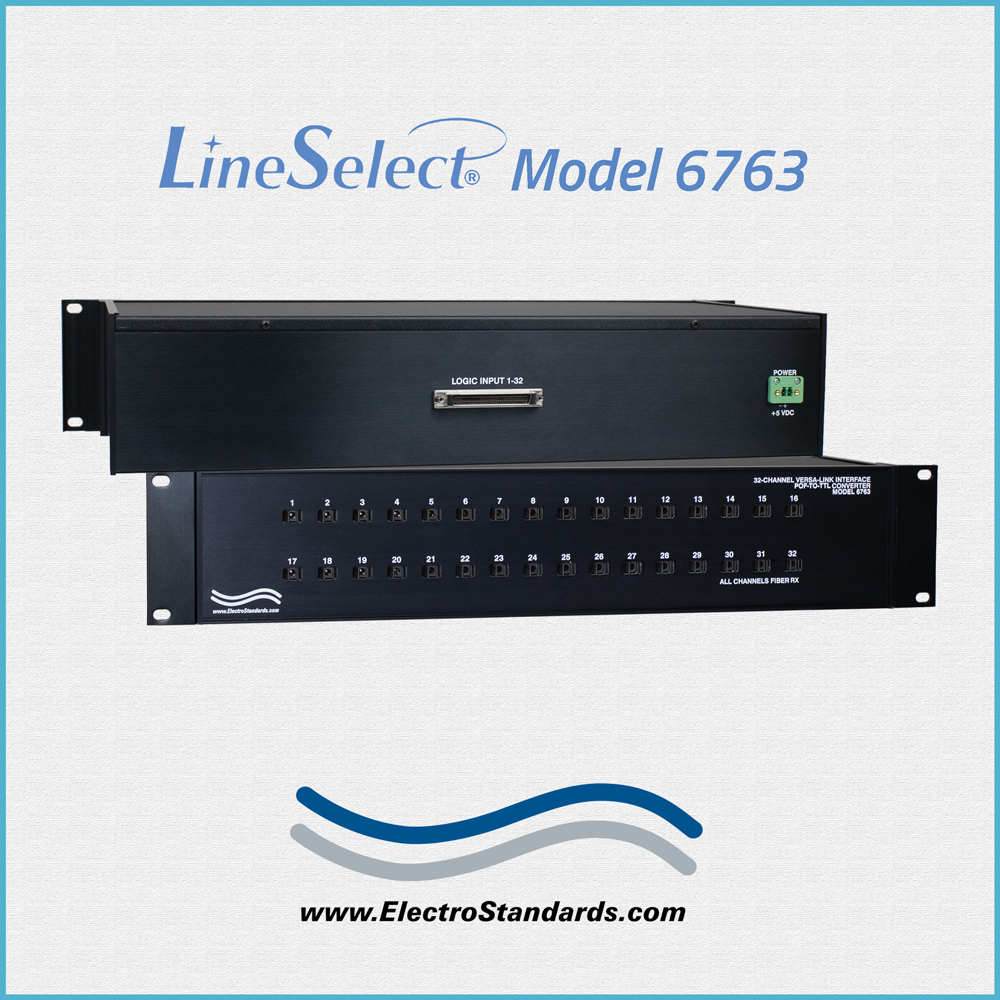

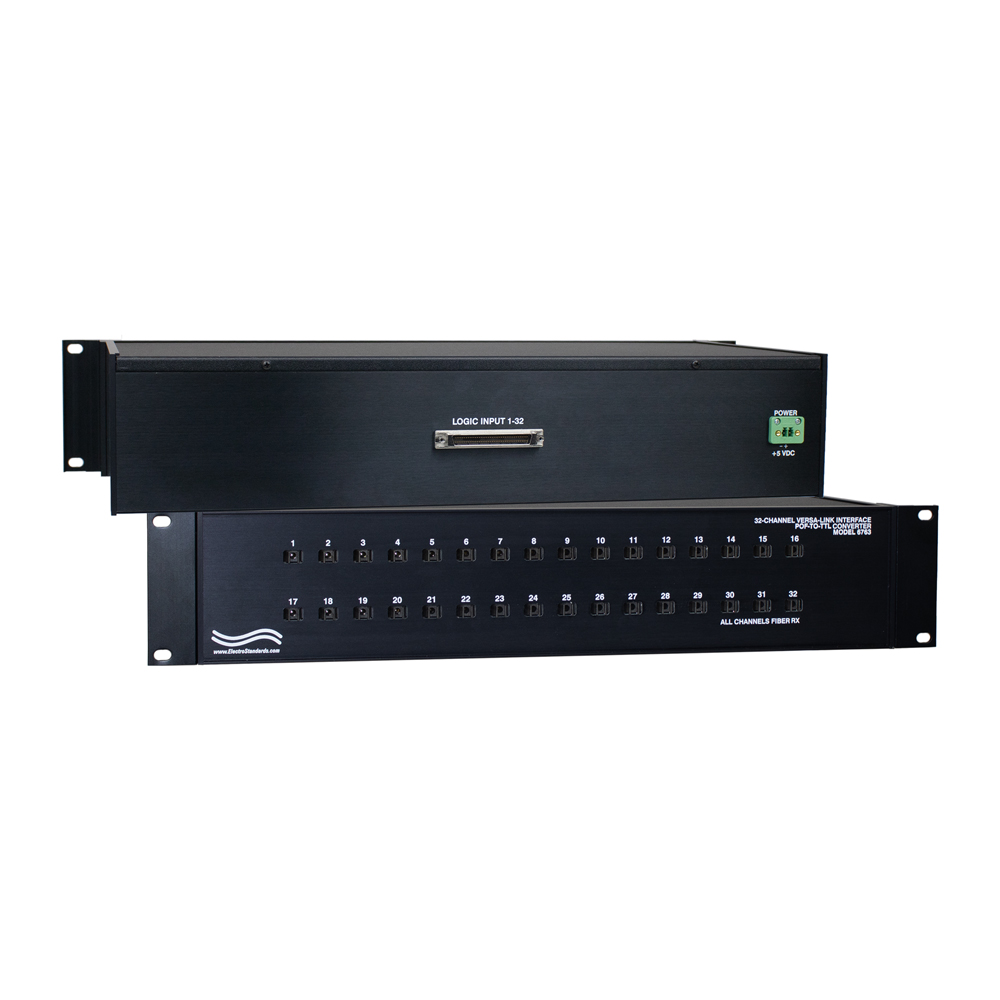

Model 6763 Desktop Unit:

Copper/Glass Fiber Input/output Diagram:

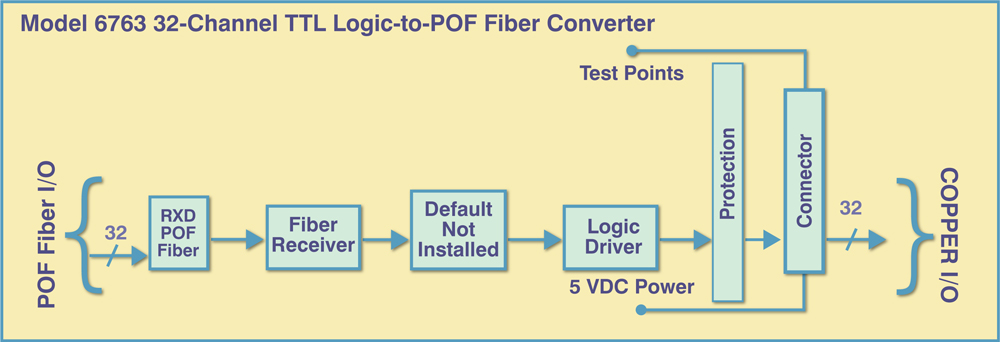

 Model 6763 Desktop Unit 32 Channel POF Fiber to TTL Logic Converter Block Diagram:

Model 6766 Desktop Unit: Four Channel TTL Logic-to-ST Duplex Fiber Converter

INTRODUCTION:

The Model 6763 is a 32-Channel POF Fiber to High Speed-TTL Digital Logic Level Interface Converter from Electro Standards Laboratories. It translates 32 fiber optic RX signals into 32 digital logic TTL signal. Typical operating speeds are up to 10 Mbps.

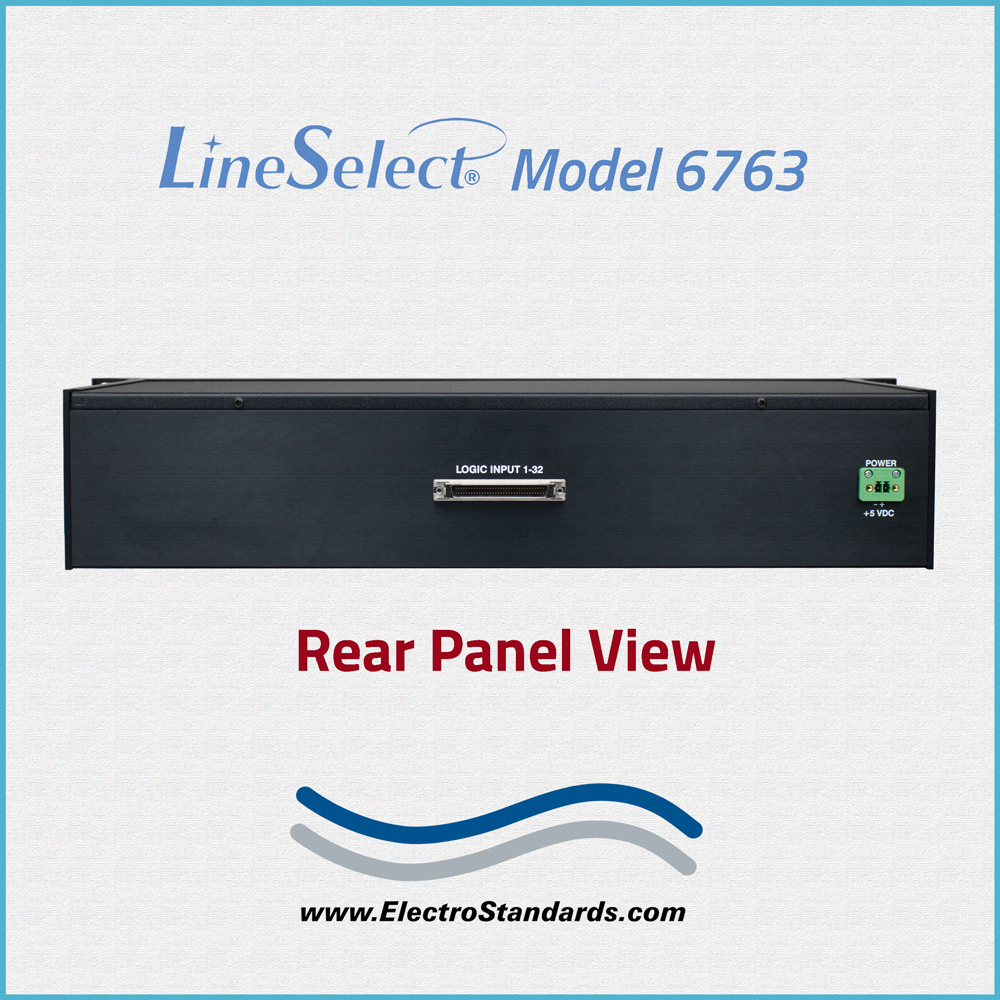

The fiber optic connectors are Versatile Link Plastic Optical Fiber (POF) type. They are located on the rear panel of the unit. The POF channels are (RX1 - RX32) which correspond to the 32 TTL TX copper channels on the 68pin DSub connector.

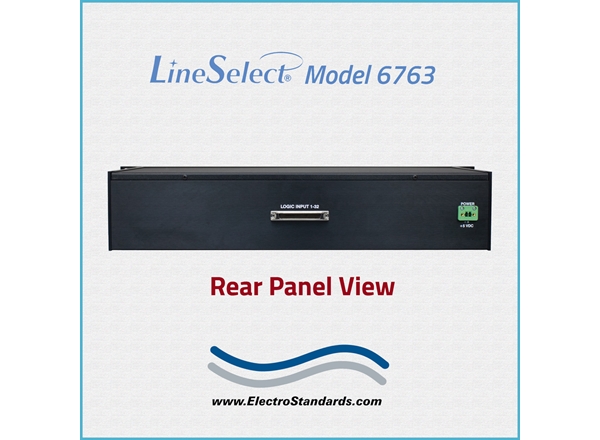

The unit is powered by an included 5VDC power supply. Power is supplied via a 2-pin Phoenix connector. The power supply input is protected from overvoltage, overcurrent and high-power transients. All TTL copper connections feature ESD protection of ±8kV contact discharge, ±15kV air discharge, (IEC61000-4-2). The copper input/output connections are made via the 68-pin VHDCI connector located on the rear of the unit.

FEATURES INCLUDE:

  • ESD protection on all copper interfaces.
  • TTL logic level test point on circuit board.
  • DSub copper interface connector with threaded 4-40 post hardware.
  • Specific jackscrew hardware.

SPECIFICATIONS:

Optical Interface:

  • TX Power: -3.5 dBm
  • RX Sensitivity: -23 dBm
  • Wavelength: 650 nm, multimode

Link Distance:

  • Up to 50 meters with 1mm Plastic Optical Fiber (POF)
  • Up to 500 meters with 200µm Hard Clad Silica (HCS)

Fiber Polarity:

  • TTL Logical 0 = Fiber Light OFF
  • TTL Logical 1 = Fiber Light ON

Copper Interface:

  • Type: TTL Logic
  • Vih range: (1.4 - 2.1)Volts
  • Vil range: (0.6 - 1.4)Volts

Operating Environment:

  • -40ºC to 85°C

Model 6763, Cat. No. 306763 Desktop Unit:

Connectors:

  • Copper: (1) 68-Pin female VHDCI Connector
  • Fiber: (32) Female Versatile Link Plastic Optical Fiber (POF) RX connectors.

Power:

  • (1) 2-Pin Phoenix Connector
  • (1) 5VDC power supply, Cat. No 531272 included.

Mechanical: Model 6763 / 306763 (Desktop Unit)

  • Size: 19.0" W x 3.5" H x 8.4" D [48.2 x 8.8 x 21.3 cm]
  • Weight: 6.1 lbs. (2.8 kg)

Data Bit Rate:

  • Up to 10 mbps
