Overview

Interface Converters, TTL Logic to POF Fiber, Copper to Glass Fiber
Model 6762 32 Channel TTL Logic to POF Fiber Converter, Desktop

  • Converts TTL Logic signals to POF Fiber Optic signals

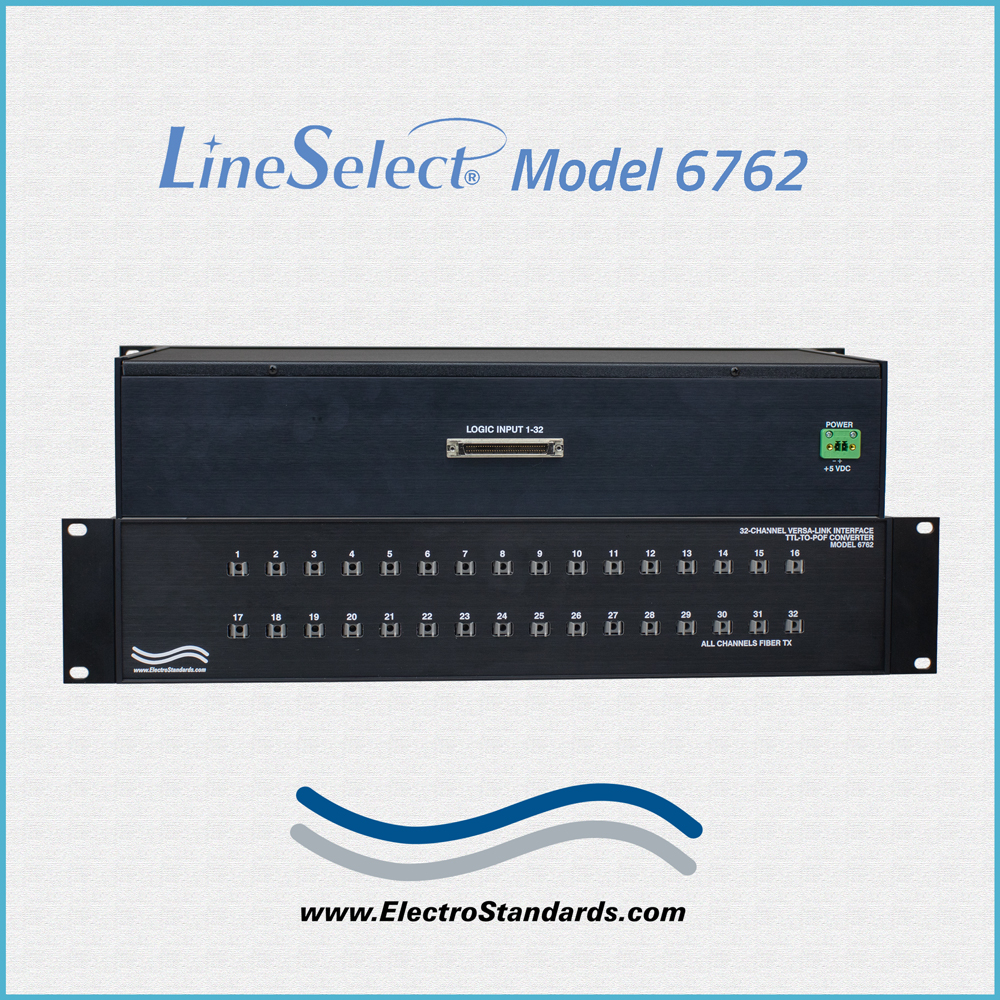

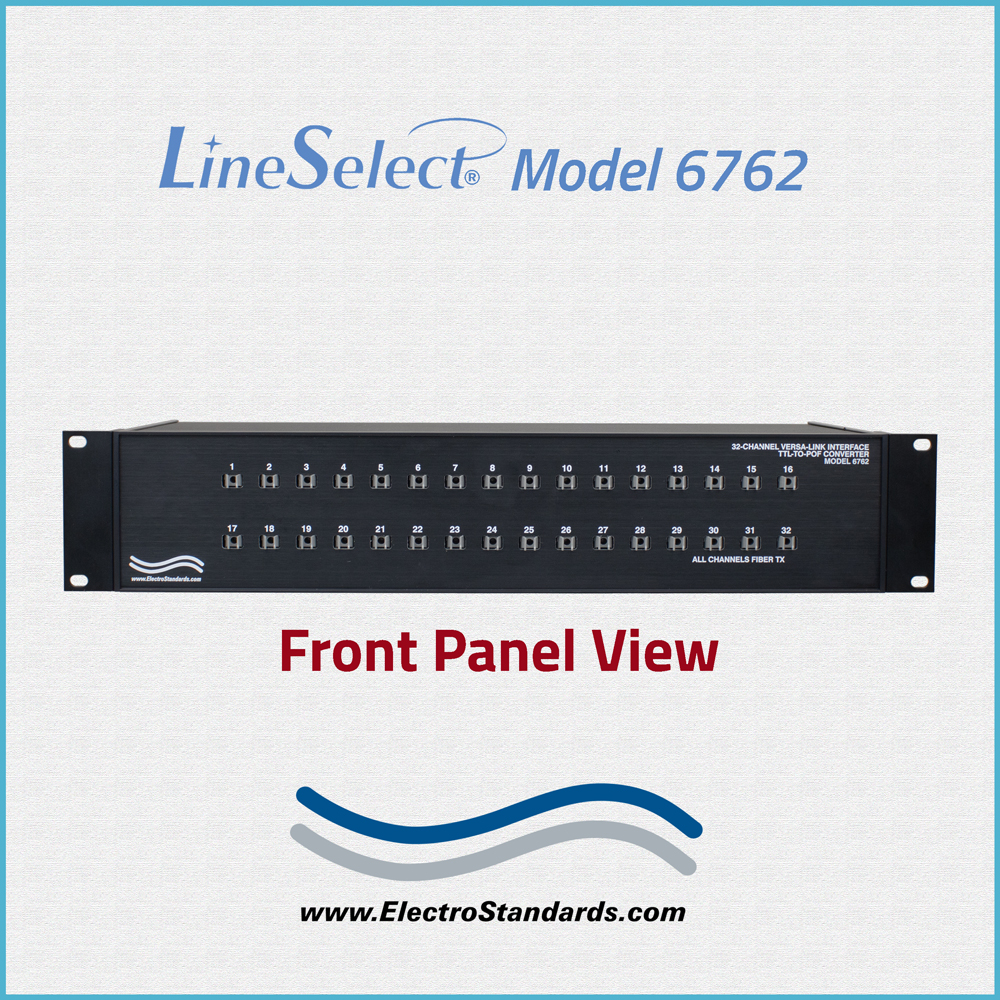

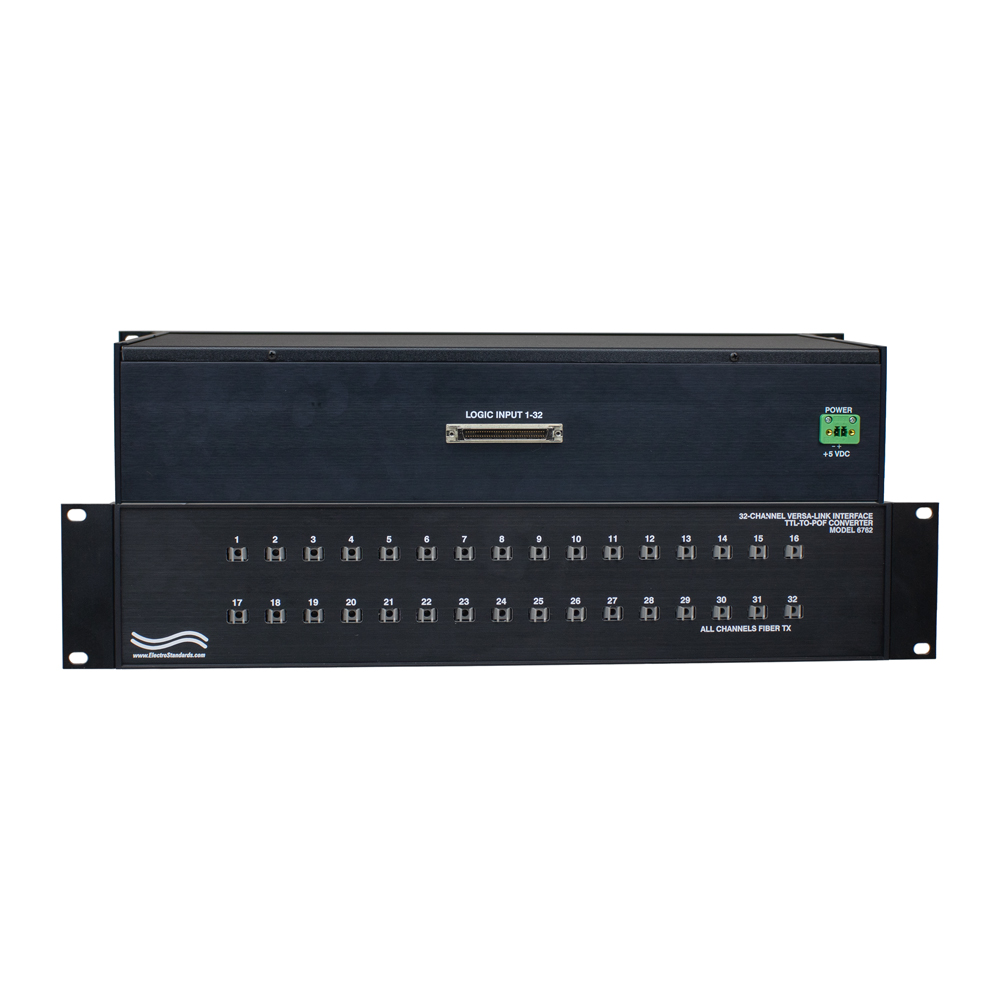

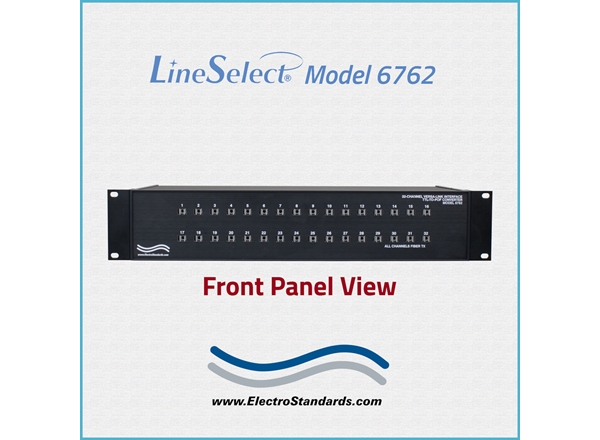

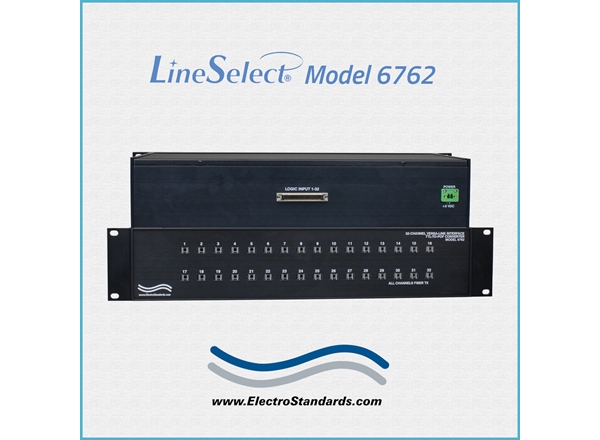

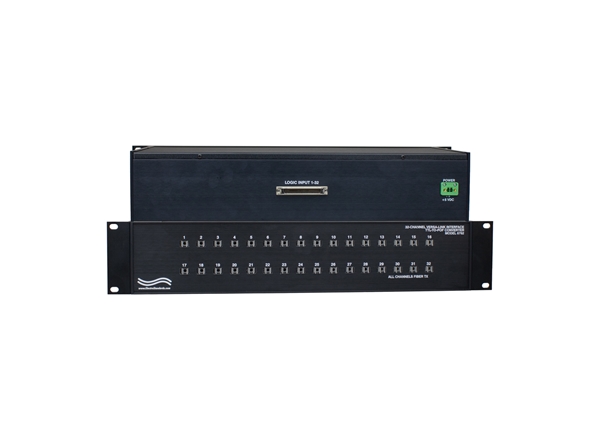

Model 6762 Desktop Unit:

Copper/Glass Fiber Input/output Diagram:

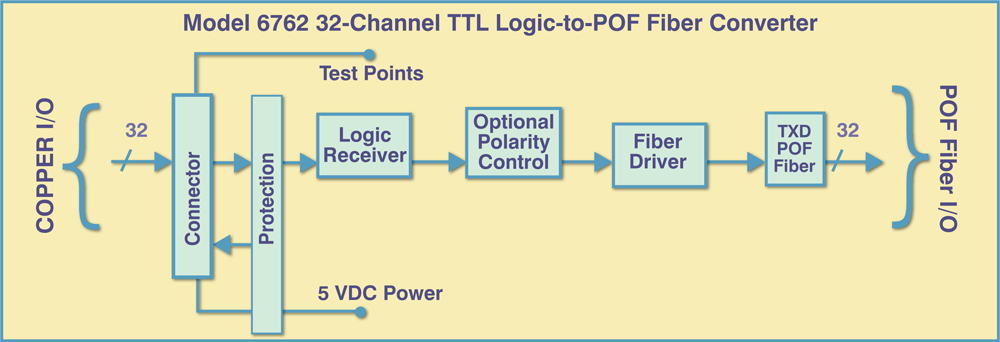

 Model 6762 Desktop Unit 32 Channel POF Fiber to TTL Logic Converter Block Diagram:

Model 6766 Desktop Unit: Four Channel TTL Logic-to-ST Duplex Fiber Converter Application Diagram

INTRODUCTION:

The Model 6762 is a 32-Channel High Speed-TTL Digital Logic Level to POF Fiber Interface Converter from Electro Standards Laboratories. It translates 32 digital logic RX signals into 32 POF fiber optic TX signals. Typical operating speeds are up to 10 Mbps.

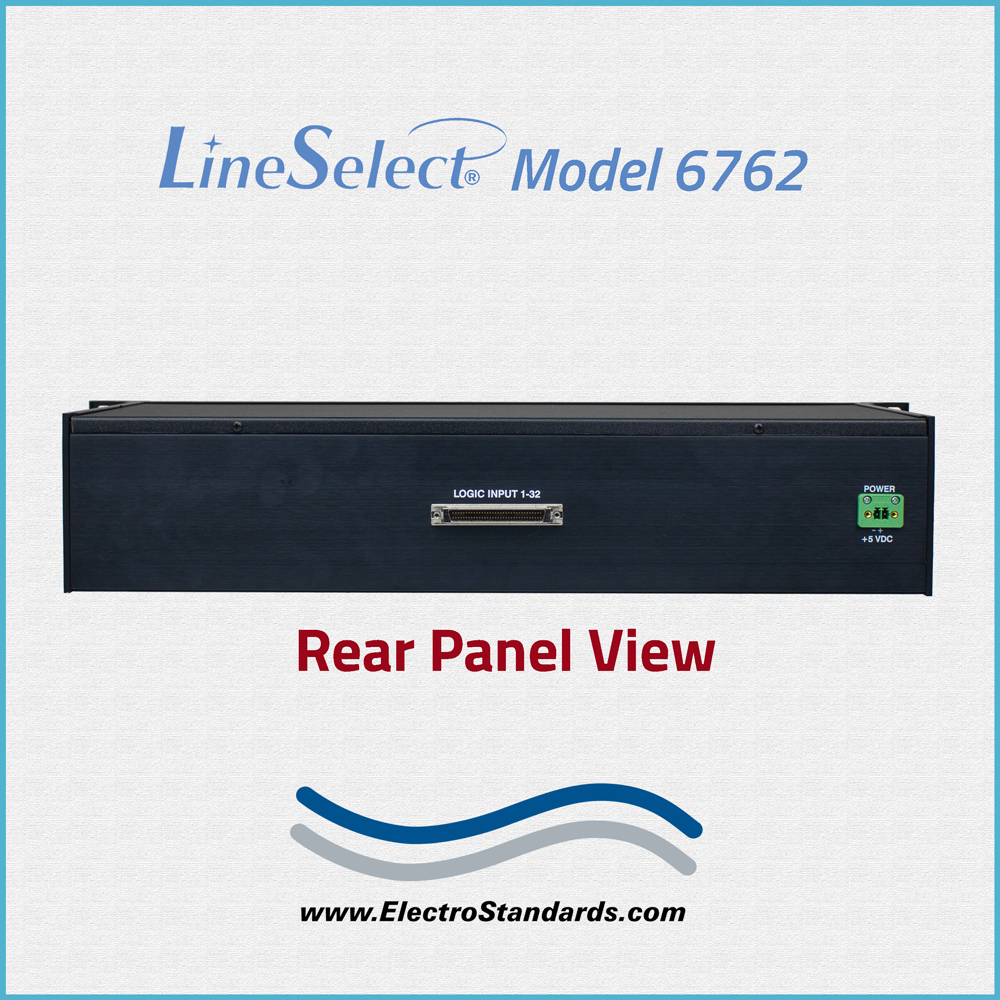

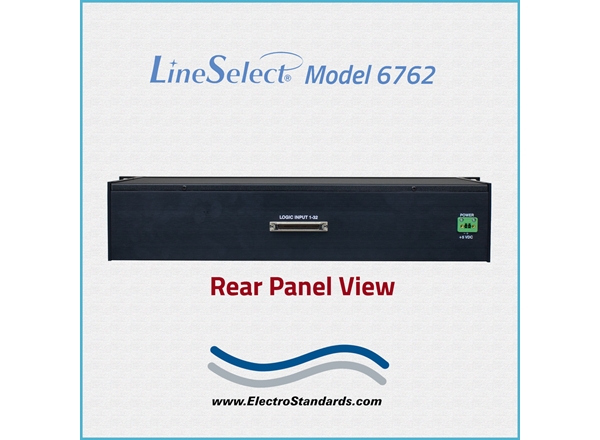

The fiber optic connectors are Versatile Link Plastic Optical Fiber (POF) type. They are located on the rear panel of the unit. The POF channels are (TX1 - TX32) which correspond to the 32 TTL TX copper channels on the 68pin DSub connector.

The unit is powered by an included 5VDC power supply. Power is supplied via a 2-pin Phoenix connector. The power supply input is protected from overvoltage, overcurrent and high-power transients. All TTL copper connections feature ESD protection of ±8kV contact discharge, ±15kV air discharge, (IEC61000-4-2). The copper input/output connections are made via the 68-pin VHDCI connector located on the rear of the unit.

FEATURES INCLUDE:

  • ESD protection on all copper interfaces.
  • TTL logic level test point on circuit board.
  • DSub copper interface connector with threaded 4-40 post hardware.
  • Customized jackscrew hardware.

SPECIFICATIONS:

Optical Interface:

  • TX Power: -3.5 dBm
  • RX Sensitivity: -23 dBm
  • Wavelength: 650 nm, multimode

Link Distance:

  • Up to 50 meters with 1mm Plastic Optical Fiber (POF)
  • Up to 500 meters with 200µm Hard Clad Silica (HCS)

Fiber Polarity:

  • TTL Logical 0 = Fiber Light OFF
  • TTL Logical 1 = Fiber Light ON

Copper Interface:

  • Type: TTL Logic
  • Vih range: (1.4 - 2.1) Volts
  • Vil range: (0.6 - 1.4) Volts

Operating Environment:

  • -40ºC to 85°C

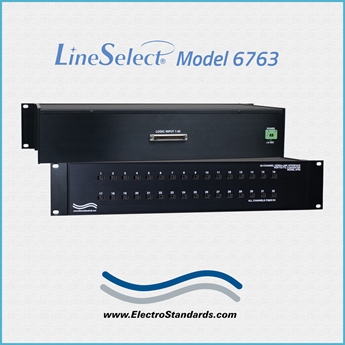

Model 6763, Cat. No. 306763 Desktop Unit:

Connectors:

  • Copper: (1) 68-Pin female VHDCI Connector
  • Fiber: (32) Female Versatile Link Plastic Optical Fiber (POF) Connectors.

Power:

  • (1) 2-Pin Phoenix Connector
  • (1) 5VDC power supply, (Cat. No 531272) included.

Mechanical: Model 6762 / 306762 (Desktop Unit)

  • Size: 19.0" W x 3.5" H x 8.4" D [48.2 x 8.8 x 21.3 cm]
  • Weight: 6.1 lbs (2.8 kg)

Data Bit Rate:

  • Up to 10 Mbps
