Video Conference Room Switch, RJ45 Cat5e

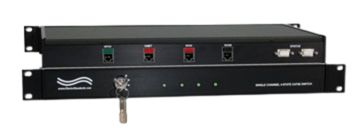

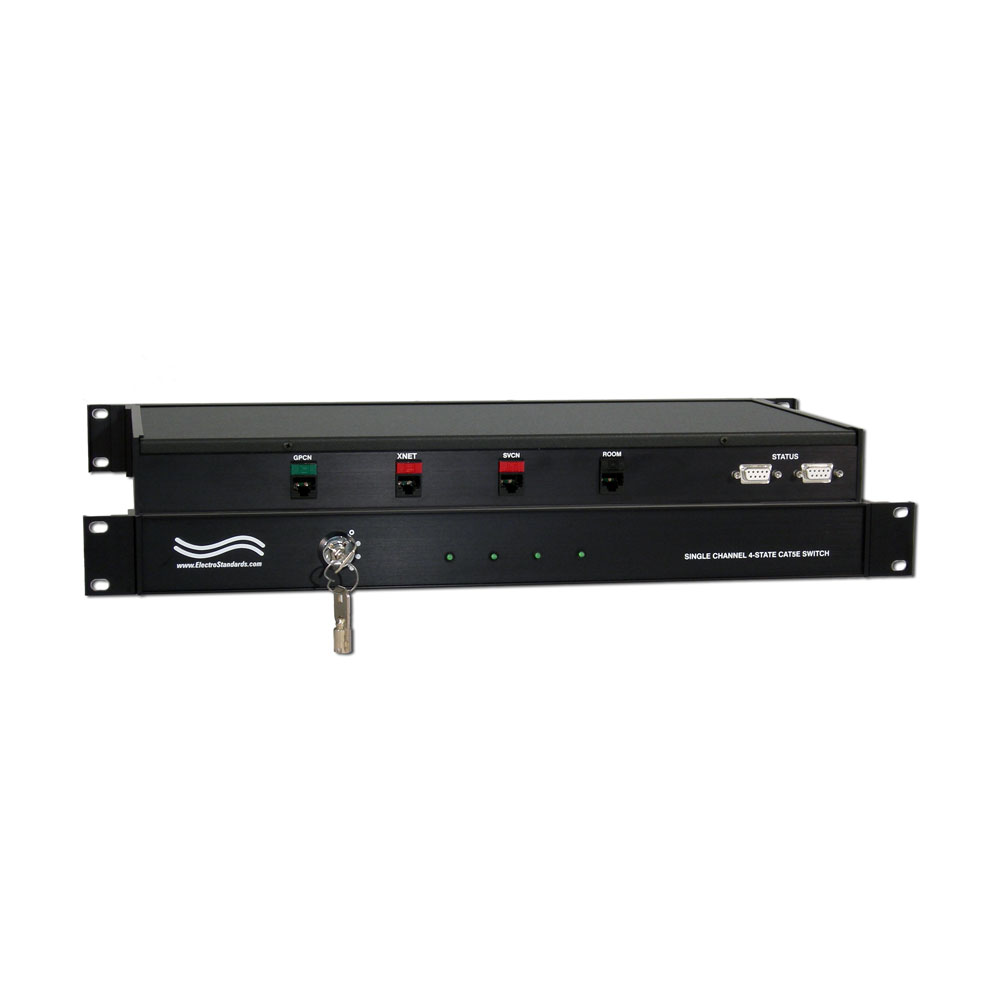

PathWay® Model 5535 Single Channel 4-State OFF/SVCN/XNET/GPCN RJ45 Cat5e Switch

  • Ideal for secure conference room communication applications

SPECIFICATIONS:

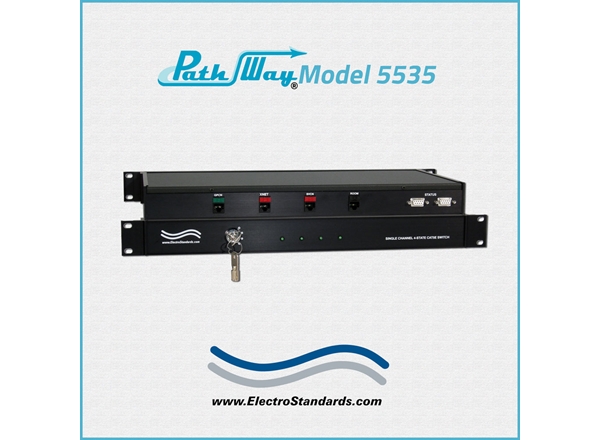

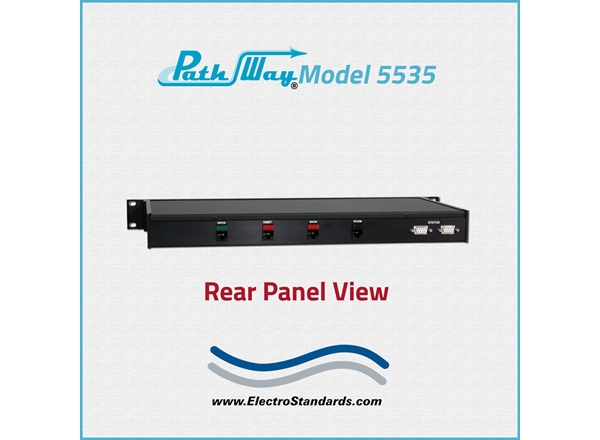

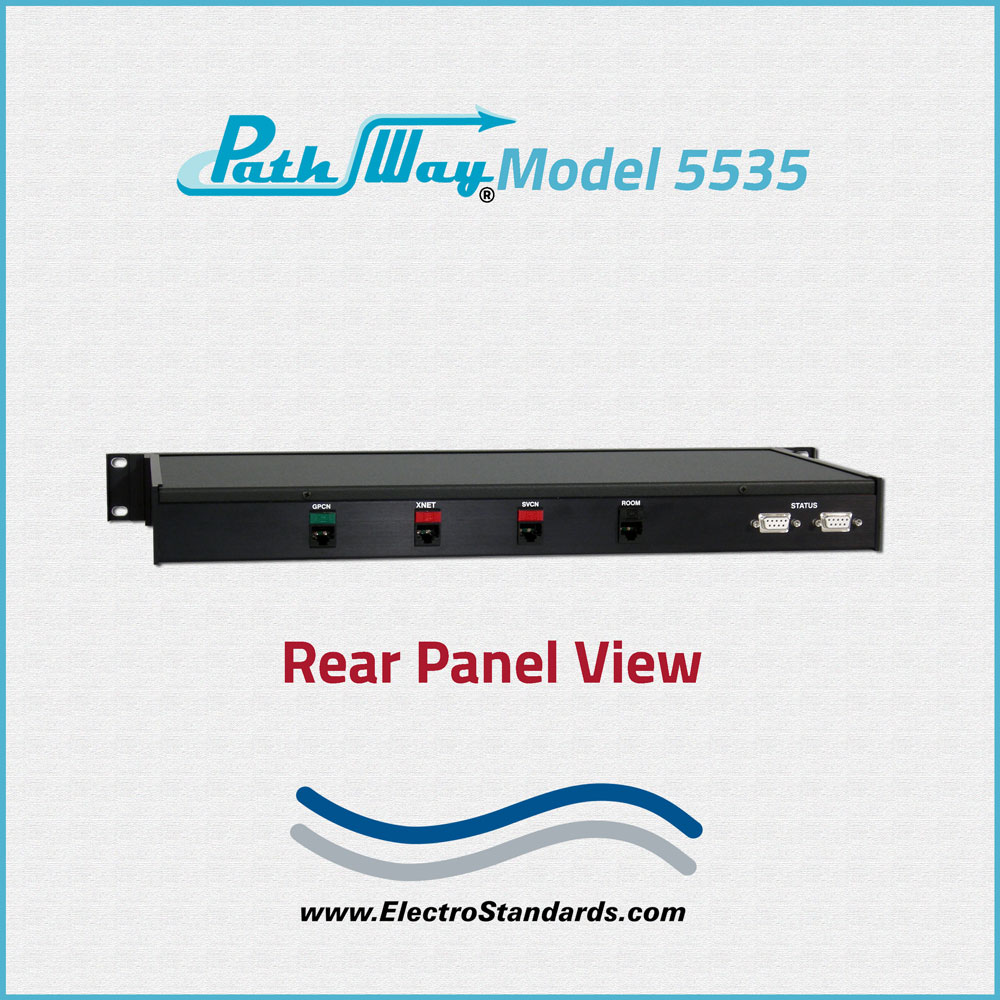

  • PORT CONNECTORS: (4) RJ45 female connectors labeled GPCN, XNET, SVCN, and ROOM.

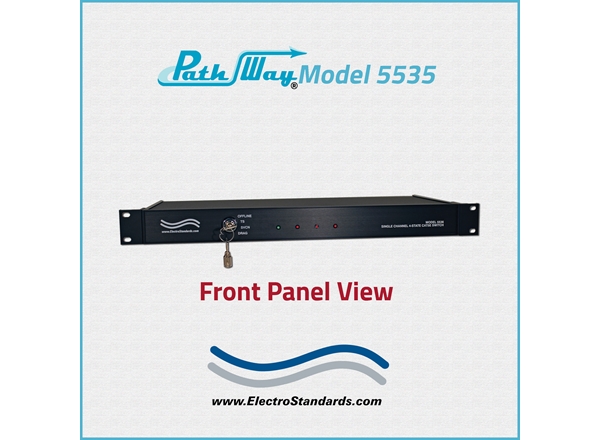

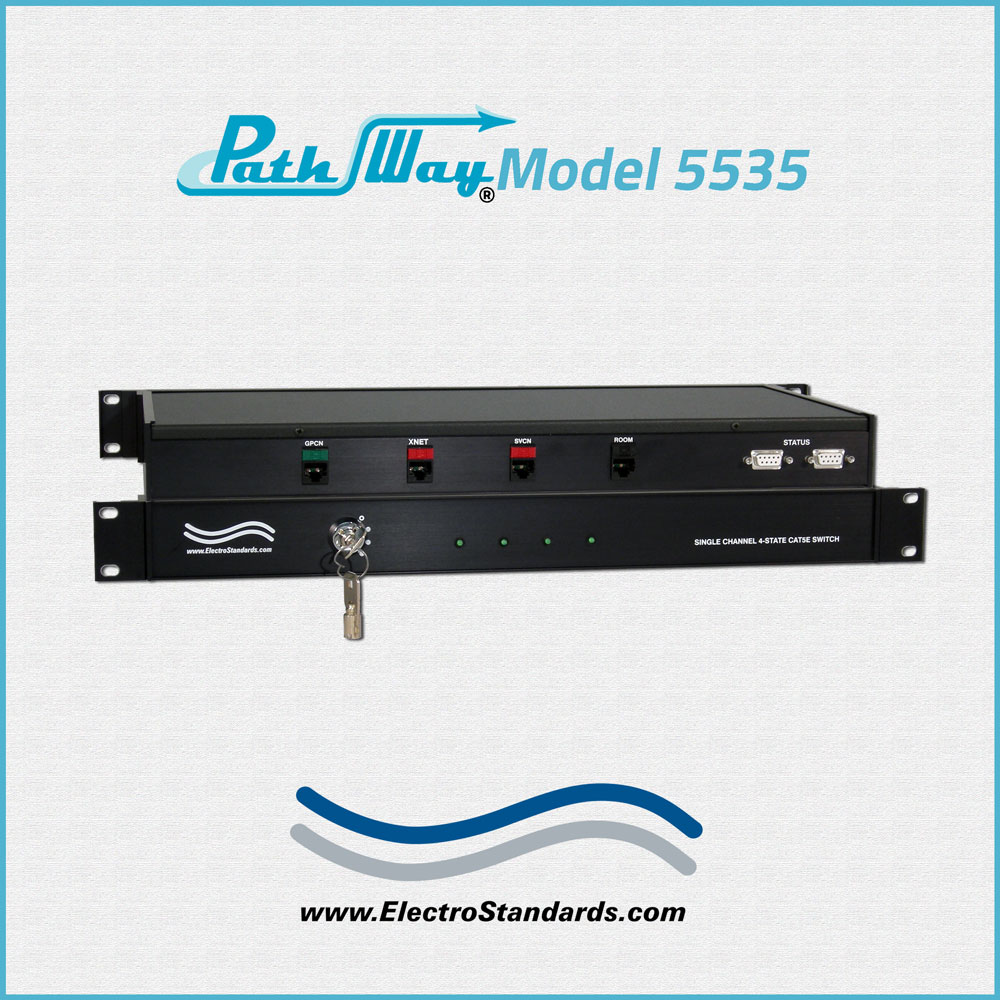

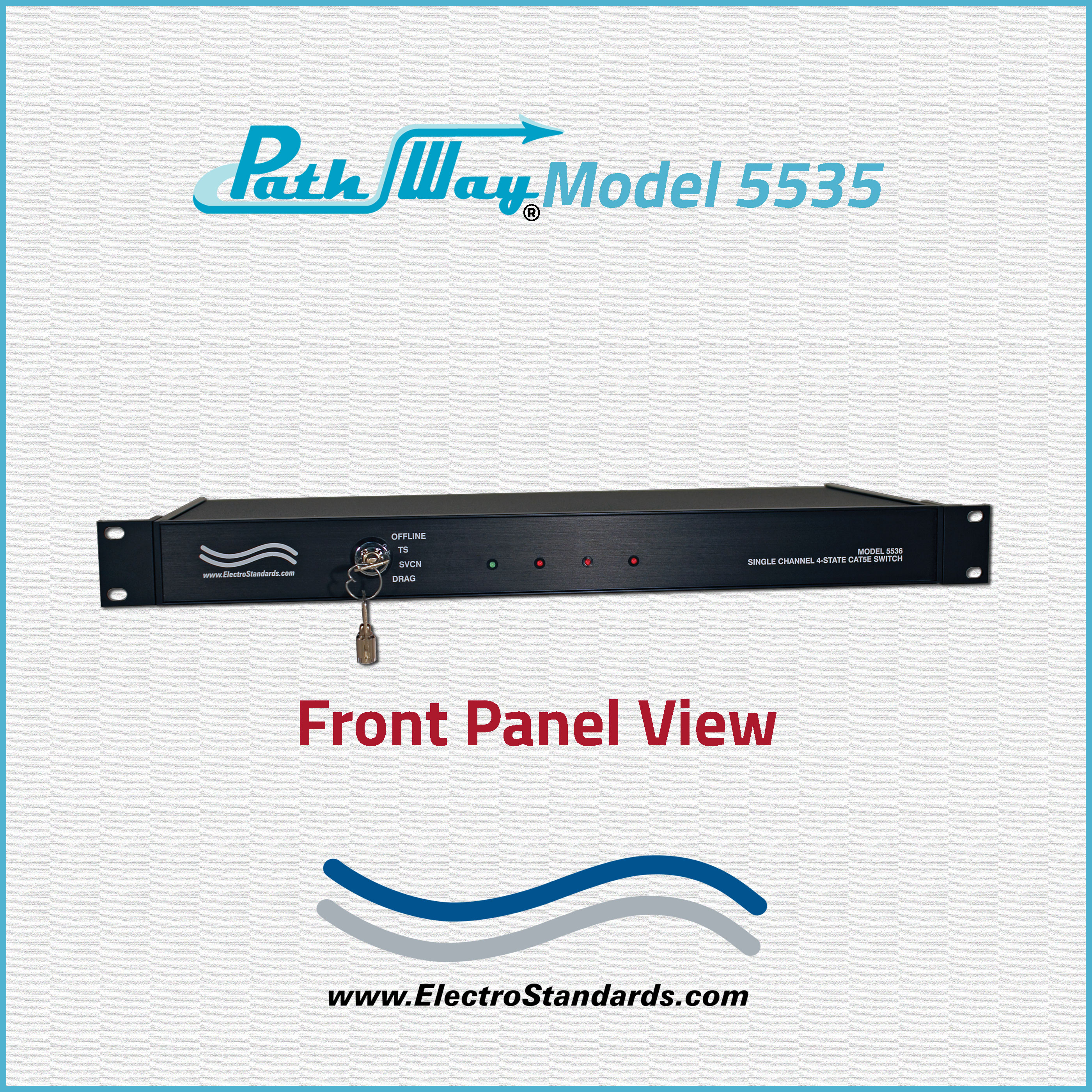

  • FRONT PANEL CONTROL: (1) Four-position keylock actuator.
  • DISPLAY: (4) Front panel LED's display switch position and power status.
  • STATUS PORTS: (2) DB9 (F) ports allow linking the Model 5535 switch to a remote large character alpha display unit, Model 5532.  Custom port contact closures indicate switch position: OFF, SVCN, XNET, and GPCN.
  • POWER: No power required to operate the 4-position switch.  Power for LED's provided from connection to the Model 5532 Display Unit.
  • DIMENSIONS: 19" W x 1.75" H x 8.0" D. (48.3 x 4.4 x 20.3 cm)
  • WEIGHT: 4.0 lbs. (1.8 Kg)

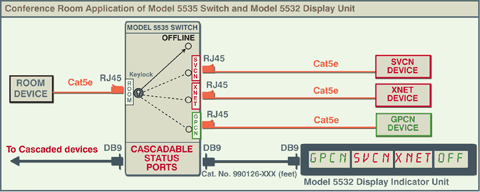

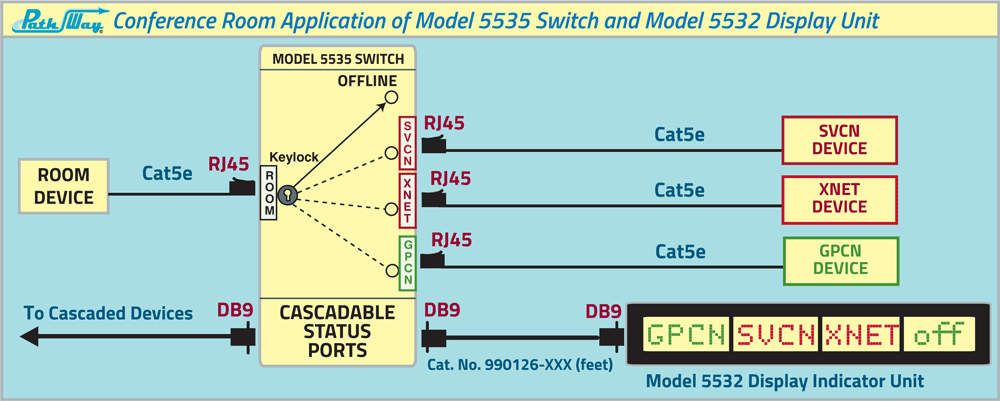

Conference room application of Model 5535 Switch and Model 5532 Display Unit

Model 5535 Single Channel 4-State OFF/SVCN/XNET/GPCN RJ45 Cat5e Switch

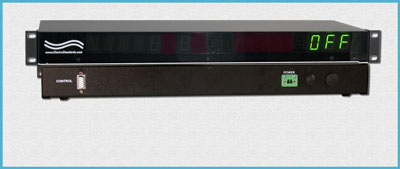

The PathWay® Model 5535 RJ45 Switch allows a device connected to the ROOM port to access devices connected to the SVCN, XNET, and GPCN ports.  Users can link this model to the Model 5532 OFF/SVCN/XNET/GPCN Display Indicator unit for a robust conference communication switching system.  The dimensions of the unit are 1.75"H x 8"D x 19"W and the unit mounts in a standard 19" equipment rack.

FEATURES:

  • Unit permits signals to pass uninterrupted (SVCN, XNET, and GPCN positions) or isolates in/out copper (OFFLINE position).
  • Unit switched via front panel keylock actuator.
  • The switch ports are transparent to all data.  All (8) pins of the RJ45 interface are switched.
  • Certified for Cat 5e compliance.
  • The front panel indicator LED's on the Model 5535 will display the position status of the unit when linked to a powered Model 5532 unit.
  • The position of the Model 5535 will follow the keylock actuator position at all times.
  • The key can only be removed from the keylock actuator in the OFFLINE position.
  • Status port for linking switch system unit to the Model 5532 OFF/SVCN/XNET/GPCN Display Indicator unit.
  • No power is required to operate unit.

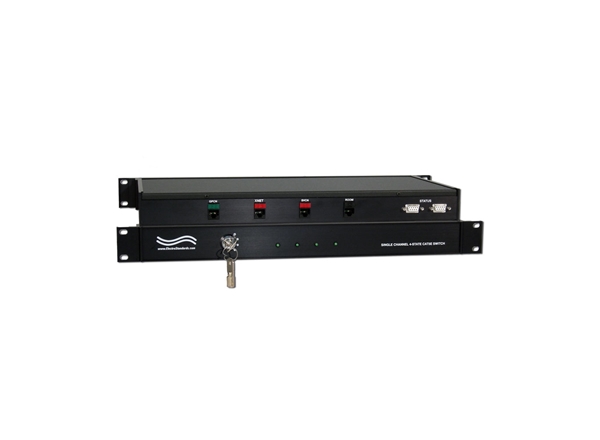

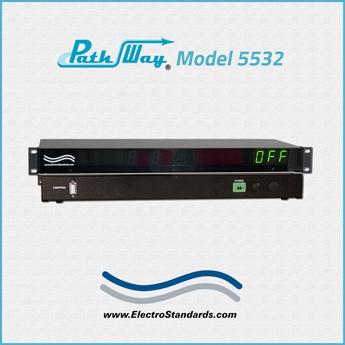

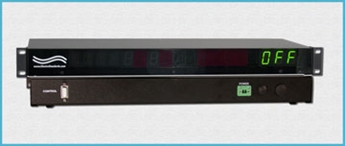

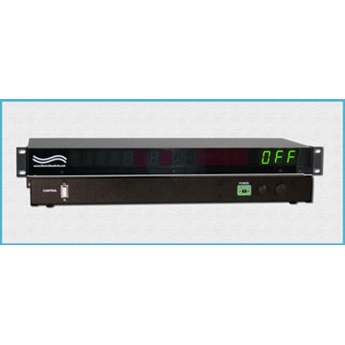

Model 5535 4-State RJ45, Cat5e Keylock Switch is shown below with the Model 5532, Cat. No. 305532 Display Indicator Unit.  The Model 5535 switch is in the OFF position.

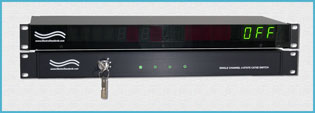

Model 5535 4-State RJ45, Cat5e Keylock Switch with Model 5532 Display in OFF position
