Catalog # 306273 - Model 6273 Gigabit ST Duplex 850nm A/B Fiber Switch

    Gigabit A/B Fiber SwitchGigabit A/B Fiber SwitchGigabit A/B Fiber SwitchGigabit A/B Fiber Switch
Click image to enlarge
    • Gigabit A/B Fiber Switch
    • Gigabit A/B Fiber Switch
    • Gigabit A/B Fiber Switch
    • Gigabit A/B Fiber Switch
Base Price:
$2,864.00
Catalog No: 306273
Model No: 6273
Product Type:Switches: Fiber Optic
Positions:2
Cable Type/Port Connector:ST
Channels per Switch Chassis:1
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Remote Control:RS232 Serial
Configuration:Rackmount
Fiber Mode:Multimode
Fiber Size:62.5/125
Fiber Type:Duplex
Remote Port:DB9
Local Control:Pushbutton
Mirror Technology:OO
Speed:Gigabyte
Wavelength Nano:850

Add to Cart

All A, B, and COM ports are:

  • ST Duplex
  • Multimode, 62.5/125 Micron
  • Wavelength: 850 nm
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

QuickSwitch® Fiber Optic Network Switch, ST Duplex

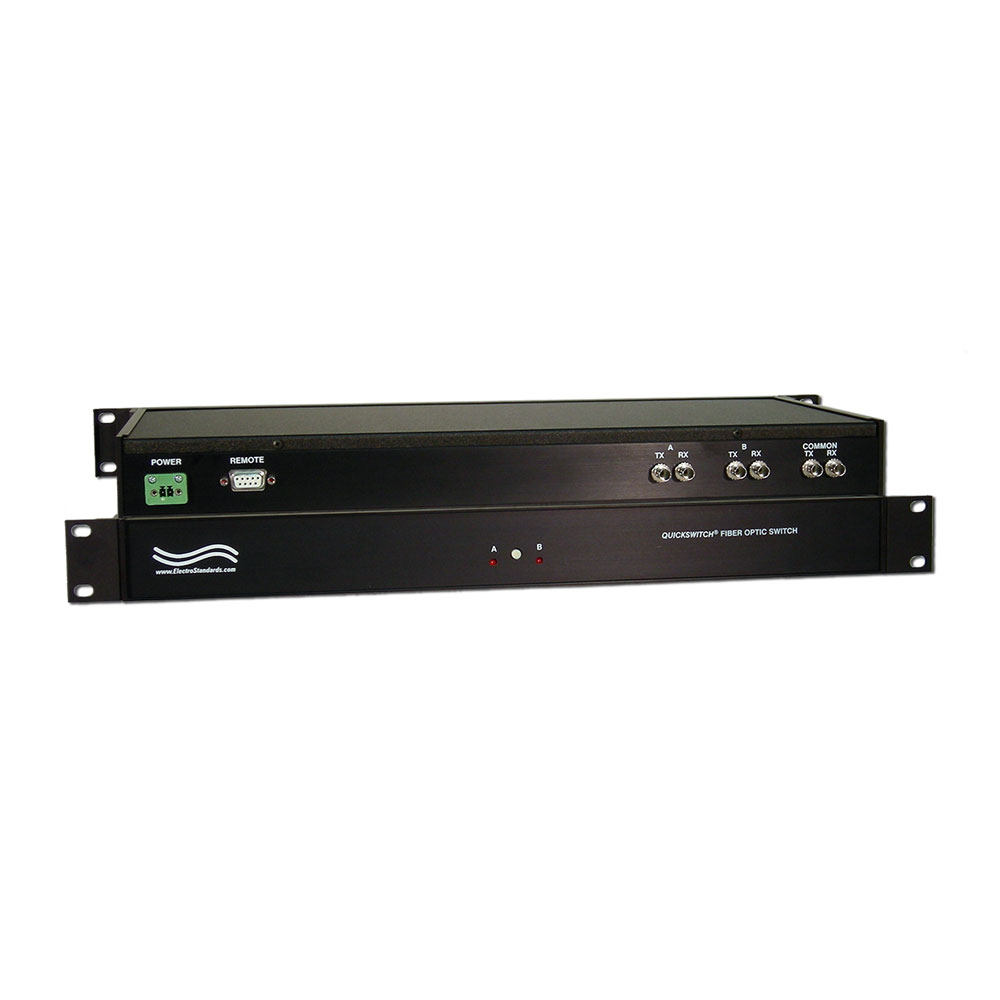

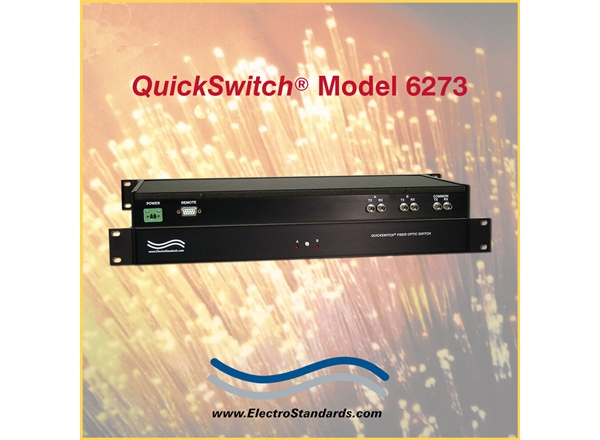

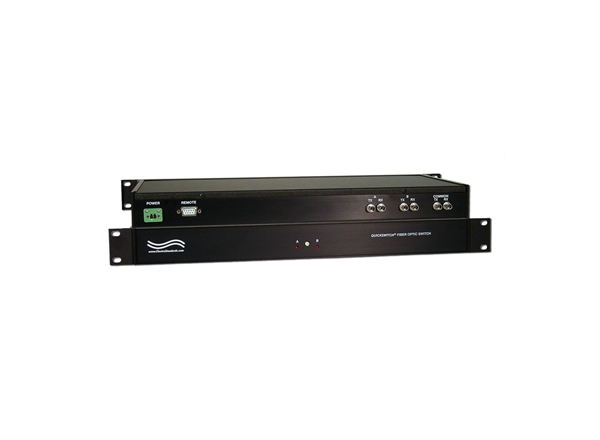

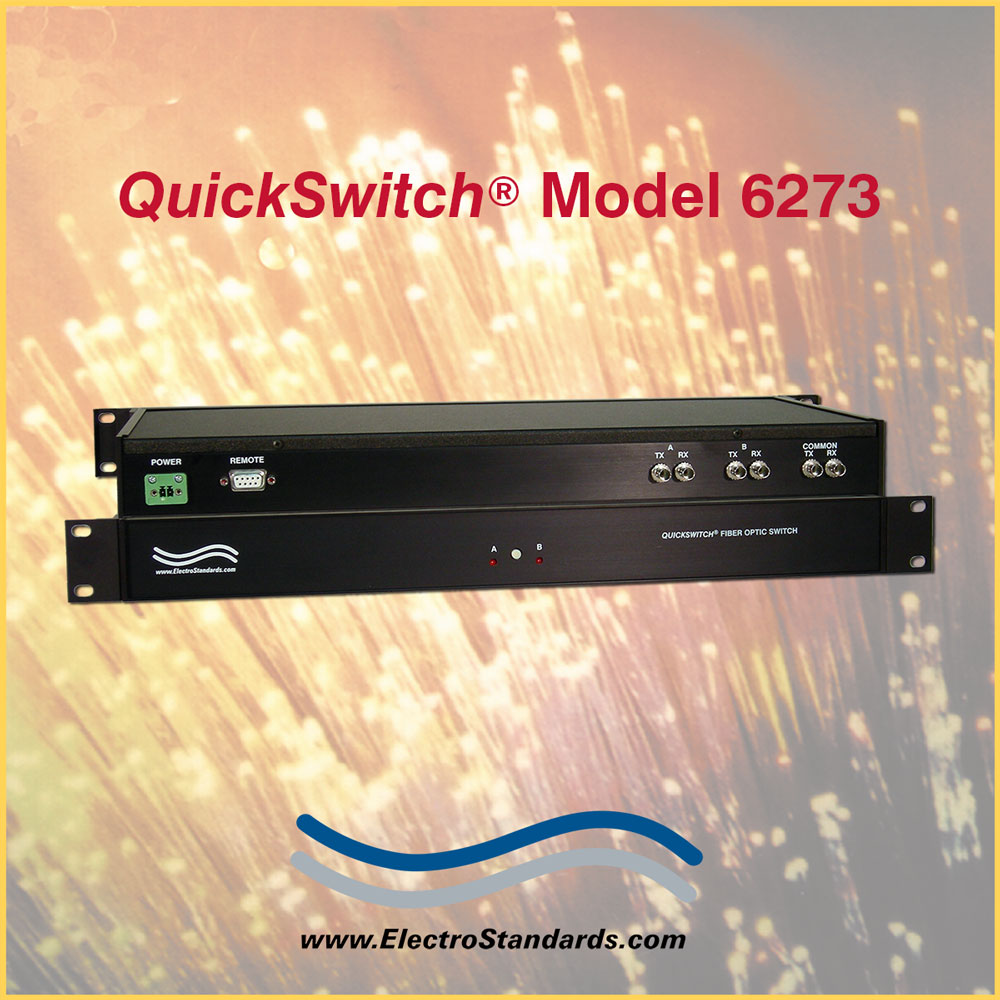

QuickSwitch® 6273 ST Duplex Fiber Optic Mirror A/B Switch with Remote Serial Control

SPECIFICATIONS:

  • Wavelength: 850 nm
  • Fiber size: 62.5/125 micron

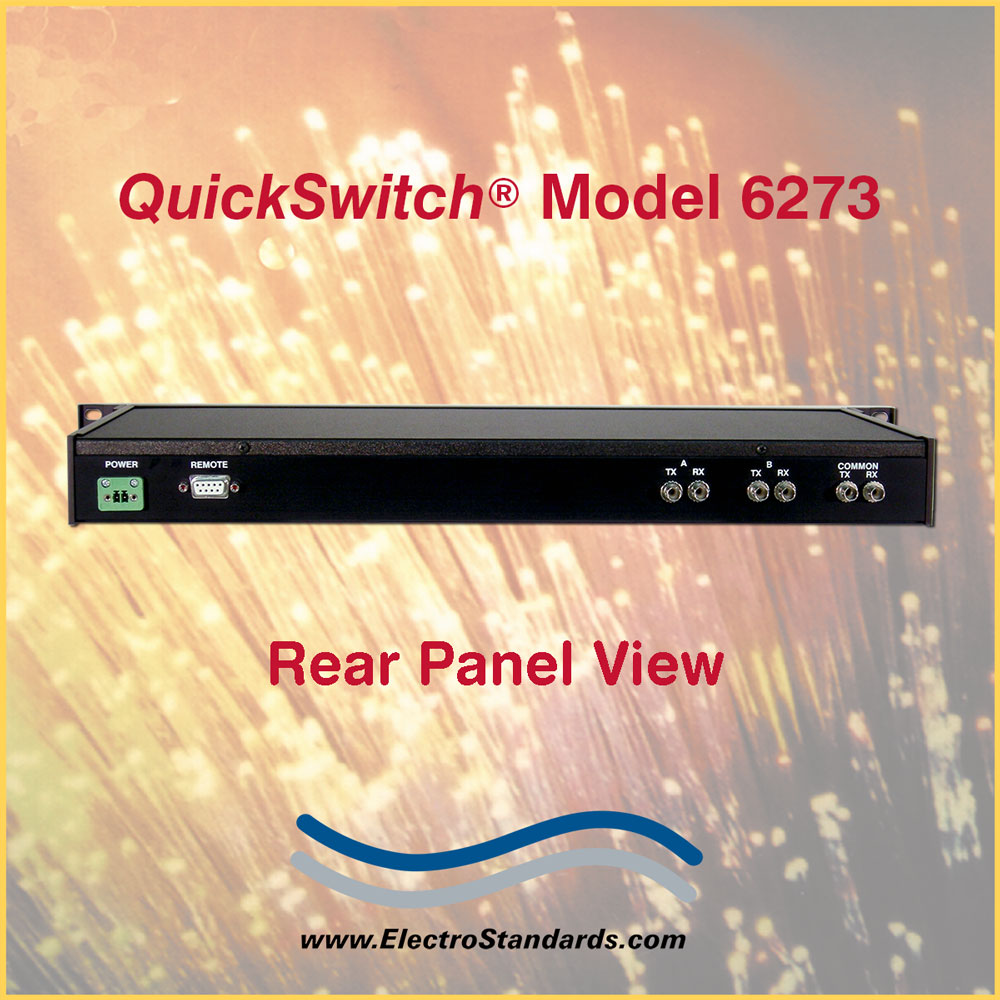

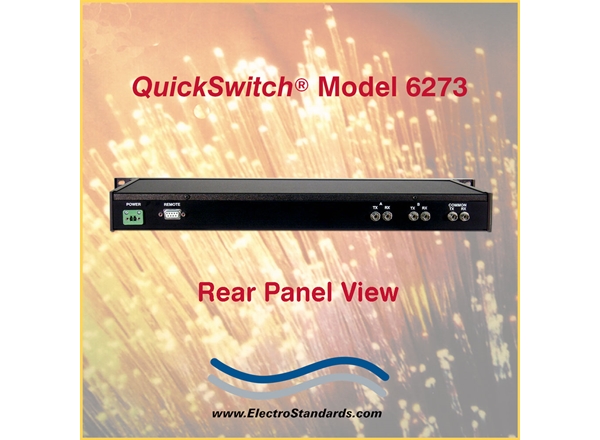

  • Port Connectors: (3) ST duplex fiber optic rear panel connectors, labeled A, B, COMMON.

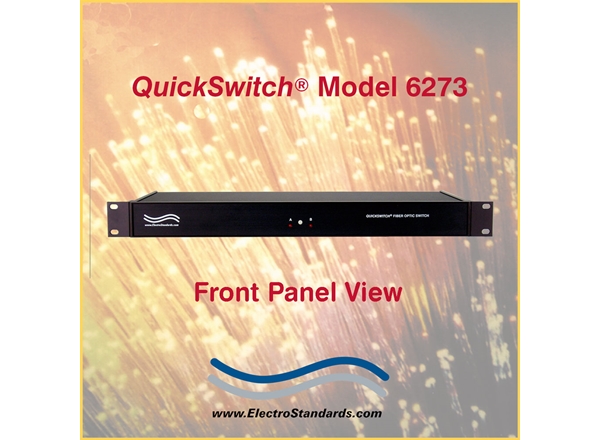

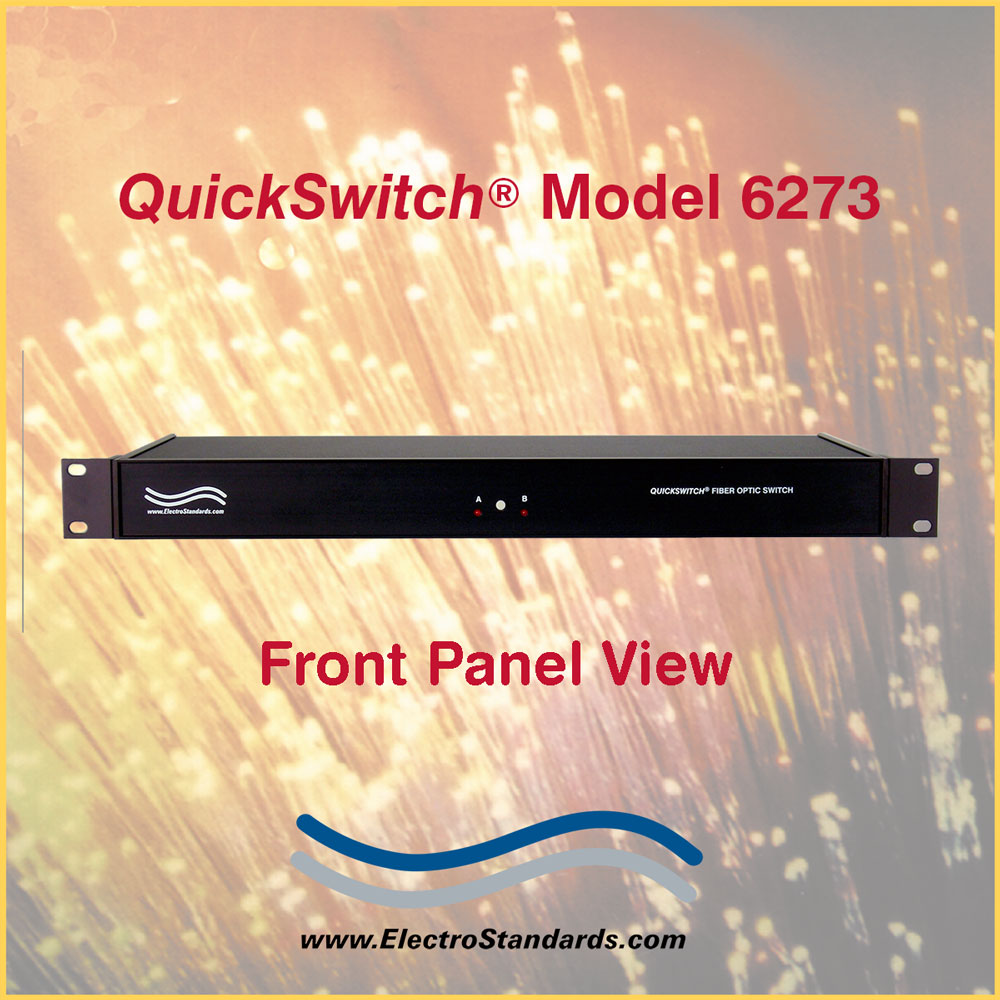

  • Front Panel Control: Pushbutton allows local switching.
  • Display: (2) Red LED's display switch position and power status.
  • Remote Control: (1) DB9 (F) connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL Approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500 mA to the unit.  Has 2-prong, US, non-polarized plug
  • Dimensions: 19.0" W x 1.75" H x 8.55" D. (48.3 x 4.4 x 21.8 cm)
  • Weight: Approximately 4.5 lbs. (2.0 kg)

QuickSwitch® ST Duplex Fiber optic A/B Switch Application with RS232 Serial Remote Control:

QuickSwitch® 6273 ST Duplex Fiber Optic Mirror A/B Switch with Remote Serial Control is an ideal backup switch for high-speed requirements. The DB9 Remote allows the user to control the switch remotely using ASCII RS232 Serial data commands.

QuickSwitch 6273 ST Duplex Fiber Optic A/B Switch w/RS232 Remote Application

 FEATURES:

  • Access any one of two separate fiber optic networks from one computer or network.
  • The switch ports are transparent to all data.
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology and supports Gigabit data rates.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • Remote RS232 ASCII commands that allow the user to control switch position, lockout front panel operations and obtain switch status.
  • Front panel LED’s display present position and power status.
  • All A, B, and COM ports are ST Duplex, Multi-mode, 62.5/125 micron, and support a wavelength of 850nm.
  • The fiber ports are configured per TIA/EIA-568-B.3, where the TX of the COM port is routed to the RX of the A/B ports and vice versa.
  • Eliminates need to plug/unplug fiber optic patchcords.
  • Custom length rigorously tested and certified, ST fiber optic cables available for your switch installation
  • Municipalities, schools, government: This product is on GSA Schedule!

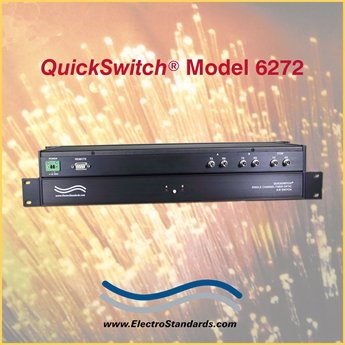

  • Need a similar switch, but with an 1300 nm wavelength?  See Model 6272, Catalog No. 306272.

The QuickSwitch® 6273 ST Duplex Fiber Optic A/B Switch with Remote Serial Control allows the user the capability of accessing two separate devices, ports A and B via connection through a device connected to the Common port, with remote access functionality.  The QuickSwitch® 6273 is enclosed in a 1U, full rack size, all metal, black chassis designed to fit in a standard 19” rack.

The switch may be controlled locally by manually operating the front panel pushbutton or remotely from the DB9 female Serial Interface Remote port located on the rear of the unit.  The front panel LED display indicates the switch position and the unit power status.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 6273 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our FIBER OPTIC CABLE Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online custom product request form.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Interfaces include: SC, ST, LC, and ESCON. Check out our complete line of QuickSwitch® fiber optic switches.
