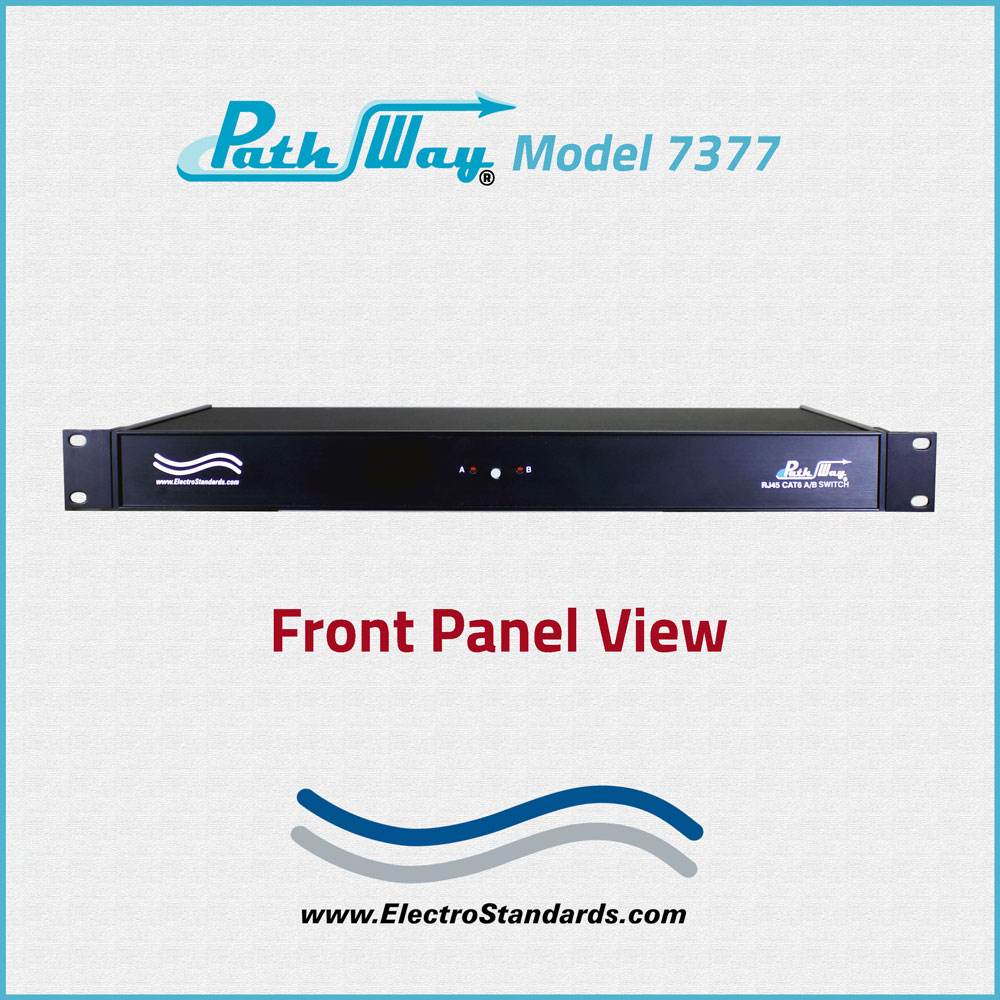

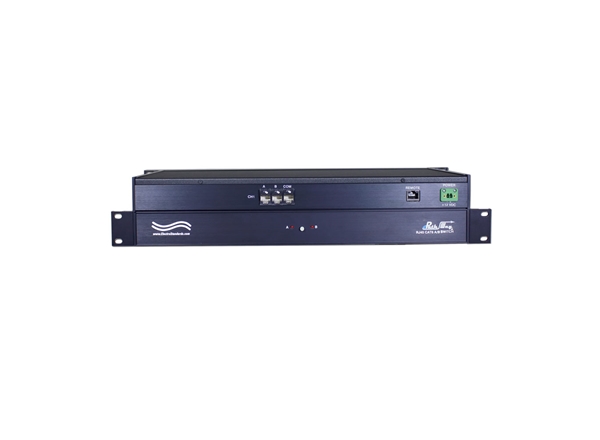

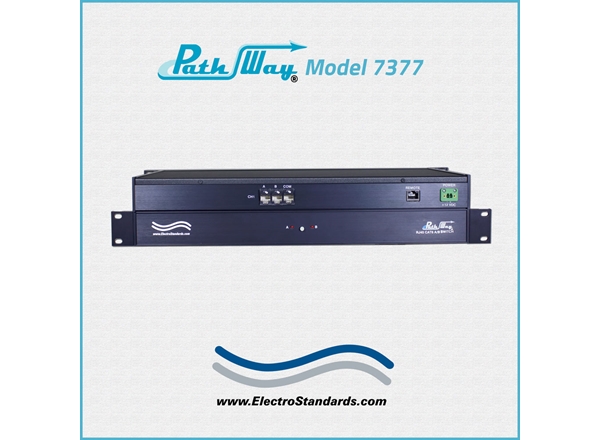

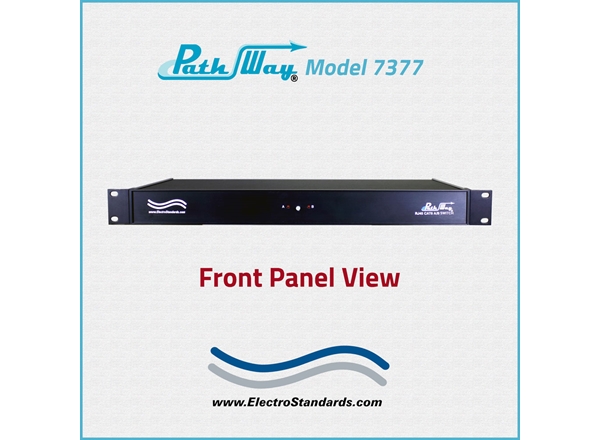

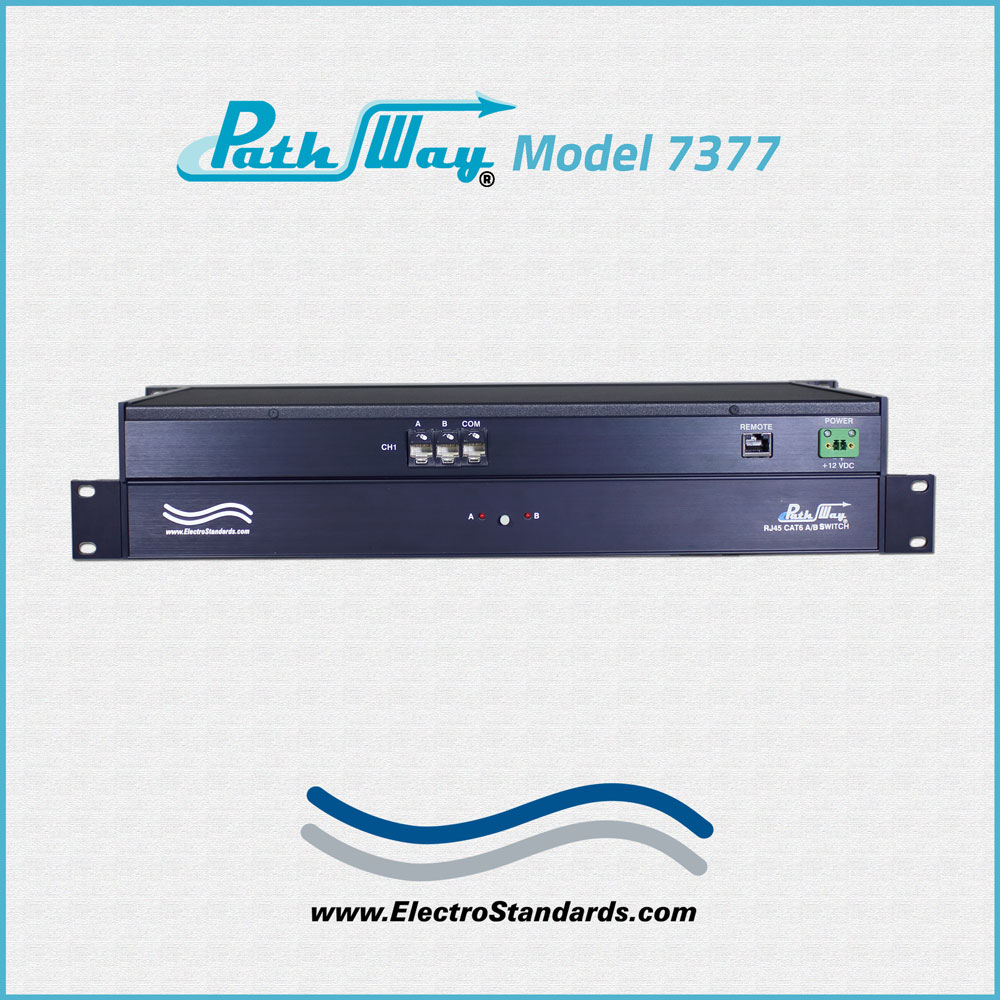

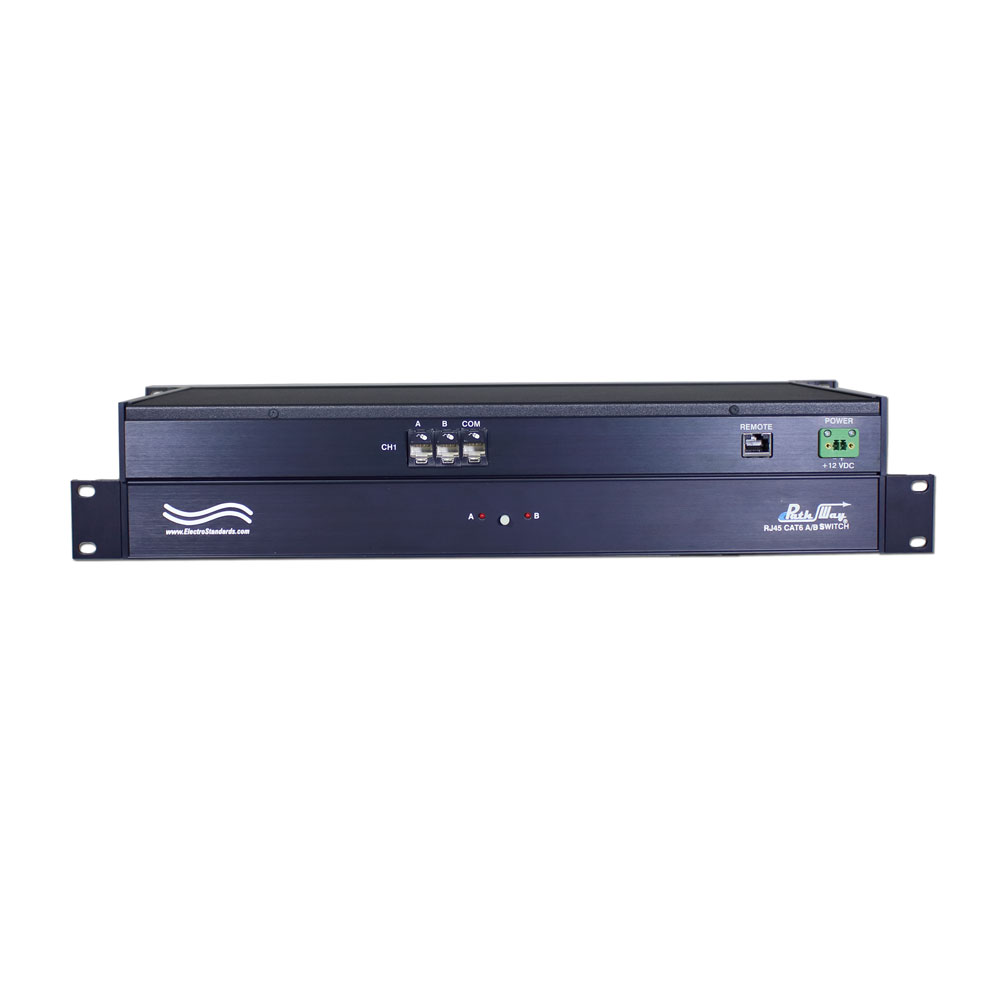

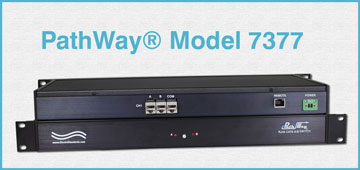

Path Way® Remotely Controllable Network Switch, Cat6A, RJ45
Model 7377 Single Channel Cat 6A RJ45 A/B Switch, with SSH, HTTPS GUI and SNMPv2

Utilizes High Performance Shielded RJ45 Connectors.

SPECIFICATIONS:

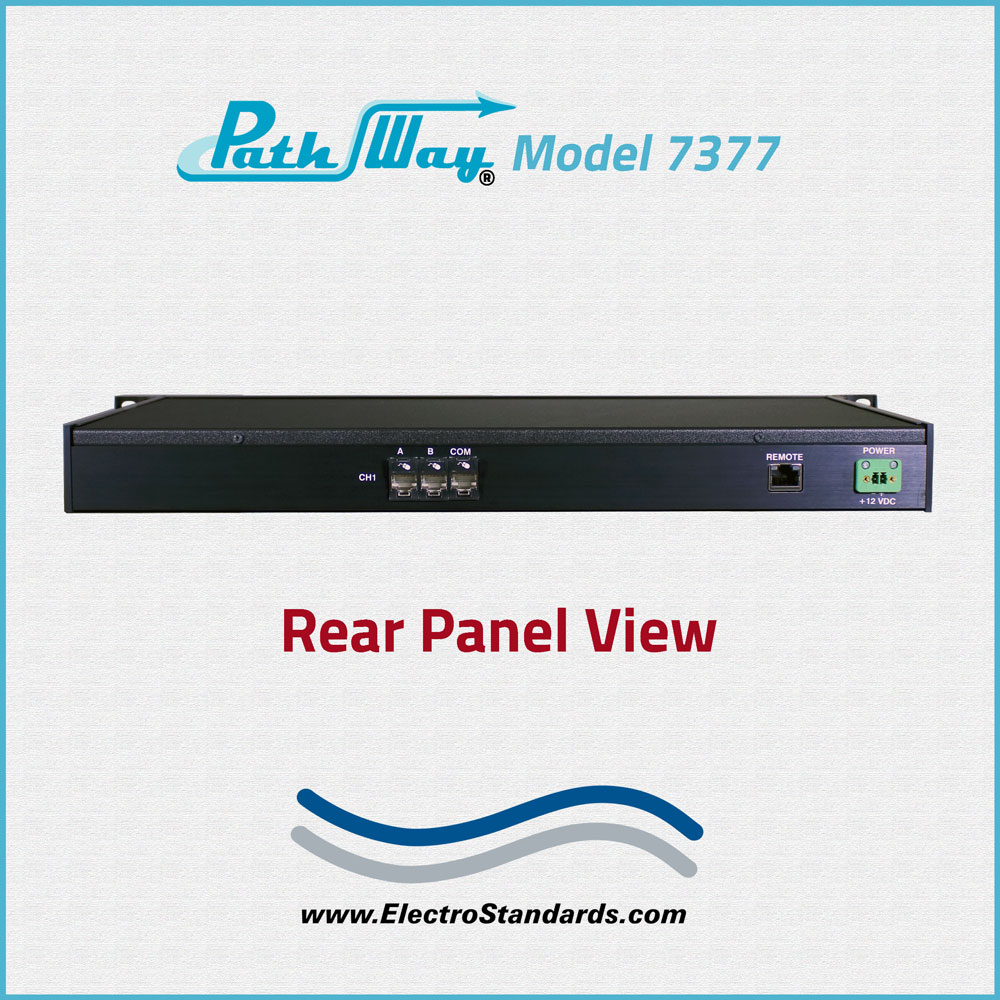

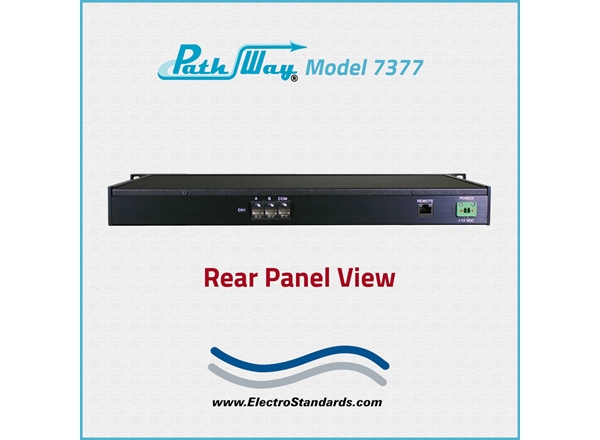

PORT CONNECTORS: (3) RJ45(F) shielded connectors labeled A, B and COMMON.
COMPLIANCE: Interface meets or exceeds Cat 6A performance.
CONTROLS: (1) Pushbutton to select A or B.
DISPLAY: (2) Red LED's display switch position and indicate power presence.
REMOTE CONTROL: (1) RJ45 female connector on rear panel accepts Ethernet 10/100Base-T connection and either SSH commands or a secure Graphical User Interface for Remote Control operation.
POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US non-polarized plug.
DIMENSIONS: 19.0" W x 1.75" H x 8.35" D (48.3 x 4.4 x 21.3 cm)
WEIGHT: Approximately 4.5 lbs. (2.1 kg)

PathWay® Model 7377 Cat6A RJ45 A/B Switch Application with/REMOTE (SSH, HTTPS GUI & SNMPv2):

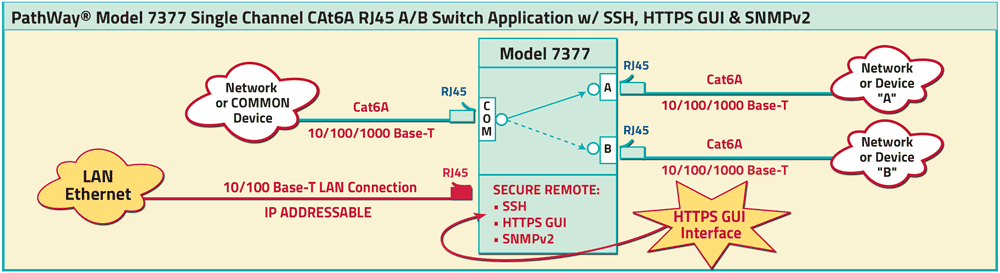

The drawing illustrates an RJ45 interface device or network connected to the RJ45 COMMON port. The device or network has access to either of two devices or networks connected to the RJ45 "A" and "B" ports. The diagram illustrates Cat6A compliant and 10/100/1000 Base-T IP addressable Secure Remote. The Remote port accepts SSH command interface or Graphical User Interface (HTTPS GUI). Graphical User Interface (HTTPS GUI).

PathWay® Model 7377 Cat6A A/B SwitchPathWay® Model 7377 Cat6A A/B Switch Application

FEATURES:

Allows access to two RJ45 Cat6A interface networks from one COMMON RJ45 Cat6A interface network or device.
The switch ports are transparent to all data.
All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
The unit maintains last position on power loss and continues to pass data. Powers up in last position.
Certified for CAT6A compliance.
Front panel pushbutton control.
Control of the switch position from a 10/100Base-T LAN Ethernet environment.
Remote Control SSH Command Interface or Graphical User Interface that allows the user to control switch position, lockout front panel operations, and obtain switch status.
Remote control of the switch is secured by user login with password protection and TLS/SSL cryptographic protocols.
SNMPv2 support service responds to SNMP requests and generates SNMP traps. SNMP supports setting of read community, write community, system information (Contact, Name, Description, & Location) as well as trap destinations (primary & secondary).
SNMP traps for Cold Start and Link down are sent on unit boot up and when Remote Module is rebooted through Graphical User Interface.
The XPort Pro device server supports SSLv3 and its successors, TLS1.0 and TLS1.1. An incoming SSLv2 connection attempt is answered with an SSLv3 response. If the initiator also supports SSLv3, SSLv3 handles the rest of the connection.

The PathWay® Model 7377 Single Channel Cat6A RJ45 A/B Switch with SSH and HTTPS GUI allows the user the capability of sharing a single RJ45 Cat6A interface device connected to the Common port among two other devices connected to the A and B ports.

Remote Control access can be accomplished using an Ethernet 10/100BASE-T connection and either SSH commands or a secure Graphical User interface. The Model 7377 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC-240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

ETHERNET REMOTE PORT, I.P. ADDRESSABLE, WITH HTTPS GUI

UTILIZING THE HTTPS REMOTE GRAPHICAL USER INTERFACE SOFTWARE

To connect to the switch from a workstation or computer having access to the LAN that switch's LAN port is connected to simply launch a standard web browser and type in the URL: https://<ip address of switch>

Note that the "s" in "https" is required. The Java Applet will be automatically uploaded from the switch upon connection. The environment requirement for the GUI is Java 1.8_121 or the latest.

PathWay Model 7377 Single Channel RJ45 Cat6a A/B Switch Main GUI Panel

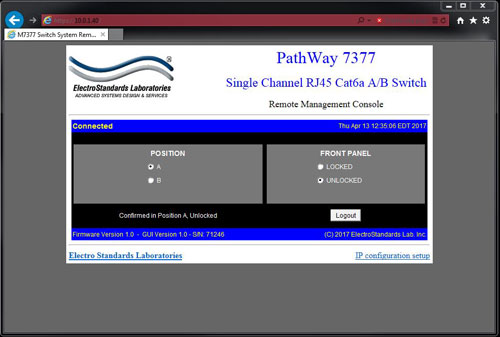

Figure 1: GUI in standard browser.

CHANGING POSITION AND LOCK STATUS

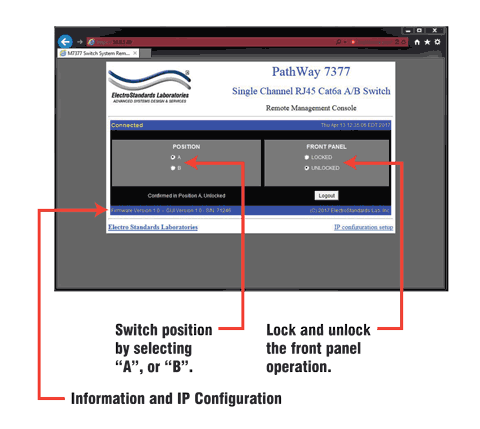

To change the switch position, click on the radio button A or B as desired. Locking and unlocking the front panel pushbutton can be done by clicking on the "Locked" or "Unlocked" radio buttons. See Figure 2

PathWay Model 7377 HTTPS Remote GUI

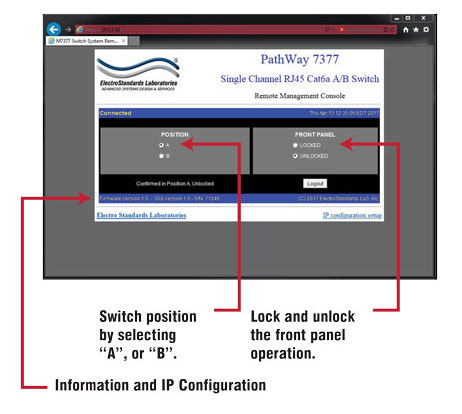

Figure 2: Change the position and lockout from the GUI

INFORMATION AND IP CONFIGURATION
The Remote control GUI also provides access to unit information such as the firmware/software version and the serial number. It also provides a link to the Remote Configuration GUI. Note that the Remote Configuration GUI link works regardless of whether the user is logged into the Remote Control GUI or whether the applet loads at all. See Figure 2

QUERYNG THE STATUS OF THE UNIT

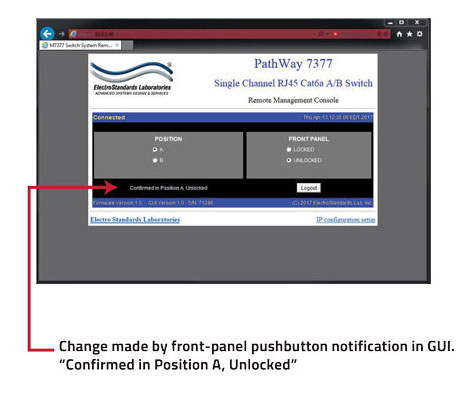

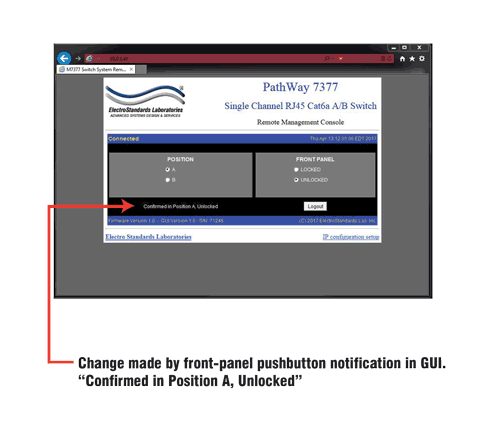

Once connected, the GUI will stay up-to-date on the present position and status of the unit. Any changes that are made outside of the GUI, such as by pushbutton, will be reflected in the GUI. These changes will cause the radio buttons of the GUI to automatically change to show the new status. The GUI will report the source of the most recent change in the bottom left of the panel. See Figure 3.

PathWay Model 7377 Single Channel Cat6a A/B Switch Gui

Figure 3: The GUI is alerted to changes in the unit status.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

This is the switch you need. It has been field-proven! Reliable! It comes complete with Tech Support.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/
