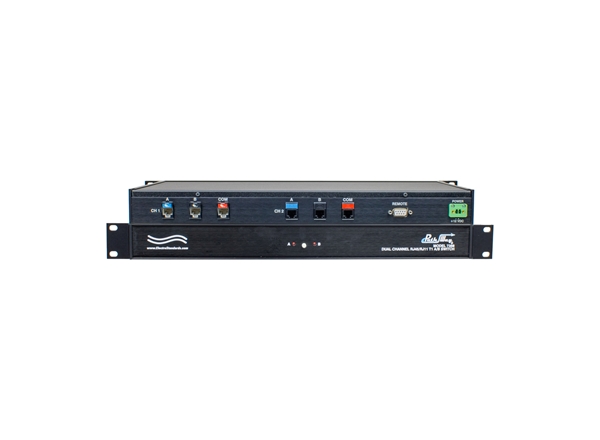

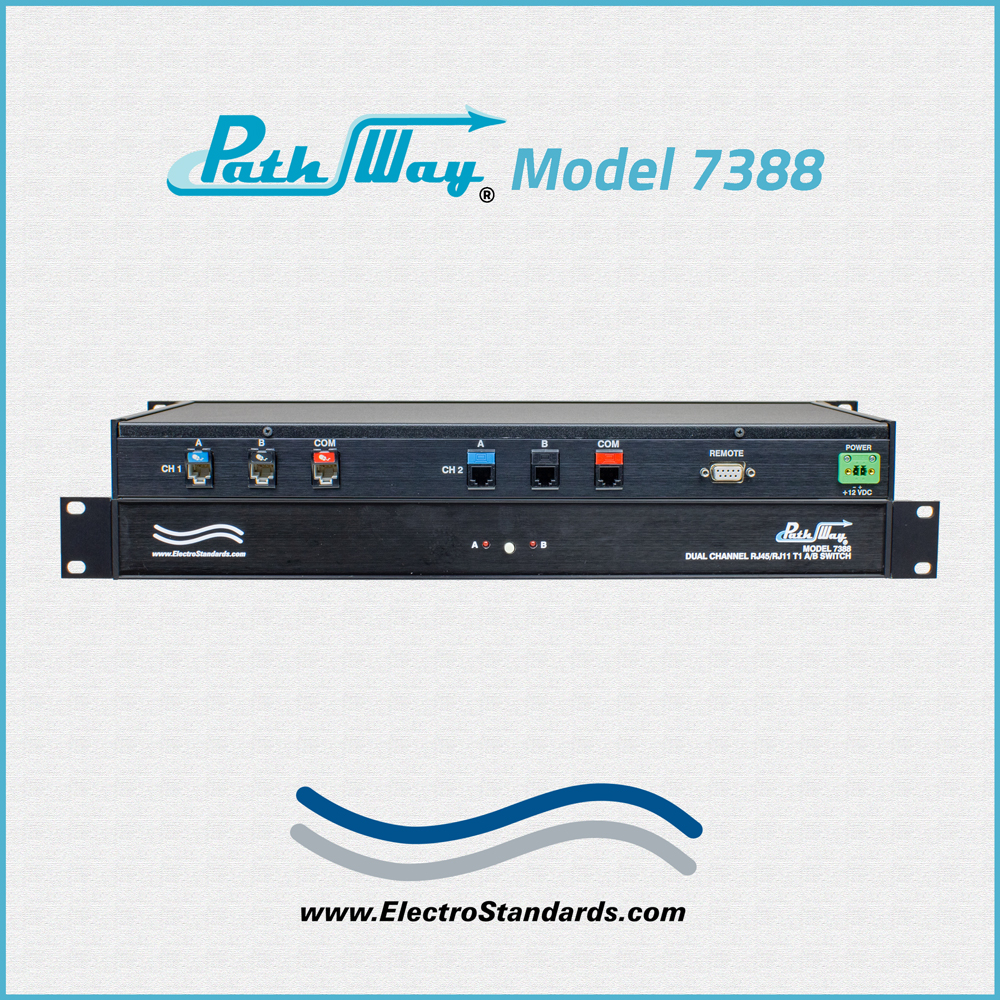

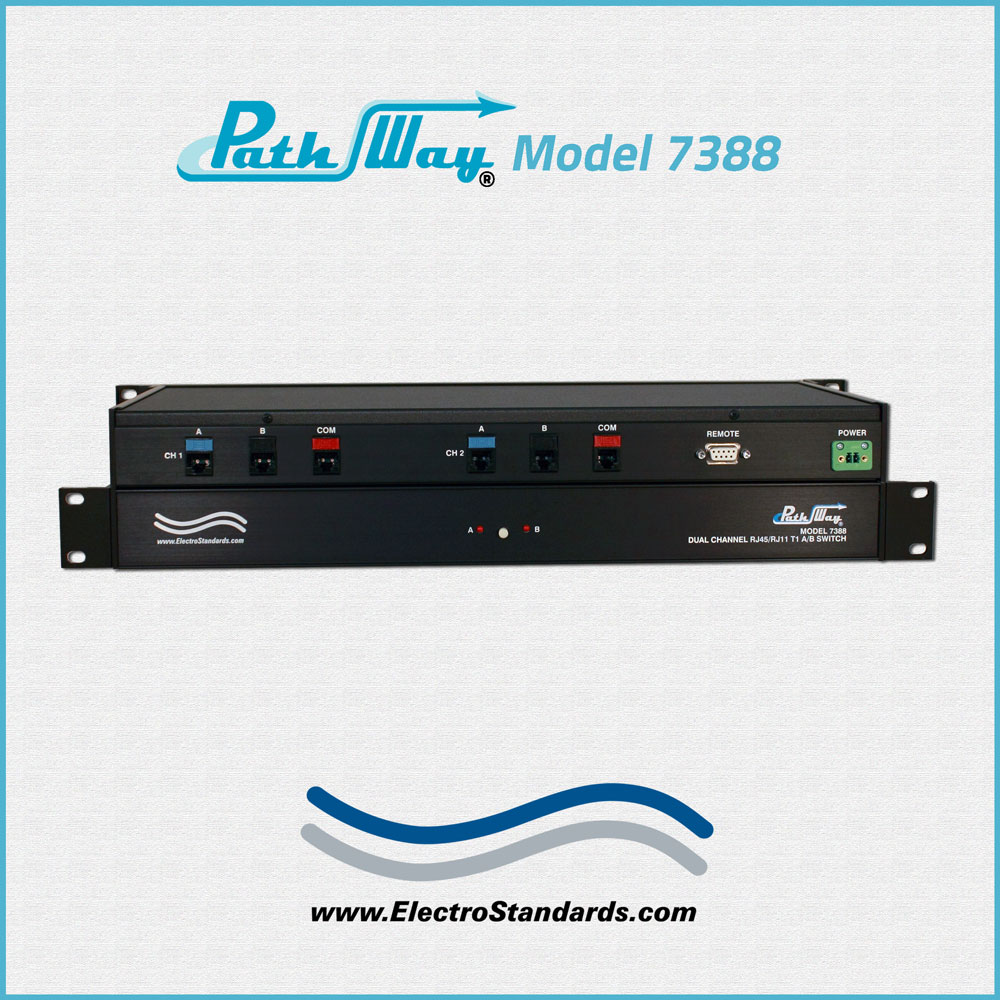

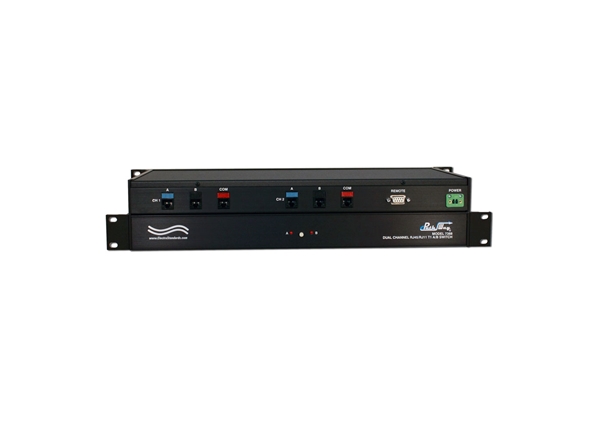

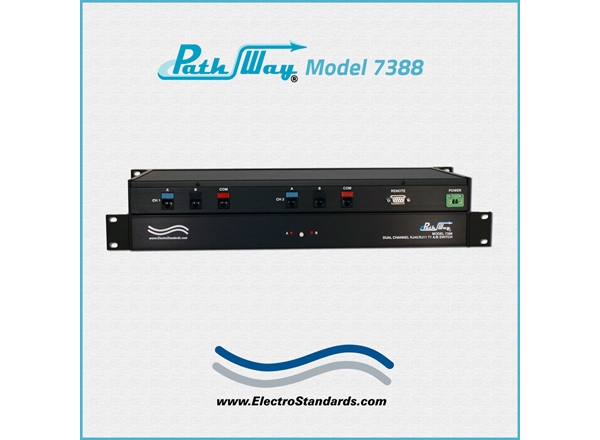

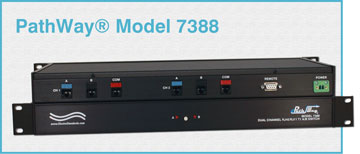

Catalog # 307388 - Model 7388 Dual Channel RJ45 Cat5e/RJ11 T1 A/B Switch, Contact Closure

    Dual Channel RJ45 Cat5e/RJ11 T1 A/B Switch, Contact ClosureDual Channel RJ45 Cat5e/RJ11 T1 A/B Switch, Contact ClosureDual Channel RJ45 Cat5e/RJ11 T1 A/B Switch, Contact ClosureDual Channel RJ45 Cat5e/RJ11 T1 A/B Switch, Contact Closure
Click image to enlarge
    • Dual Channel RJ45 Cat5e/RJ11 T1 A/B Switch, Contact Closure
    • Dual Channel RJ45 Cat5e/RJ11 T1 A/B Switch, Contact Closure
    • Dual Channel RJ45 Cat5e/RJ11 T1 A/B Switch, Contact Closure
    • Dual Channel RJ45 Cat5e/RJ11 T1 A/B Switch, Contact Closure
Base Price:
$2,060.00
Catalog No: 307388
Model No: 7388
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45, RJ11/12
Channels per Switch Chassis:2
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Contact Closure
Compliance/Standards:Cat5e
Configuration:Rackmount
Pins Switched:8
Remote Port:DB9
Local Control:Pushbutton
Feature:Multi-Interfaced RJ45/Cat5e and RJ11/T1, Contact Closure Remote

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

PathWay® Remotely Controllable Network Switch, RJ45 Cat5e, RJ11T1 Interface
Model 7388 Dual Channel A/B Switch: RJ45 Cat5e, RJ11 T1 Interface, with Contact Closure Remote

SPECIFICATIONS:

  • PORT CONNECTORS:
    • (3) RJ45 female connectors labeled A, B, and COMMON for Channel 1.
    • (3) RJ11 T1 female connectors labeled A, B, and COMMON for Channel 2.

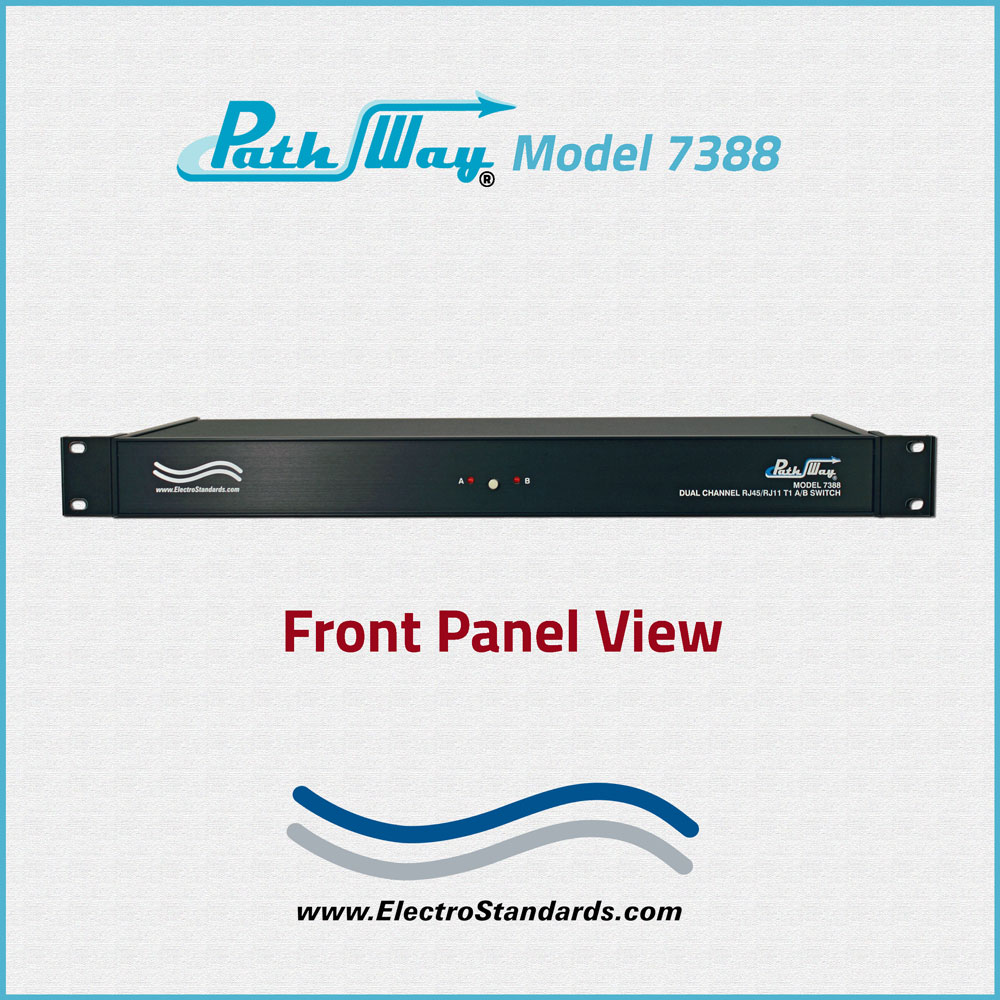

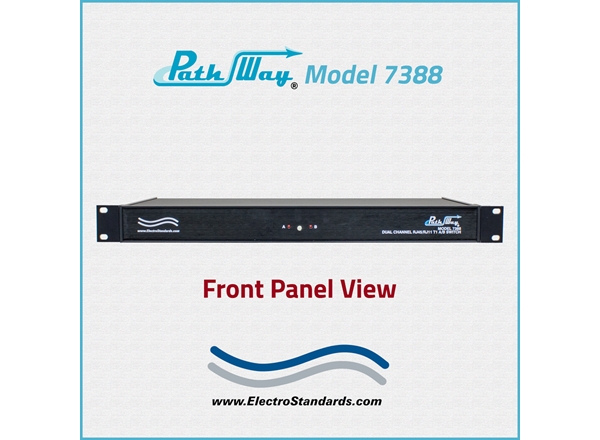

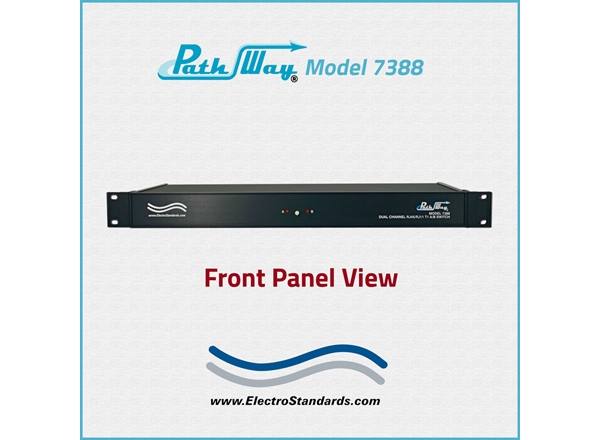

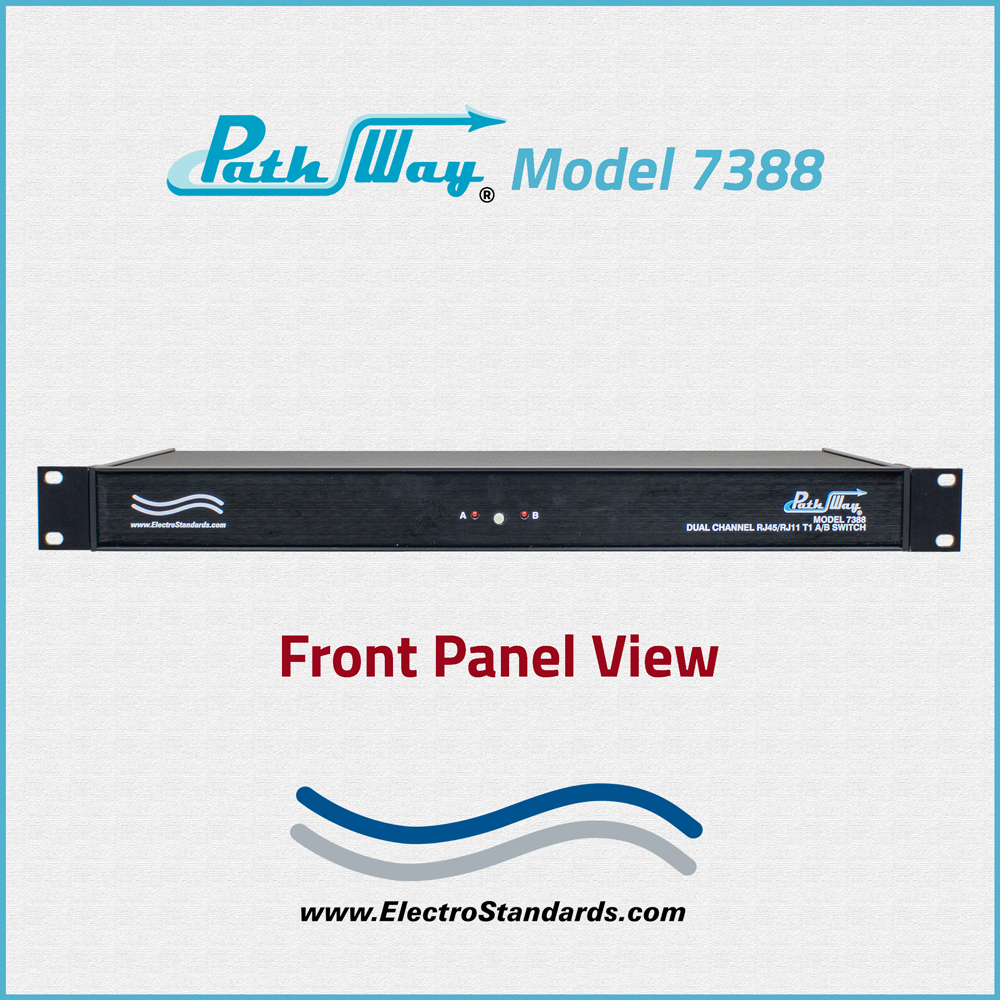

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.

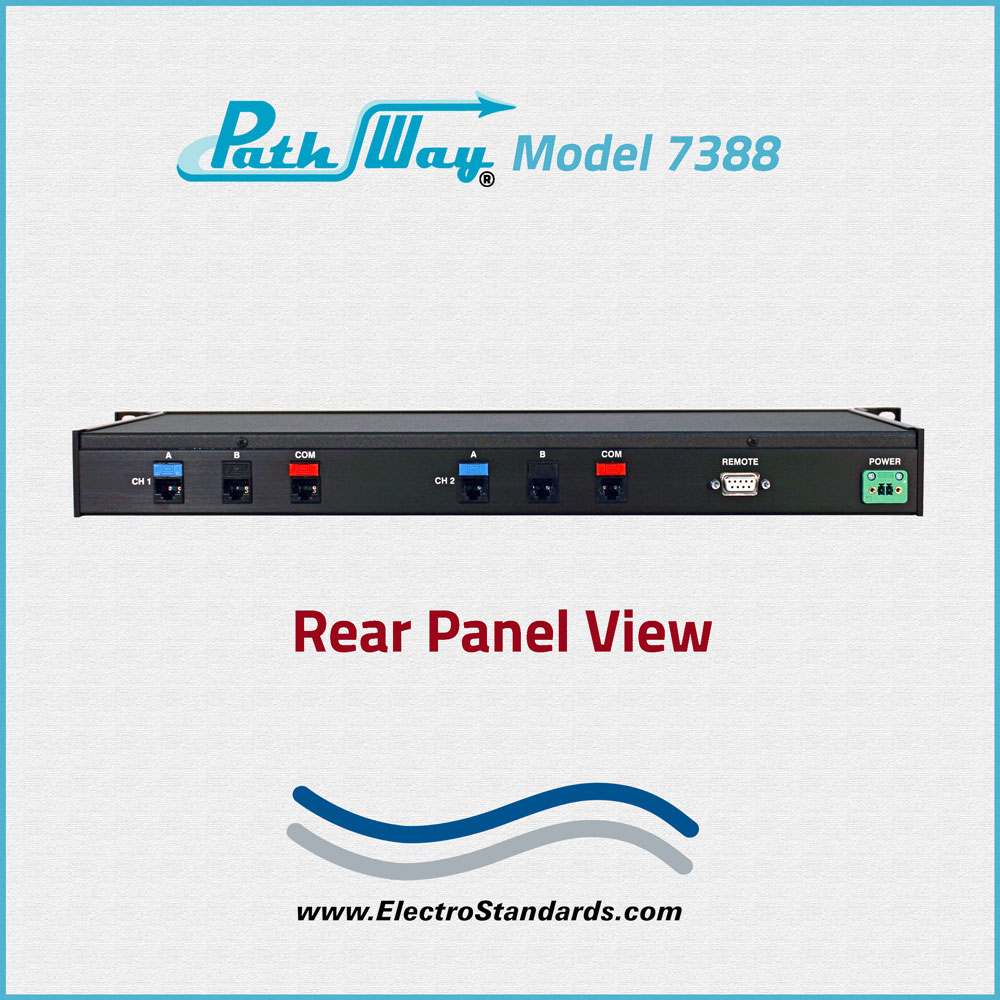

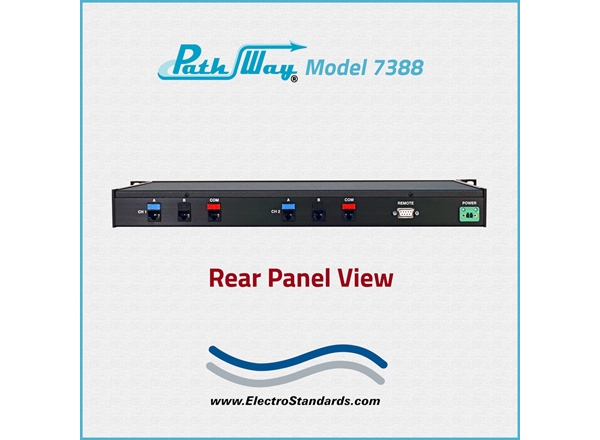

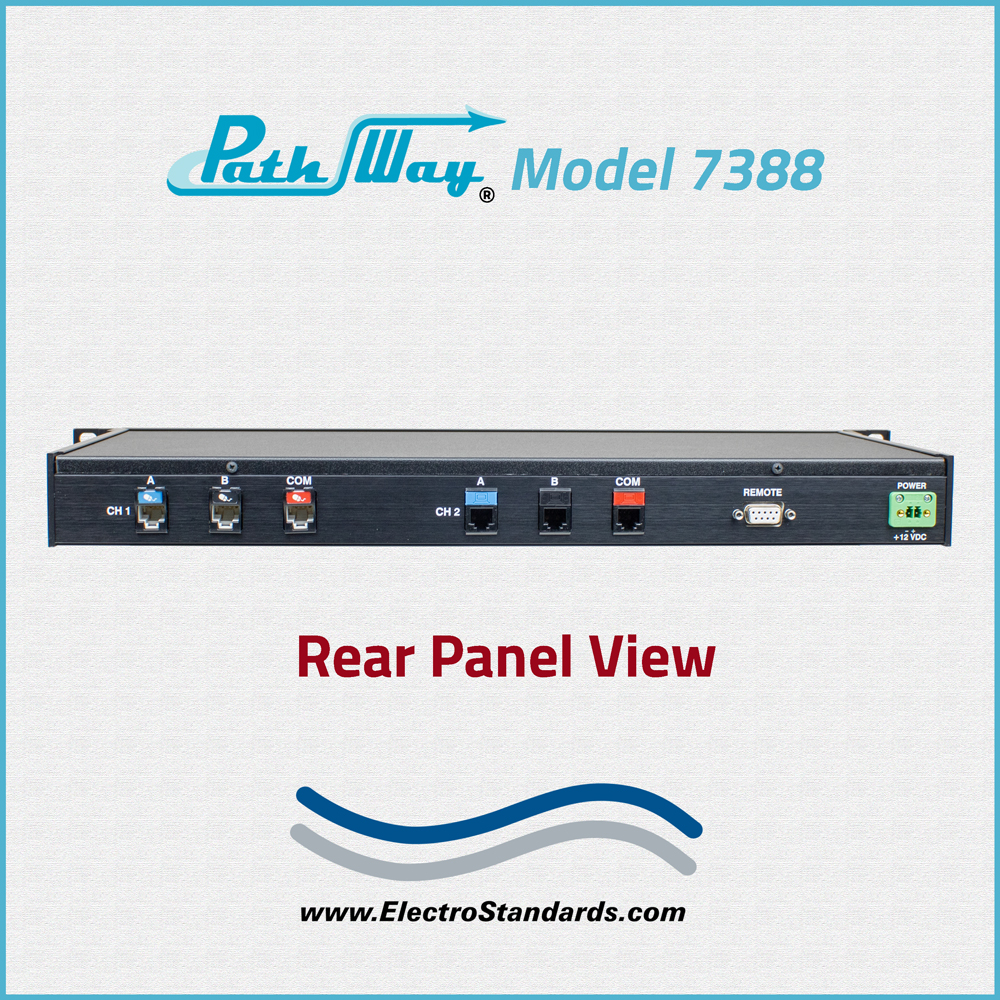

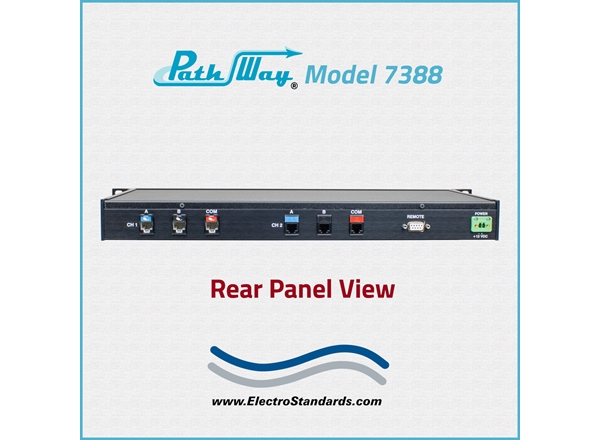

  • REMOTE CONTROL PORT: (1) DB9 (F) on rear panel accepts Contact Closure transition signals for Remote Control Operation.
  • POWER:  UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount configuration 19.0" W x 1.75" H x 10.58" D. (48.3 x 4.4 x 26.9 cm)
  • WEIGHT: Approximately 5.2 lbs. (2.4 kg)

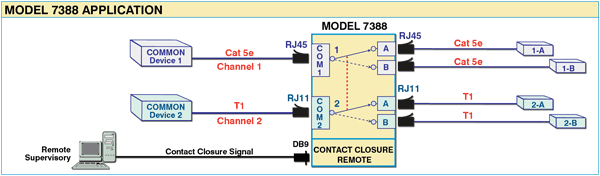

DUAL CHANNEL A/B SWITCH APPLICATION w/CONTACT CLOSURE:

CHANNEL 1: RJ45 CAT5e:

  • The drawing illustrates a COMMON Device connected to the RJ45 Cat5e COMMON port with access to two other devices connected to the RJ45 Cat5e Port A and Port B, respectively.

CHANNEL 2: RJ11 T1

  • The drawing also illustrates COMMON Device connected to the RJ11 T1 COMMON port with access to two other devices connected to the RJ11 T1 Port A and Port B, respectively.
  • DB9 REMOTE PORT: The DB9 Remote port can be used to remotely control the switch via Contact Closure Signaling.

PathWay Model 7388 Dual Channel A/B Switch: RJ45 Cat5e, RJ11 T1 Interface, with Contact Closure Remote Application

FEATURES:

  • Channel 1 allows access to two RJ45 networks from one COMMON network or device.
  • Channel 2 allows access to two RJ11 T1 networks from one COMMON network or device.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • All (4) pins of the RJ11 interface are switched via break-before-make electromechanical relays.
  • Simultaneous control of both channels.
  • Front panel pushbutton control.
  • Switch maintains position on power loss and continues to pass data.
  • Upon power up, unit switches based on state of Contact Closure.
  • Remote Contact Closure control and status provides dry contact logic to allow the control of the switch position and lockout state as well as obtain the present position.
  • Front panel LED's display present position and power status.
  • Channel 1 supports the Cat5e interface.
  • Channel 2 supports the T1 interface.

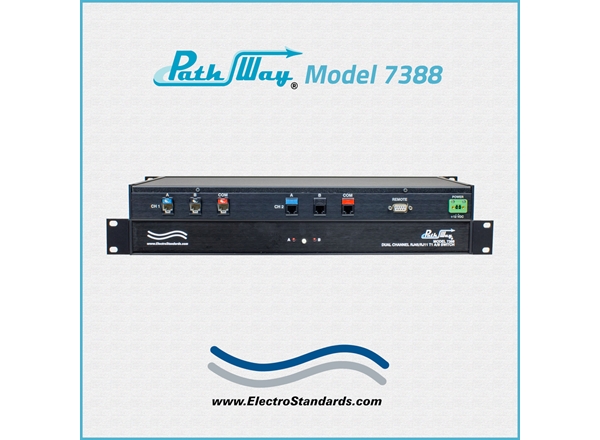

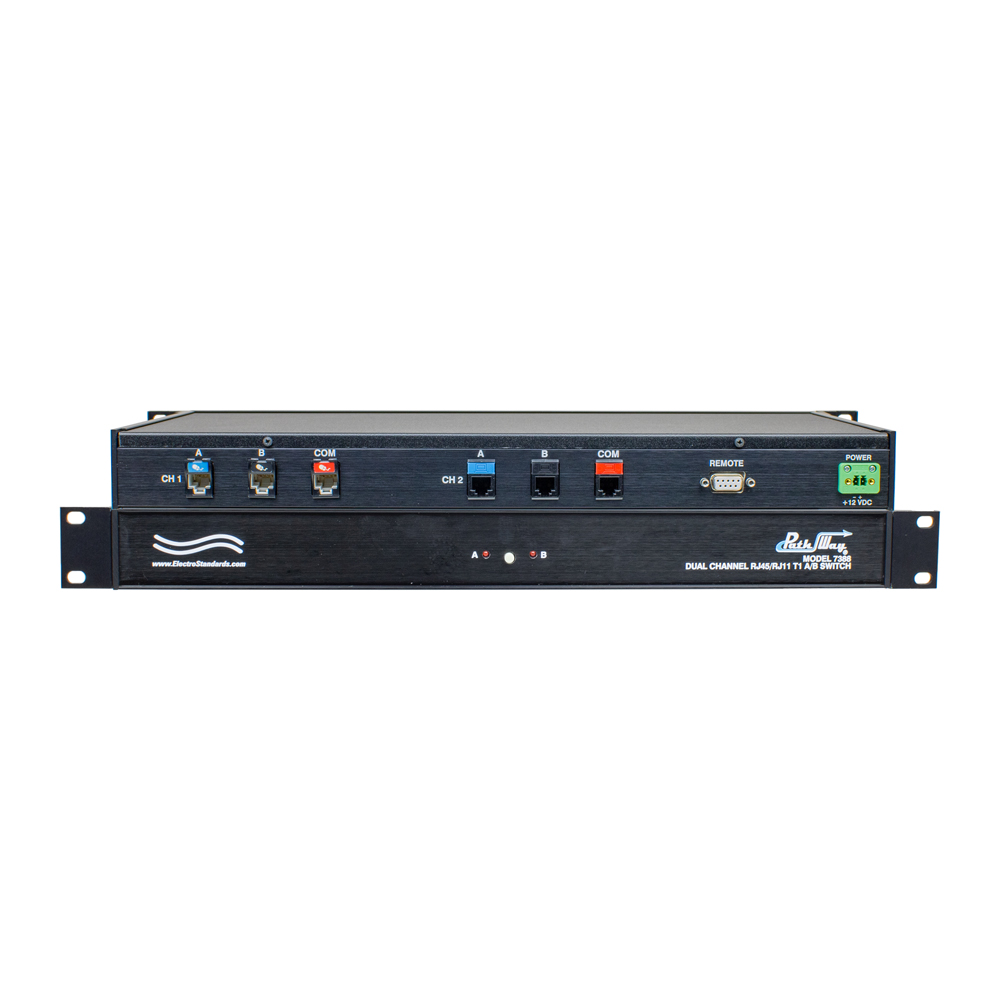

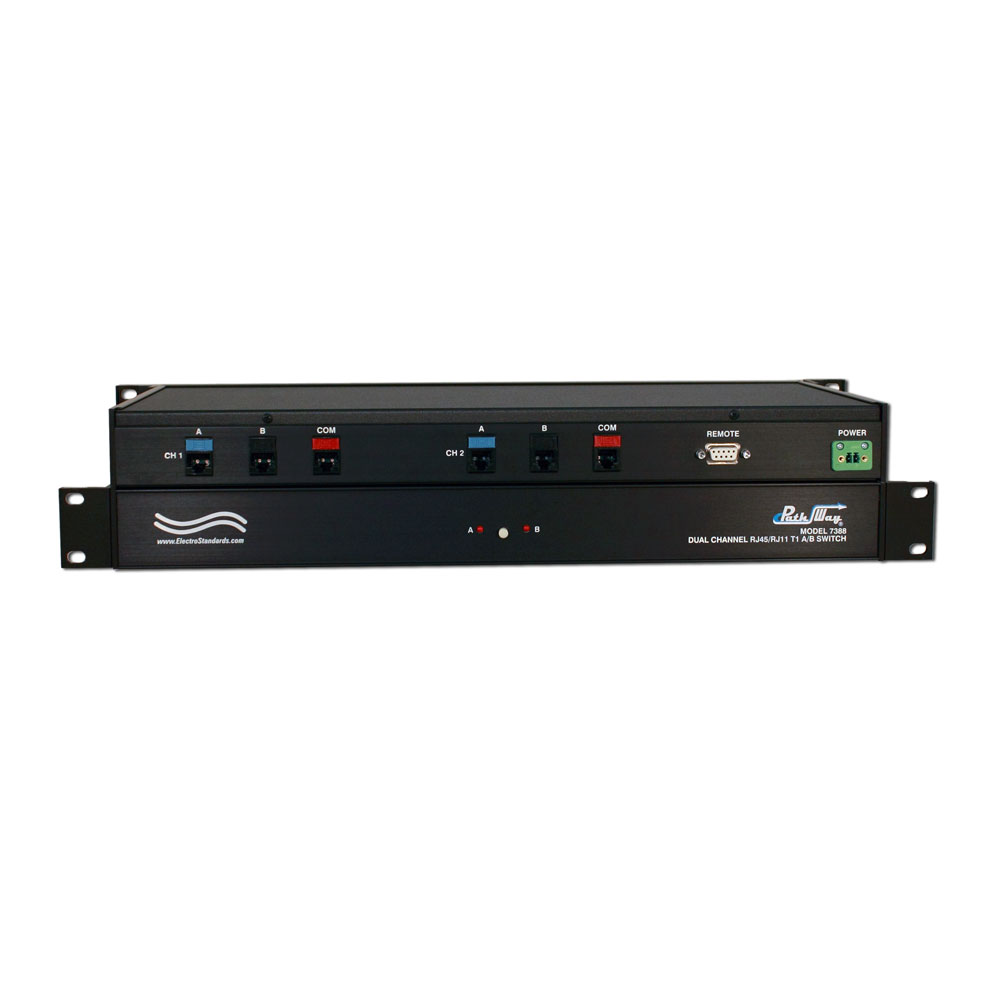

The Pathway® Model 7388 Dual Channel A/B Switch, RJ45 Cat5e and RJ11 T1 Interface with Contact Closure allows the user the capability of sharing a single port interface device connected to the COMMON port among two other devices connected to the A and B ports, for each channel, with remote access functionality.  The Model 7388 is enclosed in a 1U, full rack size, all meal black chassis designed to provide EMI/RFI shielding and fits in a standard 19" rack.

The switch may be controlled manually via the front panel pushbutton or remotely from a DB9 port located on the rear of the unit via dry contact closure logic.  Switch position state may be attained via the front panel LED.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.
