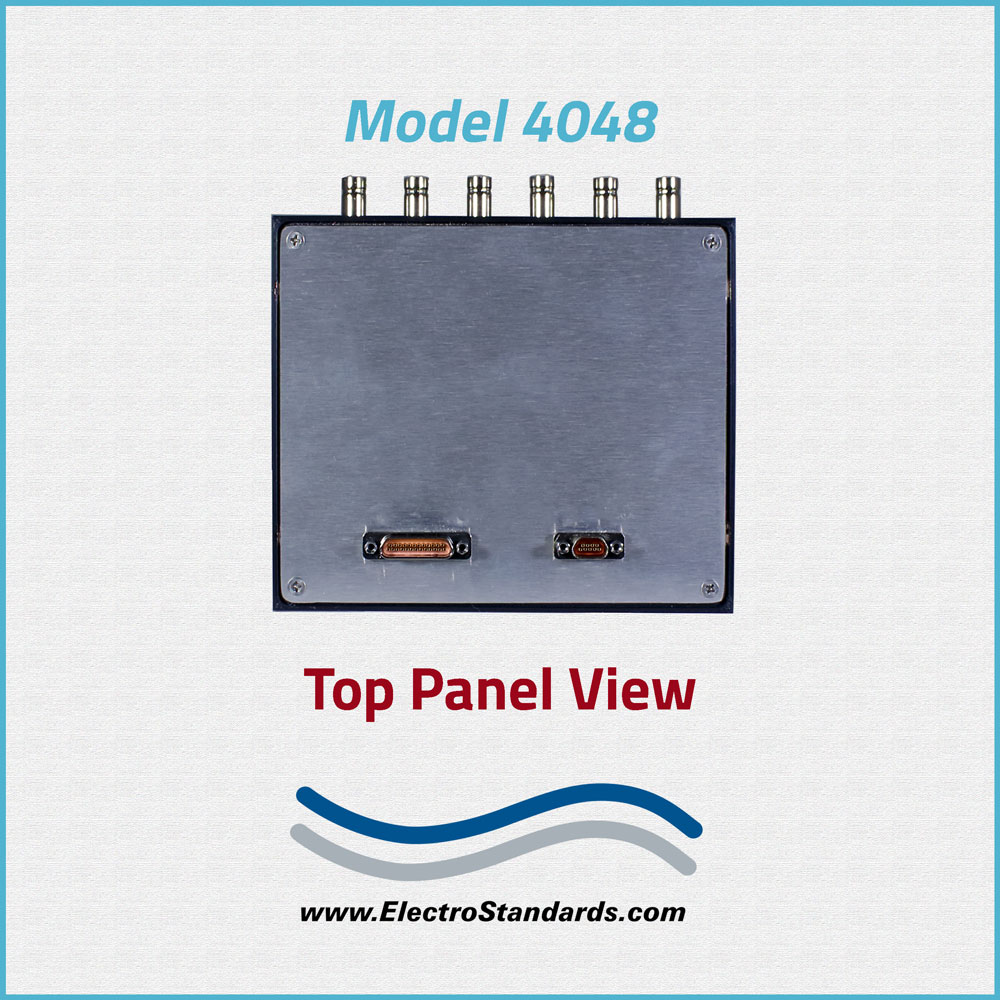

Model 4048 6-Channel ST Fiber Transmitter Unit, Unidirectional Interface Converter

6-Channel Fiber Transmitter, Unidirectional Interface Converter

Click image to enlarge

Base Price:

Call for Price

Catalog No:

304048

Model No:

4048

Product Type:

Interface Converter

Conversion Type:

RS422

Wavelength Nano:

850 mn, multimode

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

6-Channel ST Fiber Transmitter Unit, Unidirectional Interface Converter

Copper Interface: RS422, 9-CNT Micro-D, Pin connector (J2) (M83513/02-DN)

INTRODUCTION:

The Model 4048 is a high speed 6-Channel ST Fiber to Copper Serial Uni-directional Interface Converter. Typical operating speeds are up to 10 Mbps for RS422.

FEATURES:

The Model 4048 is designed to operate from -40Cº to 85ºC. The unit features ESD protection circuitry on all copper interfaces. The power input is protected from over voltage and over current transients. The Model 4048 converter can be powered from a power source ranging from 9.9 VDC to 35VDC via the 9-Pin Micro-D connector. The unit features ESD protection circuitry on the copper interfaces. The power input is protected from transients, as well as, over voltage and over current.

SPECIFICATIONS:

Copper Interface:

RS422, 9-CNT Micro-D, Pin connector (J2) (M83513/02-DN)

Optical Interface:

TX Power: 12 dBm
Optical Budget: 15 dB
Wavelength: 850 nm, mutimode
Fiber Size: Accepts 50/125 µm, 62.5/125 µm, or 100/140 µm

Fiber Polarity:

Logical 0 = Light ON/OFF: User Selectable via Jumper
Logical 1 = Light ON/OFF: User Selectable via Jumper

Copper Connectors:

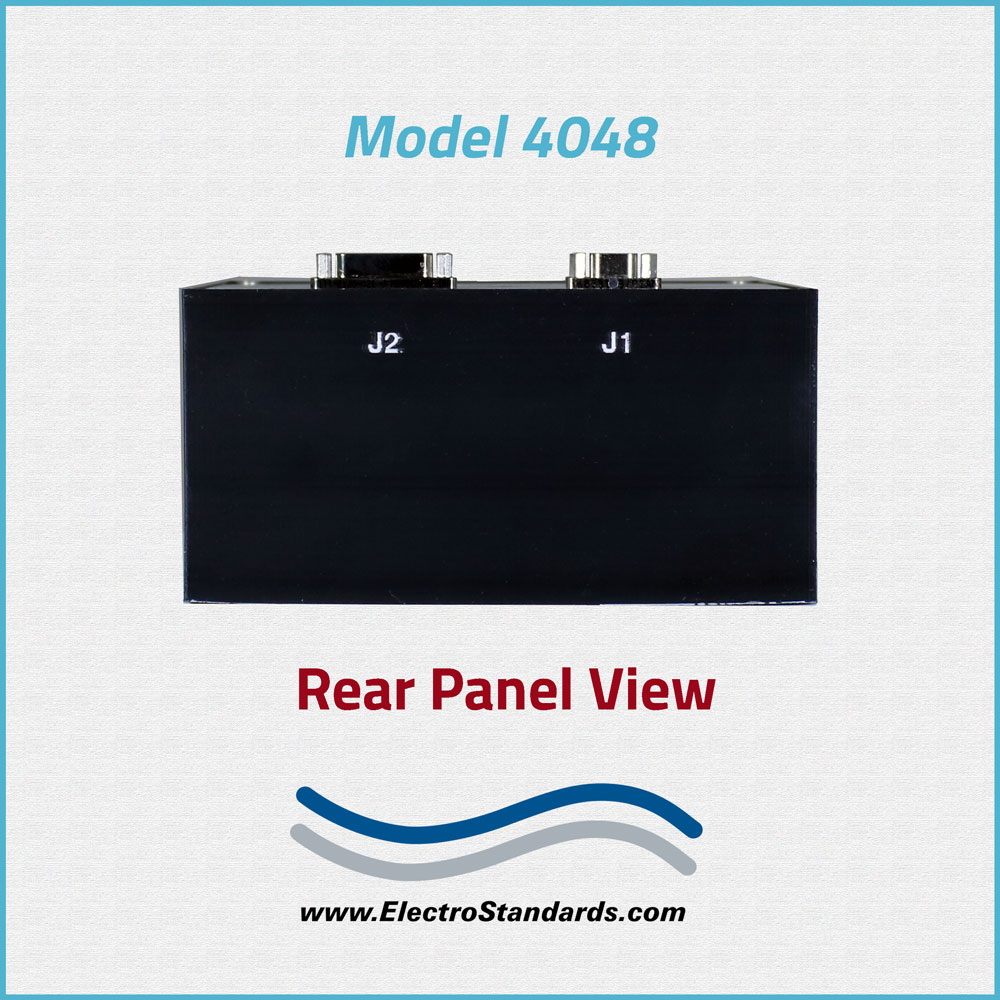

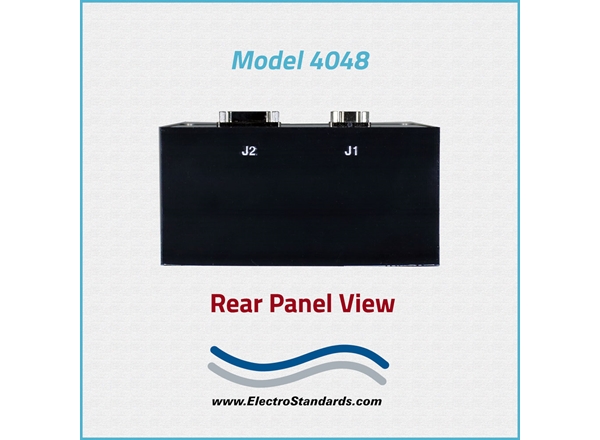

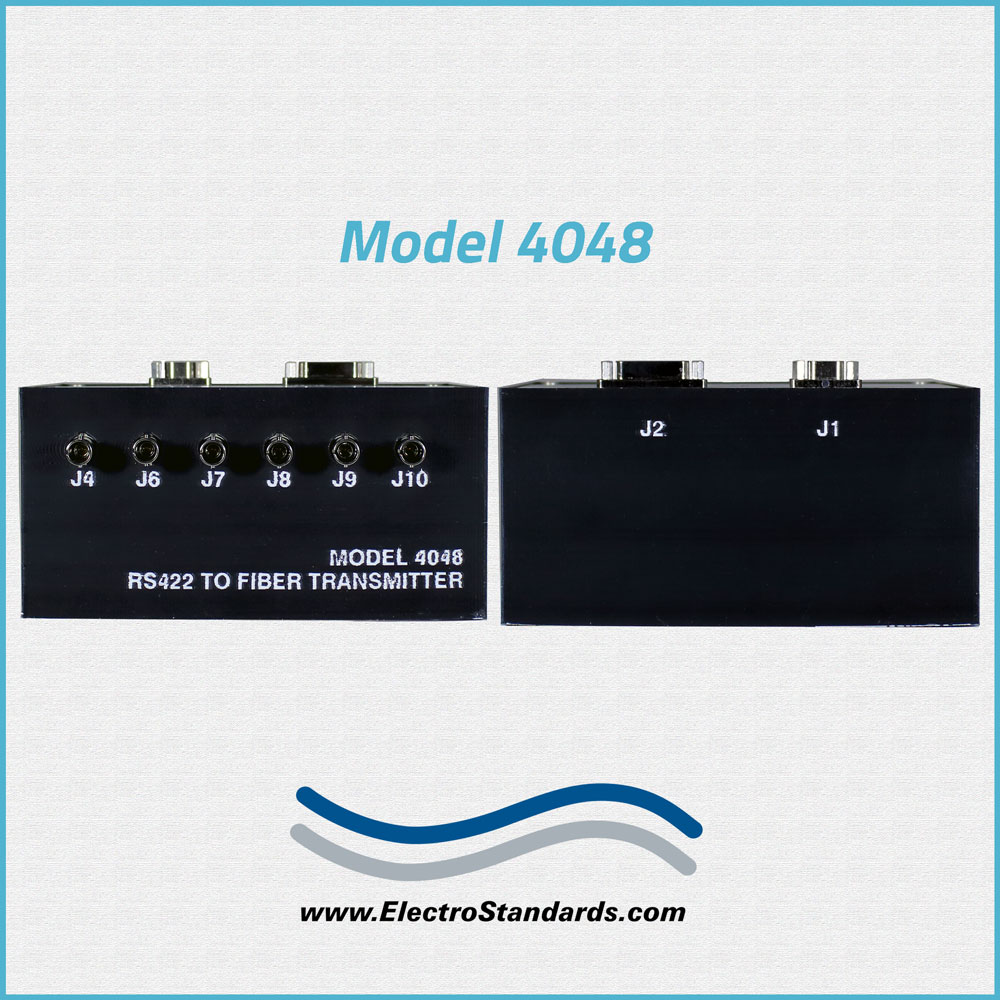

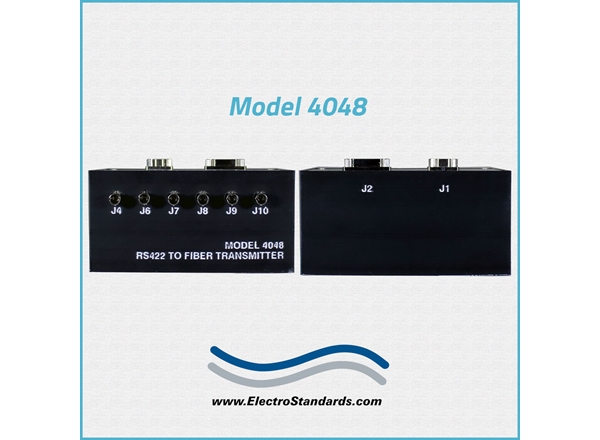

Copper I/O: RS422, 9-CNT J2 MicroD Pin Connector: (M83513/02-DN)

Glass Fiber Connectors:

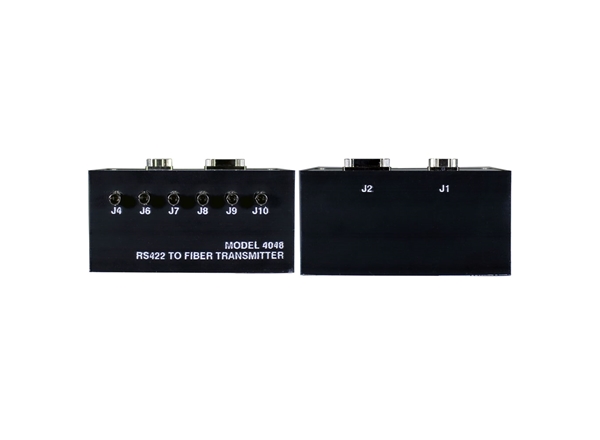

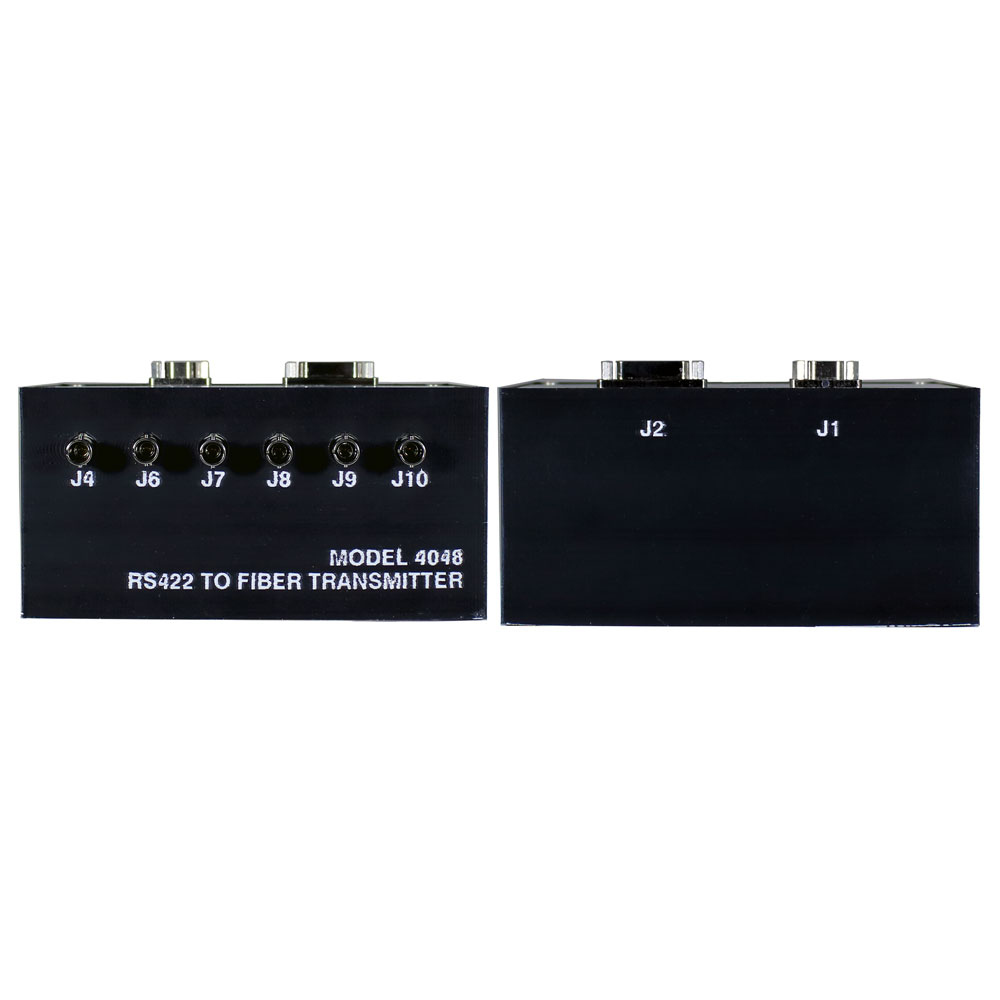

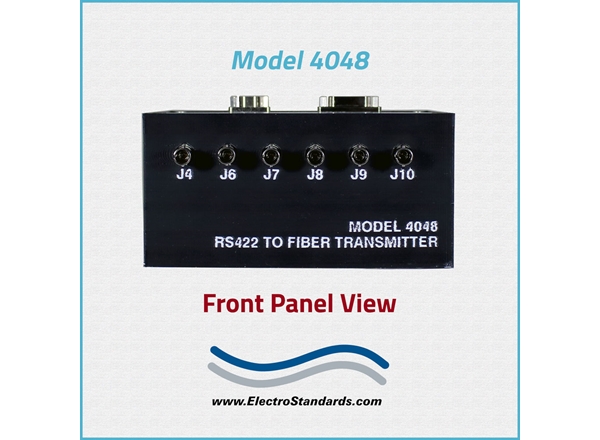

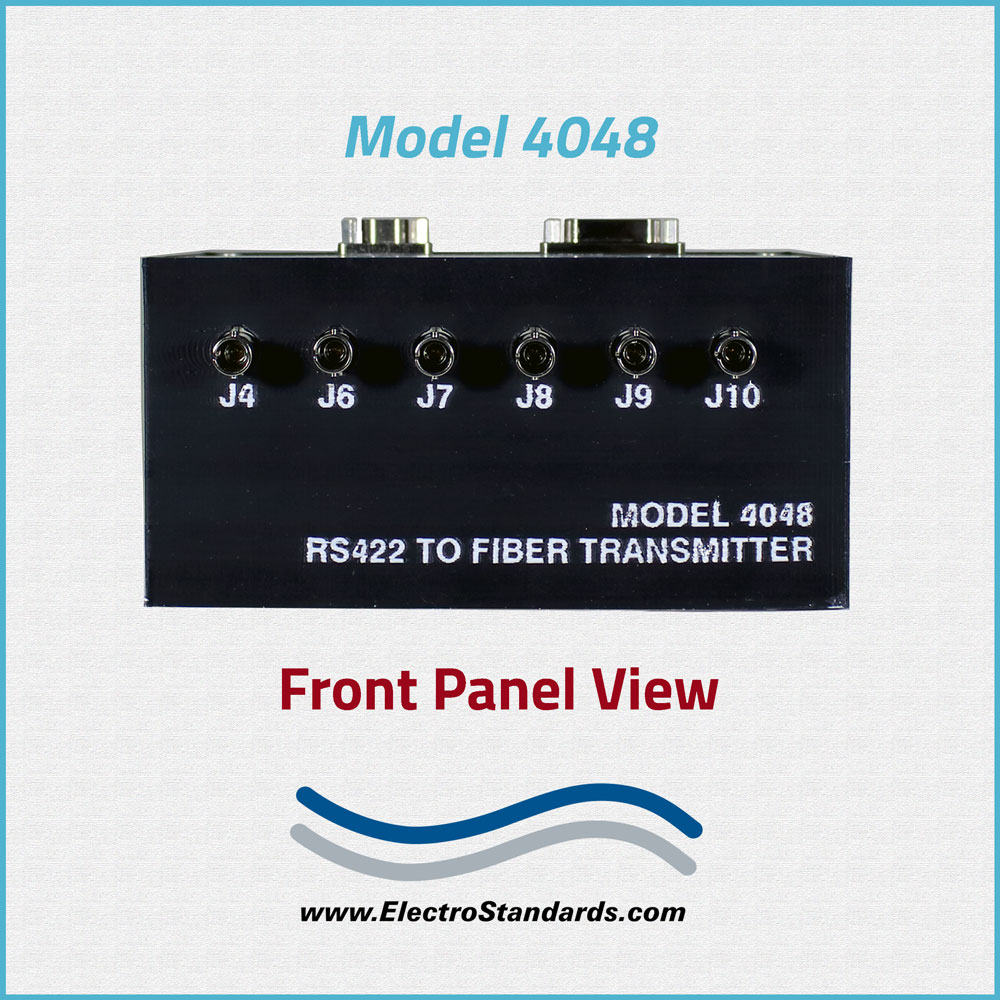

(6) ST Fiber Optic connectors for Ports J4, J6, J7, J8, J9 and J10 supporting RS422 over fiber for high speeds up to 10Mbps

Bit Rate (nom.):

RS422: up to 10 Mbps.

Network Configurations:

RS422 Point-to-Point

Power:

Input Power: 9.9 VDC to 35VDC
Connector: 9-CNT Micro-D, (Socket connector (M83513//02-AN)
Connections: Pin 9 (VCC), Pin 5 (GND)

Mechanical:

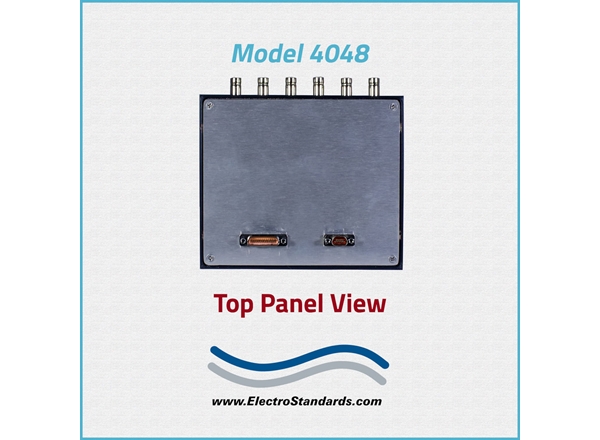

Size: 5” x 4.71” x 2.83” [127mm x 119.6mm x 71.9mm]
Weight: 0.826 Lbs. [0.375 kg]

Ground Relationship / Configuration:

RS422 Channels: 1000 Ohm impedance between Signal GND and Digital GND, both isolated from Chassis GND.

APPLICATION:

The converter provides an industrial solution for applications requiring a single point-to-point or a communication link over short and long distances. Application include: PC-to-PC long distance communications, factory automation, data collection devices, barcode readers, time clocks, scales, data entry terminals, ATM’s and serial communications in harsh environments.

6-Channel Fiber Transmitter, Unidirectional Interface Converter Web Application

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network interface converters call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online custom product request form.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur, equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch

Related Products

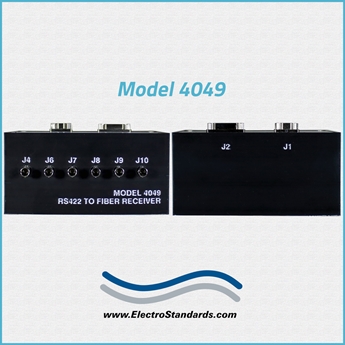

Model 4049 6-Channel ST Fiber Receiver Unit, Unidirectional Interface Converter Call for Price
