USB 2.0 Type A to Type B Cable Assembly, 15ft, Cat# 507368

    USB 20 Type A to USB 2.0 Type B Cable 15ftUSB 20 Type A to USB 2.0 Type B Cable 15ft
Click image to enlarge
    • USB 20 Type A to USB 2.0 Type B Cable 15ft
    • USB 20 Type A to USB 2.0 Type B Cable 15ft
Base Price:
Call for Price
Catalog No: 507368
Model No: 507368
Output:USB 2.0 Type B (M)
Product Type:Cable Assemblies: USB
Cable Type/Port Connector:USB
Length, Meters:4.6
Input:USB 2.0 Type A (M)
Application:Used with Model 4162 Host and 4169 4-Port Hub

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Catalog Number 507368

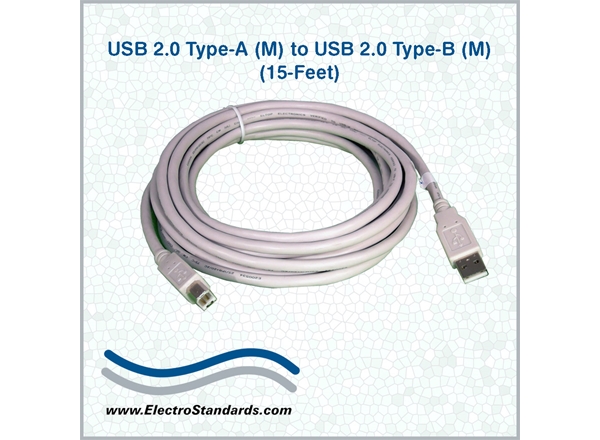

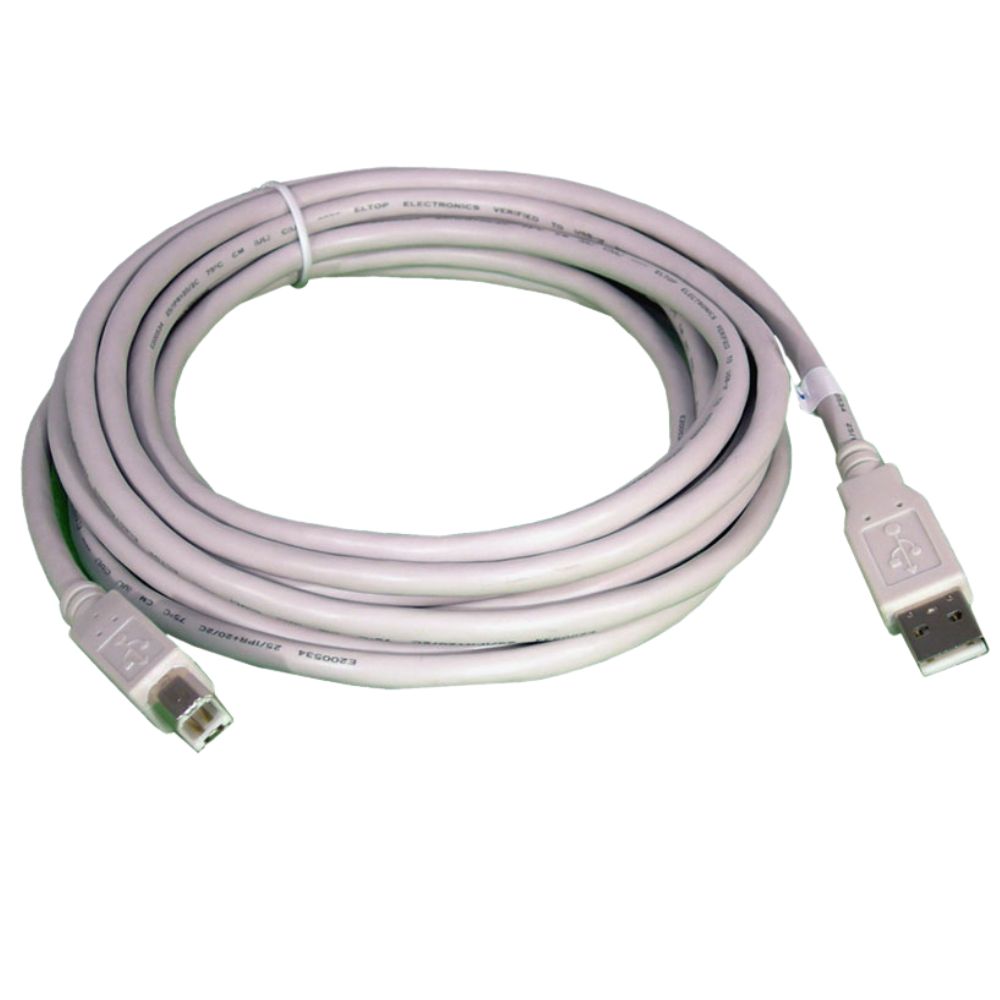

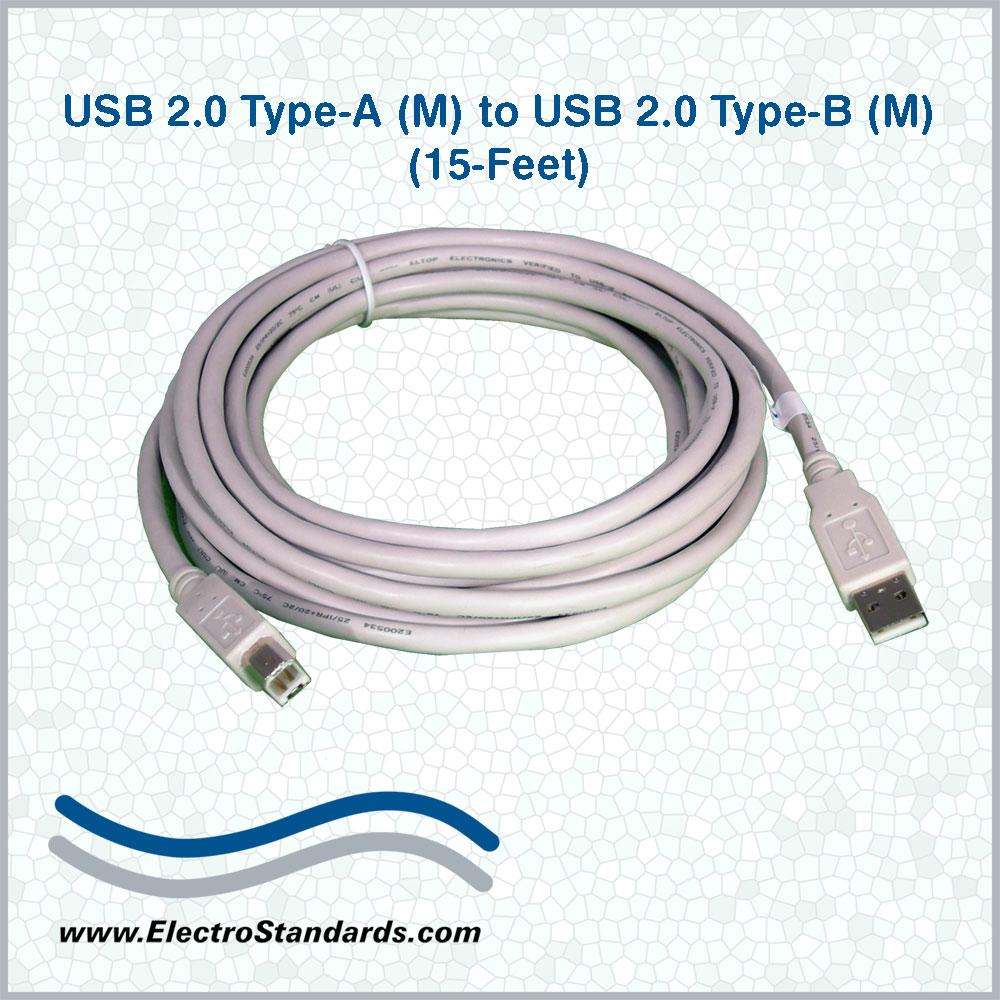

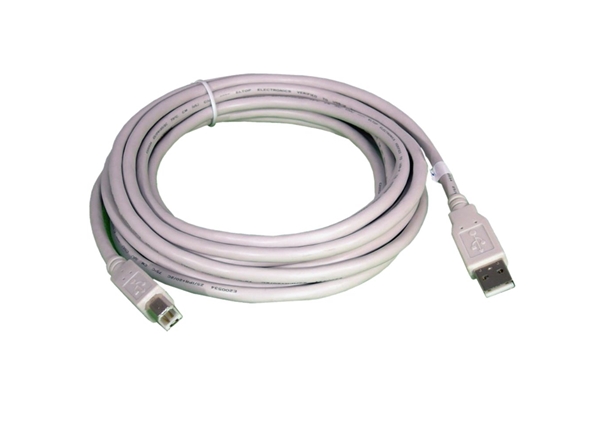

USB 2.0 Type A (M) to USB 2.0 Type B (M), 15 Feet



  • Converts any USB 2.0 Type A connector interface to a USB 2.0 Type B connector interface.
  • RoHS Compliant

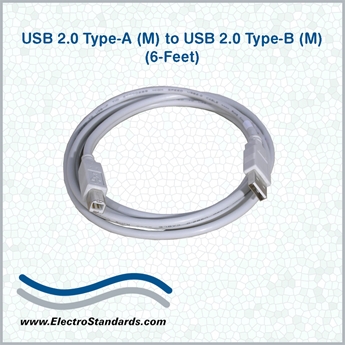

The USB 2.0 Type A to USB 2.0 Type B 6ft Cable converts any USB 2.0 Type A connector interface to a USB Type B connector interface.

Features:

  • 100% tested for open, short, miss-wire
  • Certified Hi-Speed USB
  • RoHS compliant
  • Color: White
  • Applicable to ESL products

 APPLICATION :

 Used in application of ESL Models 4162 (Cat. No. 304162) and Model 4169 (Cat. No. 304169) High Speed Fiber-to-USB Converter/Extender, Host & 4-Port Hub



 SPECIFICATIONS:
 Cable P/N  507368
 Complies USB Ver.  Compatible USB Spec. 2.0/1.1

 Connector

 Input  USB 2.0 Type A (M)
   Output  USB 2.0 Type B (M)
 Power Mode  BUS

 Cable Length

 15 Feet (4.6 meters)

 Housing

 PVC, White

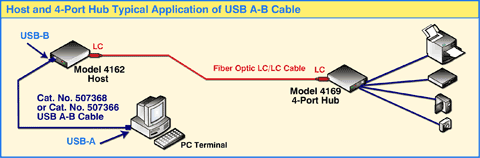

 Network Application Diagram of Host and 4-Port Hub and USB A-B Cable, Cat.No. 507368

 Electro Standards also provides custom data network cables. Click here for your On-Line Custom Data Cable Form:
/Products-Custom/Data-Cable/
