INTERFACE CONVERSION CABLES, USB to DB9 Male
Catalog Number 514372

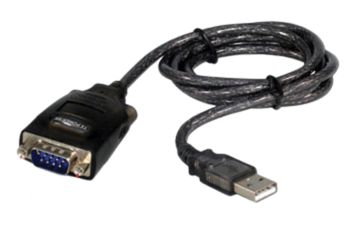

USB to Serial Converter Cable, USB to DB9, Male with Female Hardware
- Converts the computer USB port to Serial.
SPECIFICATIONS:
|
Cable P/N |
514372 |
Complies USB Ver |
Compatible USB Spec. 2.0/1.1 |
Connector |
Input |

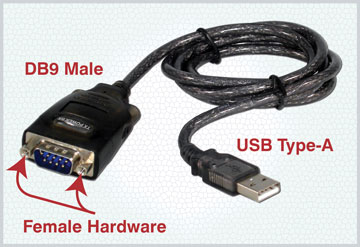

USB A Type / Male |
|
Output |
DB9 / Male with Female Hardware |
Power Mode |
BUS |
Cable Length |
1M |
Housing |
Plastic |

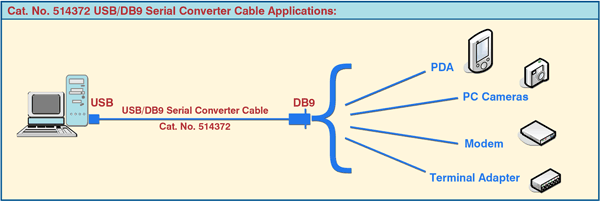

APPLICATION CONVERTS THE COMPUTER USB TO SERIAL: The drawing illustrates a computer with a USB port connecting to a DB9 Port via a USB / DB9 Serial Converter Cable, Cat. No 514372. Connect to PDA, PC Cameras, Modem and Terminal Adapters.
FEATURES:
- Supports automatic handshake mode.
- Works with cellular phones, PDA's, Digital Cameras, Modems, and ISDN terminal adapters.
- Supports Windows 98/98SE/ME/2000/XP, Mac 8.6 and higher, and Linux.
- Supports remote wake-up and power management.
- Frees your RS232 ports for other uses.
The USB to serial adapter provides an external plug and play RS-232 serial connection with your computer, allowing you to free up your existing serial port. Users have the capability to utilize the adapter with serial port interface in an easy to use environment. The adapter is designed for connections to ESL data network switches, cellular phones, PDAs, Digital cameras, Modems, or IDSN terminal adapters through your USB port with up to 230kbps data transfer rate.
APPLICATION TO SERIAL DATA DB9 PORTS:
If a converter cable is being used for control and the computer is not communicating with the unit, download and install the USB driver from https://ftdichip.com/drivers/vcp-drivers/ You need to download and install the appropriate latest driver version for the operating system and processor architecture in use on the computer.
Please note: Microsoft has ended support for Windows XP and Windows Vista. The latest drivers are not Microsoft certified for those operating systems, but the drivers will still work.
Electro Standards also provides custom data network cables. Click here for your On-Line Custom Data Cable Form:
/Products-Custom/Data-Cable/
All ESL products are available for export.
*Prices online are subject to change and verification.
