Overview

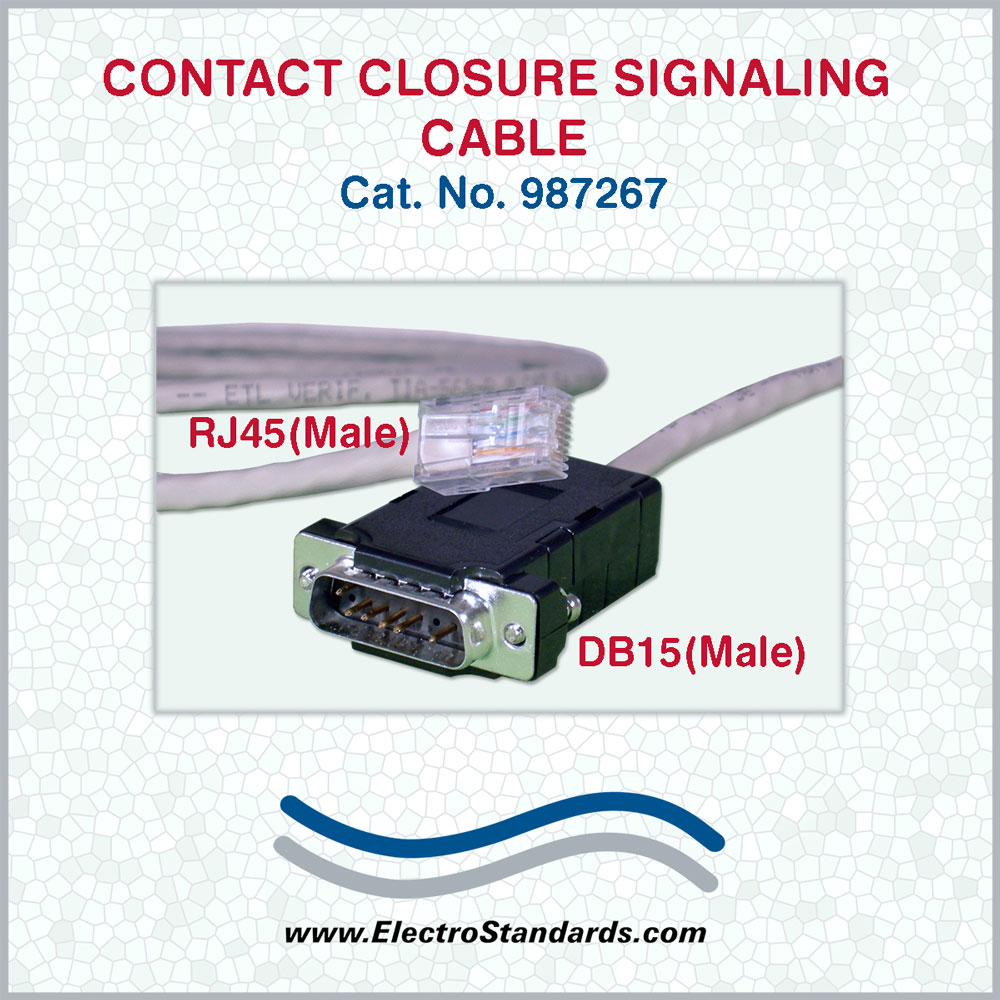

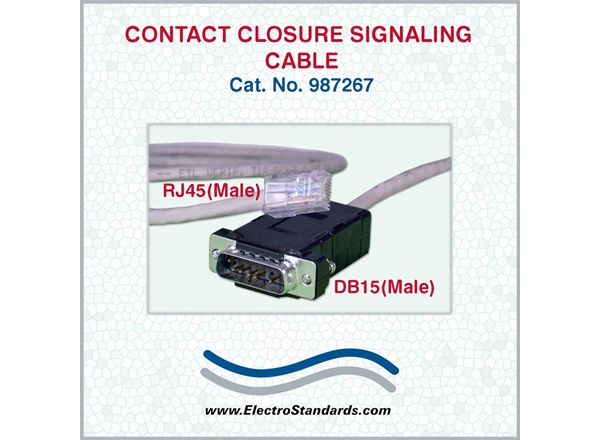

Catalog No. 987267, Contact Closure Signaling Cable,
Custom Length in Feet (Specify length when ordering.)

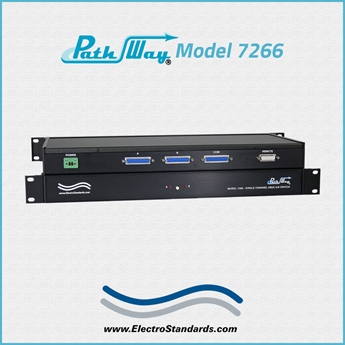

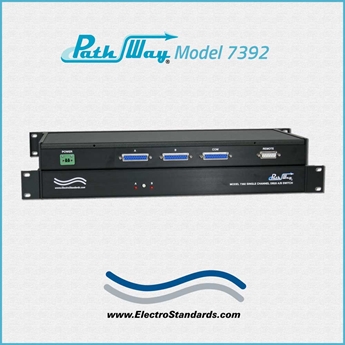

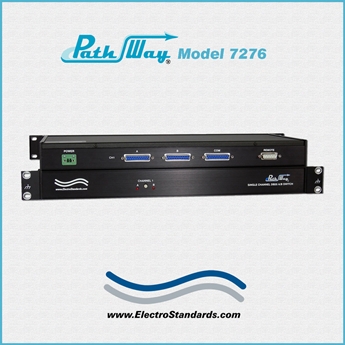

CONTACT CLOSURE SIGNALING CABLE APPLICATION: Models 7266, Models 7276 and Model 7392

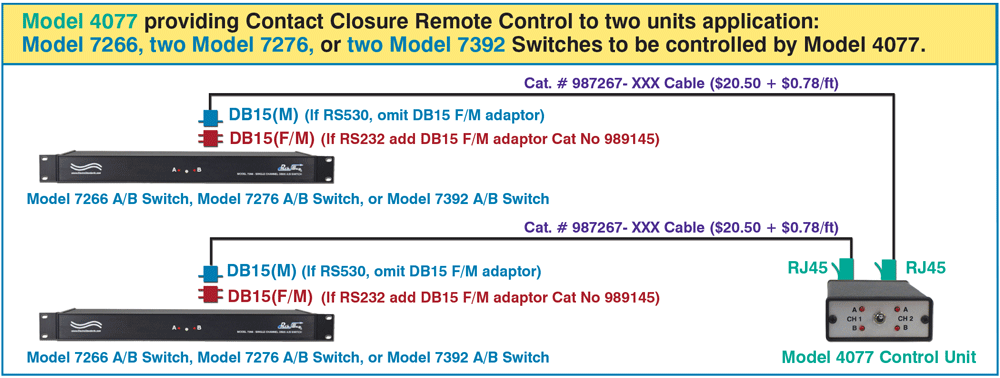

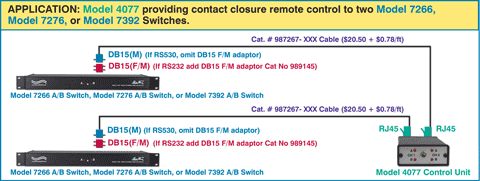

The drawing illustrates a Model 4077 connected to two Model 7266 units using the special cable (Cat No 987267) for Remote Control of the switch position. The cable can be used with Models 7266, 7276, or 7392. Each switch is connected by the contact closure signaling cable in the diagram.
Price = $20.50 $0.78 per foot
Custom Length: in feet (Specify length when ordering)
- Connectors: Cable Material: PVC, Paired, Unshielded
- Connects Model 4077 Contact Closure Device with REMOTE port of applicable switches, such as Model 7266, Model 7276, or 7392.
Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.
For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/
All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
*Prices online are subject to change and verification.
All ESL products are available for export.
Electro Standards welcomes International inquiries: commutateur d'ordinateur, equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
Cable Cat. No. 287267 RJ45/M to DB15/M Pin Out Chart |
RJ45/M |
|
DB15/M |
Pin# |
|
Pin# |
1 |
|
4 |
2 |
|
2 |
3 |
|
5 |
6 |
|
6 |
4 |
|
15 |
5 |
|
7 |
7 |
|
NC |
8 |
|
NC |
