DB15 Male/Female Adaptor
Catalog No. 989145, DB15 F/M Adaptor for use with Contact Closure Signaling Cable,
DB15 F/M Adaptor for Contact Closure Signaling Cable Application:
The drawing illustrates a Model 4077 connected to two Model 7266 units using the special cable (Cat No 987267) and the adapter (Cat. No. 989145) for Remote Control of the switch position. The cable and adaptor can be used with Models 7266, 7276, or 7392. Each switch is connected by the contact closure signaling cable and adaptor as applicable per the diagram.
- If using RS232, then insert the DB15 F/M adaptor (Cat. No. 989145) between the DB15 end of the cable and the unit. (Model 7266, 7276, or 7392).
- If using RS530, simply connect the DB15 cable end into Model 7266, 7276, or 7392.
Adaptor:

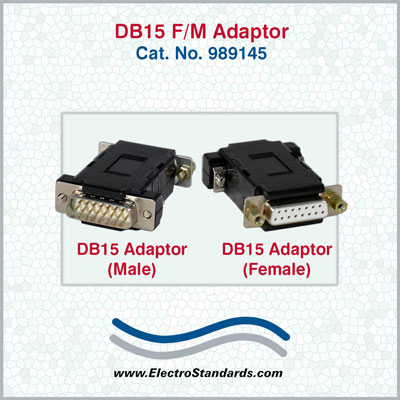

Connection: DB15 (F/M)

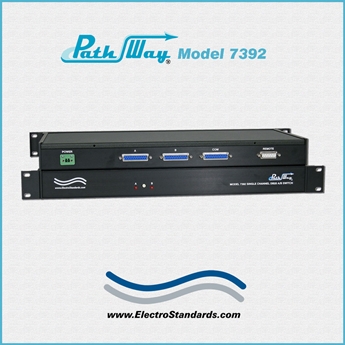

Applicable to such switches as Model 7266, 7276, or 7392.
Adaptor Cat. No. 989145 Pin Out Chart |
DB15/M |
|
DB15/F |
Pin# |
|
Pin# |
1 |
|
1 |
2 |
|
2 |
3 |
|
3 |
•
•
•
|
|
•
•
•
|
13 |
|
13 |
14 |
|
|
15 |
15 |
