* Audio/Visual Conference Communication Switching* 307186 Model 7186 RJ45 CAT5e Wall Mount Keylock Switch

    RJ45 Wall Plate Network Switch, Cat5e, Keylock SwitchRJ45 Wall Plate Network Switch, Cat5e, Keylock Switch
Click image to enlarge
    • RJ45 Wall Plate Network Switch, Cat5e, Keylock Switch
    • RJ45 Wall Plate Network Switch, Cat5e, Keylock Switch
Base Price:
$526.00
Catalog No: 307186
Model No: 7186
Product Type:Switches: Copper
Positions:3, Offline
Switch Application:Audio/Video Switching
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Security:Keylock, Offline Position
Compliance/Standards:Cat5e
Configuration:Wall Mount
Pins Switched:8
Local Control:Keylock

Add to Cart

Supports RJ45 Cat5e Audio/Visual, Conference Room, Communication & Security Applications and Devices

  • A/OFFLINE/B Keylock Switch
  • Single Channel
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

RJ45 Wall Plate Network Switch, Cat5e, Rotary Switch, Gang Wall Plate

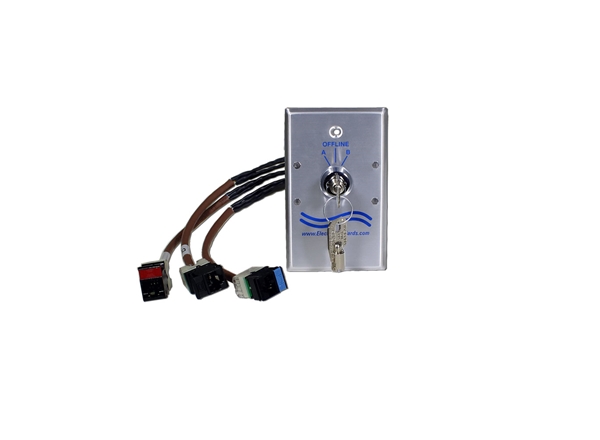

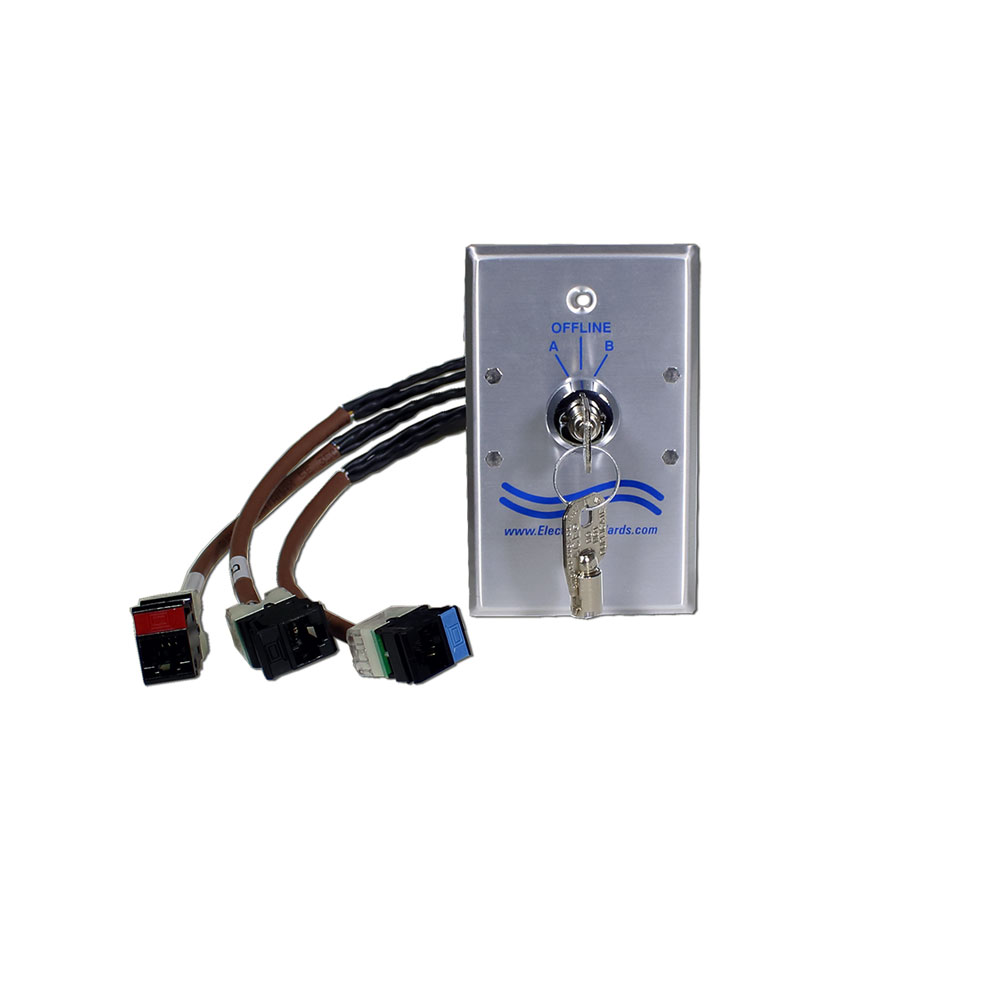

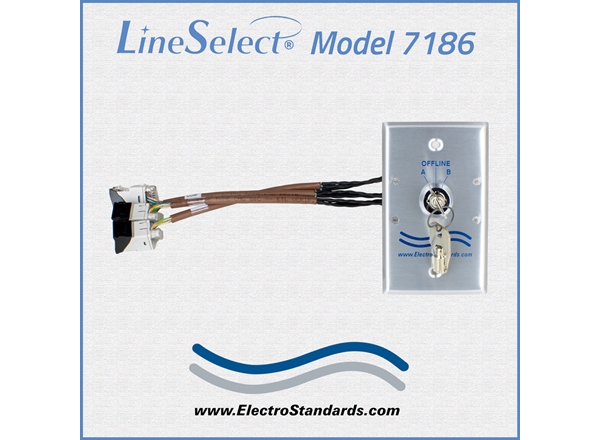

Model 7186 Single Channel RJ45 Cat5e A/OFFLINE/B Keylock Switch, Single Gang Wall Plate

  • Conference room connection to or isolation from multiple networks.

  • Conference room network wall switch easily mounts in any location for convenient access.

SPECIFICATIONS:

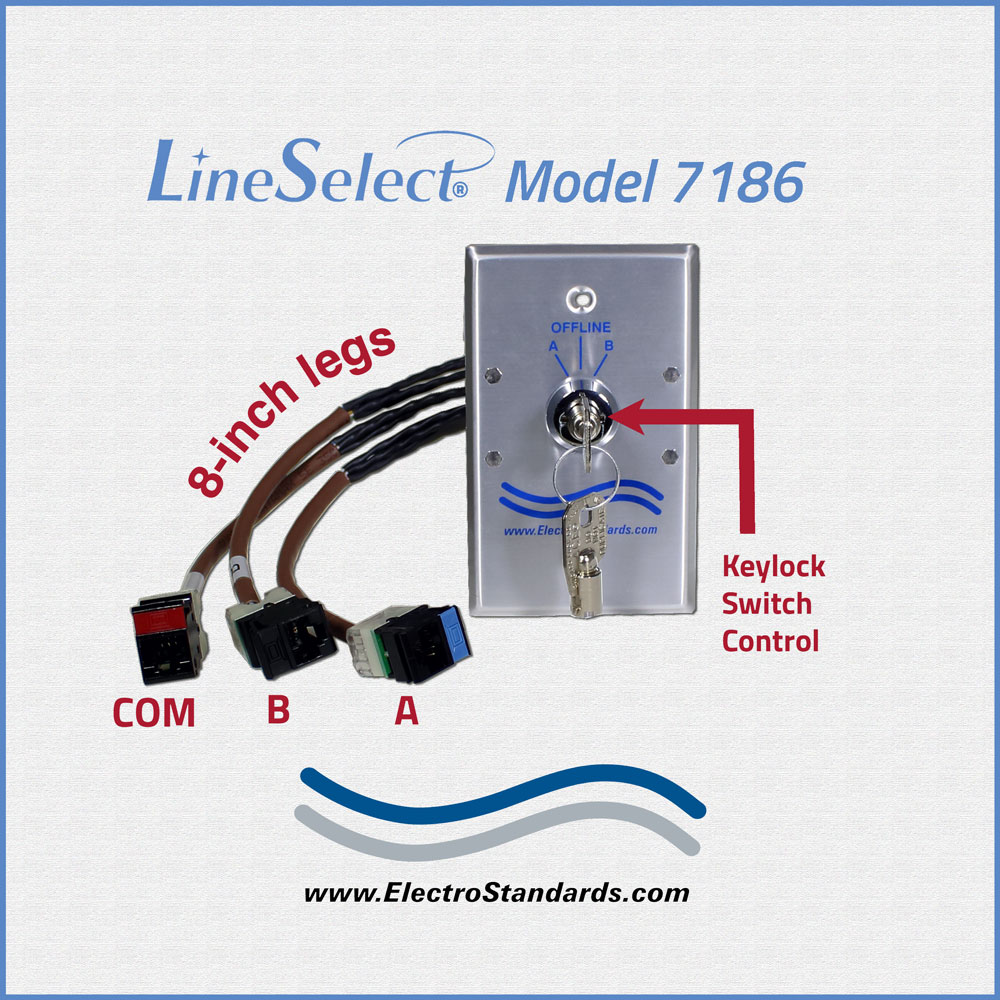

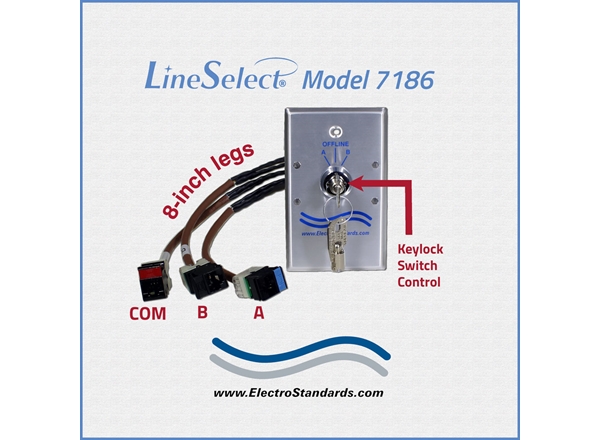

  • PORT CONNECTORS: (3) RJ45 Cat5e female connectors labeled A, B, and COM.
  • FRONT PANEL CONTROLS: (1) Keylock switch on front panel selects A, OFFLINE, or B.
  • POWER: No power required. Manually operated.
  • DIMENSIONS: Single Gang Wall Box:  2.74" W x 4.49" H x 3.13" D. (7.0 x 11.5 x 8.0 cm)
  • WEIGHT: Approximately 0.4 lbs. (0.2 kg)
  • LEG LENGTHS: 8" (20.3 cm)

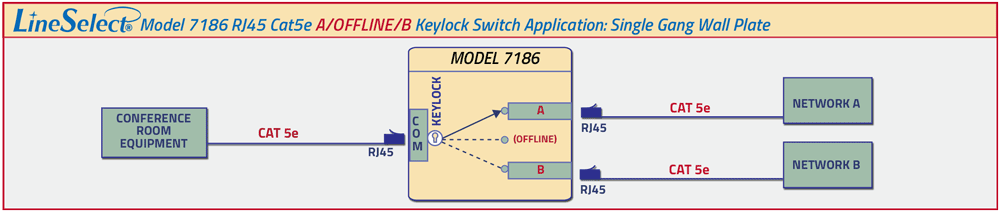

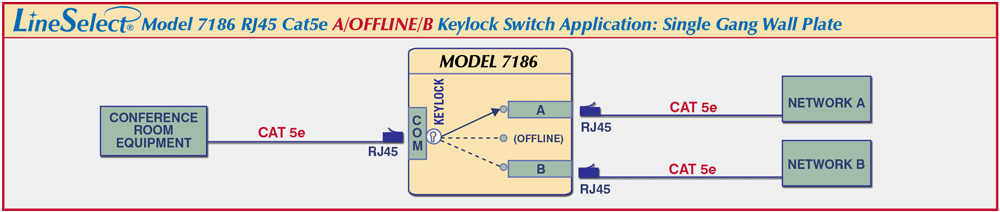

LineSelect® Model 7186 A/OFFLINE/B Keylock Switch Application.

The drawing illustrates Conference Room Equipment connected to the COMMON port of the Single Gang Wall Plate Switch.  The Conference Room equipment can be connected to Network A or Network B (connected to Port A and Port B, respectively). Network A and Network B can be isolated from the Conference Room Equipment in the OFFLINE position (center position of the Keylock switch).

LineSelect Model 7186 A/OFFLINE/B Keylock Switch Application

FEATURES:

  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 Cat5e interface are switched via a break-before-make keylock switch.
  • No power required for operation.
  • Faceplate mounting allows easy installation in single gang wall boxes.
  • Leg lengths:  8" (20.3 cm)
  • Certified for Cat 5e compliance.

OPERATION:

  • Keylock switch allows quick and easy conference room connection to A or B network.
  • No external power required. Manually operated.
  • Keylock in left-most position connects conference room to Network A.
  • Keylock in right-most position connects conference room to Network B.
  • Keylock Switch in center position isolates both the A and B networks from connection to conference room.

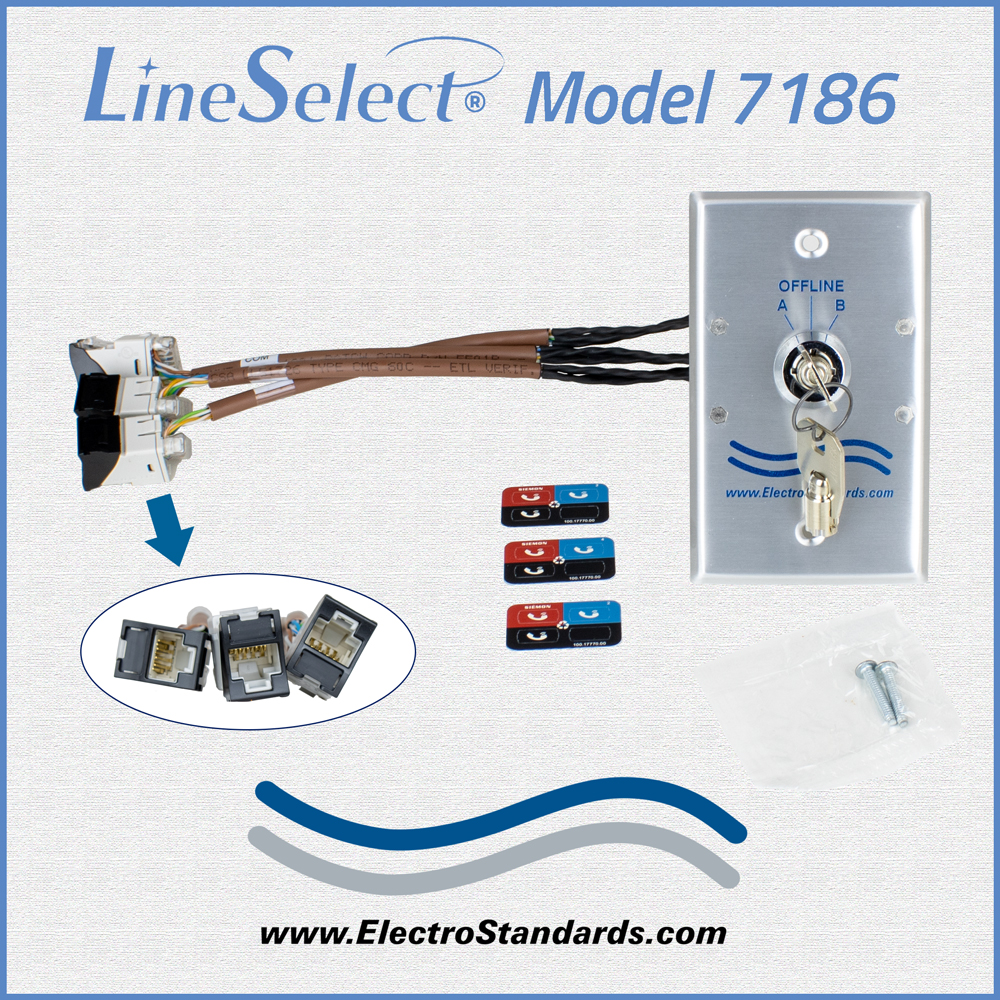

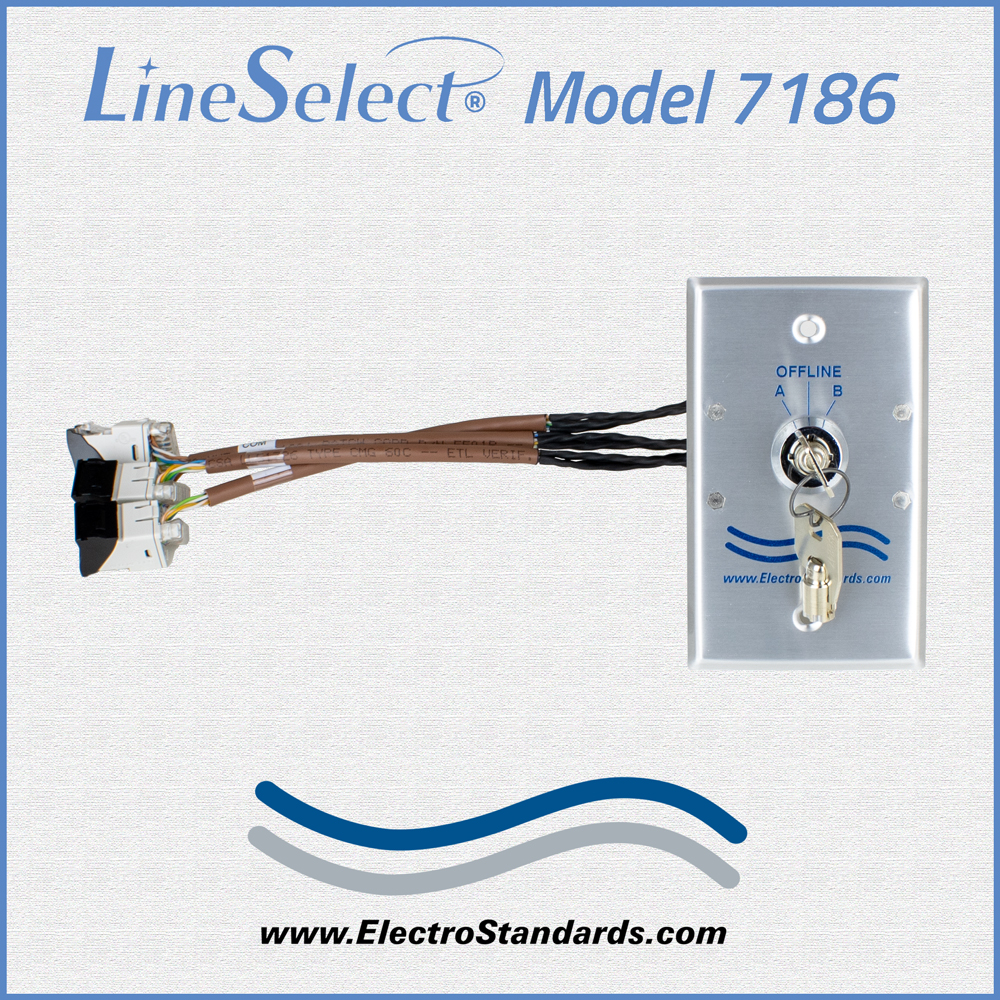

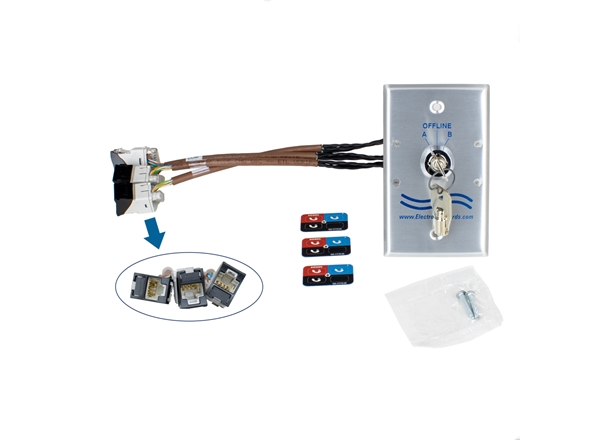

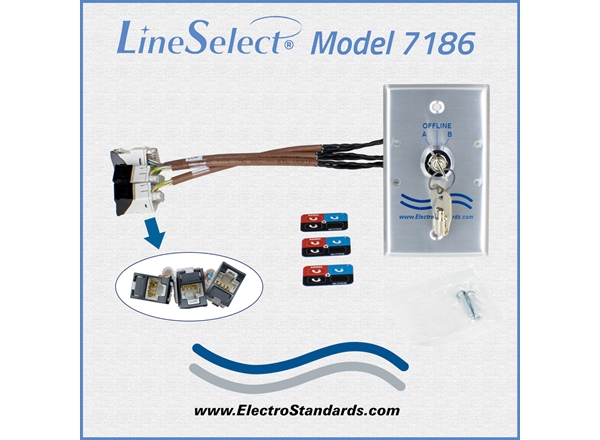

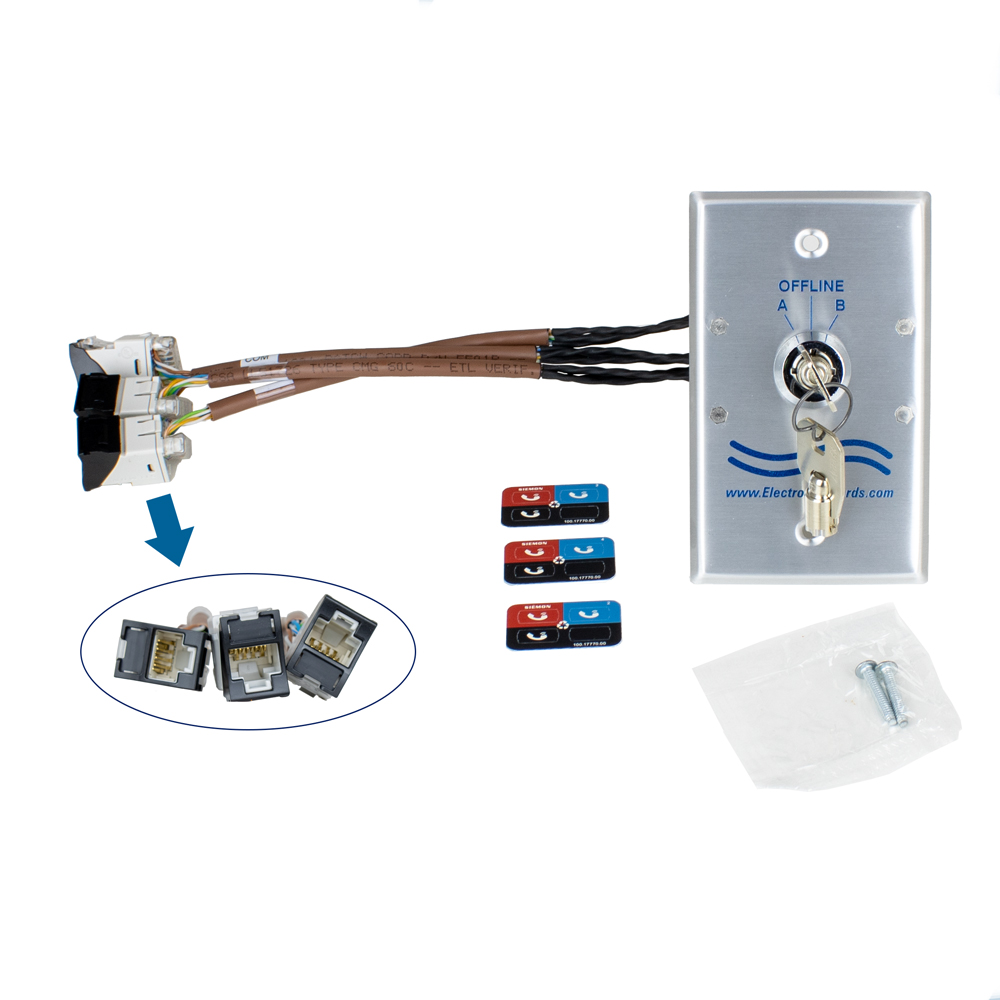

The Model 7186 Single Channel RJ45 Cat5e A/OFFLINE/B Keylock Switch allows the user the capability of accessing two separate networks (ports A and B), via connection to the Common port.  The Model 7186 is a manually operated keylock switch mounted to a faceplate with cabled RJ45 Cat5e connectors for installation into any single gang wall box.  No power is required for operation.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
