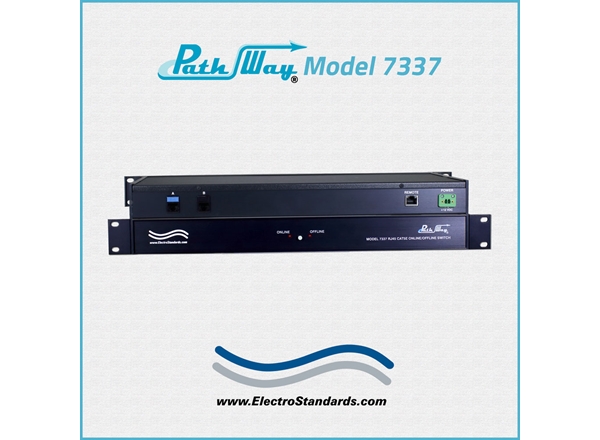

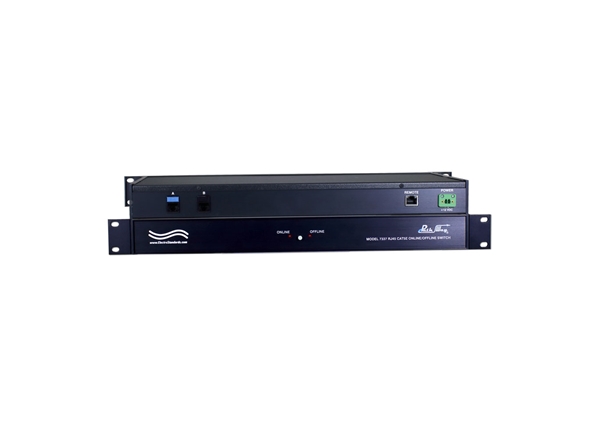

Catalog# 307337 Model 7337 RJ45 Cat5e OnLine/OffLine Switch, GUI Remote

    RJ45 Cat5e Online/Offline Switch, GUI RemoteRJ45 Cat5e Online/Offline Switch, GUI RemoteRJ45 Cat5e Online/Offline Switch, GUI RemoteRJ45 Cat5e Online/Offline Switch, GUI Remote
Click image to enlarge
    • RJ45 Cat5e Online/Offline Switch, GUI Remote
    • RJ45 Cat5e Online/Offline Switch, GUI Remote
    • RJ45 Cat5e Online/Offline Switch, GUI Remote
    • RJ45 Cat5e Online/Offline Switch, GUI Remote
Base Price:
$1,380.00
Catalog No: 307337
Model No: 7337
Product Type:Switches: Copper
Positions:2, Offline
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:2
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Ethernet
Security:Offline Position
Compliance/Standards:Cat5e
Configuration:Rackmount
Remote Port:DB9
Local Control:Pushbutton
Protocol:Telnet & GUI

Add to Cart

  • Pathway® Model 7337 Online/Offline Switch

  • Certified  Cat5e

  • Remote port, Telnet and Graphical User Interface

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

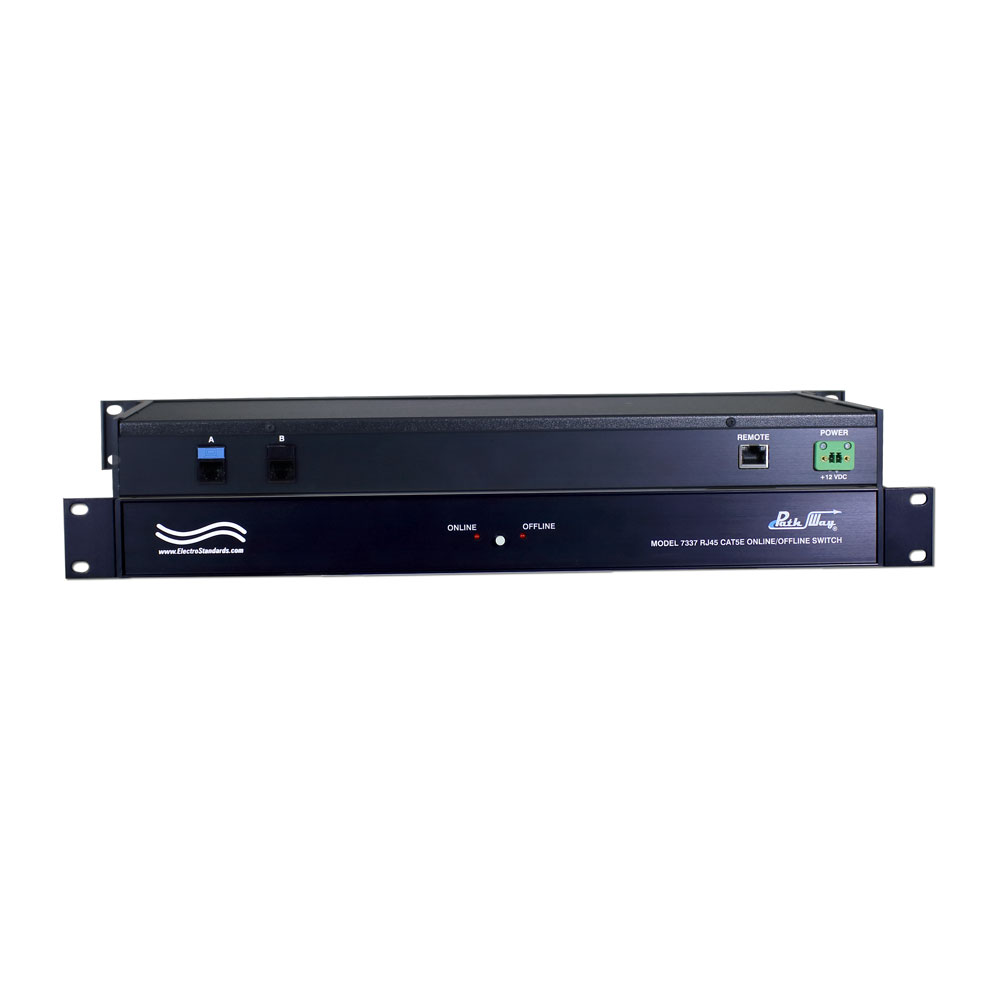

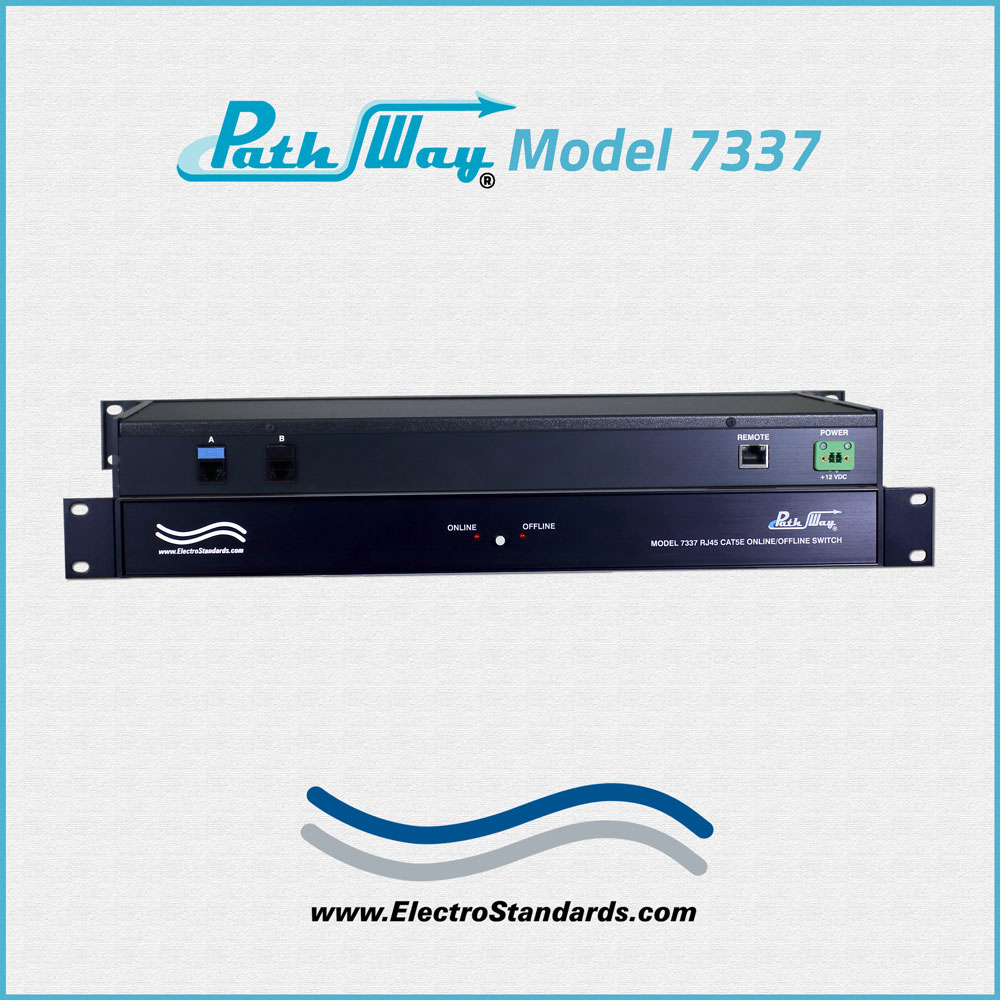

Model 7337 RJ45 Cat5e OnLine/OffLine Switch, with Remote Port, 1U Rackmount

  • Certified For Cat5e Compliance

  • Absolutely NO data passes through the switch when in OffLine Position.

  • The Ultimate Firewall!

SPECIFICATIONS:

  • PORT CONNECTORS: (2) RJ45 female connectors, labeled A and B.
  • COMPLIANCE: Interface meets or exceeds Cat 5e performance.

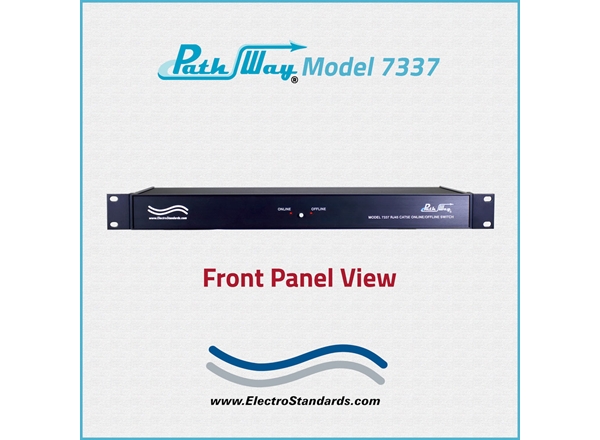

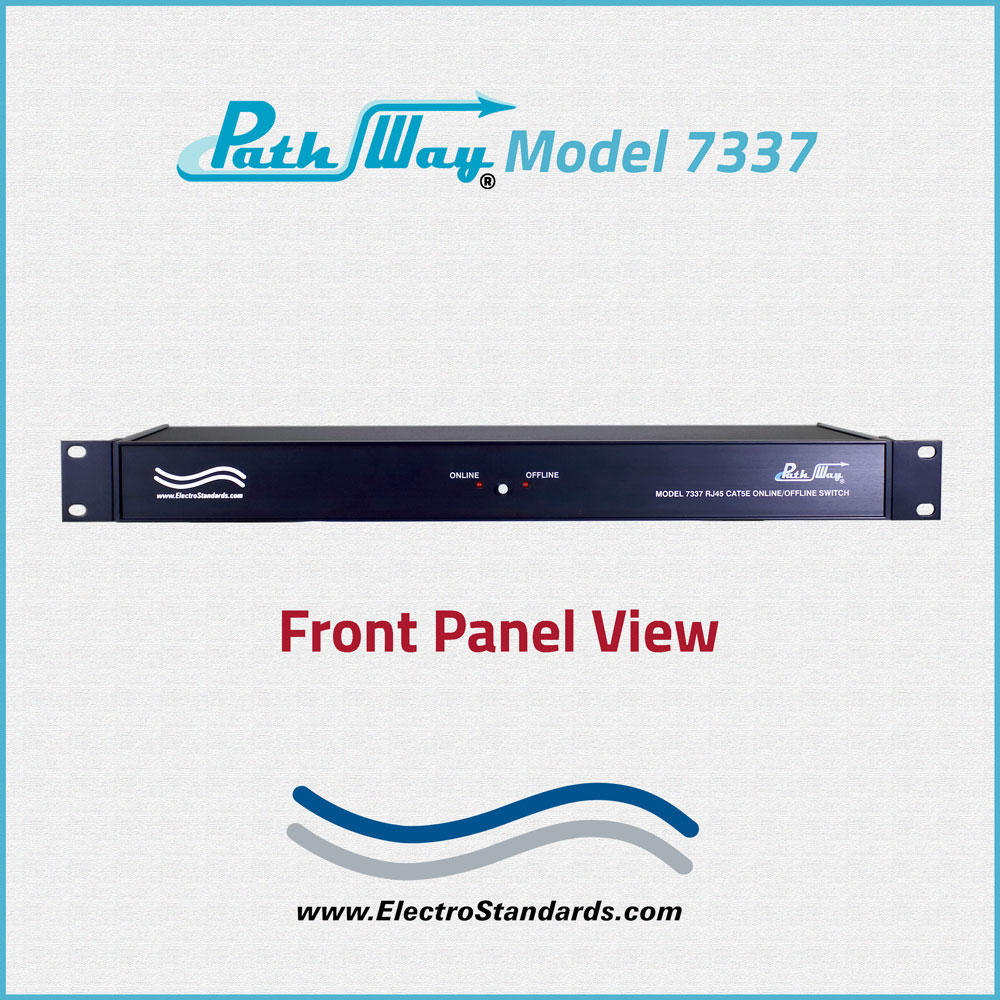

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Red LED’s display switch position and power status.
  • REMOTE CONTROL: (1) DB9 female connector on rear panel accepts Telnet commands or Graphical User Interface for Remote Control Operation.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19.0” W x 1.75” H x 8.15” D. (48.3 x 4.4 x 20.8 cm)
  • WEIGHT: Approximately 4.1 lbs. (1.9 kg)

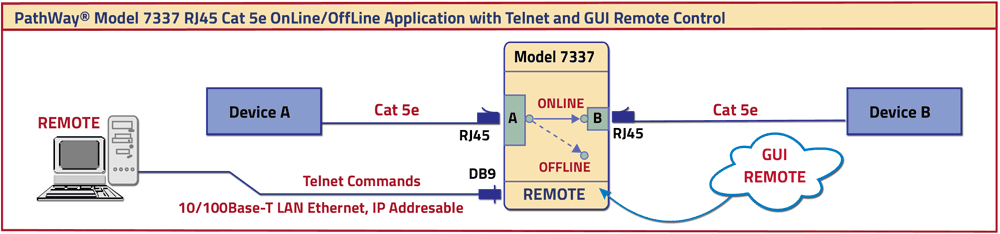

PathWay® Model 7337 RJ45 Cat5e Online/Offline Switch, with Remote Port application.

The PathWay Model 7337 is an RJ45 Cat5e Online/Offline Switch. The unit may be controlled from the Front panel pushbutton.
The Model 7337 Online/Offline switch has 10/100Base-T Remote port. The user can control the unit via Telnet Commands or via the Graphical User Interface.

FEATURES:

  • Online switch position connects Port A to Port B
  • Offline switch position disconnects Port A from Port B
  • The RJ45 switch ports are transparent to all data.

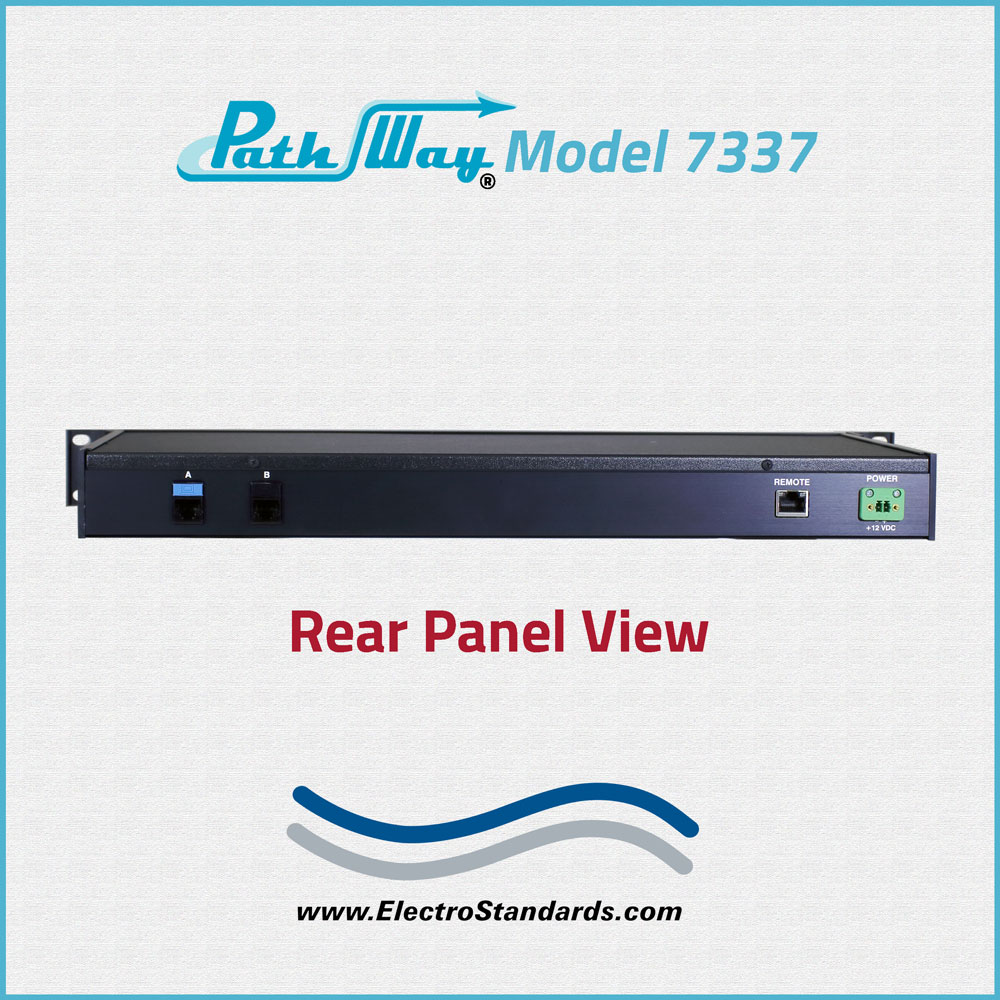

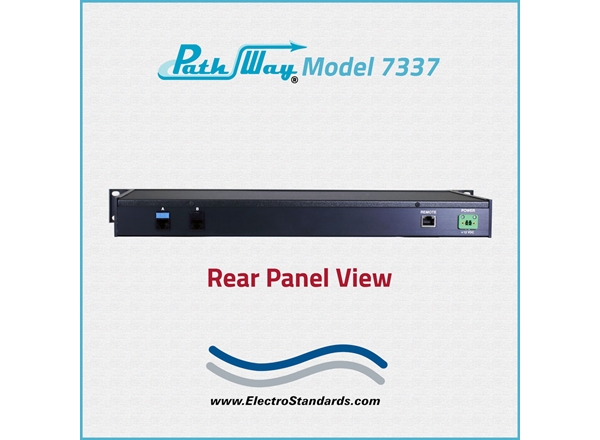

  • All ports are located on the rear panel.
  • Certified for Cat5e compliance.
  • Switch locally via a front panel pushbutton or remotely via the Ethernet Remote port or the Graphical User Interface.
  • REMOTE port allows change of switch position, monitor of switch position, and front panel pushbutton lock/unlock control.
  • Control of the switch position from a 10/100Base-T LAN Ethernet environment.
  • Remote Control Telnet Command Interface that allows the user to control switch position, lockout front panel operations, obtain switch status, as well as query firmware version number.
  • Graphical User Interface that allows the user to control switch position, lockout front panel operations, obtain switch status, as well as query firmware version number.
  • Front panel LED’s display switch position and continue to pass data during power loss.
  • Attractive metal black box packaging provides EMI/RFI shielding.
  • One year warranty against manufacturer’s defects.
  • Custom length DB9 cables available for your switch installation.

The PathWay® Model 7337 RJ45 Cat5e Online/Offline Switch with Telnet and GUI Remote allows the user the capability of connecting two separate devices, ports A and B, via Online or Offline connection. The Model 7337 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.

The switch may be controlled manually via the front panel pushbuttons. Remote Control access can be accomplished using an Ethernet 10/100BASE-T connection via Telnet commands or GUI.

10/100BASE-T LAN SETUP

ETHERNET REMOTE PORT, I.P ADDRESSABLE, WITH GUI

UTILIZING THE USER FRIENDLY REMOTE GRAPHICAL USER INTERFACE SOFTWARE

To connect to the switch from a workstation or computer having access to the LAN that the switch's LAN port is connected to simply launch a standard web browser and type in the appropriate IP address.  The Java Applet will be automatically uploaded from the switch upon connection.  The environment requirement for the GUI is Java 1.7 and above.

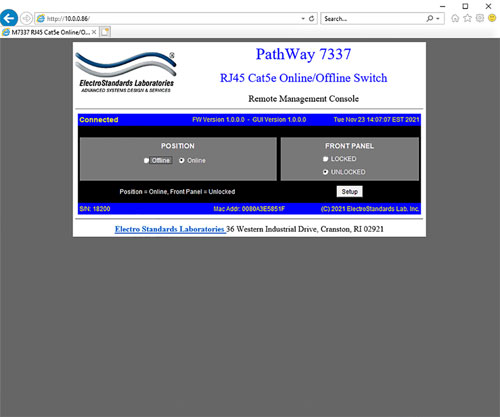

Figure 1:  GUI in a Standard Web Browser!



Figure 2: GUI shown in Device Installer!

The PathWay® Model 7337 Graphical User Interface (GUI) shown in the "Device Installer".

SOFTWARE FEATURES

  • Access User Interface via standard web browser.
  • Easy to use, simple point and click operation.
  • Remotely access to control or monitor the Model 7337 Switch System.
  • Users can change the switch’s IP address and configuration.
  • LAN access gives users across the LAN or over the Internet access to control if user network is configured accordingly.

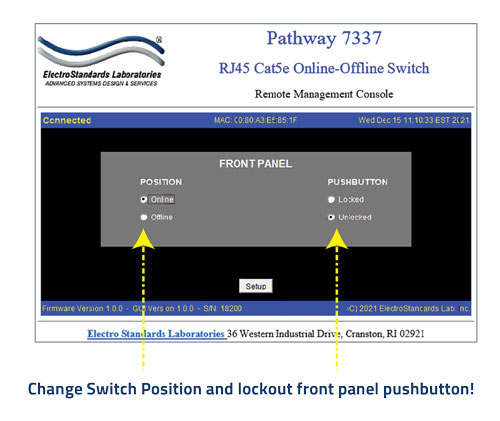

Figure 3: Change Switch Position and lockout front panel pushbutton from the Graphical User Interface!

To Change Switch position, click on the radio button "OFFLINE" or "ONLINE" as desired. "Locking" and "Unlocking" the front panel pushbutton can be done by clicking "Locked" or Unlocked" radio buttons.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC / 240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
