Fiber Optic Switch SC Duplex, Model 4184 with Password Protection, RS232 Remote Catalog # 303184

Click image to enlarge

Base Price:

$1,671.00

Catalog No:

303184

Model No:

4184

Product Type:

Switches: Fiber Optic

Positions:

Cable Type/Port Connector:

Channels per Switch Chassis:

Electronic Switches/Power Required:

QuickSwitch® Fiber Optic

Remote Control:

RS232 Serial

Security:

Password Protection

Configuration:

Desktop

Fiber Mode:

Multimode

Fiber Size:

62.5/125

Fiber Type:

Duplex

Remote Port:

DB9

Local Control:

Pushbutton

Mirror Technology:

OEO

Speed:

100 Mbps

Wavelength Nano:

1300

Qty

Add to Cart

APPLICATION NOTES
SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

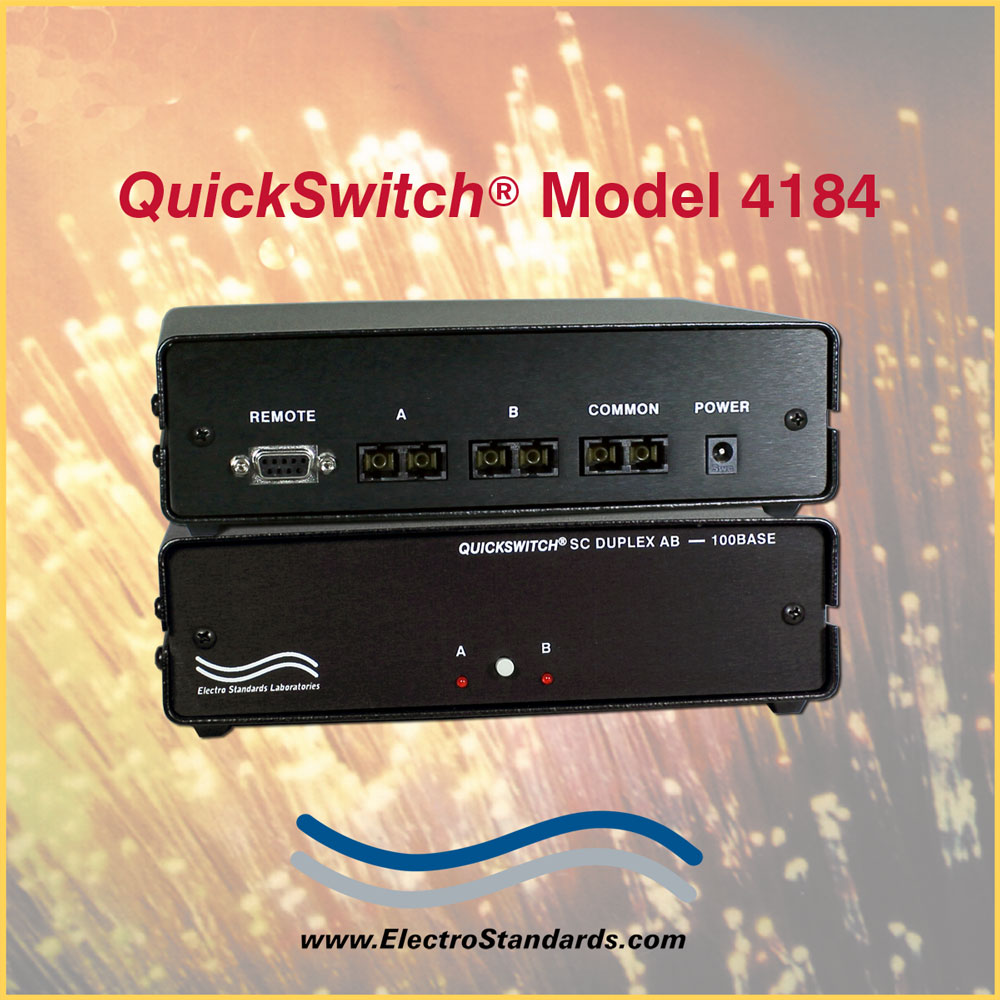

QuickSwitch® Fiber Optic Network Switch, SC Duplex

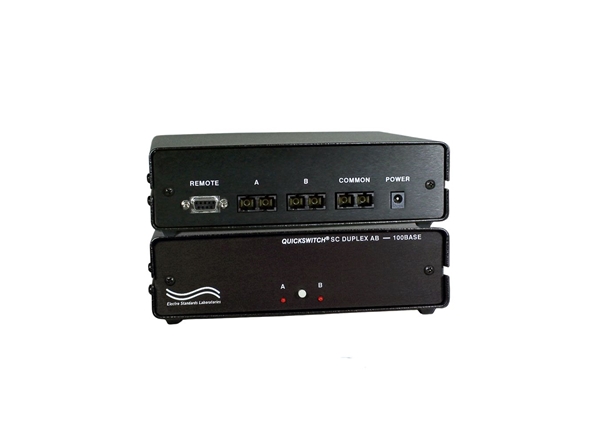

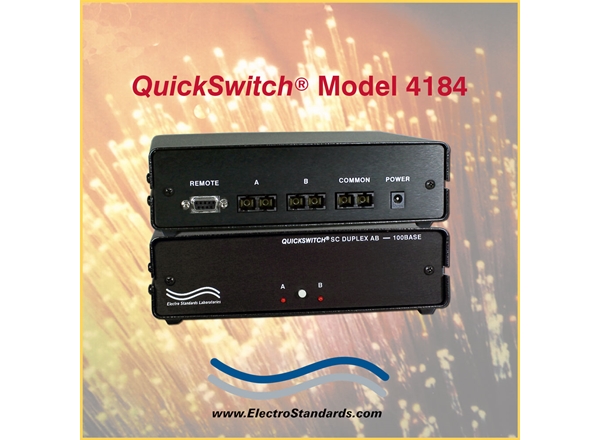

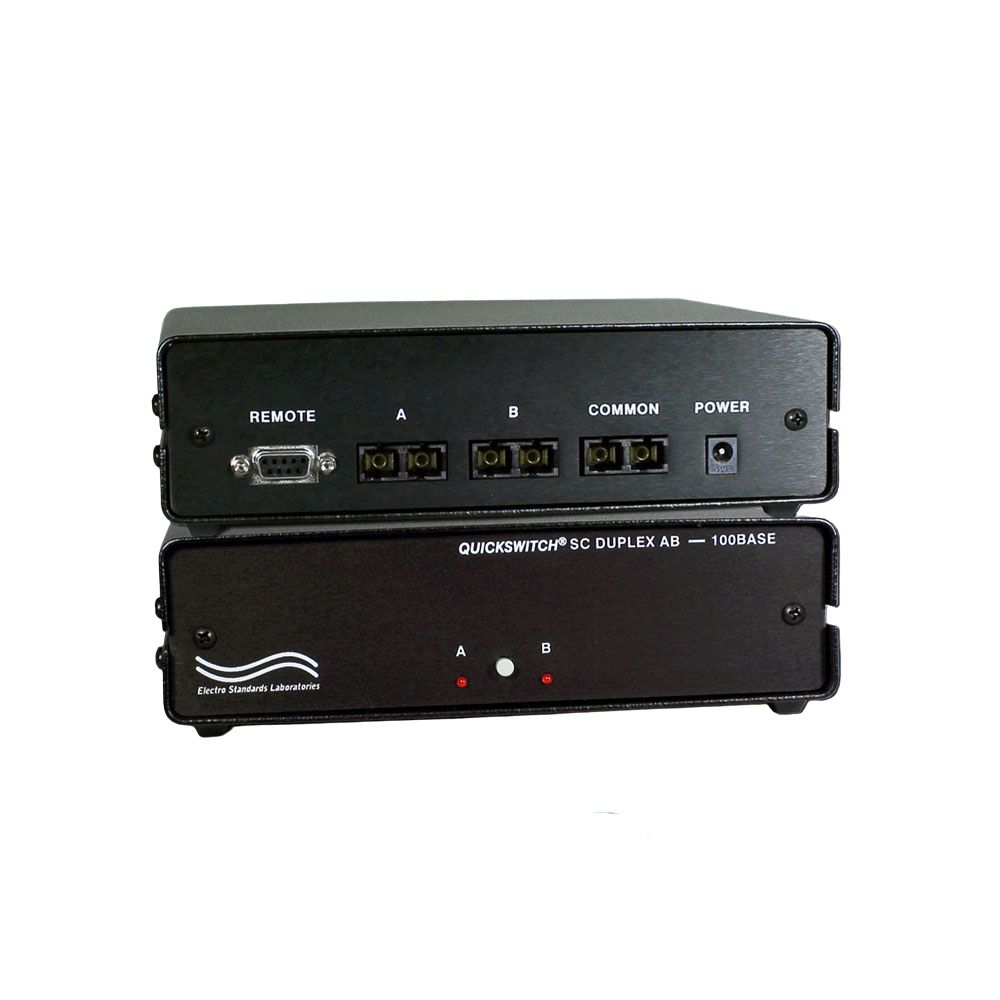

QuickSwitch® 4184 Fiber Optic SC Duplex 100BASE-FX A/B Switch with Remote Port

Provides SC 100BASE-FX Fiber Optic Link Backup

SPECIFICATIONS:

PORT CONNECTORS: (3) SC Duplex fiber optic connectors labeled A, B, and COMMON.
FIBER OPTIC INTERFACE: Wavelength 1300 nm, speed 100 Mbps, multimode fiber, full duplex transmission, Fiber Size 62.5/125 micron.

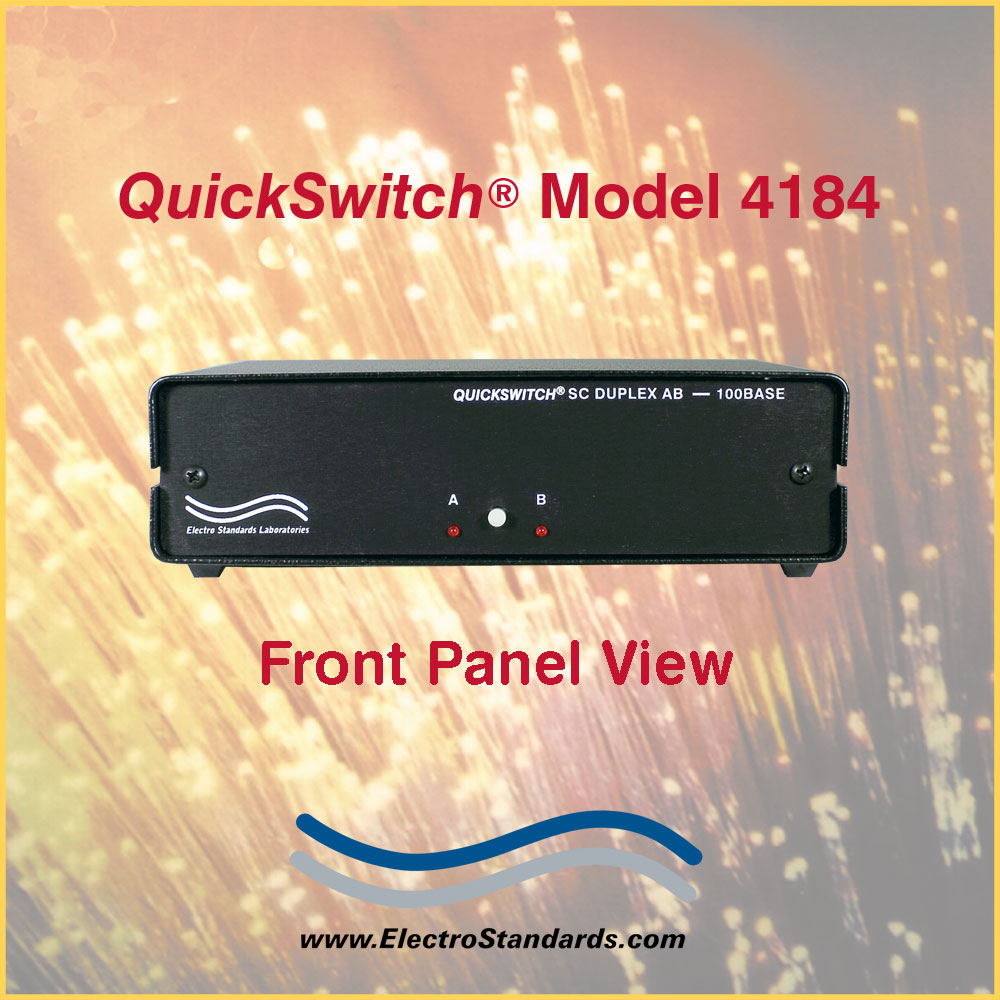

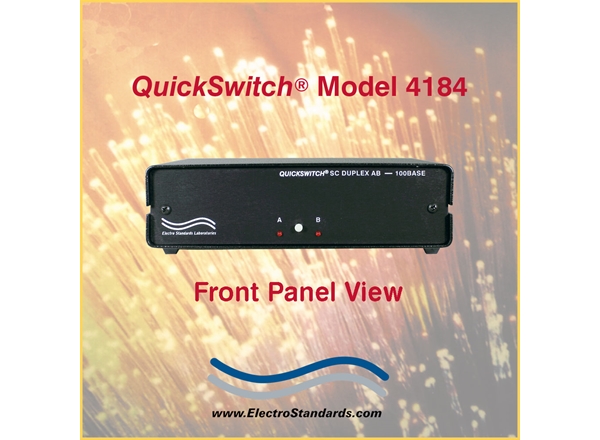

FRONT PANEL CONTROL: (1) Pushbutton to select port A or B.
DISPLAY: (2) Red LEDs display switch position and indicate power presence.

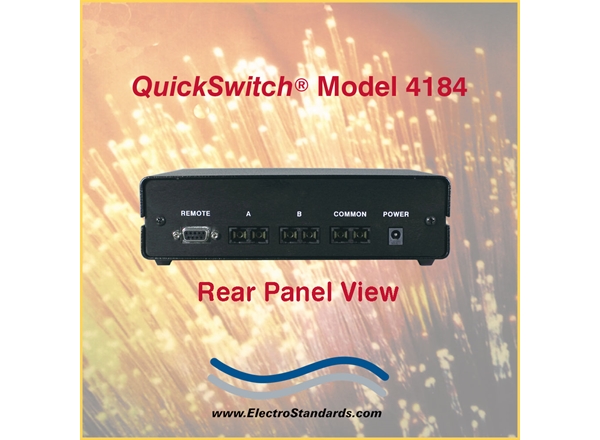

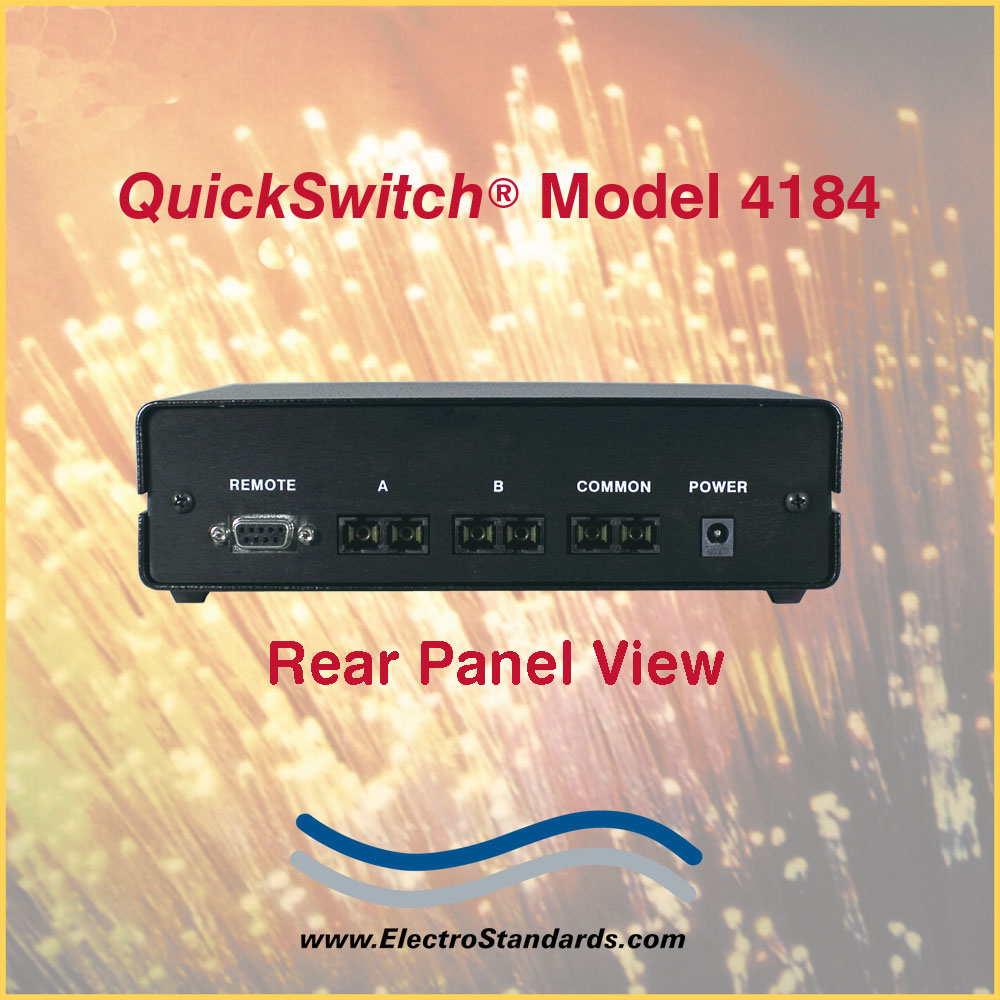

SUPERVISORY REMOTE: (1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
POWER: UL approved 115 VAC / 60 Hz, wall mount power module supplies 12 VDC, 500 mA to the unit.
DIMENSIONS: Desktop: 8.11"W x 2.41" H x 7.66" D. (10.5 x 6.2 x 19.5 cm)
WEIGHT: Approx. 1.7 lbs. (0.8 kg)

SC DUPLEX 100BASE-FX A/B NETWORK TRANSFER APPLICATION:

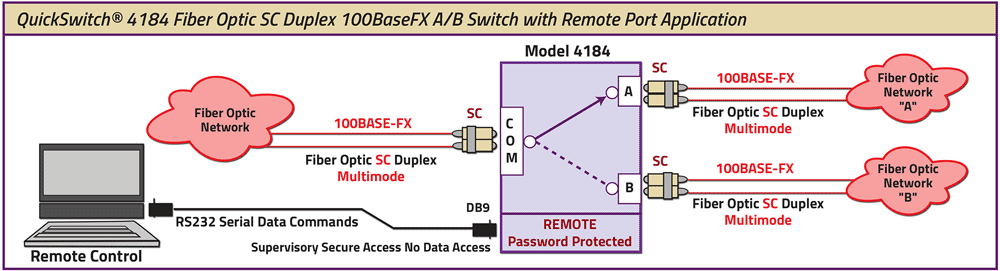

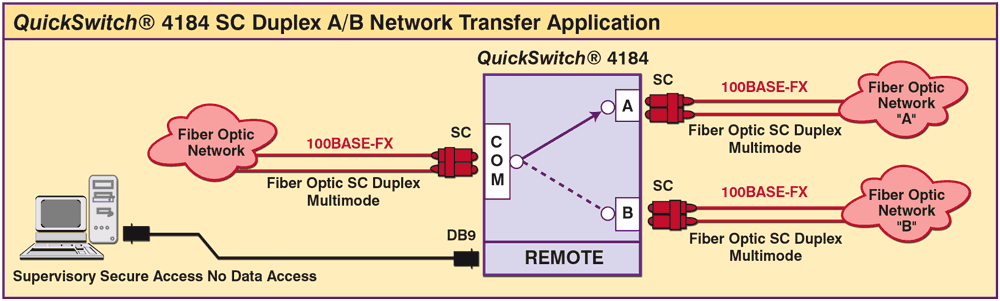

The drawing illustrates an SC Duplex Fiber optic two position switch. A network connected to the SC Duplex COMMON port can access either of two networks via the SC Duplex Ports A or B. The DB9 Remote port accepts ASCII RS232 Serial Data Commands for Remote Control operation, upon proper authentification (password protected remote).

QuickSwitch® 4184 SC Duplex A/B Switch application

Model 4184 QuickSwitch® Fiber Optic Switch Features:

allows quick connection to any one of two SC networks or devices from one COMMON device.
The internal circuitry insures isolation between the devices/networks.
Service protocol transparent.
Bit-rate and data transparent.
Optical data throughput scalability.
All fiber ports are SC duplex, multimode, 62.5/125 micron and support a wavelength of 1300 nm.
Eliminates the need to plug and unplug cables.
Local control via front-panel pushbutton.
Remote control port allows off-site monitoring and switch management.
The Remote port accepts RS232 Serial Data commands for switch position control and monitoring.
Secure Setup/Configuration access limited by password protection.
Front panel pushbutton control can be locked out, remotely.
Ideal for fallback applications.
Front-panel LED's display switch position and power status.
Data will not pass through the unit during power loss.
When power is restored, the unit will return to its previous position.
Custom length rigorously tested and certified, SC Duplex fiber optic cables are available for your switch installation.
Municipalities, schools, government: This product is on GSA Schedule!
This fiber switch utilizes OEO technology.

Electro Standards can supply all your Fiber Optic Cable requirements. Please click here to reach our Fiber Optic Cable Webpage.

Order Electro Standards Laboratories Custom Length SC Fiber Optic Cables!
All Electro Standards Labs cables are performance tested and certified!

Click on the QR code for Online Custom Fiber Optic Cable Form
Scan QR Code with your smart phone for phone access.
Click on the DETAILED SPEC icon above on the right for spec sheet
with the Fiber Optic Cable Form on page 2 to be printed, and faxed.

The switch may be controlled locally by manually operating the front-panel pushbutton. The front-panel LED display indicates the switch position and unit power status.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 4184 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.
