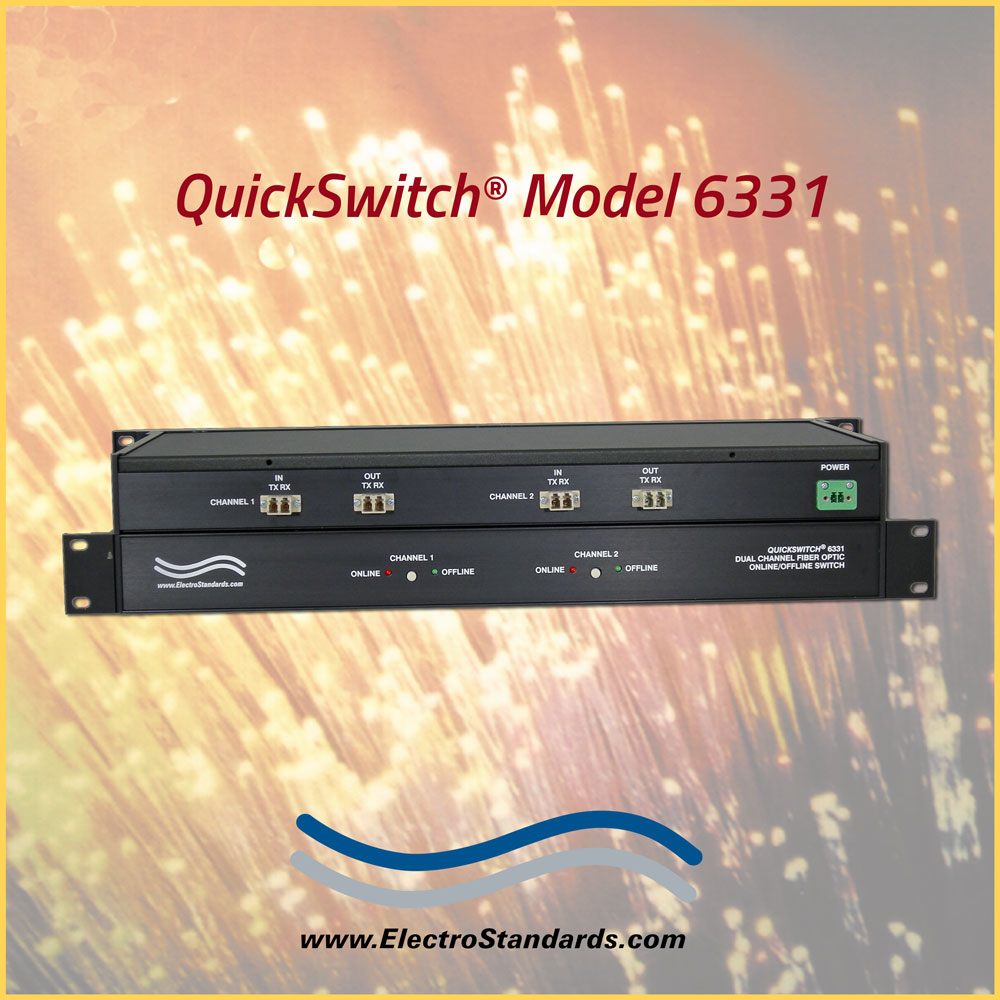

Catalog # 306331 - Model 6331 2-Channel LC Duplex Online/Offline Switch, Single Mode

    LC Duplex Online/Offline Switch, Single ModeLC Duplex Online/Offline Switch, Single ModeLC Duplex Online/Offline Switch, Single ModeLC Duplex Online/Offline Switch, Single Mode

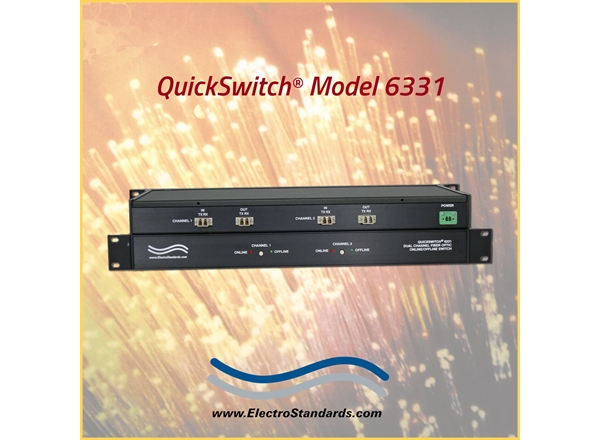

Click image to enlarge
    • LC Duplex Online/Offline Switch, Single Mode
    • LC Duplex Online/Offline Switch, Single Mode
    • LC Duplex Online/Offline Switch, Single Mode
    • LC Duplex Online/Offline Switch, Single Mode
Base Price:
$8,849.00
Catalog No: 306331
Model No: 6331
Product Type:Switches: Fiber Optic
Positions:2, Offline
Cable Type/Port Connector:LC
Channels per Switch Chassis:2
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Channel Control:Independent Channel Control
Security:Offline Position
Configuration:Rackmount
Fiber Mode:Single Mode
Fiber Size:9/125
Fiber Type:Duplex
Mirror Technology:OO
Wavelength Nano:1310

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

QuickSwitch® Fiber Optic Network Switch, LC Duplex, Single Mode
QuickSwitch® 6331 Dual Channel LC Duplex Online/Offline Switch, Single Mode, 9/125 micron

  • Quick Connect/Disconnect to/from network.

  • Absolutely NO DATA passes when switch is in the Offline position.

SPECIFICATIONS:

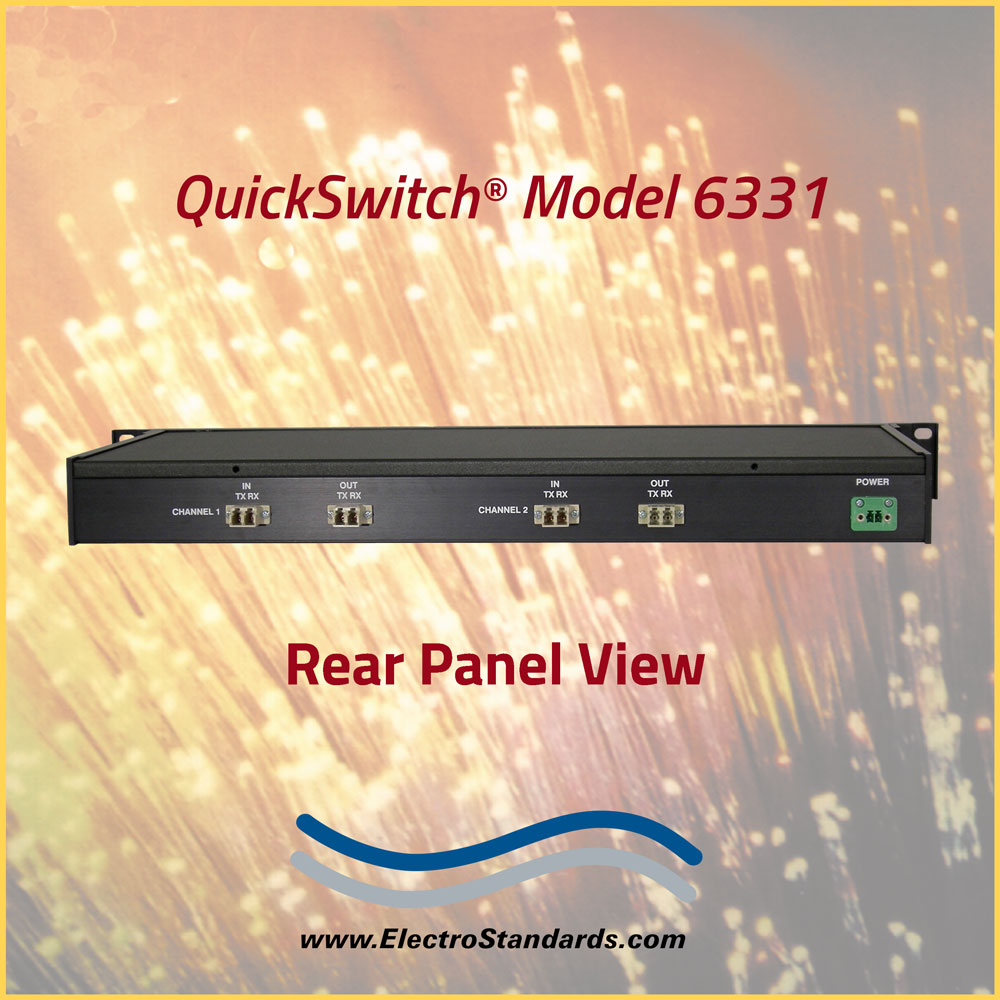

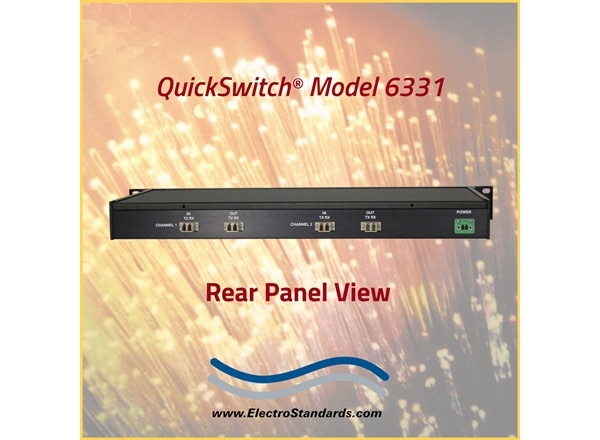

  • PORT CONNECTORS: (2) LC Duplex Angle Polished connectors, labeled IN and OUT for each channel.
  • FIBER: 9/125- micron, 1310 nm.

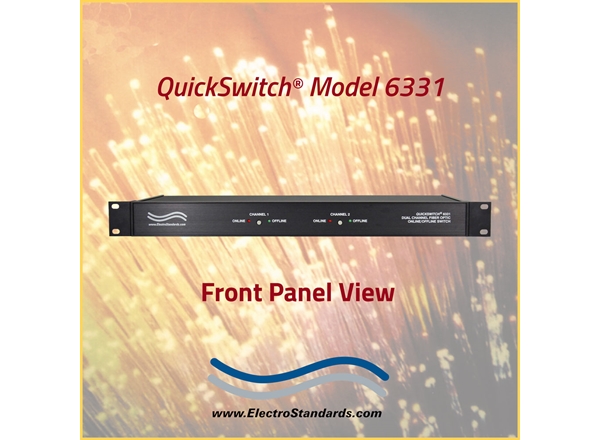

  • FRONT PANEL CONTROL: (2) Manual pushbuttons allows local switching.
  • DISPLAY: On the front-panel, (1) Red LED (ONLINE) and (1) Green LED (OFFLINE) for each channel display switch position and power.
  • NO REMOTE CONTROL.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19.0" W x 1.75" H x 8.0" D. (48.3 x 4.4 x 20.3 cm)
  • WEIGHT: Approximately 4.7 lbs. (2.1 kg)

DUAL CHANNEL LC DUPLEX ONLINE/OFFLINE, SINGLE MODE APPLICATION:

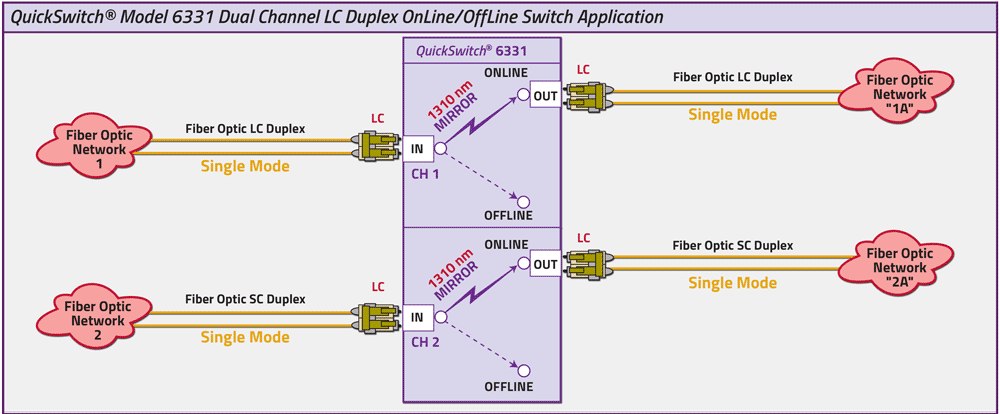

The drawing illustrates two channels of LC Duplex Single Mode. For each channel, the IN port is connected to a Fiber Optic network. The LC Duplex IN port when connected to the LC Duplex OUT port has access to Fiber Optic Network. When the IN port is in the OFFLINE position, no data passes to the Fiber Optic Network connected to the OUT port. Local Control Only. No Remote Control.

QuickSwitch® 6331 Dual Channel LC Duplex, Single mode Switch Application

FEATURES:

  • Each channel allows quick connection or disconnection between two fiber optic networks or devices.
  • Individual control of each channel.
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology and support Gigabit data rates.
  • The fiber ports are LC Duplex Angle Polished, Single mode, 9/125 micron and support a wavelength of 1310 nm.
  • All switch control is from front panel. No remote control.
  • Front panel LED's for display of switch position and power status.
  • When power is lost, all channels revert to the "OFFLINE" position.
  • When the power is restored, all channels remain in "OFFLINE" position.
  • Optical data throughput scalability.
  • Eliminates need to plug/unplug fiber optic patchcords.
  • Custom length rigorously tested and certified LC fiber optic cables available for your switch installation.
  • For a Single Channel version of the QuickSwitch®, see Model 6330, Cat No 306330.

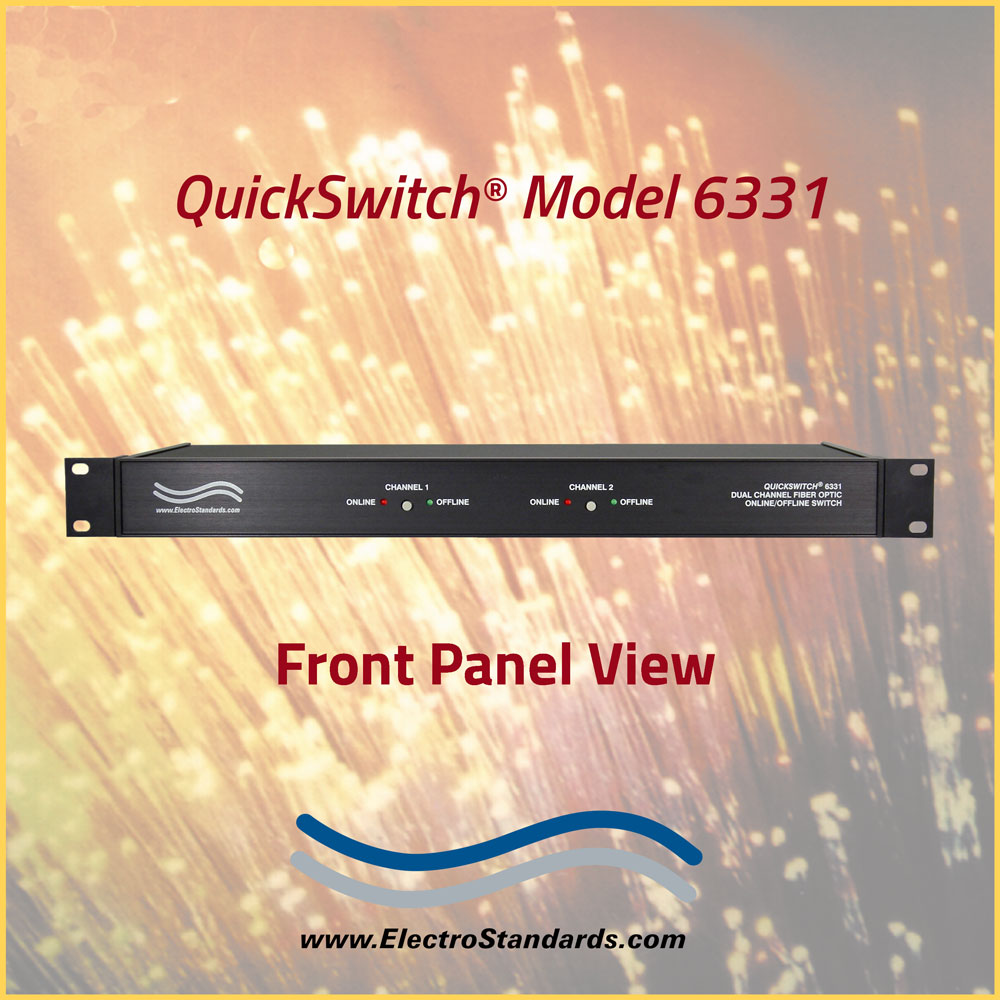

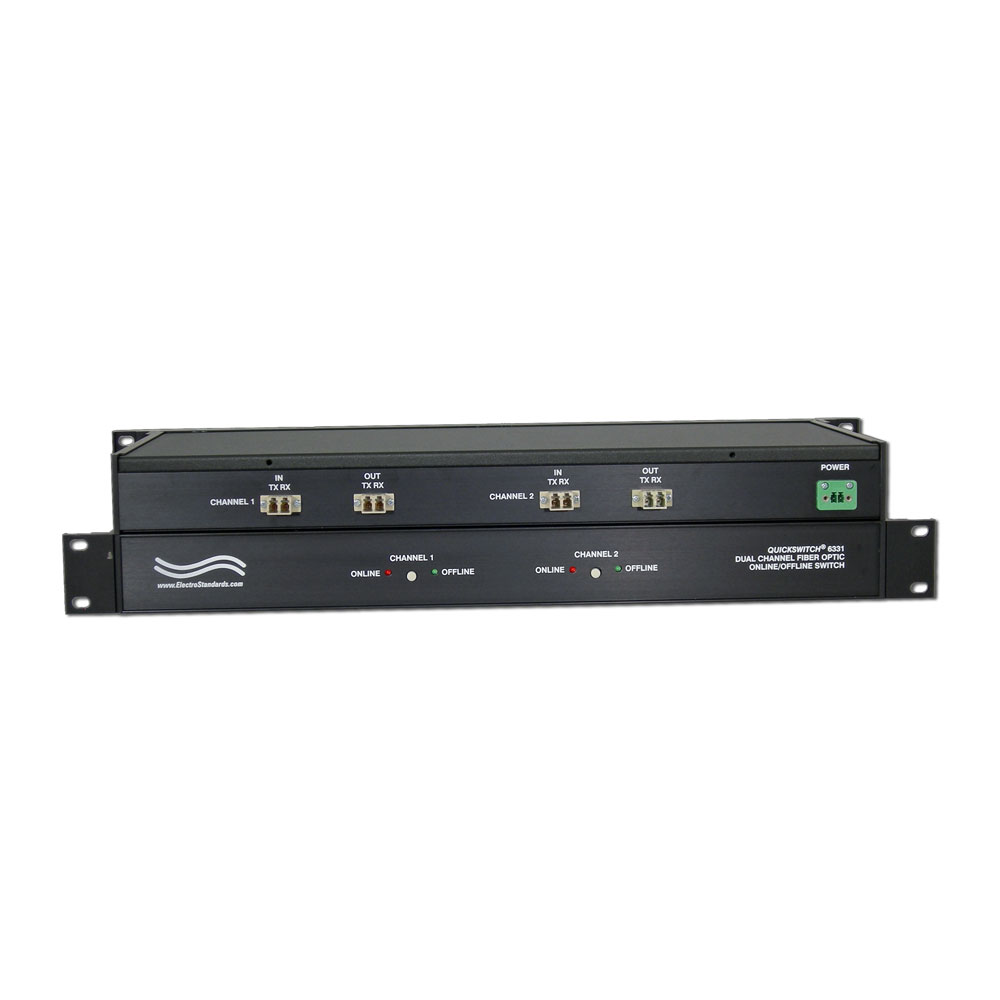

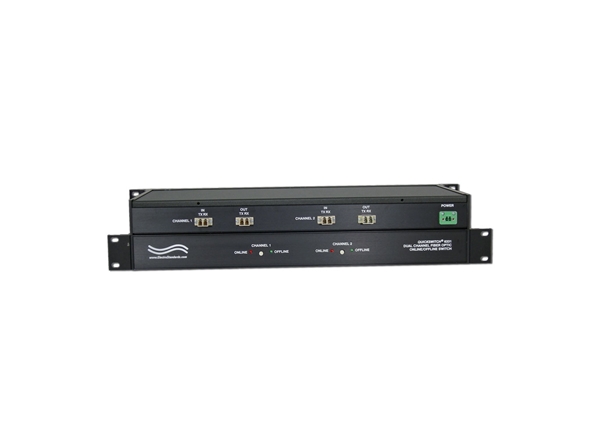

The QuickSwitch® Model 6331 Dual Channel LC Duplex Online/Offline Switch allows the user the capability of connecting or disconnecting two separate devices, ports "IN" and "OUT", via an Online or Offline connection for each channel. The QuickSwitch® Model 6331 is enclosed in a 1U, full rack size, all metal black chassis designed to fit in a standard 19" rack. The switch may be controlled manually via the front panel only. Switch position state may be attained via the front panel LED's.

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50/60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

TO READ THE ARTICLE EITHER CLICK THE LINK OR APPLICATION ICON AT TOP OF PAGE: "HOW TO DETERMINE THE RIGHT FIBER OPTIC NETWORK BACKUP SWITCH FOR YOUR APPLICATION", click link to read as a pdf. You need Acrobat Reader to view the file.

QuickSwitch® is a registered trademark of Electro Standards Laboratories.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Check out our complete line of QuickSwitch® fiber optic switches.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our online Custom Product Request form.
