308482, Model 8482 2-Channel RJ45/DB9 Alternating Connect/Disconnect Switch

2-Channel RJ45 /DBD9 Alternating Connect/Disconnect Switch

Click image to enlarge

Base Price:

$675.00

Catalog No:

308482

Model No:

8482

Product Type:

Switches: Copper

Positions:

Cable Type/Port Connector:

RJ45, DB9 Switch Ports

Channels per Switch Chassis:

Manual Control/No Power Required:

LineSelect® Manual Operation

Compliance/Standards:

Cat5e

Configuration:

Desktop

Local Control:

Rotary Knob

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

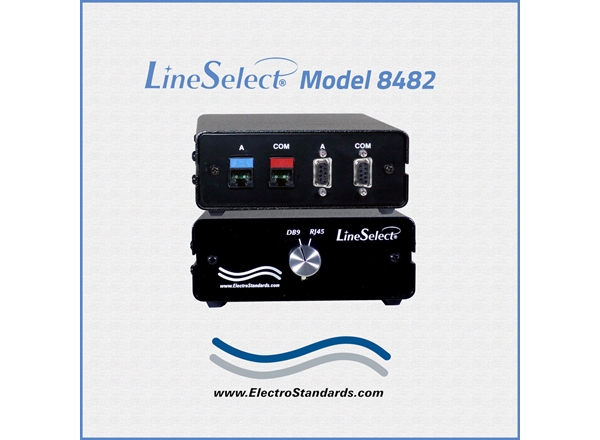

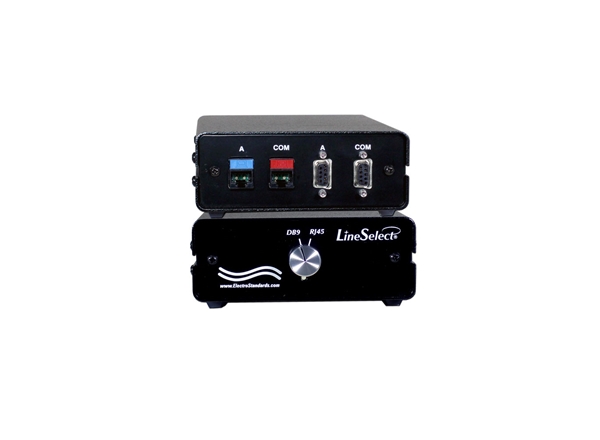

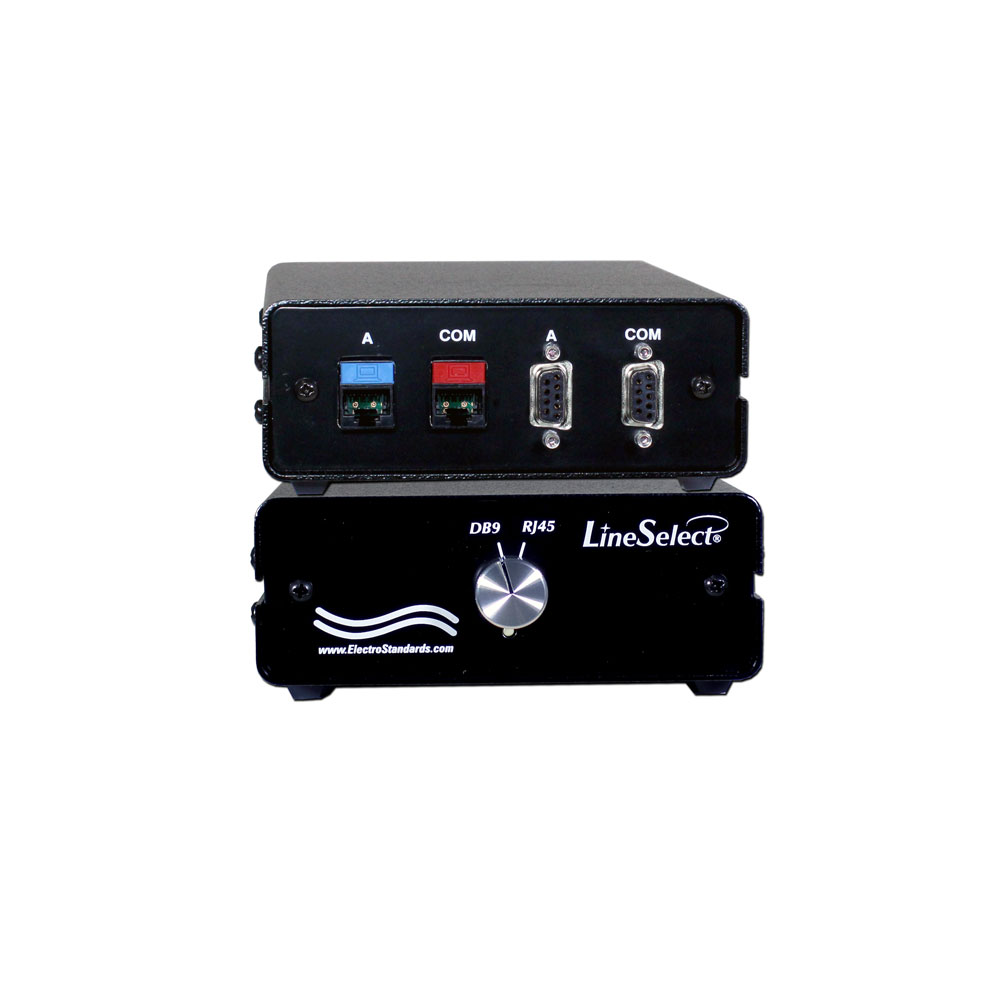

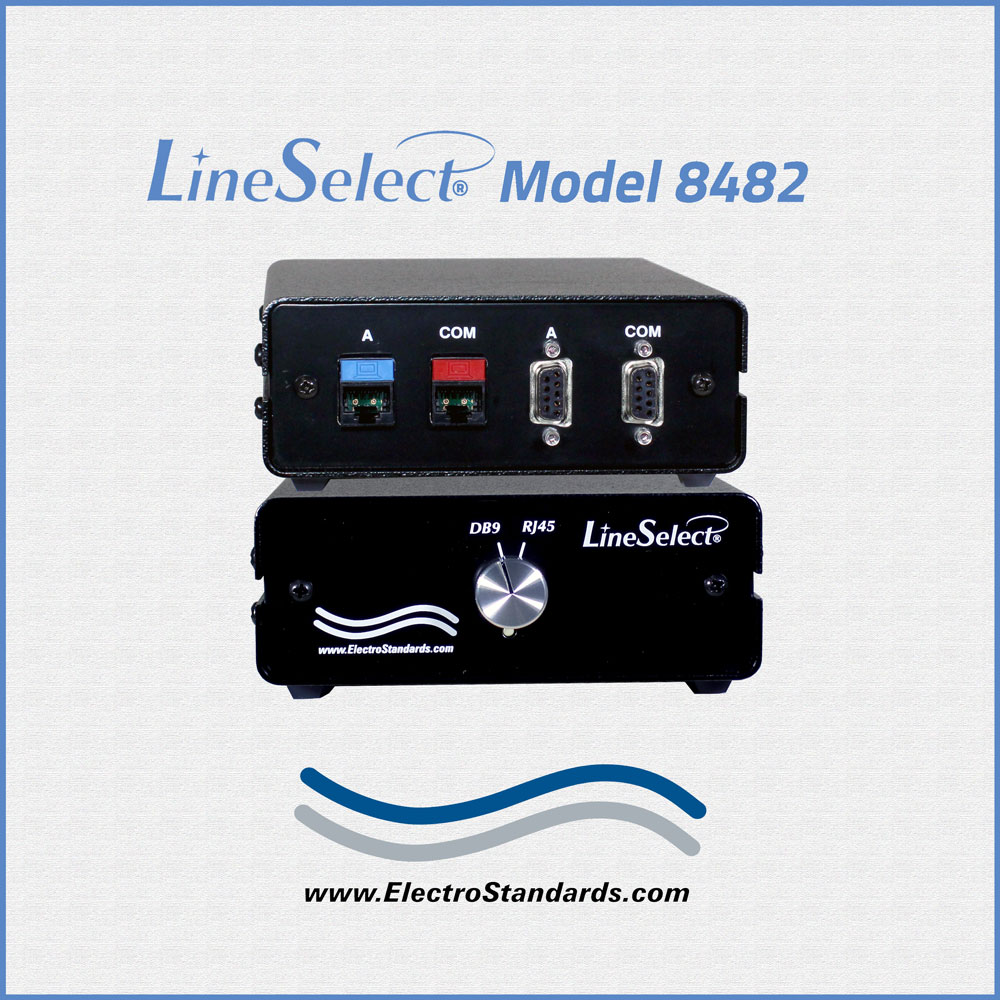

LineSelect® Model 8482 2-Channel RJ45/DB9 Alternating Connect/Disconnect Rotary Switch, Desktop, Manual Operation

Exclusively select between DB9 Channel versus RJ45 Cat5e Channel Connectivity

SPECIFICATIONS:

PORT CONNECTORS:
- (2) RJ45 (F), Cat 5e connectors on rear panel, labeled A and COMMON.
- (2) DB9 (F) connectors on rear panel, labeled A and COMMON.
CONTROLS: (1) Rotary Switch on front panel selects DB9 or RJ45.
LEADS SWITCHED: All leads of the DB9 and RJ45 interface are switched.
POWER: No power required. Manually operated.
DIMENSIONS: Desktop Chassis, 5.44” W x 2.25”H x 7.27” D. (20.6 x 7.2 x 18.5 cm)
WEIGHT: 1.2 lbs. 0.6 kg.

2-Channel RJ45/DB9 Alternating Connect/Disconnect Switch Rotary Switch, Desktop, Manual Operation!

The application for the Model 8482 illustrates two channels:
- 1 Cat5e A/B Switch
- 1 DB9 AB Switch
In DB9 position the "DB9 "A" and "COM ports are connected and the "RJ45" ports are isolated.
In the RJ45 position the RJ45 ports are connected and the DB9 ports are isolated.

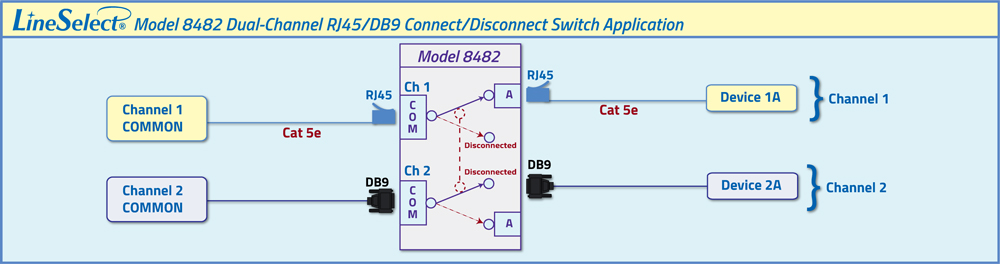

LineSelect® Model 8482 Dual-Channel RJ45/DB9 Connect/Disconnect Switch Network Application

FEATURES:

Simultaneously selects connectivity of either the DB9 or RJ45 Channel from the front panel knob.
In position “DB9” the DB9 “A” and “COM” ports are connected and the “RJ45 A” and “COM” ports are isolated.
RJ45 channel tested for Cat5e compliance.
All nine pins of the DB9 interface, and all eight pins of the RJ45 interface are switched via a break-before-make rotary switch.
All ports located on the rear panel: (2) RJ45 female and (2) DB9 female.
Attractive anodized black box packaging provides EMI/RFI shielding.
Switch Ports are transparent to data.
Switching is manually operated. Requires no power.
Lifetime warranty against manufacturing defects.
Eliminates the need to plug and unplug cables.
Custom length cables are available for optimum performance. Choose Length in feet.

The LineSelect® Model 8482 Dual Channel DB9/RJ45 switch allows the user to select devices connected through DB9 connectivity rear panel DB9 ports OR devices connected through RJ45 Cat5e ports. Manually switch between positions DB9 and RJ45 via the front panel knob. The selected channel interface allows connection of the selected channel A and COM ports located on the rear panel. The LineSelect® Model 8482 is enclosed in a slim desktop style enclosure.

Don't forget to order your DB9 Cables!

Custom Length DB9 cables available for your switch installation. State cable length (in Feet) when ordering.
Part Number	Description
990127	DB9 F/F, 9-Conductor Unshielded PVC Cable
990125	DB9 M/F, 9-Conductor Unshielded PVC Cable
990126	DB9 M/M, 9-Conductor Unshielded PVC Cable

Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form, by clicking here.

Electro Standards can supply all your Network Cable requirements. Click here to reach our Copper Cable Assemblies Webpage.

All ESL Secure Offline Switches are available for export.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur, equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
