Catalog # 526815 - Model 9746/32 RJ45 32-Channel, A/B Switch

    32 RJ45 32-Channel, A/B Switch32 RJ45 32-Channel, A/B Switch
Click image to enlarge
    • 32 RJ45 32-Channel, A/B Switch
    • 32 RJ45 32-Channel, A/B Switch
Base Price:
$6,517.00
Catalog No: 526815
Model No: 97416/32
Product Type:Switches: Copper
Interface:RJ45
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:32
Manual Control/No Power Required:LineSelect® Manual Operation
Channel Control:Independent Channel Control
Configuration:Rackmount
Pins Switched:8
Local Control:Rotary Knob

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

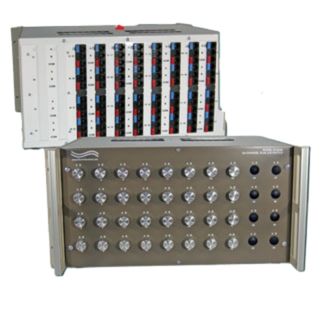

Model 9746/32 High Density 32-Channel RJ45 A/B Switch System, Manual Control, with Monitor Ports

  • Add quick and easy backup switching capability to your data network by utilizing this high density switch system!

RJ45 32-Channel, RJ45 A/B Manual Switch with Monitor Ports

MODEL 9746/32 FEATURES:

  • Manually control all 32 channels of the Model 9746/32 separately via 32 knobs located on the front panel, one knob per channel.
  • Each switch channel has a monitor port located on the top panel, one monitor port per channel.  Monitor port wires are soldered to the rotary switches at the same points as the common port wires.
  • Internal wiring T586B utilizes Cat5e rated material and Cat5e rated connectors, however, not tested for an overall Category rating.
  • Switches all 8 pins of the RJ45 interface.
  • Manually operated.  No power required.
  • Ports located on rear panel.
    • (96) RJ45 female ports:
      • (32) A
      • (32) B
      • (32) COMMON
  • Ports located on top panel:
    • (32) RJ45 female MONITOR ports.
  • Rackmount Style Chassis: 19" W x 8.75" H x 13"D
    (48.3 x 22.2 x 33.0 cm)
  • Weight: 17.1 lbs (7.8 Kg)

The Model 9746 Series of High Density A/B Switch Systems is comprised of five models as listed below.  They can accommodate up to 40 channels in on 8.75" of panel height.  Select model from
table, based on number of channels populated.
 Model 9746, Series Switch
No. of Channels
 8  Cat. No. 526812  9746/8  8-Channel RJ45 A/B Switch, with Monitor Ports
 16  Cat. No. 526813  9746/16  16-Channel RJ45 A/B Switch, with Monitor Ports
 24  Cat. No. 526814  9746/24   24-Channel RJ45 A/B Switch, with Monitor Ports
 32  Cat. No. 526815  9746/32  32-Channel RJ45 A/B Switch, with Monitor Ports
 40  Cat. No. 309746  9746   40-Channel RJ45 A/B Switch, with Monitor Ports



Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.
All ESL Manual Data Network Switches are available for export.
