Cat5e Manual Network Switch, RJ45

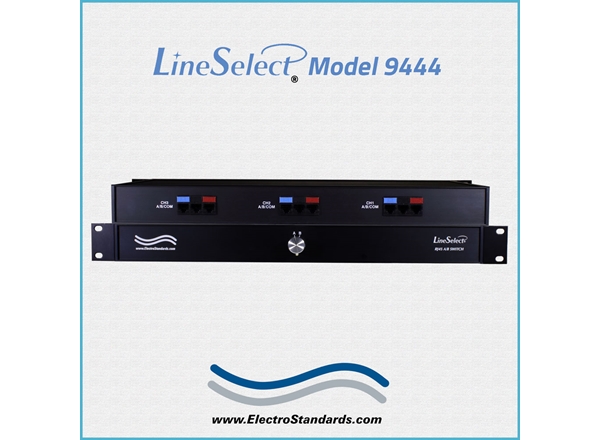

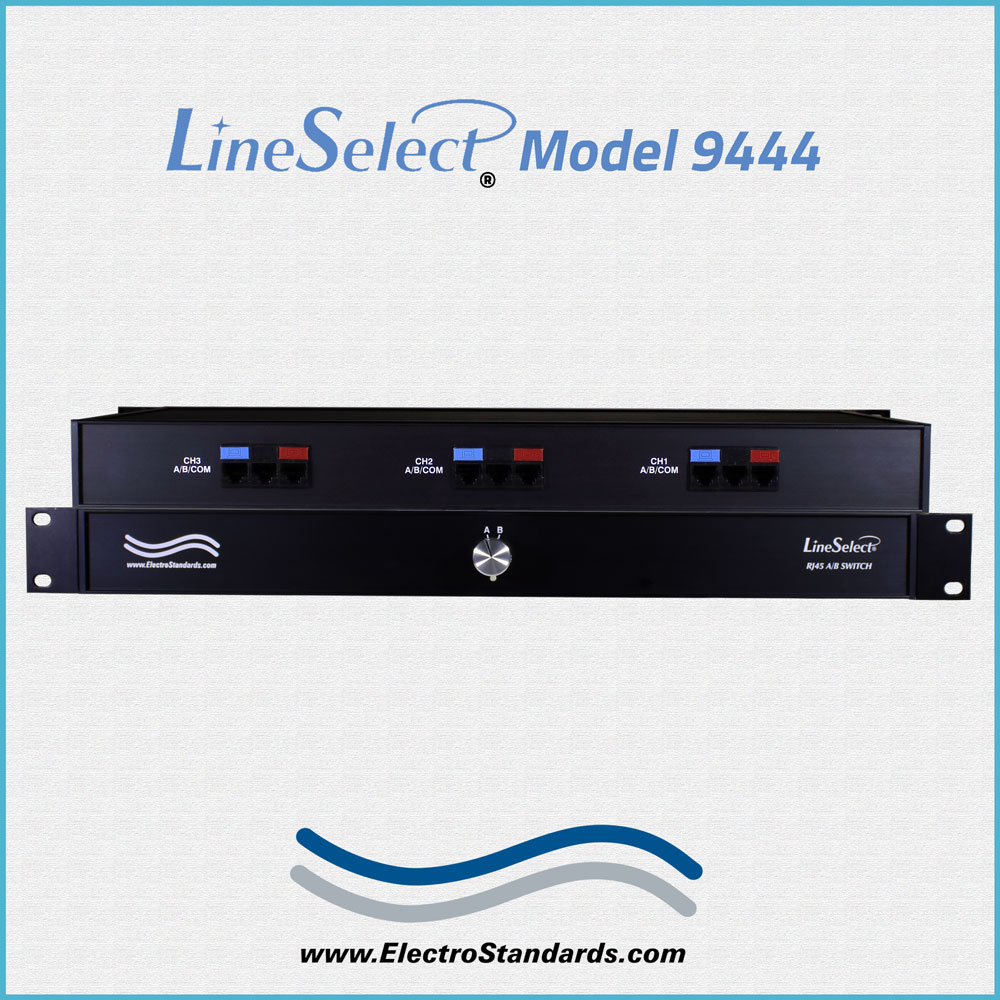

LineSelect® Model 9444 RJ45 Cat5e 3-Channel Simultaneous A/B Switch, Manual, Rackmount
• Certified for Cat5e Compliance
SPECIFICATIONS:

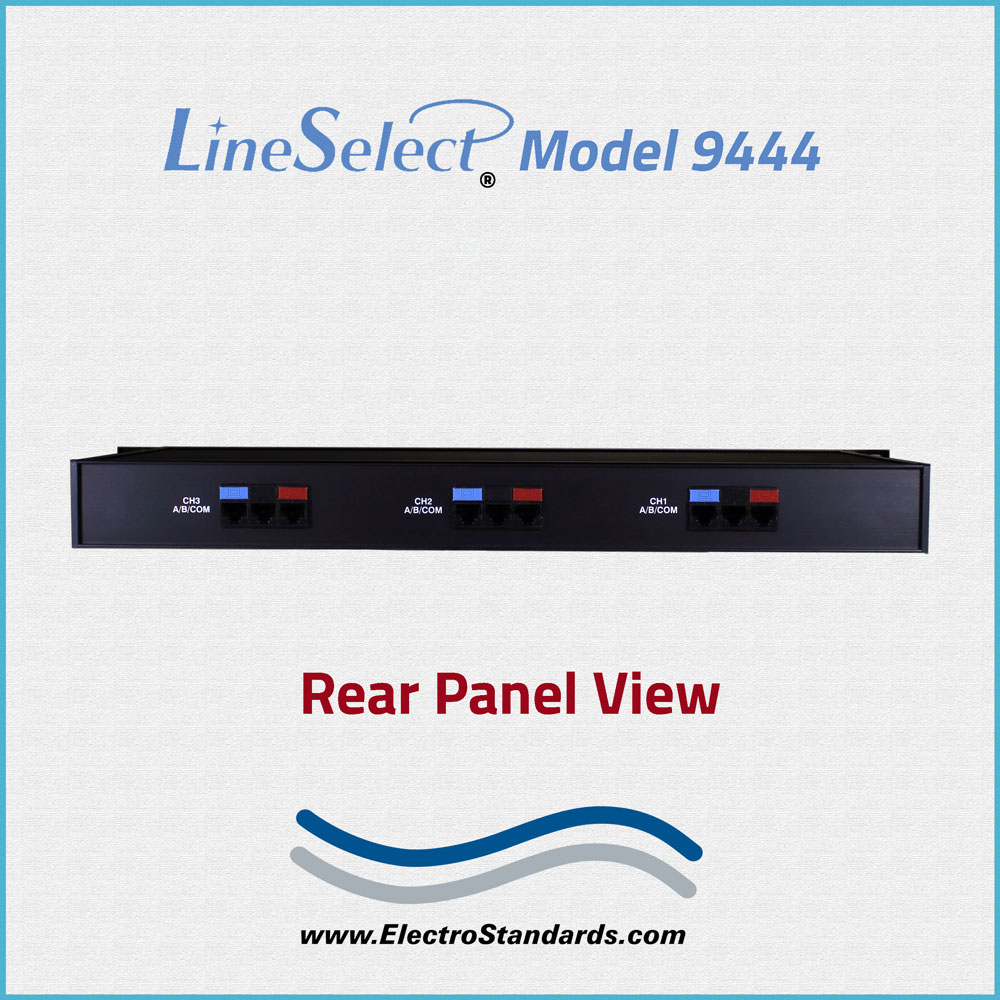

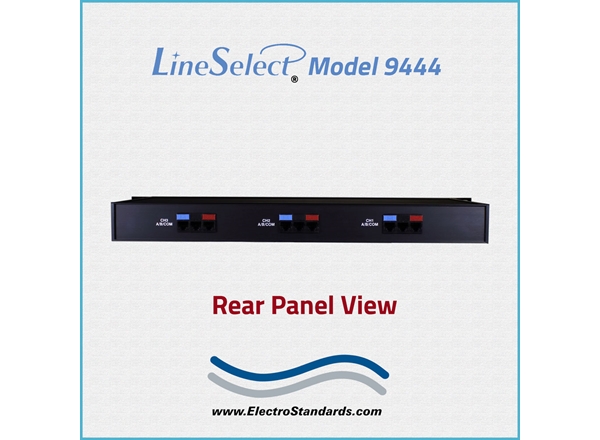

•PORT CONNECTORS: (9) RJ45 (F) category 5e ports on rear panel; (3) Common, (3) 'A' ports, (3) 'B' ports.

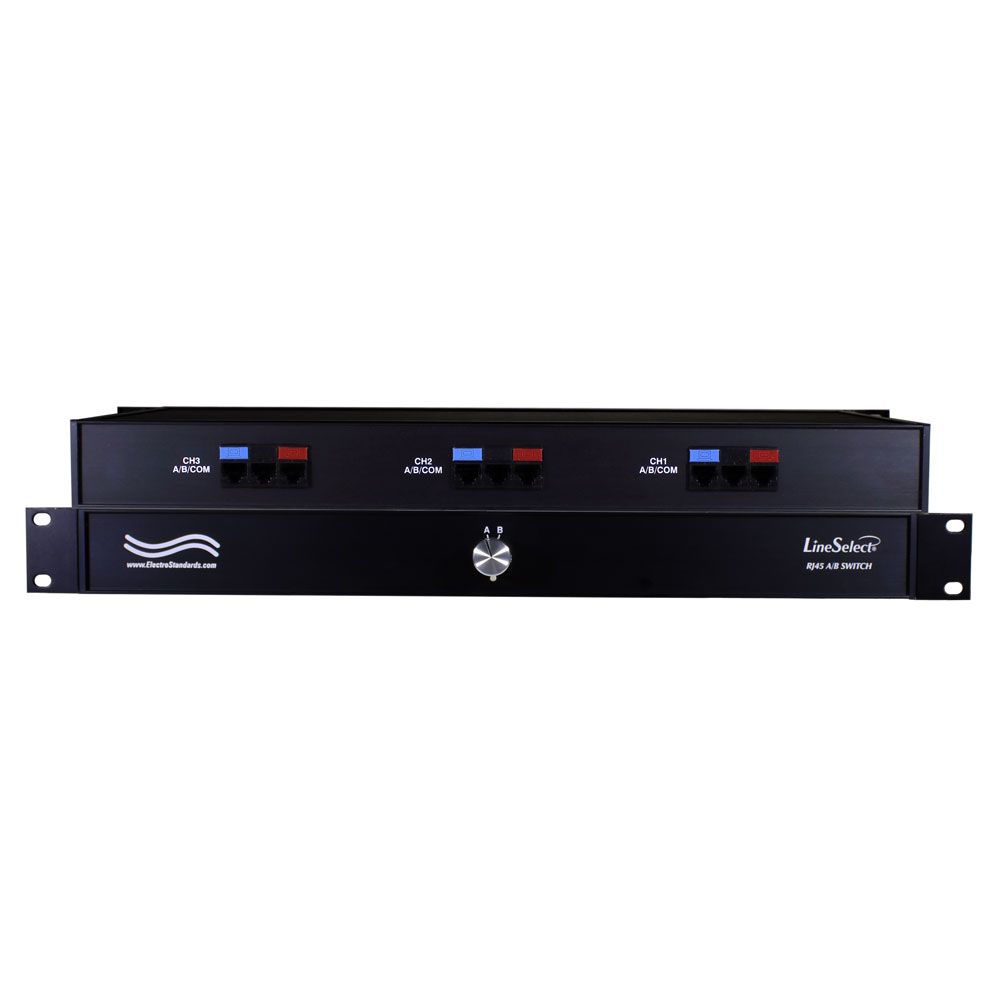

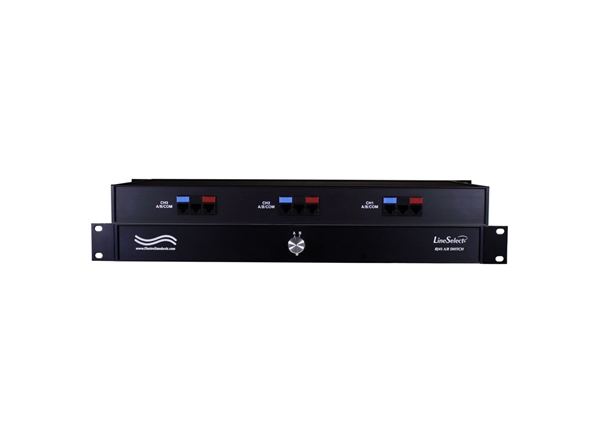

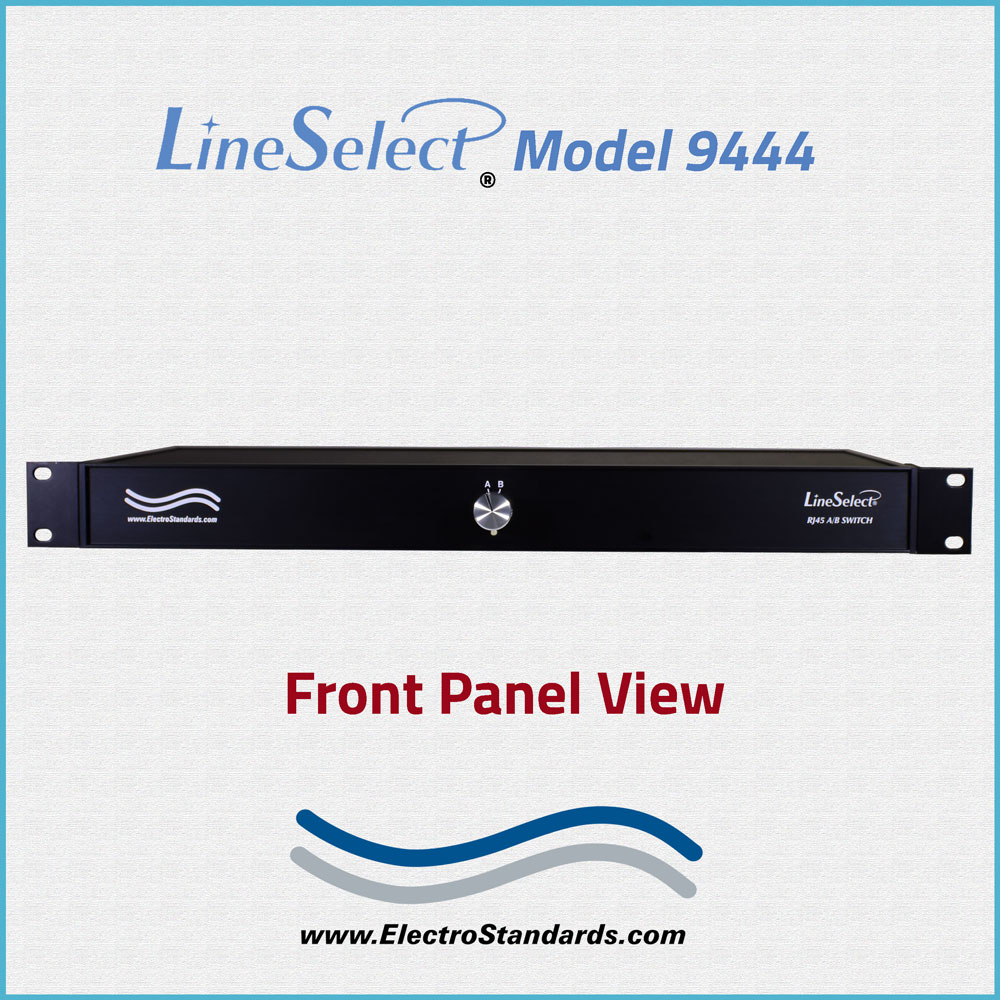

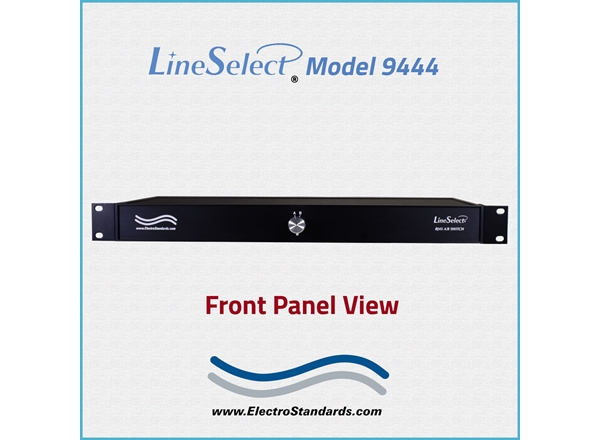

•FRONT PANEL CONTROLS: (1) Rotary Switch on the front panel allows for simultaneous switching of the A/B positions
•PINS SWITCHED: All 8 Pins Switched.
•POWER: No power required.
•DIMENSIONS: 19" W X 1.75" H X 8.0" D. (48.3 X 4.4 X 20.4 cm)
•WEIGHT: 4.4 lbs. (2.0 kg)
SIMULTANEOUS CONTROL OF CAT5e THREE CHANNEL A/B MANUAL NETWORK APPLICATION:
- The diagram illustrates three individual A/B channels for simultaneous switching.
- All channels have a COMMON device connected to the RJ45 COMMON port with access to two Devices.
- Device 1 is connected to the RJ45 A port and Device 2 is connected to the RJ45 B port for each of the three Channels.
-
Cat5e Three Channel A/B Manual Switch Application, Individual Channel Control.
FEATURES:
•Simultaneously switches all 3 front panels via the front panel rotary switch
•Each channel allows quick connection to any one of two devices from one COMMON device.
•Rated for 10/100/1000 Base-T networks (Up to Cat 5e).
•Certified for Cat5e compliance.
•All 8 pins of the RJ45 interface are switched via break-before-make rotary switch.
•The switch ports are transparent to all data.
•Simultaneous Channel Control via one knob located on the front panel, one knob switches all channels simultaneously
•High quality sealed switch with self-wiping precious metal contacts.
•Manually operated. No power required.
•Attractive all metal black box packaging provides EMI/RFI shielding.
•Lifetime warranty against manufacturing defects.
•Custom length Cat5e cables available for your switch installation for improved system performance.
The LineSelect® Model 9444 enables access to two 10/100/1000 Base-T Cat5e networks. Each of three channels of the LineSelect® Model 9444 Cat5e A/B Switch allows the user to reroute data between two networks with a simple flip of a switch. The unit supports all 8 pins of the RJ45 Cat5e interface. No need to plug and unplug cables thereby eliminating connector wear. The LineSelect® Model 9454 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.
Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.
For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/
All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
*Prices online are subject to change and verification.
All ESL products are available for export.
