Catalog # 307017 - Model 7017 Cat5e Switch, PoE Interface, for Audio & Video Camera Networks

    Model 7017 Cat5e Switch, PoE Interface, for Audio & Video Camera NetworksModel 7017 Cat5e Switch, PoE Interface, for Audio & Video Camera NetworksModel 7017 Cat5e Switch, PoE Interface, for Audio & Video Camera Networks
Click image to enlarge
    • Model 7017 Cat5e Switch, PoE Interface, for Audio & Video Camera Networks
    • Model 7017 Cat5e Switch, PoE Interface, for Audio & Video Camera Networks
    • Model 7017 Cat5e Switch, PoE Interface, for Audio & Video Camera Networks
Base Price:
$1,813.00
Catalog No: 307017
Model No: 7017
Product Type:Switches: Copper
Positions:4
Switch Application:Audio/Video Switching
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Compliance/Standards:Cat5e, PoE
Configuration:Rackmount
Pins Switched:8
Local Control:Pushbutton
Feature:PoE, Power over Ethernet

Add to Cart
The Model 7017 provides Power over Ethernet to a device connected to the selected A, B, C, or D ports.
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Path Way® Network Switch, Cat5e, RJ45
Model 7017 Single Channel RJ45 CAT5e A/B/C/D Switch, with PoE Interface

  • Ideal for Power Over Ethernet (PoE) Audio & Video Camera Network Installations.

Model 7017 Cat5e Switch, PoE Interface, for Audio & Video Camera Networks

  • SPECIFICATIONS:

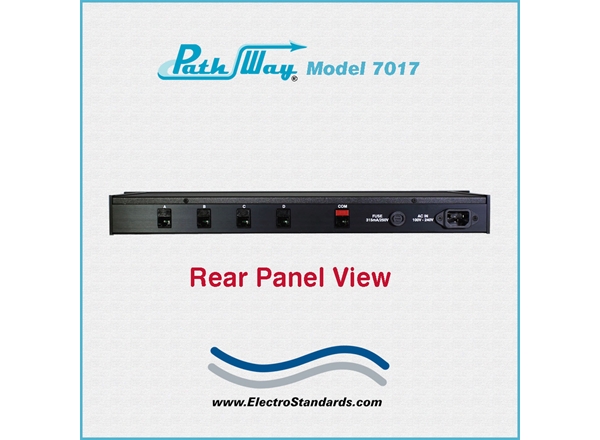

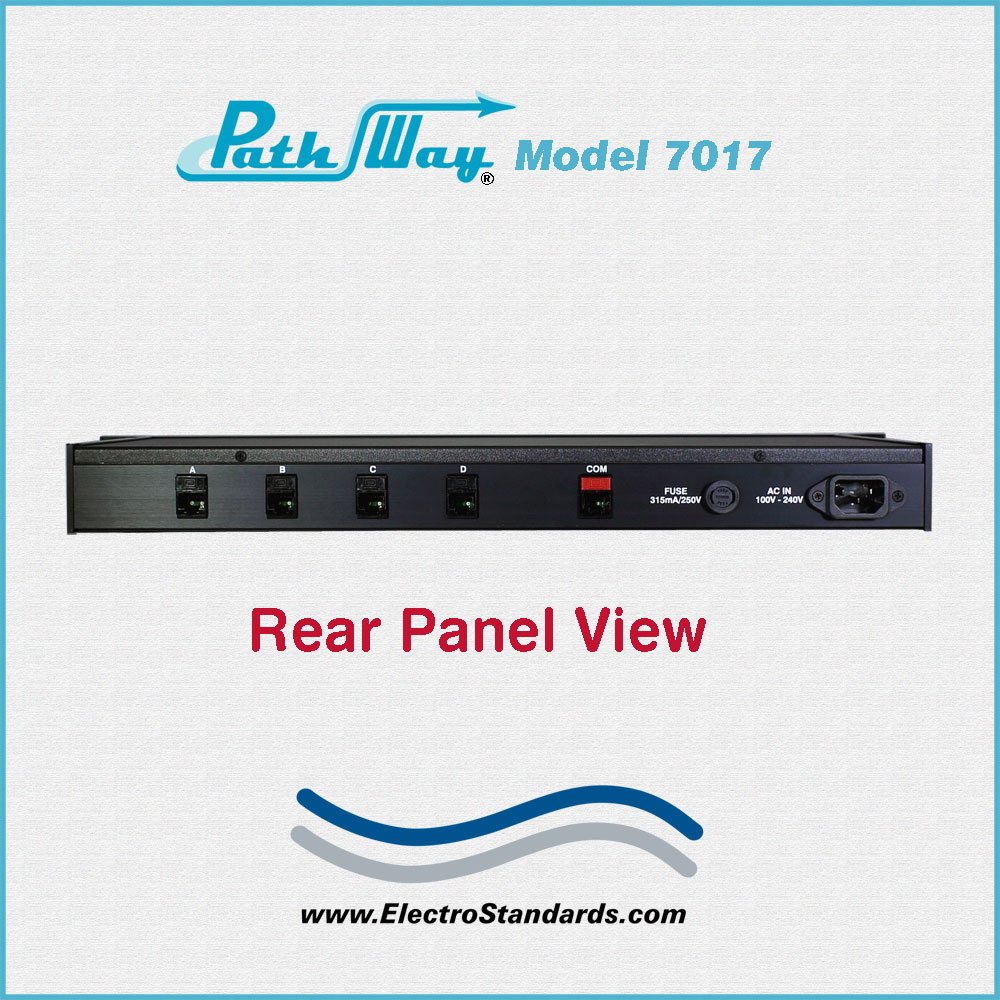

  • PORT CONNECTORS: (5) RJ45 female connectors labeled A, B, C, D, and COMMON.

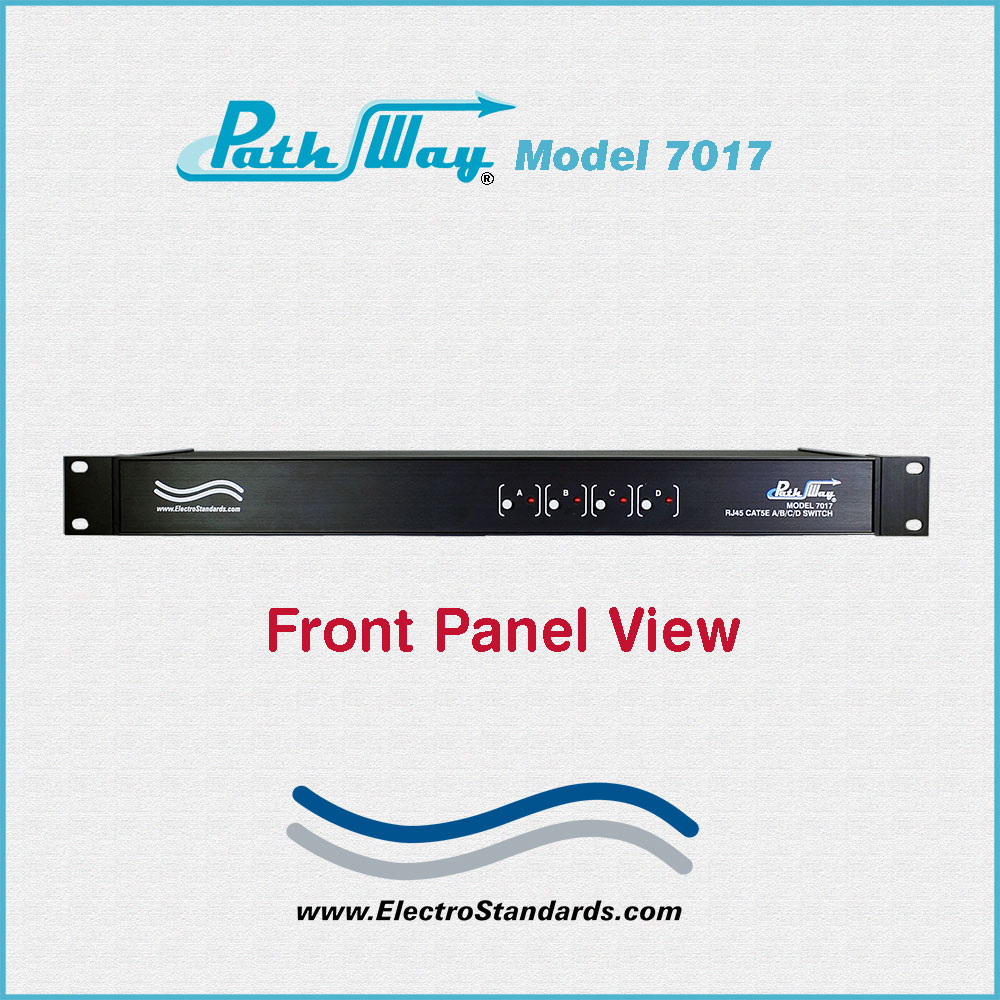

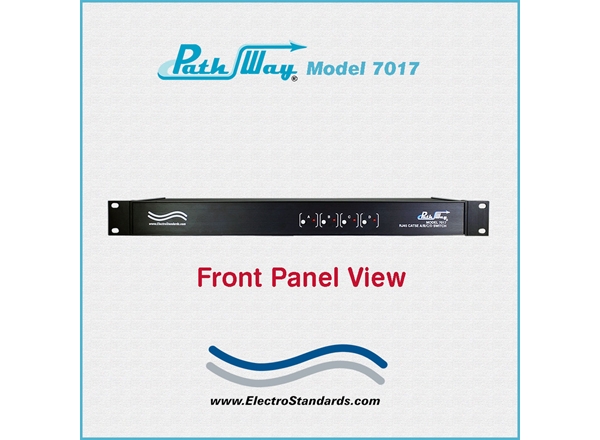

  • FRONT PANEL CONTROLS: (4) Manual Pushbuttons allow local switching.
  • DISPLAY: (4) Front Panel LED's display switch position and power status.
  • FUSE: (1) 115 VAC: Fuse, T, 0.315A, 250V.
  • POWER SUPPLY: The PathWay® Model 7017 is powered by an internal power supply. Plug the IEC 60320 C14 inlet on the rear of the unit into a 100VAC/240VAC, 50Hz/60Hz receptacle. The Model 7017 also provides Power over the Ethernet to a device connected to the selected A, B, C, or D port, if it requires PoE. The unit will not add PoE to a device if it does not require it.
  • DIMENSIONS:19.0" W x 1.75" H x 8.26" D (48.3 x 4.4 x 21.0 cm)
  • WEIGHT: Approximately 4.8 lbs (2.2 kg)

FEATURES:

  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • Front panel LED's display present position and power status.
  • Accepts PoE power to Ethernet Interface via the COMMON port and provides PoE to the selected A, B, C, and D ports.
  • Certified for Cat5e compliance.
  • Attractive all metal black box packaging provides EMI/RFI Shielding.
  • Custom length Cat5e RJ45 cables available for your switch application.

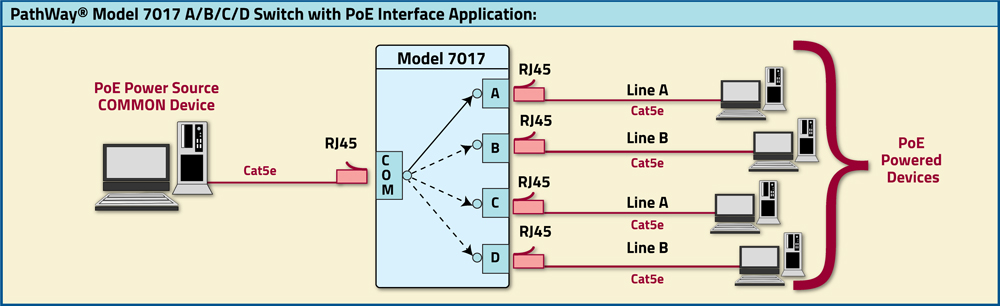

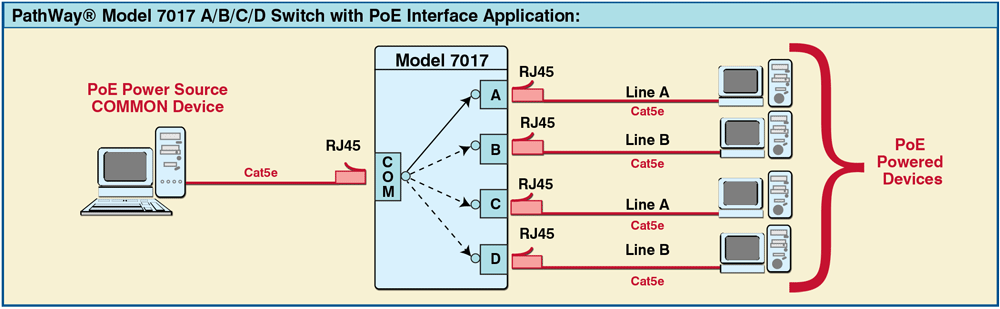

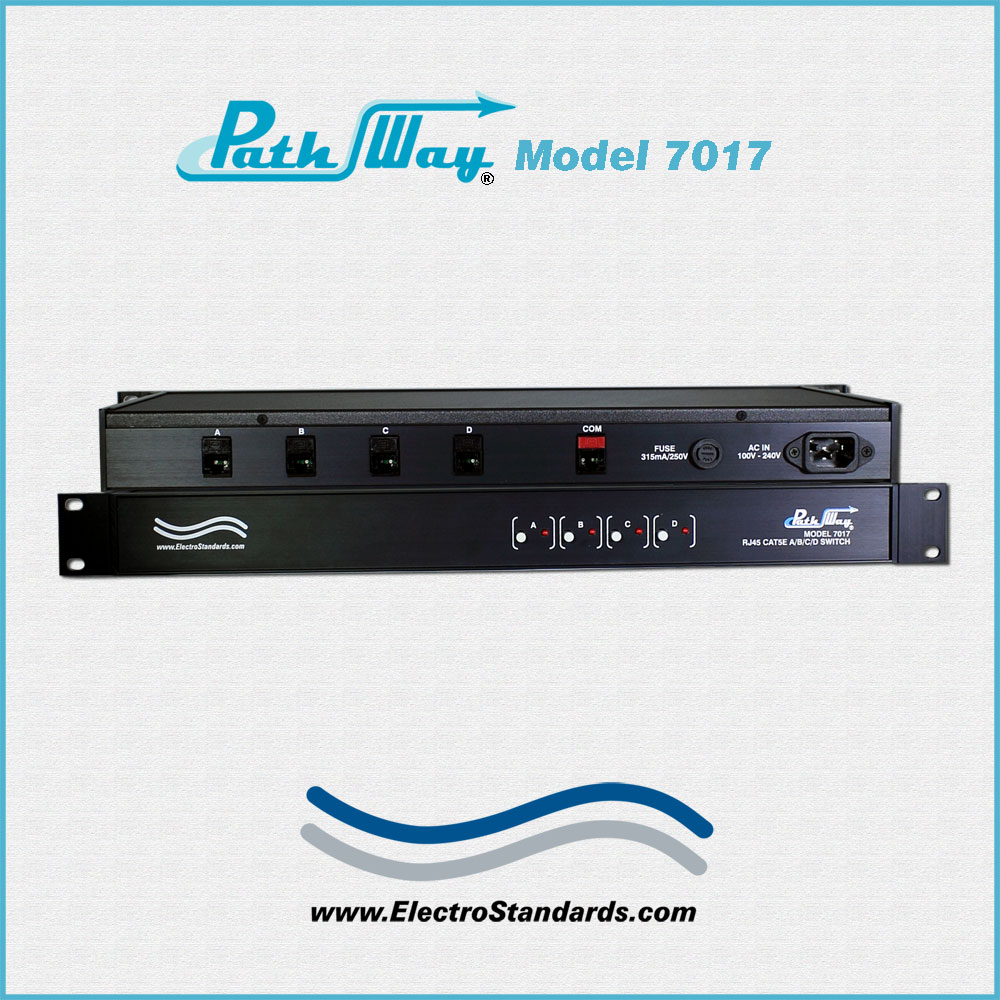

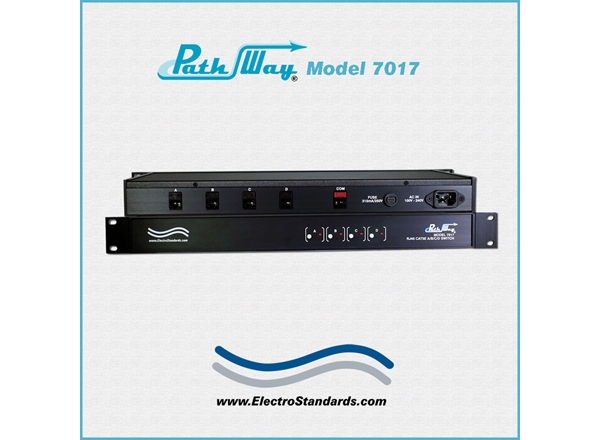

The PathWay® Model 7017 Single Channel RJ45 Cat5e A/B/C/D Switch, with PoE Interface allows a COMMON port Device to connect into any of the four Destination Devices connected to the A, B, C, and D ports. The Model 7017 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The switch may be controlled locally by manually operating the front panel pushbutton.  The front panel LED display indicates the switch position and unit power status.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
